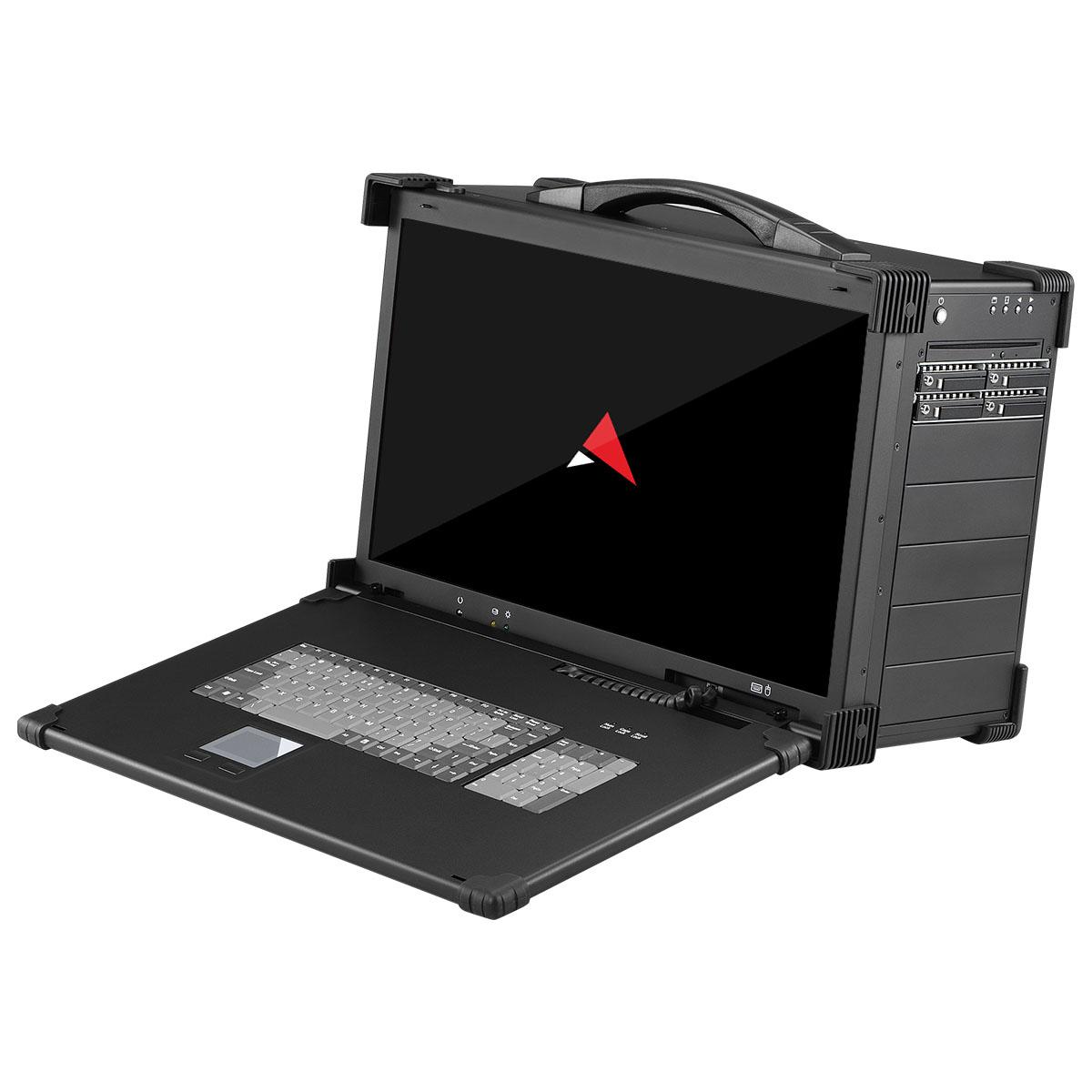

Stealth SBXI-21.5

Documented processor choices and platform support

Advertised base: Unpublished

• Support Intel Core Ultra Processors (Series 2) , LGA1851

Exact technical descriptions, including model-specific generation and socket conditions. Supported processors are not an installed default.

Memory specifications and supported ranges

Advertised base: Unpublished

• 4x DDR5 Memory Sockets supporting up to 256GB RAM / Memory

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Storage specifications and supported ranges

Advertised base: Unpublished

• Optional Intel Smart Response Technology on supported Processors
• Optional Onboard RAID configurations (0, 1, 5, 10), requires multiple drives (Note: this option may require a PCIe expansion slot)
• Optional support for SAS (Serial Attached SCSI), SCSI or Solid State Hard Drives (SSD)
• Supports all SATA (Serial-ATA) I, II & III Hard Drives (1.5Gb/s, 3Gb/s and 6Gb/s)

Technical support, ranges and stated standard components stay distinct. A maximum is not installed capacity or a list of intermediate orderable sizes.

Drive Bays

Advertised base: Unpublished

• 1x Slim-Line Optical Drive
• 6x 5.25" Open Drive Bay

Drive bays, RAID prerequisites and removable/optical drives describe capabilities or optional additions, not installed drive counts or capacity.

Removable Storage

Advertised base: Unpublished

• Optional DVDRW/CDRW/Blu-Ray Burner Optical Drive (uses 1x 5.25" Bay)
• Optional Removable drive bay with Key locking (uses 5.25" expansion bay)

Drive bays, RAID prerequisites and removable/optical drives describe capabilities or optional additions, not installed drive counts or capacity.

Native screen specifications and sync support

Display: 21.5" 1920 x 1080 Native Resolution

Optional or supported networking

• Optional support for Fiber, 10GB, Wireless and more
• Supports Dual Channel Wi-Fi 6e (2.4/5/6GHz)* and Bluetooth v5.3**

Radio support or SIM sockets do not establish an installed modem, wireless card or antenna.

Expansion / Expansion Slots

• 1x M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• 1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 4.0 x 4 mode)
• 1x PCIe 4.0 x16 slot (max at x4 mode)
• 1x PCIe 5.0 x16 slot
• 3x PCIe 4.0 x16 slot (Support x1 mode)

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / Chipset

• Intel B860

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

System / TPM Module

• Optional TPM 2.0 (Trusted Platform Module), provides increased hardware security.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Physical / Chassis Description

• Rugged Heavy Duty Aluminum Alloy Chassis with Rubber Corner Bumpers

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Supported operating systems

Advertised base: Unpublished

• Please contact us directly for any special requirements
• Windows 10 (64-bit)
• Windows 11 (64-bit)
• Windows Server 2022

Manufacturer compatibility list, not confirmation of an installed OS or a selected license. Versions alone never block publication.

Environmental / Environmental

• Operating Temperature: 0C – +45C (+32F – +113F)
• Storage Temperature: -20C – +60C (-4F – +140F)

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

Physical / Cooling Fans

• Two high capacity fans, one across expansion area, one power supply exhaust fan

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Warranty

• 2 Year limited Warranty, Standard

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.

General / Disclaimer

• Note: Specifications are subject to change without notice.

Exact official model wording. Capabilities and optional modules are not included by default; conditions and required components are retained.
