Dell/Configurable

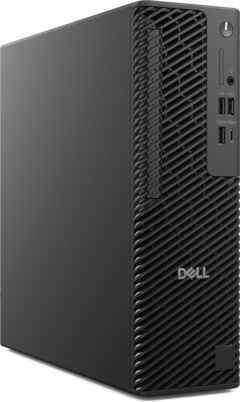

Dell Pro Max Slim Desktop
US · DELL-BASE-DELLPROMAXSLIMFCS1250
BusinessConfigurable desktop · Advertised base configuration
Configurable modelDELL-BASE-DELLPROMAXSLIMFCS1250
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
Processor
- Intel® Core™ Ultra 5 235 (24 MB cache, 14 cores, 14 threads, 2.9 GHz to 5.0 GHz, 65W)
- Intel® Core™ Ultra 5 245 (24 MB cache, 14 cores, 14 threads, 3.0 GHz to 5.1 GHz, 65W)
- Intel® Core™ Ultra 5 245K (24 MB cache, 14 cores, 14 threads, 3.6 GHz to 5.2 GHz, 125W)
- Intel® Core™ Ultra 7 265 (30 MB cache, 20 cores, 20 threads, 1.8 GHz to 5.3 GHz, 65W)
- Intel® Core™ Ultra 7 265K (30 MB cache, 20 cores, 20 threads, 3.3 GHz to 5.5 GHz, 125W)
- Intel® Core™ Ultra 9 285 (36 MB cache, 24 cores, 24 threads, 1.9 GHz to 5.6 GHz, 65W)
- Intel® Core™ Ultra 9 285K (36 MB cache, 24 cores, 24 threads, 3.2 GHz to 5.7 GHz, 125W)
- Intel® Core™ Ultra 5 235A (24 MB cache, 14 cores, 14 threads, 2.9 GHz to 5.0 GHz, 65W)
- Intel® Core™ Ultra 5 225 (20 MB cache, 10 cores, 10 threads, 2.7 GHz to 4.9 GHz, 65W)
Dell initially selects Intel® Core™ Ultra 5 235 (24 MB cache, 14 cores, 14 threads, 2.9 GHz to 5.0 GHz, 65W). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Graphics Card
- NVIDIA A400, 4 GB GDDR6, 4 mDP to DP adapters
- NVIDIA A1000, 8 GB GDDR6, 4 mDP to DP adapters
- NVIDIA RTX PRO 2000 Blackwell Workstation Edition (70W), 16GB GDDR7, 4 mDP to DP
- AMD Radeon™ Pro W7400, 8 GB GDDR6, 4 mDP to DP adapters
- Intel Integrated Graphics
- NVIDIA RTX PRO 4000 Blackwell SFF Edition (70W) 24GB GDDR7, 4 mDP to DP adapter
Dell initially selects Intel Integrated Graphics. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Thermal Cooling
- Heatsink - 65W CPU Air Cooler
- Heatsink - 125W CPU Air Cooler
Dell initially selects Heatsink - 65W CPU Air Cooler. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 8GB (1 X 8GB)Source & observationView specification source ↗Observed 2026-10-06T02:20:26.147607+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls View RAM layout source ↗ Observed 2026-10-06T02:20:26.147607+00:00 Installed RAM modules stated for the exact product or selected build View RAM stick count source ↗ Observed 2026-10-06T02:20:26.147607+00:00 Installed RAM modules stated for the exact product or selected build |
|---|
Memory
- 8 GB: 1 x 8 GB, DDR5, up to 5600 MT/s
- 16GB: 1 x 16 GB, DDR5, up to 5600 MT/s, non-ECC
- 16GB: 1 x 16 GB, DDR5, up to 5600 MT/s, ECC
- 16GB: 2 x 8 GB, DDR5, up to 5600 MT/s, non-ECC
- 32GB: 1 x 32 GB, DDR5, up to 5600 MT/s, non-ECC
- 32GB: 1 x 32 GB, DDR5, up to 5600 MT/s, ECC
- 32 GB: 2 x 16 GB, DDR5, up to 5600 MT/s, non-ECC
- 32GB: 2 x 16 GB, DDR5, up to 5600 MT/s, ECC
- 32GB: 4 x 8 GB, DDR5, up to 4800 MT/s, non-ECC
- 64 GB: 2 x 32 GB, DDR5, up to 5600 MT/s
- 64GB: 2 x 32 GB, DDR5, up to 5600 MT/s, ECC
- 64GB: 4 x 16 GB, DDR5, up to 4800 MT/s, non-ECC
- 64GB: 4 x 16 GB, DDR5, up to 4800 MT/s, ECC
- 128GB: 4 x 32 GB, DDR5, up to 4400 MT/s, non-ECC
- 128GB: 4 x 32 GB, DDR5, up to 4400 MT/s, ECC
Dell initially selects 8 GB: 1 x 8 GB, DDR5, up to 5600 MT/s. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage
- 256GB M.2 2230 SSD Gen4x4 TLC
- 512 GB SSD Gen4x4 TLC
- 512GB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 512GB M.2 2230 SSD Gen5x4 TLC SED
- 1 TB SSD Gen4x4 TLC
- 1TB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB, M.2 2280 S3, Gen4 PCIe NVMe, SED SSD, Class 40
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 4TB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell initially selects 256GB M.2 2230 SSD Gen4x4 TLC. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗SATA/SAS Storage
- None
- 2 TB, 7200 RPM, 3.5-inch, SATA, HDD
- 4 TB, 5400 RPM, 3.5-inch, SATA, HDD
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:20:26.147607+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:20:26.147607+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:20:26.147607+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:26.147607+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|---|
| Power supply | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:26.147607+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Connectivity▾
| Ports | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:26.147607+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|
Wireless
- None
- Intel® Wi-Fi 7 BE200, 2x2, 802.11be
- Qualcomm FastConnect 7800 Wi-Fi 7, 2x2 MIMO, HBS, BT Wireless Card
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:26.147607+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|---|
| Dimensions | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:26.147607+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Software & Bundle▾
| Included bundle | Unpublished |
|---|
Enclosure
- Enclosure - Dell Pro Max Slim FCS1250
Dell initially selects Enclosure - Dell Pro Max Slim FCS1250. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Operating System
- Windows 11 Pro
- Ubuntu Linux 24.04 LTS
- Red Hat Linux® 9.6 Enterprise WS, 1-year Red Hat Network
- Red Hat Linux® 9.6 Enterprise WS, 3-year Red Hat Network
- Red Hat Linux® 9.6 Enterprise WS, 5-year Red Hat Network
Dell initially selects Windows 11 Pro. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Operating System Languages
- English, French, Spanish, Brazilian Portuguese
Dell initially selects English, French, Spanish, Brazilian Portuguese. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Product Variant
- Standard
Dell initially selects Standard. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Options
- Dell Pro Max Slim with 360W (80 Plus Platinum) PSU (with system fan), DAO
- Dell Pro Max Slim with 360W (80 Plus Platinum) PSU (no system fan), DAO
Dell initially selects Dell Pro Max Slim with 360W (80 Plus Platinum) PSU (with system fan), DAO. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Power Cord
- System Power Cord, C13, 2m, 125V, 13A, US
- System Power Cord, C13, 3m, 125V 15A, US
Dell initially selects System Power Cord, C13, 2m, 125V, 13A, US. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Media Reader
- None
- Media Card Reader
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage Configuration
- Storage Config C1 2230 boot
- Storage Config C2 2230 boot 2230
- Storage Config C3 2230 boot 2230 2230
- Storage Config C4 2230 boot 2280
- Storage Config C5 2230 boot 2280 2230
- Storage Config C6 2280 boot
- Storage Config C7 2280 boot 2280
- C11 - Storage Config C11, No HD
Dell initially selects Storage Config C1 2230 boot. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage Configuration (RAID)
- NO RAID
Dell initially selects NO RAID. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Optical Drive
- None
- Integrated Smart Card Reader (CAC/PIV)
- 8x DVD+/-RW 9.5mm Optical Disk Drive
- 8x DVD-ROM 9.5mm ODD
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Network Card
- None
- Intel i226 2.5G 1P Ethernet NIC FH Bracket PCIe
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Add-in Cards
- None
- Serial Port Add-In Card (Low Profile)
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Serial Port/PS2 Adapter
- None
- Optional Serial Port
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Additional Video Ports
- None
- Optional DisplayPort 2.1, UHBR20, V1
- Optional HDMI 2.1 Port
- Optional USB Type-C with DisplayPort Alt mode
- Optional VGA Port
- Optional 2 x USB 3.2 Gen 2 Type-A Ports
- Optional 5GbE LAN NIC
- Optional Thunderbolt 4 & USB 3.2 Gen 2 Type-C Port
- Optional DisplayPort 2.1, UHBR20, V2
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Antenna
- None
- Internal Antenna
- External Antenna
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Brackets and Cables
- Thermal Pad for additional 2280 SSD
- Bracket - Caddy for CAC/PIV reader
- Bracket - Caddy for SATA Hard Drive
- Bracket - Caddy for SATA Hard Drive and CAC/PIV reader
- Bracket - Caddy for SATA Hard Drive and Optical drive
- Bracket - Caddy for Optical Drive
- Accessory - Vertical Stand, for HDD config only
- Dell HDD Rotation Bay and Cables
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Keyboard
- Dell Wired Keyboard - KB216 - English-US
- No Keyboard Selected
Dell initially selects Dell Wired Keyboard - KB216 - English-US. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Mouse
- Dell Pro 3 Wired Mouse - MS116 - Black
- No Mouse Selected
Dell initially selects Dell Pro 3 Wired Mouse - MS116 - Black. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Energy Star
- None
- ENERGY STAR Qualified
Dell initially selects ENERGY STAR Qualified. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Documentation
- Safety/Environment and Regulatory Guide (English/Spanish)
- Regular - No Documentation
Dell initially selects Regular - No Documentation. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Packaging
- Single Pack Shipping Material
Dell initially selects Single Pack Shipping Material. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Additional Label
- None
- US/Canada Battery Warning Label
Dell initially selects US/Canada Battery Warning Label. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Regulatory Label
- Regular - FSJ Regulatory Label, 360W Platinum
Dell initially selects Regular - FSJ Regulatory Label, 360W Platinum. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Warranty
- Basic Hardware Service with Onsite Support After Remote Diagnosis
Dell initially selects Basic Hardware Service with Onsite Support After Remote Diagnosis. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Dust Filter
- None
- Dell Pro Max Slim Dust Filter
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗System Monitoring
- None
- Watch Dog SRV
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Systems Management
- Intel vPro Management Disabled
- Intel® Standard Manageability
- Intel vPro Enterprise Technology Enabled
Dell initially selects Intel vPro Enterprise Technology Enabled. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Intel Rapid Storage Technology
- None
- Intel Rapid Storage Technology Driver
Dell initially selects Intel Rapid Storage Technology Driver. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗EPEAT
- None
- EPEAT Gold with Climate+
- EPEAT Silver with Climate+
Dell initially selects EPEAT Gold with Climate+. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:26.147607+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:26.147607+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
