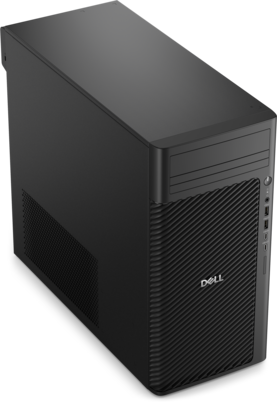

Dell Pro Precision 9 T2 Desktop
US · DELL-BASE-DELLPROPRECISION9T2PW9T2260
BusinessConfigurable desktop · Advertised base configuration
Configurable modelDELL-BASE-DELLPROPRECISION9T2PW9T2260
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
Processor
- Intel® Xeon® 636 (48 MB cache, 12 cores, up to 4.7 GHz, 170 W)
- Intel® Xeon® 658X (144 MB cache, 24 cores, up to 4.9 GHz, 250 W)
- Intel® Xeon® 656 (72 MB cache, 20 cores, up to 4.8 GHz, 210 W)
- Intel® Xeon® 638 (72 MB cache, 16 cores, up to 4.8 GHz, 180 W)
- Intel® Xeon® 654 (72 MB cache, 18 cores, up to 4.8 GHz, 200 W)
- Intel® Xeon® 634 (48 MB cache, 12 cores, up to 4.6 GHz, 150 W)
Dell initially selects Intel® Xeon® 634 (48 MB cache, 12 cores, up to 4.6 GHz, 150 W). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Graphics Card
- No Graphics Card
- NVIDIA® RTX™ A400, 4 GB GDDR6, 4 mDP to DP adapters
- AMD Radeon™ Pro W7400, 8 GB GDDR6, 4 mDP to DP adapters
- NVIDIA® RTX™ A1000, 8 GB GDDR6, 4 mDP to DP adapters
- NVIDIA® A800 Active, 40 GB, HBM2, Headless + NVIDIA® A1000, 8 GB GDDR6, 4mDP to DP adapters
- Dual NVIDIA® RTX™ A1000, 8 GB GDDR6, 4 mDP to DP adapters
- Triple NVIDIA® RTX™ A1000, 8 GB GDDR6, 4 mDP to DP adapters
- Dual NVIDIA® RTX™ PRO 2000 Blackwell, 16 GB GDDR7, 4 mDP to DP adapters
- NVIDIA® RTX™ PRO 2000 Blackwell, 16 GB GDDR7, 4 mDP to DP adapters
- NVIDIA® RTX™ PRO 4000 Blackwell, 24 GB GDDR7, 4 DP
- Dual NVIDIA® RTX™ PRO 4000 Blackwell, 24 GB GDDR7, 4 DP
- Triple NVIDIA® RTX™ PRO 4000 Blackwell, 24 GB GDDR7, 4 DP
- Dual NVIDIA® RTX™ PRO 4500 Blackwell, 32 GB GDDR7, 4 DP
- NVIDIA® RTX™ PRO 4500 Blackwell, 32 GB GDDR7, 4 DP
- NVIDIA® RTX™ PRO 5000 Blackwell, 48 GB GDDR7, 4 DP
- Dual NVIDIA® RTX™ PRO 5000 Blackwell, 48 GB GDDR7, 4 DP
- Dual NVIDIA® RTX™ PRO 6000 Blackwell Max-Q Workstation Edition (300W), 96 GB GDDR7, 4 DP
- NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition (300W), 96GB GDDR7, 4DP
- NVIDIA® RTX™ PRO 6000 Blackwell (600W), 96 GB GDDR7, 4 DP
- Dual AMD Radeon™ Pro W7400, 8 GB GDDR6, 4 mDP to DP adapters
- Dual NVIDIA® RTX™ A400, 4 GB GDDR6, 4 mDP to DP adapters
Dell initially selects NVIDIA® RTX™ A400, 4 GB GDDR6, 4 mDP to DP adapters. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Thermal Cooling
- Heatsink - On-board SSD heatsink
- Front Lower Fan for 500W chassis
Dell initially selects Heatsink - On-board SSD heatsink. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 16GB (1 X 16GB)Source & observationView specification source ↗Observed 2026-10-06T02:20:49.819210+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls View RAM layout source ↗ Observed 2026-10-06T02:20:49.819210+00:00 Installed RAM modules stated for the exact product or selected build View RAM stick count source ↗ Observed 2026-10-06T02:20:49.819210+00:00 Installed RAM modules stated for the exact product or selected build |
|---|
Memory
- 128 GB: 1 x 128 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 128 GB: 2 x 64 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 128 GB: 4 x 32 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 16 GB: 1 x 16 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 192 GB: 2 x 96 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 256 GB: 2 x 128 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 256 GB: 4 x 64 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 32 GB: 2 x 16 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 32 GB: 1 x 32 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 384 GB: 4 x 96 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 64 GB: 4 x 16 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 64 GB: 1 x 64 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 64 GB: 2 x 32 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 96 GB: 1 x 96 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 512 GB: 4 x 128 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 128 GB: 1 x 128 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 32 GB: 2 x 16 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 16 GB: 1 x 16 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 64 GB: 4 x 16 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 64 GB: 1 x 64 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 128 GB: 2 x 64 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 256 GB: 4 x 64 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 64 GB: 2 x 32 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 128 GB: 4 x 32 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 32 GB: 1 x 32 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 96 GB: 1 x 96 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 384 GB: 4 x 96 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 192 GB: 2 x 96 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 256 GB: 2 x 128 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 512 GB: 4 x 128 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
Dell initially selects 16 GB: 1 x 16 GB, DDR5, up to 5600 MT/s, RDIMM, ECC. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage
- 256GB M.2 2230 SSD Gen4x4 TLC SED
- 512GB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell initially selects 256GB M.2 2230 SSD Gen4x4 TLC SED. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Flexbay NVMe Drives
- 256GB M.2 2230 SSD Gen4x4 TLC SED
- 512GB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:20:49.819210+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:20:49.819210+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:20:49.819210+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:49.819210+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|---|
| Power supply | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:49.819210+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Connectivity▾
| Ports | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:49.819210+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|
Wireless
- None
- MediaTek Wi-Fi 7 MT7925, 2x2, 802.11be, MU-MIMO, Bluetooth® 5.4 wireless card (WW)
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:49.819210+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|---|
| Dimensions | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:49.819210+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Software & Bundle▾
| Included bundle | Unpublished |
|---|
Operating System
- Windows 11 Pro for Workstations
- Ubuntu Linux 24.04 LTS
Dell initially selects Windows 11 Pro for Workstations. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Operating System Languages
- English, French, Spanish, Brazilian Portuguese
Dell initially selects English, French, Spanish, Brazilian Portuguese. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗SERVICE TAG
- Standard
Dell initially selects Standard. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Systems Management
- Intel vPro Enterprise Technology Enabled
- Intel vPro Management Disabled
Dell initially selects Intel vPro Enterprise Technology Enabled. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Options
- Dell Pro Precision 9 T2, 1500W PSU
- Dell Pro Precision 9 T2, 750W PSU
- Dell Pro Precision 9 T2, 500W PSU
Dell initially selects Dell Pro Precision 9 T2, 750W PSU. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage Configuration
- C1: Internal NVME Boot with No Front FlexBay, No Slim ODD
- C2: Internal NVME Boot with Front SATA FlexBay
- C3: FlexBay NVME Boot with Front Dual NVME FlexBay
- C4: FlexBay NVME Boot with Front Dual NVME FlexBay + Slim ODD
- C5: Internal NVME Boot with Slim ODD only, No Front FlexBay
- C6: Int NVME Boot w Front SATA FlexBay+Slim ODD
Dell initially selects C1: Internal NVME Boot with No Front FlexBay, No Slim ODD. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Internal SATA Storage
- 4 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 8 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 12 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 16 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 20 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 24 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗FlexBay SATA Storage
- None
- 8 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 4 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 12 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 16 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 20 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 24 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Ultra-speed PCIe Drives
- None
- 512GB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Zoom Card
- None
- Dell Ultra-Speed Drive Duo Card, Full Height
- Dell Ultra-Speed Drive Quad Card, Full Height
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage Configuration (RAID)
- M.2 NVME Internal Boot, No RAID [C1, C2, C5, C6]
- M.2 NVME Internal RAID0 Boot [C1, C2, C5, C6]
- M.2 NVME Internal RAID1 Boot [C1, C2, C5, C6]
- M.2 NVME Internal Boot+ Internal RAID 0 [C1, C2, C5, C6]
- M.2 NVME Internal Boot+ Internal RAID 1 [C1, C2, C5, C6]
- M.2 NVME FlexBay Boot, No RAID [C3, C4]
- M.2 NVME FlexBay RAID0 Boot [C3, C4]
- M.2 NVME FlexBay RAID1 Boot [C3, C4]
- M.2 NVME FlexBay RAID0 Boot + Internal RAID0 [C3, C4]
- M.2 NVME FlexBay RAID1 Boot + Internal RAID1 [C3, C4]
Dell initially selects M.2 NVME Internal Boot, No RAID [C1, C2, C5, C6]. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗SATA/SAS RAID
- NO RAID
- RAID0 for SATA/SAS
- RAID1 for SATA/SAS
- RAID5 for SATA/SAS
Dell initially selects NO RAID. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗UltraSpeed RAID
- None
- RAID 0 on Dell UltraSpeed Card
- RAID 1 on Dell UltraSpeed Card
- RAID 5 on Dell UltraSpeed Card
- RAID 10 on Dell UltraSpeed Card
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Intel VROC Software and License
- None
- Virtual Raid on CPU software driver
- Virtual RAID on CPU software driver and Premium license key for Windows
- Virtual RAID on CPU software driver and Standard license key for Windows
Dell initially selects Virtual Raid on CPU software driver. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Network Card
- None
- Intel® E810-XXV DA2 - Ethernet PCIe Full Height, 25 Gbps
- Intel® X710-T2L - Ethernet PCIe Full Height, 10 Gbps
- Intel i226 2.5G Ethernet NIC, PCIe Full Height
- Intel® X710 -DA2 Ethernet PCIe, SPF+, 10 Gbps
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Optical Drive
- None
- 8x DVD+/-RW 9.5mm Optical Disk Drive
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Media Reader
- None
- Media Card Reader
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Additional Video Ports
- None
- Optional 5GbE LAN NIC
- Optional 2 x USB 3.2 Gen 2 Type-A Ports
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Add-in Cards
- None
- Optional Serial Port
- PCIe I/O - Serial Port Add-In Card (full height)
- PCIe I/O - Dell USB 3.2 - Ethernet PCIe Full Height, 3.2 Gbps (full height)
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗SFP Modules (Multi)
- None
- Intel Ethernet SFP+ 10G-SR Optics Module
- Dual Intel Ethernet SFP+ 10G-SR Optics Module
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Power Cord
- System Power Cord, C13, 2m, 125V, 13A, US
- No Power Cord
Dell initially selects System Power Cord, C13, 2m, 125V, 13A, US. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Dust Filter
- None
- T2 Dust Filter bezel
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Cable Cover
- None
- T2 Cable Cover
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Keyboard
- Dell Wired Keyboard - KB216 - English-US
- No Keyboard Selected
Dell initially selects Dell Wired Keyboard - KB216 - English-US. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Mouse
- Dell Pro 3 Wired Mouse - MS116 - Black
- Dell Pro 3 Wired Mouse - MS116 - White
- No Mouse Selected
Dell initially selects Dell Pro 3 Wired Mouse - MS116 - Black. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Energy Star
- None
- ENERGY STAR Qualified
Dell initially selects ENERGY STAR Qualified. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗EPEAT
- None
- EPEAT Gold with Climate+
Dell initially selects EPEAT Gold with Climate+. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Warranty
- Basic Hardware Service with Onsite Support After Remote Diagnosis
Dell initially selects Basic Hardware Service with Onsite Support After Remote Diagnosis. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Graphics Holder and Cable
- Graphics End Holder
- Graphics 3S Mid Holder
- Graphic cable, Dual 6+2 Pin
- Accessory - Dongle cable
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Brackets and Cables
- None
- M.2 SSD 2230 Holder
- Dual M.2 SSD 2230 Holder
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Documentation
- Safety/Environment and Regulatory Guide (English/Spanish)
- Regular - No Documentation
Dell initially selects Regular - No Documentation. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗System Label
- Precision 9 T2 Regulatory Label, 750W
Dell initially selects Precision 9 T2 Regulatory Label, 750W. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Packaging
- Shipping Material (Boxes) Box - Single Pack Shipping Material
Dell initially selects Shipping Material (Boxes) Box - Single Pack Shipping Material. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Packaging Label
- 3 in 1 Packaging Label (DAO, APCC, China, Japan, KR, HK, BCC, EMEA)
Dell initially selects 3 in 1 Packaging Label (DAO, APCC, China, Japan, KR, HK, BCC, EMEA). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Placemat
- Quick Setup Guide (DAO)
Dell initially selects Quick Setup Guide (DAO). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:49.819210+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:49.819210+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
Compare Configurations
Other configurable in the catalog. No ranking is implied.
