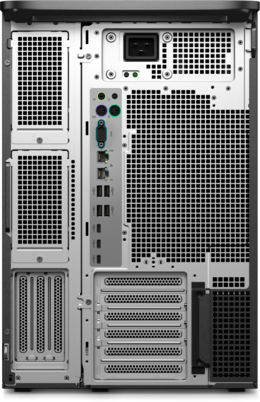

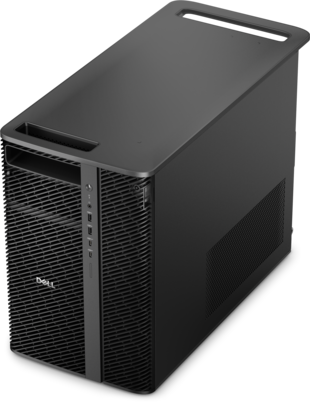

Dell Pro Precision 9 T6 Desktop
US · DELL-BASE-DELLPROPRECISION9T6PW9T6260
BusinessConfigurable desktop · Advertised base configuration
Configurable modelDELL-BASE-DELLPROPRECISION9T6PW9T6260
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
Processor
- Intel® Xeon® 654 (72 MB cache, 18 cores, up to 4.8 GHz, 200 W)
- Intel® Xeon® 656 (72 MB cache, 20 cores, up to 4.8 GHz, 210 W)
- Intel® Xeon® 658X (144 MB cache, 24 cores, up to 4.9 GHz, 250 W)
- Intel® Xeon 674X (144 MB cache, 28 cores, up to 4.9 GHz, 270W)
- Intel® Xeon 676X (144 MB cache, 32 cores, up to 4.9 GHz, 275W)
- Intel® Xeon 678X (192 MB cache, 48 cores, up to 4.9 GHz, 300W)
- Intel® Xeon 696X (336 MB cache, 64 cores, up to 4.8 GHz, 350W)
- Intel® Xeon 698X (336 MB cache, 86 cores, up to 4.8 GHz, 350W)
Dell initially selects Intel® Xeon® 654 (72 MB cache, 18 cores, up to 4.8 GHz, 200 W). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Graphics Card
- Triple NVIDIA A800 Active, 40 GB, HBM2, Headless + NVIDIA A1000, 8 GB GDDR6, 4mDP to DP adapters
- NVIDIA® RTX™ PRO 6000 Blackwell (600W), 96 GB GDDR7, 4 DP
- AMD Radeon™ Pro W7400, 8 GB GDDR6, 4 mDP to DP adapters
- Dual AMD Radeon™ Pro W7400, 8 GB GDDR6, 4 mDP to DP adapters
- Dual NVIDIA RTX PRO 6000 Blackwell Workstation Edition (600W), 96GB GDDR7, 4DP
- 5x NVIDIA® RTX™ A1000, 8 GB GDDR6, 4 mDP to DP adapters
- Quad NVIDIA® RTX™ PRO 4000 Blackwell, 24 GB GDDR7, 4 DP
- Triple NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition (300W), 96GB GDDR7, 4DP
- Triple NVIDIA® RTX™ PRO 5000 Blackwell, 48 GB GDDR7, 4 DP
- NVIDIA® RTX™ A1000, 8 GB GDDR6, 4 mDP to DP adapters
- Dual NVIDIA® RTX™ A1000, 8 GB GDDR6, 4 mDP to DP adapters
- Quad NVIDIA® RTX™ A1000, 8 GB GDDR6, 4 mDP to DP adapters
- Triple NVIDIA A1000,8GB DDR6,4 mDP to DP
- NVIDIA® RTX™ A400, 4 GB GDDR6, 4 mDP to DP adapters
- Dual NVIDIA A400, 4 GB GDDR6,4 mDP to DP
- NVIDIA® A800 Active, 40 GB, HBM2, Headless + NVIDIA® A1000, 8 GB GDDR6, 4mDP to DP adapters
- Dual NVIDIA® A800 Active, 40 GB, HBM2, Headless + NVIDIA® A1000, 8 GB GDDR6, 4mDP to DP adapters
- NVIDIA® RTX™ PRO 2000 Blackwell, 16 GB GDDR7, 4 mDP to DP adapters
- Dual NVIDIA RTX PRO 2000 Blackwell Workstation Edition (70W), 16GB GDDR7, 4mDP to DP
- NVIDIA® RTX™ PRO 4000 Blackwell, 24 GB GDDR7, 4 DP
- Dual NVIDIA® RTX™ PRO 4000 Blackwell, 24 GB GDDR7, 4 DP
- Triple NVIDIA® RTX™ PRO 4000 Blackwell, 24 GB GDDR7, 4 DP
- NVIDIA® RTX™ PRO 4500 Blackwell, 32 GB GDDR7, 4 DP
- Dual NVIDIA® RTX™ PRO 4500 Blackwell, 32 GB GDDR7, 4 DP
- NVIDIA® RTX™ PRO 5000 Blackwell, 48 GB GDDR7, 4 DP
- Dual NVIDIA® RTX™ PRO 5000 Blackwell, 48 GB GDDR7, 4 DP
- NVIDIA® RTX™ PRO 6000 Blackwell Max-Q Workstation Edition (300W), 96 GB GDDR7, 4 DP
- Dual NVIDIA® RTX™ PRO 6000 Blackwell Max-Q Workstation Edition (300W), 96 GB GDDR7, 4 DP
Dell initially selects NVIDIA® RTX™ A400, 4 GB GDDR6, 4 mDP to DP adapters. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 16GB (1 X 16GB)Source & observationView specification source ↗Observed 2026-10-06T02:21:02.864255+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls View RAM layout source ↗ Observed 2026-10-06T02:21:02.864255+00:00 Installed RAM modules stated for the exact product or selected build View RAM stick count source ↗ Observed 2026-10-06T02:21:02.864255+00:00 Installed RAM modules stated for the exact product or selected build |
|---|
Memory
- 16 GB: 1 x 16 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 32 GB: 2 x 16 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 32 GB: 1 x 32 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 64 GB: 4 x 16 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 64 GB: 2 x 32 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 64 GB: 1 x 64 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 96 GB: 1 x 96 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 128 GB: 8 x 16 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 128 GB: 4 x 32 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 128 GB: 2 x 64 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 128 GB: 1 x 128 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 192 GB: 12 x 16 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 192 GB: 2 x 96 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 256 GB: 16 x 16 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 256 GB: 8 x 32 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 256 GB: 4 x 64 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 256 GB: 2 x 128 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 384 GB: 12 x 32 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 384 GB: 4 x 96 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 512 GB: 16 x 32 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 512 GB: 8 x 64 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 512 GB: 4 x 128 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 768 GB: 12 x 64 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 768 GB: 8 x 96 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 1 TB: 16 x 64 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 1 TB: 8 x 128 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 1 TB: 12 x 96 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 1.5 TB: 16 x 96 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 1.5 TB: 12 x 128 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 2 TB: 16 x 128 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 1.15 TB: 12 x 96 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 384 GB: 4 x 96 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 192 GB: 2 x 96 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 96 GB: 1 x 96 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 1 TB: 4 x 256 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 3 TB: 12 x 256 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 4 TB: 16 x 256 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 256 GB: 1 x 256 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 512 GB: 2 x 256 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 2 TB: 8 x 256 GB, DDR5, up to 6400 MT/s, RDIMM, ECC
- 1.5 TB: 12 x 128 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 128 GB: 1 x 128 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 256 GB: 2 x 128 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 512 GB: 4 x 128 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 768 GB: 8 x 96 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 1.5 TB: 16 x 96 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 2 TB: 16 x 128 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 1 TB: 8 x 128 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
- 16 GB: 1 x 16 GB, DDR5, up to 5600 MT/s, RDIMM, ECC
Dell initially selects 16 GB: 1 x 16 GB, DDR5, up to 5600 MT/s, RDIMM, ECC. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage
- None
- 512GB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 512GB M.2 2230 SSD Gen5x4 TLC SED
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell initially selects 512GB M.2 2280 SSD with DRAM Gen4x4 TLC SED. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Internal NVMe Drives
- 512GB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 512GB M.2 2230 SSD Gen5x4 TLC SED
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Flexbay NVMe Drives
- 512GB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 512GB M.2 2230 SSD Gen5x4 TLC SED
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 3.2 TB E3.S Performance SSD
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:21:02.864255+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:21:02.864255+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:21:02.864255+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:21:02.864255+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|---|
| Power supply | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:21:02.864255+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Connectivity▾
| Ports | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:21:02.864255+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|
Wireless
- None
- MediaTek Wi-Fi 7 MT7925, 2x2, 802.11be, MU-MIMO, Bluetooth® 5.4 wireless card (WW)
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:21:02.864255+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|---|
| Dimensions | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:21:02.864255+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Software & Bundle▾
| Included bundle | Unpublished |
|---|
Operating System
- Windows 11 Pro for Workstations
- Ubuntu Linux 24.04 LTS
Dell initially selects Windows 11 Pro for Workstations. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Operating System Languages
- English, French, Spanish, Brazilian Portuguese
Dell initially selects English, French, Spanish, Brazilian Portuguese. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Systems Management
- Intel vPro Enterprise Technology Enabled
- Intel vPro Management Disabled
Dell initially selects Intel vPro Enterprise Technology Enabled. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Options
- Precision 9 T6 2400W SATA chassis
Dell initially selects Precision 9 T6 2400W SATA chassis. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage Configuration
- F0:Internal NVME MB Boot;[2x 3.5 HDD shield] Front Flex Bay; Internal SATA optional S1/S2 (Integ)
- F4:Internal / Flex Bay Boot;[4xNVME] Front Flex Bay;Internal SATA optional S1/S2 (Integ)
- F7:Internal NVME MB Boot;[2xSATA] Front Flex Bay;Internal SATA optional S4/S5 (MegaRAID)
- F6:Internal NVME MB Boot;[4xNVME] Front Flex Bay; no Internal SATA (MegaRAID)
- F5:Internal NVME MB Boot;[2xSATA] Front Flex Bay;Internal SATA optional S1/S2 (Integrated)
Dell initially selects F0:Internal NVME MB Boot;[2x 3.5 HDD shield] Front Flex Bay; Internal SATA optional S1/S2 (Integ). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage Controllers
- None
- MegaRAID SAS 9660-16i HW RAID controller
- Dual MegaRAID SAS 9660-16i HW RAID controllers for Expansion
- MegaRAID SAS 9660-16i HW RAID controller for Expansion
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗HDD and MB Configuration
- S2:[2xSATA] Internal SATA HDD (Integrated,require (F0/F1/F2/F3/F4/F5)
- S3:(2xSATA) Internal SATA HDD (MegaRAID,require (F4)
- S5:(2xSATA) Internal SATA HDD (MegaRAID,require (F7)
- S0/S1/S4:(1xSATA Internal SATA HDD (Integrated,require(F0,F1,F2,F3,F4,F5,F6,F7)
Dell initially selects S0/S1/S4:(1xSATA Internal SATA HDD (Integrated,require(F0,F1,F2,F3,F4,F5,F6,F7). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Expansion Front Top NVMe Drives
- 512GB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 512GB M.2 2230 SSD Gen5x4 TLC SED
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 3.2 TB E3.S Performance SSD
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Expansion Front Mid NVMe Drives
- 512GB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 512GB M.2 2230 SSD Gen5x4 TLC SED
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 3.2 TB E3.S Performance SSD
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Internal SATA Storage
- 4 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 8 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 12 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 16 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 20 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 24 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗FlexBay SATA Storage
- 4 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 8 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 12 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 16 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 20 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 24 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Expansion SATA/SAS Storage
- 1.2 TB, 10000 RPM, 2.5-inch, SAS SATA, HDD, AG-Enterprise Class
- 2.4 TB, 10000 RPM, 2.5-inch, SAS SATA, HDD, AG-Enterprise Class
- 4 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 8 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 12 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 16 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 20 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 24 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Riser Card
- Expansion Bottom + Middle Risers
- Expansion Bottom + Middle + Top Risers
- Expansion Bottom Riser
Dell initially selects Expansion Bottom Riser. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Expansion Riser - Front Storage configuration
- EF2: Expansion Front FB; [2x SATA] Front TopFB; [2x SATA] Front Middle FB (Integ); req ER0
- EF5: Expansion Front FB; [4x NVME] Front TopFB; [4x NVME] Front Middle FB (Integ); req ER0/ER2/ER4
- EFT1: Expansion Front FB; [2x SATA] Front TopFB; No Front Middle FB (Integ); req ERT1
- EF12: Expansion Front FB; [2x SATA/SAS] Front TopFB; [2x SATA/SAS] Front Middle FB(MegaRAID); req ER5
- EFT3: Expansion Front FB; [4x NVME] Front TopFB; No Front Middle FB (Integ); req ERT1
- EFT6: Expansion Front FB; [2x SATA/SAS] Front TopFB; No Front Middle FB (Exp MegaRAID); req ERT2
- EF1:Expansion Front FB;[2x SATA] Front TopFB; No Front Middle FB (Integ);req ER0
- EF4: Expansion Front FB; [4x NVME] Front TopFB; [2x SATA] Front Middle FB (Integ); req ER0/ER1
- EF11: Expansion Front FB; [4x NVME] Front TopFB; [2x SATA/SAS] Front Middle FB(Exp MegaRAID); req ER5
- EF10: Expansion Front FB; [4x NVME] Front TopFB; [2x SATA/SAS] Front Middle FB(Exp MegaRAID); req ER0
- EF7: Expansion Front FB ;[2x SATA/SAS] Front TopFB; [2x SATA/SAS] Front Mid FB(Exp MegaRAID); req ER0
- EF8:Expansion Front FB;[4x NVME] Front TopFB; No Front Middle FB (Exp MegaRAID);req ER0
- EF3:Expansion Front FB;[4x NVME] Front TopFB; No Front Middle FB (Integ);req ER0/ER2/ER3
- EF6:Expansion Front FB;[2x SATA/SAS] Front TopFB; No Front Middle FB (Exp MegaRAID);req ER0
- EF9: Expansion Front FB; [4x NVME] Front TopFB(Exp MegaRAID); [4x NVME] Front Mid FB (Integ); req ER0
- EF0: No Expansion Front Bay; req ER0/ER2
Dell initially selects EF0: No Expansion Front Bay; req ER0/ER2. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Expansion Riser - Rear Storage configuration
- ER1: Expansion Rear Bay; [2x SATA] Rear Top FB; No Rear Middle FB (Integ); req EF4
- ER4: Expansion Rear Bay; [2x SATA/SAS] Rear Top FB; [2x SATA/SAS] Rear Mid FB (Exp MegaRAID); req EF5
- ER3: Expansion Rear Bay; [2x SATA/SAS] Rear Top FB; No Rear Middle FB (Exp MegaRAID); req EF3
- ER2: Expansion Rear Bay; [2x SATA] Rear Top FB; [2x SATA] Rear Middle FB (Integ); req EF0/EF3/EF5
- ER0: No Expansion Rear Bay; req EF0/EF1/EF2/EF3/EF4/EF5/EF6/EF7/EF8/EF9/EF10
- ERT2: Expansion Rear Bay; [2x SATA/SAS] Rear Top FB; No Rear Middle FB (Exp MegaRAID); req EFT6
- ER5: Exp. Rear Bay; [2x SATA/SAS] Rear Top FB; [2x SATA/SAS] Rear Mid FB (Exp MegaRAID); req EF11/EF12
- ERT1: Expansion Rear Bay; [2x SATA] Rear Top FB; No Rear Middle FB (Integ); req EFT1/EF3
Dell initially selects ER0: No Expansion Rear Bay; req EF0/EF1/EF2/EF3/EF4/EF5/EF6/EF7/EF8/EF9/EF10. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Lockable and non-Lockable Front FlexBay
- None
- Front Flex Bay Lockable Bezel
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Options
- None
- Virtual RAID on CPU software driver and Standard license key - Windows
- Virtual RAID on CPU software driver - Windows
- Virtual RAID on CPU software driver and Premium license key - Windows
Dell initially selects Virtual RAID on CPU software driver - Windows. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage Configuration (RAID)
- Internal NVME Boot + Internal NVME RAID0 (F0+ S1)
- Internal NVME Boot + Internal NVME RAID1 (F0+ S1)
- Internal NVME Boot + Internal NVME RAID5 (F0+ S1)
- Internal NVME Boot No Internal NVME RAID (F0+ S1)
Dell initially selects Internal NVME Boot No Internal NVME RAID (F0+ S1). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗SATA RAID
- None
- SATA RAID 0
- SATA RAID 1
- SATA RAID 5
- SATA RAID 10
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗SATA/SAS RAID Configurations - Expansion Riser
- None
- Expansion SATA-SAS RAID 0
- Expansion SATA-SAS RAID 1
- Expansion SATA-SAS RAID 5
- Expansion SATA-SAS RAID 10
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Front Flex Bay RAID
- None
- Front Flex Bay NVMe RAID 0
- Front Flex Bay NVMe RAID 1
- Front Flex Bay NVMe RAID 5
- Front Flex Bay NVMe RAID 10
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗NVMe RAID Configurations - Expansion Riser - Front Middle
- None
- Expansion Front Flex Bay Middle NVMe RAID 0
- Expansion Front Flex Bay Middle NVMe RAID 1
- Expansion Front Flex Bay Middle NVMe RAID 5
- Expansion Front Flex Middle Bay NVMe RAID 10
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗RAID Configurations - Expansion Riser - Front Top
- None
- EXP:Front Top Flex Bay NVME RAID 5 (EF5+ ER2)
- EXP:No Front Top Flex Bay NVME RAID (EF12+ ER5)
- EXP:Front Top Flex Bay NVME RAID 10 (EF3+ ER0)
- EXP:Front Top Flex Bay NVME RAID 1 (EF9+ ER0)
- EXP:No Front Top Flex Bay NVME RAID (EF2+ ER0)
- EXP:Front Top Flex Bay NVME RAID 10 (EF5+ ER4)
- EXP:No Front Top Flex Bay NVME RAID (EF5+ ER2)
- EXP:Front Top Flex Bay NVME RAID 0 (EF9+ ER0)
- EXP:Front Top Flex Bay NVME RAID 5 (EF4+ ER1)
- EXP:Front Top Flex Bay NVME RAID 0 (EF10+ ER0)
- EXP:No Front Top Flex Bay NVME RAID (EFT1+ ERT1)
- EXP:Front Top Flex Bay NVME RAID 5 (EF5+ ER4)
- EXP:Front Top Flex Bay NVME RAID 10 (EF3+ ER3)
- EXP:Front Top Flex Bay NVME RAID 10 (EF4+ ER0)
- EXP:Front Top Flex Bay NVME RAID 5 (EF10+ ER0)
- EXP:Front Top Flex Bay NVME RAID 0 (EF11+ ER5)
- EXP:No Front Top Flex Bay NVME RAID (EF3+ ER3)
- EXP:Front Top Flex Bay NVME RAID 1 (EF11+ ER5)
- EXP:Front Top Flex Bay NVME RAID 5 (EF3+ ER2)
- EXP:Front Top Flex Bay NVME RAID 1 (EF8+ ER0)
- EXP:No Front Top Flex Bay NVME RAID (EF6+ ER0)
- EXP:Front Top Flex Bay NVME RAID 10 (EF4+ ER1)
- EXP:Front Top Flex Bay NVME RAID 5 (EF3+ ER0)
- EXP:Front Top Flex Bay NVME RAID 0 (EF3+ ER3)
- EXP:No Front Top Flex Bay NVME RAID (EF11+ ER5)
- EXP:Front Top Flex Bay NVME RAID 1 (EF5+ ER2)
- EXP:Front Top Flex Bay NVME RAID 1 (EF4+ ER1)
- EXP:Front Top Flex Bay NVME RAID 0 (EF4+ ER1)
- EXP:Front Top Flex Bay NVME RAID 10 (EF9+ ER0)
- EXP:No Front Top Flex Bay NVME RAID (EF5+ ER0)
- EXP:Front Top Flex Bay NVME RAID 0 (EF5+ ER2)
- EXP:No Front Top Flex Bay NVME RAID (EF8+ ER0)
- EXP:No Front Top Flex Bay NVME RAID (EF9+ ER0)
- EXP:Front Top Flex Bay NVME RAID 1 (EF3+ ER0)
- EXP:No Front Top Flex Bay NVME RAID (EF7+ ER0)
- EXP:Front Top Flex Bay NVME RAID 0 (EF8+ ER0)
- EXP:Front Top Flex Bay NVME RAID 10 (EF10+ ER0)
- EXP:No Front Top Flex Bay NVME RAID (EFT3+ ERT1)
- EXP:Front Top Flex Bay NVME RAID 1 (EF10+ ER0)
- EXP:Front Top Flex Bay NVME RAID 5 (EF3+ ER3)
- EXP:Front Top Flex Bay NVME RAID 5 (EF9+ ER0)
- EXP:Front Top Flex Bay NVME RAID 0 (EF5+ ER0)
- EXP:Front Top Flex Bay NVME RAID 1 (EF3+ ER3)
- EXP:Front Top Flex Bay NVME RAID 5 (EF11+ ER5)
- EXP:No Front Top Flex Bay NVME RAID (EF0+ ER2)
- EXP:No Front Top Flex Bay NVME RAID (EF3+ ER2)
- EXP:Front Top Flex Bay NVME RAID 5 (EF5+ ER0)
- EXP:Front Top Flex Bay NVME RAID 0 (EF3+ ER2)
- EXP:Front Top Flex Bay NVME RAID 0 (EF5+ ER4)
- EXP:Front Top Flex Bay NVME RAID 1 (EF5+ ER4)
- EXP:No Front Top Flex Bay NVME RAID (EF0+ ER0)
- EXP:Front Top Flex Bay NVME RAID 1 (EFT3+ ERT1)
- EXP:Front Top Flex Bay NVME RAID 0 (EFT3+ ERT1)
- EXP:Front Top Flex Bay NVME RAID 1 (EF5+ ER0)
- EXP:Front Top Flex Bay NVME RAID 0 (EF3+ ER0)
- EXP:Front Top Flex Bay NVME RAID 1 (EF3+ ER2)
- EXP:Front Top Flex Bay NVME RAID 10 (EF5+ ER2)
- EXP:No Front Top Flex Bay NVME RAID (EFT6+ ERT2)
- EXP:Front Top Flex Bay NVME RAID 5 (EF8+ ER0)
- EXP:Front Top Flex Bay NVME RAID 1 (EF4+ ER0)
- EXP:Front Top Flex Bay NVME RAID 10 (EF8+ ER0)
- EXP:Front Top Flex Bay NVME RAID 0 (EF4+ ER0)
- EXP:No Front Top Flex Bay NVME RAID (EF5+ ER4)
- EXP:Front Top Flex Bay NVME RAID 10 (EF11+ ER5)
- EXP:Front Top Flex Bay NVME RAID 10 (EF5+ ER0)
- EXP:Front Top Flex Bay NVME RAID 10 (EFT3+ ERT1)
- EXP:Front Top Flex Bay NVME RAID 5 (EFT3+ ERT1)
- EXP:Front Top Flex Bay NVME RAID 10 (EF3+ ER2)
- EXP:No Front Top Flex Bay NVME RAID (EF1+ ER0)
- EXP:No Front Top Flex Bay NVME RAID (EF3+ ER0)
- EXP:No Front Top Flex Bay NVME RAID (EF4+ ER0)
- EXP:Front Top Flex Bay NVME RAID 5 (EF4+ ER0)
- EXP:No Front Top Flex Bay NVME RAID (EF10+ ER0)
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Optical Drive
- None
- 8x DVD+/-RW 9.5mm Optical Disk Drive
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Power Cord
- Jumper Cord - C19/C20, 0.6M, 250V, 16A (US, EU, TW, CN, APCC countries except ANZ)
- Jumper Cord - C19/C20, 2.5M, 230V, 16A (EU, HKTW and APCC countries except ANZ)
- System Power Cord, C19, 2.5m, 250V 20A, US
- System Power cord C19 (US 125V, 20A)
- No Power Cord
Dell initially selects System Power Cord, C19, 2.5m, 250V 20A, US. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Media Reader
- None
- Media Card Reader
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Network Card
- None
- Intel® E810-XXV DA2 - Ethernet PCIe Full Height, 25 Gbps
- Intel® X710-T2L - Ethernet PCIe Full Height, 10 Gbps
- Intel i226 2.5G Ethernet NIC, PCIe Full Height
- Intel® X710 -DA2 Ethernet PCIe, SPF+, 10 Gbps
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗SFP Modules (Multi)
- None
- Intel Ethernet SFP+ 10G-SR Optics Module
- Dual Intel Ethernet SFP+ 10G-SR Optics Module
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Add-in Cards
- PCIe I/O - Dell USB 3.2 - Ethernet PCIe Full Height, 3.2 Gbps (full height)
- PCIe I/O - Serial Port Add-In Card (full height)
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Packaging
- Single Pack Packaging
Dell initially selects Single Pack Packaging. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Energy Star
- None
- ENERGY STAR Qualified
Dell initially selects ENERGY STAR Qualified. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Keyboard
- Dell Wired Keyboard - KB216 - English-US
- No Keyboard Selected
Dell initially selects Dell Wired Keyboard - KB216 - English-US. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Mouse
- Dell Pro 3 Wired Mouse - MS116 - Black
- Dell Pro 3 Wired Mouse - MS116 - White
- No Mouse Selected
Dell initially selects Dell Pro 3 Wired Mouse - MS116 - Black. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Documentation
- Safety/Environment and Regulatory Guide (English/Spanish)
Dell initially selects Safety/Environment and Regulatory Guide (English/Spanish). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Placemat
- Quick Setup Guide (DAO)
Dell initially selects Quick Setup Guide (DAO). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗System Label
- Label - Precision 9 T6 Regulatory label 2400W
Dell initially selects Label - Precision 9 T6 Regulatory label 2400W. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Service Tag
- Standard
Dell initially selects Standard. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Warranty
- Basic Hardware Service with Onsite Support After Remote Diagnosis
Dell initially selects Basic Hardware Service with Onsite Support After Remote Diagnosis. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗EPEAT
- None
- EPEAT Gold with Climate+
Dell initially selects EPEAT Gold with Climate+. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:21:02.864255+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:21:02.864255+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
Compare Configurations
Other configurable in the catalog. No ranking is implied.
