Home›Configurable›DELL-BASE-DELLPROPRECISION516SPW516260

Dell/Configurable

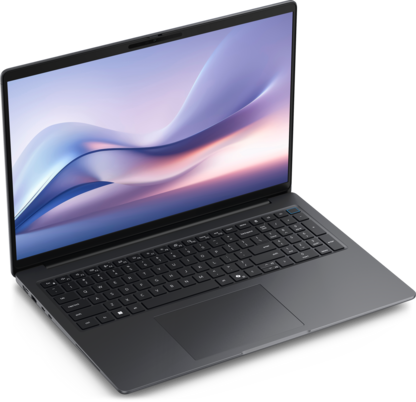

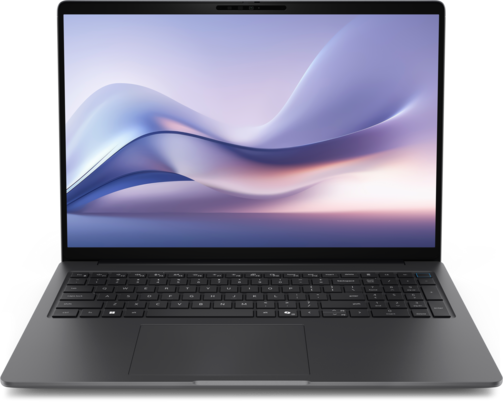

Dell Pro Precision 5 Series 16S Laptop

US · DELL-BASE-DELLPROPRECISION516SPW516260

Business

Configurable laptop · Advertised base configuration

Configurable modelDELL-BASE-DELLPROPRECISION516SPW516260
The hardware

Full Specifications

Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.

Performance — CPU / GPU▾

Processor

  • Intel® Core™ Ultra 5 336H vPro® (47 TOPS NPU, 12 cores, up to 4.6 GHz Turbo)
  • Intel® Core™ Ultra 5 338H vPro® Enterprise (12 Cores, Up to 4.7GHz) 47 TOPS NPU Processor
  • Intel® Core™ Ultra 7 366H vPro® (50 TOPS NPU, 16 cores, up to 4.8 GHz Turbo)
  • Intel® Core™ Ultra X7 368H vPro® Enterprise (16 Cores, Up to 5GHz) 50 TOPS NPU Processor
  • Intel® Core™ Ultra 9 386H vPro® Enterprise (16 Cores, Up to 4.9GHz) 50 TOPS NPU Processor
  • Intel® Core™ Ultra X9 388H vPro® Enterprise (16 Cores, Up to 5.1GHz) 50 TOPS NPU Processor

Dell initially selects Intel® Core™ Ultra 5 336H vPro® (47 TOPS NPU, 12 cores, up to 4.6 GHz Turbo). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Graphics Card

  • Intel Integrated Graphics

Dell initially selects Intel Integrated Graphics. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗
Memory & Storage▾
Installed RAM16GB (1 X 16GB)
Source & observationView specification source ↗

Observed 2026-10-06T02:40:56.409363+00:00

Dell US Camoufox configurator; actual initial option IDs and selected controls

View RAM layout source ↗

Observed 2026-10-06T02:40:56.409363+00:00

Installed RAM modules stated for the exact product or selected build

View RAM stick count source ↗

Observed 2026-10-06T02:40:56.409363+00:00

Installed RAM modules stated for the exact product or selected build

Memory

  • 16GB: 1x16GB, LPCAMM2, up to 8533 MT/s
  • 32GB: 1x32GB, LPCAMM2, up to 8533 MT/s
  • 64GB: 1x64GB, LPCAMM2, up to 8533 MT/s

Dell initially selects 16GB: 1x16GB, LPCAMM2, up to 8533 MT/s. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Storage

  • 256GB M.2 2230 SSD Gen4x4 TLC
  • 512 GB SSD Gen4x4 TLC
  • 512GB M.2 2230 SSD Gen5x4 TLC SED
  • 1 TB SSD Gen4x4 TLC
  • 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
  • 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED

Dell initially selects 256GB M.2 2230 SSD Gen4x4 TLC. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗
Display▾
Screen technologyUnpublished
Size16 in
Source & observationView specification source ↗

Observed 2026-10-06T02:40:56.409363+00:00

Dell US Camoufox configurator; actual initial option IDs and selected controls

Refresh rateUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T02:40:56.409363+00:00

Dell US Camoufox configurator; actual initial option IDs and selected controls

Displays

  • 16", WUXGA (1920x1200), Non-touch, 400nit, WLAN/4G/5G capable
  • 16", WUXGA (1920x1200), Touch, 400nit, WLAN/4G/5G capable
  • 16", WUXGA (1920x1200), Non-touch, 500nit, Low Blue Light, Super Low Power, WLAN capable
  • 16", WQXGA (2560x1600), Non-touch, 500nit, Low Blue Light, WLAN capable

Dell initially selects 16", WUXGA (1920x1200), Non-touch, 400nit, WLAN/4G/5G capable. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗
Battery & Power▾
Battery capacity57 Wh
Source & observationView specification source ↗

Observed 2026-10-06T02:40:56.409363+00:00

Dell US Camoufox configurator; actual initial option IDs and selected controls

Power Supply

  • 65W USB-C AC Adapter
  • 65W USB-C GAN Slim AC Adapter
  • 65W USB-C GAN Slim AC Adapter (2-pin, Wall-mount)
  • 100W USB-C AC Adapter
  • 105W USB-C AC Adapter

Dell initially selects 65W USB-C AC Adapter. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗
Connectivity▾
PortsUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T02:40:56.409363+00:00

Dell US Camoufox configurator; actual initial option IDs and selected controls

Wireless

  • None
  • No Wireless LAN Card
  • Intel® Wi-Fi 7 BE211, Qualified against Bluetooth® Core 6.0 wireless Card

Dell initially selects Intel® Wi-Fi 7 BE211, Qualified against Bluetooth® Core 6.0 wireless Card. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗
Build & Physical▾
WeightUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T02:40:56.409363+00:00

Dell US Camoufox configurator; actual initial option IDs and selected controls

DimensionsUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T02:40:56.409363+00:00

Dell US Camoufox configurator; actual initial option IDs and selected controls

Chassis Options

  • Assy, Door - BTM DOOR RJ LPCAMM SLATE MAX 16

Dell initially selects Assy, Door - BTM DOOR RJ LPCAMM SLATE MAX 16. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗
Software & Bundle▾
Included bundleUnpublished

Enclosure

  • Notebook, Dell Pro Precision 5 16S PW516260

Dell initially selects Notebook, Dell Pro Precision 5 16S PW516260. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Operating System

  • Windows 11 Pro, Copilot+ PC
  • Windows 11 Home, Copilot+ PC
  • Ubuntu Linux 24.04 LTS

Dell initially selects Windows 11 Pro, Copilot+ PC. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Operating System Languages

  • English, French, Spanish, Brazilian Portuguese

Dell initially selects English, French, Spanish, Brazilian Portuguese. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Base Options

  • Intel® Core™ Ultra 5 336H Processor vPro, Integrated Intel® Graphics

Dell initially selects Intel® Core™ Ultra 5 336H Processor vPro, Integrated Intel® Graphics. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Cover

  • 16", WUXGA (1920x1200), Non-touch, 400nit, FHD RGB Camera, Microphone

Dell initially selects 16", WUXGA (1920x1200), Non-touch, 400nit, FHD RGB Camera, Microphone. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Camera

  • FHD RGB HDR + IR Camera, 1080p at 30 fps, Presence Detection, TNR, Camera Shutter, Microphone
  • 8MP RGB HDR + IR Camera, 1440p at 30 fps, Presence Detection, TNR, Camera Shutter, Microphone
  • FHD RGB HDR Camera, 1080p at 30 fps, TNR, Camera Shutter, Microphone
  • No Camera and No Microphone, Touch, WLAN/WWAN/GPS antenna, docking POGO connector with passthrough

Dell initially selects FHD RGB HDR Camera, 1080p at 30 fps, TNR, Camera Shutter, Microphone. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Whole Hinge Up

  • No Whole Hinge Up Display

Dell initially selects No Whole Hinge Up Display. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Fingerprint Reader

  • No Fingerprint Reader
  • Fingerprint Reader without Control Vault 3+
  • Fingerprint reader with Control Vault 3+

Dell initially selects Fingerprint Reader without Control Vault 3+. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Smart Card Reader

  • Smart Card Reader With NFC
  • No Smart Card Reader
  • Smart Card Reader

Dell initially selects No Smart Card Reader. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Bluetooth

  • None
  • Intel BE211 WLAN Driver, Qualified against Bluetooth® Core 6.0 wireless Card
  • No Bluetooth

Dell initially selects Intel BE211 WLAN Driver, Qualified against Bluetooth® Core 6.0 wireless Card. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

WLAN Driver

  • None
  • Intel BE211 WLAN Driver

Dell initially selects Intel BE211 WLAN Driver. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Mobile Broadband

  • No Mobile Broadband card
  • 4G LTE - Qualcomm Snapdragon X12 Global LTE-Advanced (DW5826e-m), eSIM capable
  • 5G - Mediatek T700 (DW5933e-m), eSIM capable

Dell initially selects No Mobile Broadband card. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

WWAN/Non-WWAN Accessory

  • Aluminum (Top Cover, Palmrest, Bottom Cover) + WLAN Tray
  • Aluminum (Top Cover, Palmrest, Bottom Cover) + WWAN Tray, 4G
  • Aluminum (Top Cover, Palmrest, Bottom Cover) + WWAN Tray, 5G

Dell initially selects Aluminum (Top Cover, Palmrest, Bottom Cover) + WLAN Tray. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Brackets and Cables

  • Bracket for M.2 PCIE 2230 SSD

Dell initially selects Bracket for M.2 PCIE 2230 SSD. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Bracket WWAN FPR

  • None
  • Bracket - Bracket for FPR and WWAN

Dell initially selects Bracket - Bracket for FPR and WWAN. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Keyboard

  • Canadian Multilingual Mini-LED backlit keyboard with numeric keypad
  • Spanish Mini-LED backlit keyboard with numeric keypad
  • English-US Mini-LED backlit keyboard with numeric keypad
  • French (European) Mini-LED backlit keyboard with numeric keypad
  • English-US non-backlit keyboard with numeric keypad
  • Spanish (Latin America) non-backlit keyboard with numeric keypad
  • Greek Mini-LED backlit keyboard with numeric keypad
  • English US non-backlit Copilot key keyboard with numeric keypad

Dell initially selects English-US Mini-LED backlit keyboard with numeric keypad. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Battery

  • 3-cell, 57 Wh, ExpressCharge and ExpressCharge Boost Capable
  • 3-cell, 70 Wh, ExpressCharge and ExpressCharge Boost Capable

Dell initially selects 3-cell, 57 Wh, ExpressCharge and ExpressCharge Boost Capable. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Long Lifecycle Battery Warranty

  • None
  • Long lifecycle battery, 3-year limited hardware warranty

Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Power Cord

  • E5 Power Cord 1M for US
  • E5 Power Cord 1M for China

Dell initially selects E5 Power Cord 1M for US. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Energy Star

  • None
  • ENERGY STAR Qualified

Dell initially selects ENERGY STAR Qualified. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Processor Label

  • Series 3 Intel® Core™ Ultra 5 Processor Label
  • Series 3 Intel® Core™ Ultra 5 Processor Label, Copilot+ PC
  • Intel® Core™ Ultra 5 vPro Processor Label
  • Series 3 Intel® Core™ Ultra 7 Processor Label
  • Series 3 Intel® Core™ Ultra 7 Processor Label, Copilot+ PC
  • Intel® Core™ Ultra 7 vPro Processor Label
  • Intel® Core™ Ultra 9 Processor Label
  • Intel Core Ultra 9 non-vPro CPU label(Copilot+ PC) for worldwide exclude China, Small Size. Not for Linux
  • Intel® Core™ Ultra 9 vPro Processor Label
  • Intel® Core™ Ultra X7 Processor Label
  • Intel® Core™ Ultra X7 vPro Processor Label
  • Intel® Core™ Ultra X9 Processor Label
  • Intel® Core™ Ultra X9 vPro Label

Dell initially selects Series 3 Intel® Core™ Ultra 5 Processor Label, Copilot+ PC. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Documentation

  • Regular - No Documentation
  • Safety/Environment and Regulatory Guide (English/Spanish)

Dell initially selects Regular - No Documentation. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Systems Management

  • Intel® vPro® Enabled
  • Intel vPro Enterprise Management Disabled

Dell initially selects Intel vPro Enterprise Management Disabled. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Packaging

  • Shipping Material (Boxes) Bag - Single Pack Shipping Packaging

Dell initially selects Shipping Material (Boxes) Bag - Single Pack Shipping Packaging. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

System Label

  • Label - SHIP COO WCD 65W PW516260 - WCD L10 excl. CN/India
  • Label - SHIP COO WCD 100W/105W PW516260 - WCD L10 excl. CN
  • Label - LBL,COO,WCD,65WM,PW516260

Dell initially selects Label - SHIP COO WCD 65W PW516260 - WCD L10 excl. CN/India. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Regulatory Label

  • None
  • Label - LBL REG SRRC CN WL+5G SLM 16
  • Label - LBL REG SRRC CN WL SL MAX 16
  • Label_Regular_for Taiwan (NCC + BSMI + NFC)
  • Label_Regular_UAE Label, tie with RFID,SM16 PTL

Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Base Warranty

  • Basic Hardware Service with Onsite Support After Remote Diagnosis

Dell initially selects Basic Hardware Service with Onsite Support After Remote Diagnosis. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Software System Management

  • Dell Additional SW - Dell Pro Max Laptop

Dell initially selects Dell Additional SW - Dell Pro Max Laptop. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

Intel Connectivity Performance Suite

  • None
  • Intel® Connectivity Performance Suite

Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗

EPEAT

  • None
  • EPEAT Gold with Climate+

Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.

Manufacturer options ↗
Motherboard & Memory Expansion▾
Motherboard modelUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T02:40:56.409363+00:00

Unpublished: no unambiguous exact-device manufacturer specification

Total RAM slotsUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T02:40:56.409363+00:00

Unpublished: no unambiguous exact-device manufacturer specification

Independent testing

Benchmarks & Reviews

1 video
Expand benchmarksCollapse benchmarksComparison charts, test conditions & full reviews

Benchmarks & Reviews

Published test results and reviewer comments.

1 video

No test results available (for now).

Watch the reviews

More benchmarks and reviews →

Configuration matching & limitations

Andrew Marc David: Model video; use the video for the reviewed hardware and settings. No numeric result is inferred from metadata.

gaming pilot

cpu
Not measured
gpu
Not measured
gaming
Not measured

performance pilot

cpu
Not measured
gpu
Not measured
gaming
Not measured
sustained
Not measured

whole device

cpu
Not measured
gpu
Not measured
gaming
Not measured
sustained
Not measured
noise
Not measured
battery
Not measured
display
Not measured
build
Not measured

An overall buying score is unavailable. The available measurements do not cover every aspect of the device.

Compare Configurations

Other configurable in the catalog. No ranking is implied.
