Dell/Configurable

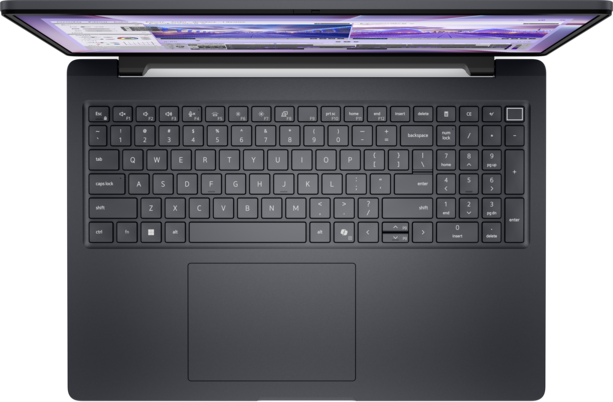

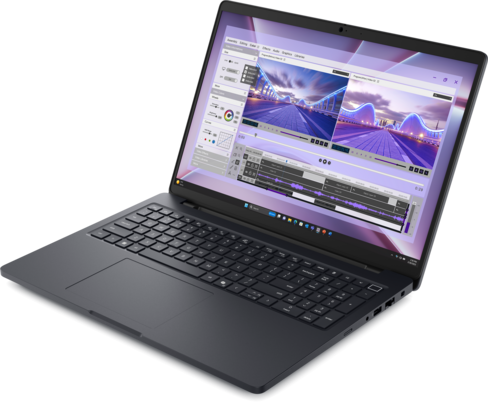

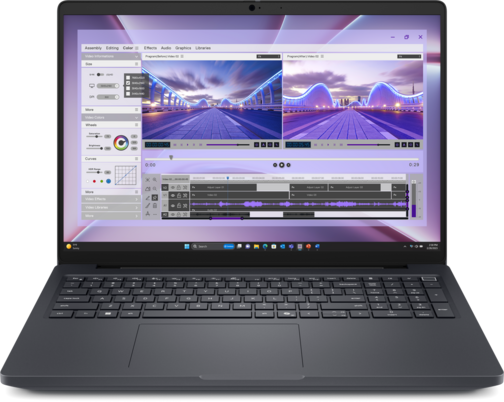

Dell Pro Max 16 Laptop
US · DELL-BASE-DELLPROMAX16LAPTOPMC16250
BusinessConfigurable laptop · Advertised base configuration
Configurable modelDELL-BASE-DELLPROMAX16LAPTOPMC16250
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
Processor
- Intel® Core™ Ultra 5 235H, vPro® Enterprise (18MB, 14 cores, 14 threads, up to 5.00 GHz Turbo, 45W)
- Intel® Core™ Ultra U-Series 255H (16 Cores, up to 5.1 GHz) Processor
- Intel® Core™ Ultra 7 265H, vPro® Enterprise (24MB, 16 cores, 16 threads, up to 5.30 GHz Turbo, 45W)
- Intel® Core™ Ultra 9 285H, vPro® Enterprise (24MB, 16 cores, 16 threads, up to 5.40 GHz Turbo, 45W)
Dell initially selects Intel® Core™ Ultra 5 235H, vPro® Enterprise (18MB, 14 cores, 14 threads, up to 5.00 GHz Turbo, 45W). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Graphics Card
- NVIDIA RTX PRO 500 Blackwell 6GB GDDR7
- NVIDIA RTX PRO 1000 Blackwell 8GB GDDR7
- NVIDIA RTX PRO 2000 Blackwell 8GB GDDR7
- Intel Graphics or Intel Arc Pro Graphics
Dell initially selects Intel Graphics or Intel Arc Pro Graphics. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 16GB (2 X 8GB)Source & observationView specification source ↗Observed 2026-10-06T02:39:01.235603+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls View RAM layout source ↗ Observed 2026-10-06T02:39:01.235603+00:00 Installed RAM modules stated for the exact product or selected build View RAM stick count source ↗ Observed 2026-10-06T02:39:01.235603+00:00 Installed RAM modules stated for the exact product or selected build |
|---|
Memory
- 16 GB: 2 x 8 GB, DDR5, up to 5600 MT/s
- 16GB: 1x16GB, DDR5, up to 6400 MT/s, CSoDIMM
- 16 GB: 1 x 16 GB, DDR5, up to 5600 MT/s
- 32 GB: 1x32GB, DDR5, 6400 MT/s, CSoDIMM
- 32GB: 2x16GB, DDR5, up to 6400 MT/s, CSoDIMM
- 32 GB: 2 x 16 GB, DDR5, up to 5600 MT/s
- 64GB: 2x32GB, DDR5, up to 6400 MT/s, CSoDIMM
Dell initially selects 16 GB: 2 x 8 GB, DDR5, up to 5600 MT/s. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage
- 256GB M.2 2230 SSD Gen4x4 TLC
- 512 GB SSD Gen4x4 TLC
- 1 TB SSD Gen4x4 TLC
- 1TB M.2 2280 SSD with DRAM Gen4x4 TLC SED
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB, M.2 2280 S3, Gen4 PCIe NVMe, SED SSD, Class 40
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell initially selects 256GB M.2 2230 SSD Gen4x4 TLC. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 16 inSource & observationView specification source ↗Observed 2026-10-06T02:39:01.235603+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:39:01.235603+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Displays
- 16" FHD+ LCD with 400 nits, Non-touch, FHD HDR IR Camera, Microphone, with WLAN and WWAN antenna
- 16" FHD+ LCD with 400 nits, Non-touch, FHD HDR IR Camera, Microphone, with WLAN antenna
- 16" FHD+ LCD with 400 nits, Non-touch, FHD HDR RGB Camera, Microphone, with WLAN antenna
- 16" FHD+ LCD with 400 nits, Non-touch, No Camera, No Mic, No WLAN and No WWAN
- 16" QHD+ LCD with 400 nits, Non-touch, 8MP RGB IR Camera, Microphone, WLAN
Dell initially selects 16" FHD+ LCD with 400 nits, Non-touch, FHD HDR IR Camera, Microphone, with WLAN antenna. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Battery & Power▾
| Battery capacity | 64 WhSource & observationView specification source ↗Observed 2026-10-06T02:39:01.235603+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|
Power Supply
- None
- 100W USB-C AC Adapter
- 130W USB-C AC Adapter
Dell initially selects 100W USB-C AC Adapter. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Connectivity▾
| Ports | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:39:01.235603+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|
Wireless
- None
- Intel® Wi-Fi 6E AX211 wireless card, 2x2, 802.11ax, Bluetooth® 5.3
- Intel® Wi-Fi 7 BE201, 2x2, 802.11be, Bluetooth® 5.4 wireless card
Dell initially selects Intel® Wi-Fi 7 BE201, 2x2, 802.11be, Bluetooth® 5.4 wireless card. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:39:01.235603+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|---|
| Dimensions | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:39:01.235603+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Software & Bundle▾
| Included bundle | Unpublished |
|---|
Operating System
- Windows 11 Pro
- Windows 11 Home
- Ubuntu Linux 24.04 LTS
Dell initially selects Windows 11 Pro. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Operating System Languages
- English, French, Spanish, Brazilian Portuguese
Dell initially selects English, French, Spanish, Brazilian Portuguese. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Options
- Intel Core Ultra 5 235H Processor with vPro
Dell initially selects Intel Core Ultra 5 235H Processor with vPro. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Product Variant
- Standard
Dell initially selects Standard. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Keyboard
- Hebrew backlit Copilot key keyboard with numeric keypad
- English US backlit Copilot key keyboard with numeric keypad
- Spanish (Latin America) non-backlit Copilot key keyboard with numeric keypad
- English US non-backlit Copilot key keyboard with numeric keypad
- French (Canadian) ISO layout backlit Copilot key keyboard with numeric keypad
Dell initially selects English US backlit Copilot key keyboard with numeric keypad. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Energy Star
- None
- ENERGY STAR Qualified
Dell initially selects ENERGY STAR Qualified. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗EPEAT
- None
- EPEAT Gold with Climate+
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage Configuration (RAID)
- None
- RAID 1
- RAID 0
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Software System Management
- Windows for Dell Pro Max 16 Laptop MC16250
Dell initially selects Windows for Dell Pro Max 16 Laptop MC16250. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Bottom Door
- Door - Dell Pro Max 16 Bottom Door, Discrete
- Door - Dell Pro Max 16 with Integrated Graphics
Dell initially selects Door - Dell Pro Max 16 with Integrated Graphics. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Battery
- 4 cell, 64Whr, Express Charge Capable battery
- 6 cell, 96Whr, Express Charge Capable battery
Dell initially selects 4 cell, 64Whr, Express Charge Capable battery. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Mobile Broadband
- None
- WWAN 5G DW5933E-eSIM card T700
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Camera
- None
- FHD RGB HDR + IR Camera, 1080p at 30 fps, Presence Detection, TNR, Camera Shutter, Microphone
Dell initially selects FHD RGB HDR + IR Camera, 1080p at 30 fps, Presence Detection, TNR, Camera Shutter, Microphone. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Palmrest
- Palmrest with Finger Print Reader + Smart Card + NFC + Control Vaul 3+
- Palmrest with Finger Print Reader + Smart Card + Control Vault 3+
- Palmrest With Smart Card Only + Control Vault 3+
- Palmrest with no added security
- Palmrest with Finger Print Reader + Control Vaul 3+
Dell initially selects Palmrest with Finger Print Reader + Smart Card + Control Vault 3+. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗WLAN Driver
- None
- Wireless Intel BE201 WLAN Driver
Dell initially selects Wireless Intel BE201 WLAN Driver. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Bluetooth
- None
- Intel BE201 Bluetooth 5.4 Active
- Wireless Intel AX211/BE201 WLAN + No Bluetooth
Dell initially selects Intel BE201 Bluetooth 5.4 Active. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Power Cord
- None
- E5 Power Cord 1M for US
Dell initially selects E5 Power Cord 1M for US. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Documentation
- Safety/Environment and Regulatory Guide (English/Spanish)
- Regular - No Documentation
Dell initially selects Safety/Environment and Regulatory Guide (English/Spanish). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Long Lifecycle Battery Warranty
- None
- Long lifecycle battery, 3-year limited hardware warranty
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Packaging
- Shipping Material (Boxes) Bag - Single Pack Shipping Material - WW - (NEW)
Dell initially selects Shipping Material (Boxes) Bag - Single Pack Shipping Material - WW - (NEW). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗System Label
- Shipping for UMA + 100W Adapter
Dell initially selects Shipping for UMA + 100W Adapter. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Intel Rapid Storage Technology
- None
- Intel(R) Rapid Storage Technology Driver
Dell initially selects Intel(R) Rapid Storage Technology Driver. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Warranty
- Basic Hardware Service with Onsite Support After Remote Diagnosis
Dell initially selects Basic Hardware Service with Onsite Support After Remote Diagnosis. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Systems Management
- None
- Intel® vPro® Enabled
- Intel vPro Enterprise Management Disabled
Dell initially selects Intel® vPro® Enabled. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Intel Connectivity Performance Suite
- None
- Intel® Connectivity Performance Suite
Dell initially selects Intel® Connectivity Performance Suite. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:39:01.235603+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:39:01.235603+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
