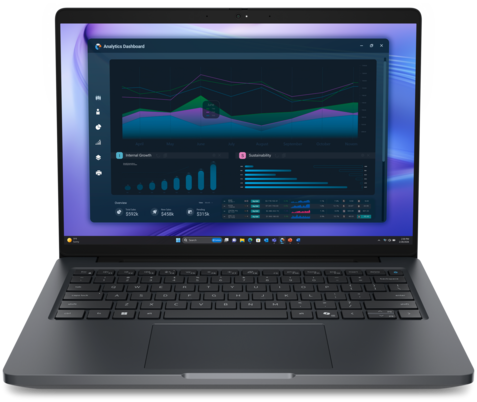

Dell Pro Precision 5 Series 14 Laptop
US · DELL-BASE-DELLPROPRECISION514PW514261
BusinessConfigurable laptop · Advertised base configuration
Configurable modelDELL-BASE-DELLPROPRECISION514PW514261
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
Processor
- Intel® Core™ Ultra 5 336H vPro® Enterprise (12 Cores, Up to 4.6GHz) 47 TOPS NPU Processor
- Intel® Core™ Ultra 7 366H vPro® Enterprise (16 Cores, Up to 4.8GHz) 50 TOPS NPU Processor
- Intel® Core™ Ultra 9 386H vPro® Enterprise (16 Cores, Up to 4.9GHz) 50 TOPS NPU Processor
Dell initially selects Intel® Core™ Ultra 7 366H vPro® Enterprise (16 Cores, Up to 4.8GHz) 50 TOPS NPU Processor. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Graphics Card
- NVIDIA® RTX™ PRO 500 Blackwell, 6 GB GDDR7
- Intel® Arc™ Pro Integrated Graphics
Dell initially selects Intel® Arc™ Pro Integrated Graphics. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 32GB (1 X 32GB)Source & observationView specification source ↗Observed 2026-10-06T02:40:32.009793+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls View RAM layout source ↗ Observed 2026-10-06T02:40:32.009793+00:00 Installed RAM modules stated for the exact product or selected build View RAM stick count source ↗ Observed 2026-10-06T02:40:32.009793+00:00 Installed RAM modules stated for the exact product or selected build |
|---|
Memory
- 64GB: 1x64GB, LPCAMM2, up to 8533 MT/s
- 16GB: 1x16GB, LPCAMM2, up to 8533 MT/s
- 32GB: 1x32GB, LPCAMM2, up to 8533 MT/s
Dell initially selects 32GB: 1x32GB, LPCAMM2, up to 8533 MT/s. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage
- 256GB M.2 2230 SSD Gen4x4 TLC
- 512 GB SSD Gen4x4 TLC
- 1 TB SSD Gen4x4 TLC
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell initially selects 512 GB SSD Gen4x4 TLC. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 14 inSource & observationView specification source ↗Observed 2026-10-06T02:40:32.009793+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:40:32.009793+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Displays
- 14", WUXGA (1920x1200), Non-touch, 400nit, No Camera
- 14", WUXGA (1920x1200), Non-touch, 400nit, FHD RGB Camera, Microphone
- 14", WUXGA (1920x1200), Touch, 400nit, 8MP RGB IR Camera, Microphone
- 14", WUXGA (1920x1200), Non-touch, 400nit, 45% NTSC 8MP IR Camera
- 14", WQXGA (2560x1600), Non-touch, 400nit, Low Blue Light, 8MP RGB IR Camera, Microphone
- 14", WUXGA (1920x1200), Non-touch, 400nit, FHD IR Camera, Microphone
- 14", WUXGA (1920x1200), Touch, 400nit, FHD IR Camera, Microphone
Dell initially selects 14", WUXGA (1920x1200), Non-touch, 400nit, FHD RGB Camera, Microphone. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Battery & Power▾
| Battery capacity | 72 WhSource & observationView specification source ↗Observed 2026-10-06T02:40:32.009793+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|
Power Supply
- 65W USB-C AC Adapter
- 100W USB-C AC Adapter
Dell initially selects 100W USB-C AC Adapter. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Connectivity▾
| Ports | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:40:32.009793+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|
Wireless
- None
- Intel® Wi-Fi 7 BE211, Qualified against Bluetooth® Core 6.0 wireless Card
Dell initially selects Intel® Wi-Fi 7 BE211, Qualified against Bluetooth® Core 6.0 wireless Card. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:40:32.009793+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|---|
| Dimensions | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:40:32.009793+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Chassis Options
- Door - Dell Pro Precision 5 14 Bottom Door, UMA
Dell initially selects Door - Dell Pro Precision 5 14 Bottom Door, UMA. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Software & Bundle▾
| Included bundle | Unpublished |
|---|
Operating System
- Windows 11 Pro, Copilot+ PC
- Windows 11 Home, Copilot+ PC
- Ubuntu Linux 24.04 LTS
Dell initially selects Windows 11 Pro, Copilot+ PC. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Operating System Languages
- English, French, Spanish, Brazilian Portuguese
Dell initially selects English, French, Spanish, Brazilian Portuguese. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Options
- Intel® Core™ Ultra 7 366H Processor vPro, Integrated Intel® Graphics
Dell initially selects Intel® Core™ Ultra 7 366H Processor vPro, Integrated Intel® Graphics. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Systems Management
- Intel vPro Enterprise Management Disabled
- Intel® vPro® Enterprise Technology Enabled
Dell initially selects Intel vPro Enterprise Management Disabled. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Camera
- None
- FHD RGB HDR Camera, 1080p at 30 fps, TNR, Camera Shutter, Microphone
Dell initially selects FHD RGB HDR Camera, 1080p at 30 fps, TNR, Camera Shutter, Microphone. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Bluetooth
- None
- Intel BE211 WLAN Driver, Qualified against Bluetooth® Core 6.0
- No Bluetooth
Dell initially selects Intel BE211 WLAN Driver, Qualified against Bluetooth® Core 6.0. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗WLAN Driver
- None
- Wireless Intel BE211 WLAN Driver
Dell initially selects Wireless Intel BE211 WLAN Driver. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Keyboard
- English (US) non-backlit keyboard
- English (US) standard backlit keyboard
Dell initially selects English (US) standard backlit keyboard. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Palmrest
- Palmrest with Fingerprint Reader, Control Vault 3+
- Palmrest with Fingerprint Reader, Smart Card Reader, Control Vault 3+
- Palmrest with Fingerprint Reader, Smart Card Reader, NFC, Control Vault 3
- Palmrest with No Security
Dell initially selects Palmrest with Fingerprint Reader, Control Vault 3+. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Battery
- 4 cell, 72Whr, Express Charge Capable battery
Dell initially selects 4 cell, 72Whr, Express Charge Capable battery. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Long Lifecycle Battery Warranty
- None
- Long lifecycle battery, 3-year limited hardware warranty
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Power Cord
- E5 Power Cord 1M for US
- E5 Power Cord 1M for China
Dell initially selects E5 Power Cord 1M for US. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Energy Star
- ENERGY STAR Qualified
Dell initially selects ENERGY STAR Qualified. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Processor Label
- Regular - Intel® Core™ Ultra 7, CP+, Processor Label
Dell initially selects Regular - Intel® Core™ Ultra 7, CP+, Processor Label. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Documentation
- Safety/Environment and Regulatory Guide (English/Spanish)
- Regular - No Documentation
Dell initially selects Safety/Environment and Regulatory Guide (English/Spanish). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Packaging
- Single Pack Packaging
Dell initially selects Single Pack Packaging. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗System Label
- Regular - Packaging for 100W, UMA/Discrete
Dell initially selects Regular - Packaging for 100W, UMA/Discrete. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Software System Management
- Dell Additional SW - Dell Pro Max Laptop
Dell initially selects Dell Additional SW - Dell Pro Max Laptop. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Warranty
- Basic Hardware Service with Onsite Support After Remote Diagnosis
Dell initially selects Basic Hardware Service with Onsite Support After Remote Diagnosis. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Brackets and Cables
- None
- Bracket for M.2 PCIE 2230 SSD
Dell initially selects Bracket for M.2 PCIE 2230 SSD. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗EPEAT
- None
- EPEAT Gold with Climate+
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:40:32.009793+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:40:32.009793+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
