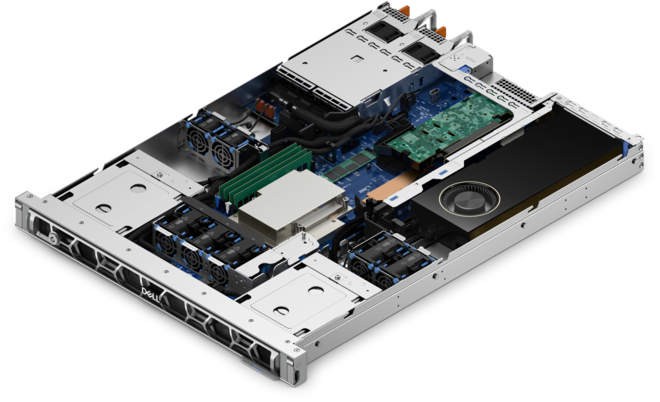

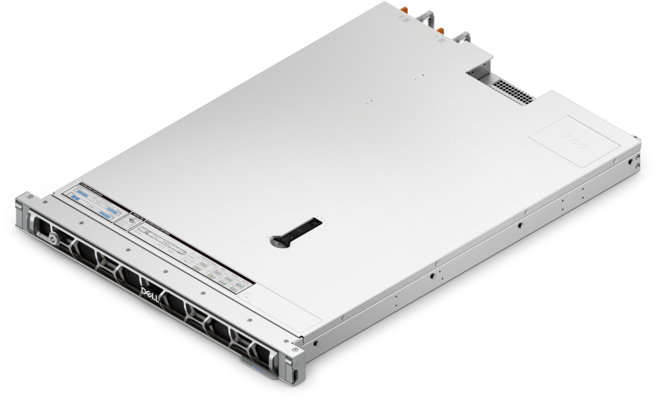

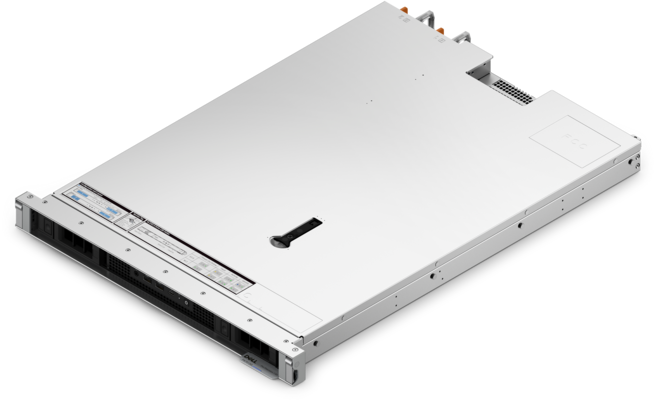

Dell Pro Precision 7 R1 Rack
US · DELL-BASE-DELLPROPRECISION71URACKPW7R1260
BusinessConfigurable desktop · Advertised base configuration
Configurable modelDELL-BASE-DELLPROPRECISION71URACKPW7R1260
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
Processor
- Intel® Core™ Ultra 5 235 (24 MB cache, 14 cores, 14 threads, 2.9 GHz to 5.0 GHz, 65W)
- Intel® Core™ Ultra 5 245 (24 MB cache, 14 cores, 14 threads, 3.0 GHz to 5.1 GHz, 65W)
- Intel® Core™ Ultra 5 245K (24 MB cache, 14 cores, 14 threads, 3.6 GHz to 5.2 GHz, 125W)
- Intel® Core™ Ultra 7 265 (30 MB cache, 20 cores, 20 threads, 1.8 GHz to 5.3 GHz, 65W)
- Intel® Core™ Ultra 7 265K (30 MB cache, 20 cores, 20 threads, 3.3 GHz to 5.5 GHz, 125W)
- Intel® Core™ Ultra 9 285 (36 MB cache, 24 cores, 24 threads, 1.9 GHz to 5.6 GHz, 65W)
- Intel® Core™ Ultra 9 285K (36 MB cache, 24 cores, 24 threads, 3.2 GHz to 5.7 GHz, 125W)
Dell initially selects Intel® Core™ Ultra 5 235 (24 MB cache, 14 cores, 14 threads, 2.9 GHz to 5.0 GHz, 65W). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Graphics Card
- NVIDIA® RTX™ A400, 4 GB GDDR6, 4 mDP to DP adapters
- NVIDIA® RTX™ A1000, 8 GB GDDR6, 4 mDP to DP adapters
- NVIDIA® RTX™ PRO 2000 Blackwell, 16 GB GDDR7, 4 mDP to DP adapters
- NVIDIA® RTX™ PRO 4000 Blackwell (145W), 24GB GDDR7 with ECC, 4DP
- NVIDIA® RTX™ PRO 4500 Blackwell, 32 GB GDDR7, 4 DP
- NVIDIA® RTX™ PRO 5000 Blackwell, 48 GB GDDR7, 4 DP
- NVIDIA® RTX™ PRO 6000 Blackwell Max-Q Workstation Edition (300W), 96GB GDDR7 with ECC, 4DP
- AMD Radeon™ Pro W7400, 8 GB GDDR6, 4 mDP to DP adapters
- Dual NVIDIA® RTX™ A400, 4 GB GDDR6, 8 mDP to DP adapters
- Dual NVIDIA® RTX™ A1000, 8 GB GDDR6, 8 mDP to DP adapters
- Dual AMD Radeon™ Pro W7400, 8 GB GDDR6, 4 mDP
- Dual NVIDIA® RTX™ PRO 4000 Blackwell (145W), 24GB GDDR7 with ECC, 4DP
- Intel Integrated Graphics
Dell initially selects Intel Integrated Graphics. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Thermal Cooling
- CPU heatsink (65W CPU)
- CPU Heatsink & Fan (125W CPU)
Dell initially selects CPU heatsink (65W CPU). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 8GB (1 X 8GB)Source & observationView specification source ↗Observed 2026-10-06T02:20:35.188573+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls View RAM layout source ↗ Observed 2026-10-06T02:20:35.188573+00:00 Installed RAM modules stated for the exact product or selected build View RAM stick count source ↗ Observed 2026-10-06T02:20:35.188573+00:00 Installed RAM modules stated for the exact product or selected build |
|---|
Memory
- 8GB: 1 x 8 GB, DDR5, up to 5600 MT/s
- 16GB: 1 x 16 GB, DDR5, up to 5600 MT/s
- 16GB: 2 x 8 GB, DDR5, up to 5600 MT/s
- 32GB: 1 x 32 GB, DDR5, up to 5600 MT/s
- 32GB: 2 x 16 GB, DDR5, up to 5600 MT/s
- 32GB: 4 x 8 GB, DDR5, up to 4800 MT/s
- 64GB: 2 x 32 GB, DDR5, up to 5600 MT/s
- 64GB: 4 x 16 GB, DDR5, up to 4800 MT/s
- 128GB: 4 x 32 GB, DDR5, up to 4400 MT/s
- 16GB: 1 x 16 GB, DDR5, up to 5600 MT/s, ECC
- 32GB: 1 x 32 GB, DDR5, up to 5600 MT/s, ECC
- 32GB: 2 x 16 GB, DDR5, up to 5600 MT/s, ECC
- 64GB: 2 x 32 GB, DDR5, up to 5600 MT/s, ECC
- 64GB: 4 x 16 GB, DDR5, up to 4800 MT/s, ECC
- 128GB: 4 x 32 GB, DDR5, up to 4400 MT/s, ECC
Dell initially selects 8GB: 1 x 8 GB, DDR5, up to 5600 MT/s. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Internal NVMe Drives
- 512GB M.2 2230 SSD Gen5x4 TLC SED
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell initially selects 512GB M.2 2230 SSD Gen5x4 TLC SED. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Flexbay NVMe Drives
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 3.2 TB, Performance SSD, E3.S, Gen 5, AG Enterprise
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗SATA/SAS Storage
- 4 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 8 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 12 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 16 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 20 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
- 24 TB, 7200 RPM, 3.5-inch, SATA, HDD, AG-Enterprise Class
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Ultra-Speed PCIe Drives
- 1TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 2TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
- 4TB M.2 2280 SSD with DRAM Gen5x4 TLC SED
Dell does not mark an initial selection in this group. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:20:35.188573+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:20:35.188573+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-06T02:20:35.188573+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:35.188573+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|
Power Supply
- Dual 800W PSU (Redundant)
- 800W PSU
Dell initially selects 800W PSU. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Connectivity▾
| Ports | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:35.188573+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|---|
| Wireless & networking | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:35.188573+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:35.188573+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
|---|---|
| Dimensions | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:35.188573+00:00 Dell US Camoufox configurator; actual initial option IDs and selected controls |
Software & Bundle▾
| Included bundle | Unpublished |
|---|
Operating System
- Windows 11 Pro
- Ubuntu Linux 24.04 LTS
Dell initially selects Windows 11 Pro. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Operating System Languages
- English, French, Spanish, Brazilian Portuguese
Dell initially selects English, French, Spanish, Brazilian Portuguese. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Product Variant
- Standard
Dell initially selects Standard. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Options
- Dell Pro Precision 7 R1 Chassis
Dell initially selects Dell Pro Precision 7 R1 Chassis. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Systems Management
- Intel vPro Management Disabled
- Intel® Standard Manageability
- Intel vPro Enterprise Technology Enabled
Dell initially selects Intel vPro Enterprise Technology Enabled. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage Configuration
- C1 - Internal M.2 SSD Boot No RAID (M.2 SSD FlexBay + SATA FlexBay)
- C2 - Internal M.2 SSD Boot No RAID (Dual SATA FlexBay)
- C3 - FlexBay M.2 SSD Boot No RAID (M.2 SSD FlexBay + SATA FlexBay)
- C4 - Internal M.2 SSD Boot RAID 0/1 (M.2 SSD FlexBay + SATA FlexBay)
- C5 - Internal M.2 SSD Boot RAID 0/1 (Dual SATA FlexBay)
- C6 - Internal M.2 SSD Boot RAID 0/1 + SATA FlexBay RAID 0/1 (Dual SATA FlexBay)
- C7 - Internal M.2 SSD Boot RAID 0/1 + FlexBay M.2 SSD RAID 0/1 (M.2 SSD FlexBay + SATA FlexBay)
- C8 - FlexBay M.2 SSD Boot RAID 0/1 (M.2 SSD FlexBay + SATA FlexBay)
- C9 - FlexBay M.2 SSD Boot RAID 0/1 + Internal M.2 SSD RAID 0/1 (M.2 SSD FlexBay + SATA FlexBay)
- C10 - Internal M.2 SSD + FlexBay M.2 SSD Boot RAID 0/5/10 (M.2 SSD FlexBay + SATA FlexBay)
Dell initially selects C1 - Internal M.2 SSD Boot No RAID (M.2 SSD FlexBay + SATA FlexBay). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Storage Configuration (RAID)
- NO RAID
- Internal NVME RAID1 [C4,C5,C6]
- RAID 1 for internal SSD
- FlexBay NVME RAID0 [C8]
- FlexBay NVME RAID1 [C8]
- (Internal + FlexBay) NVME RAID0 [C10]
- (Internal + FlexBay) NVME RAID5 [C10]
- (Internal + FlexBay) NVME RAID10 [C10]
- Internal NVME RAID 0 + Flexbay SATA RAID 0 [C6]
- Internal NVME RAID 1 + Flexbay SATA RAID 1 [C6]
- FlexBay NVME RAID0 + Internal NVME RAID0 [C7, C9]
- Flexbay NVME RAID1 + Internal NVME RAID1 [C7, C9]
Dell initially selects NO RAID. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Intel Rapid Storage Technology
- None
- Intel Rapid Storage Technology
Dell initially selects Intel Rapid Storage Technology. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Dust Filter
- None
- Dell Pro Precision R1 Dust Filter
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗System Monitoring
- None
- Watch Dog SRV
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Software System Management
- Dell Additional Software
Dell initially selects Dell Additional Software. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Keyboard
- Dell Wired Keyboard - KB216 - English-US
- No Keyboard Selected
Dell initially selects Dell Wired Keyboard - KB216 - English-US. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Mouse
- Dell Pro 3 Wired Mouse - MS116 - Black
- No Mouse Selected
Dell initially selects Dell Pro 3 Wired Mouse - MS116 - Black. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Power Cord
- System Power Cord C13 (US 125V, 15A)
- System Power Cord, C13, 2m, 125V, 13A, US
- System Power Cord, C13, 4m, 250V 13A, US
- Jumper Cord, C13, 0.61m, 250V 13A, US
- System Power Cord, C13, 2m, 250V 13A, US
- Jumper Cord, C13/C14, 2.5m, 250V 10A, US
- System Power Cord, C13, 3m, 250V 10A, US
Dell initially selects System Power Cord, C13, 2m, 125V, 13A, US. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Fan
- None
- PSU Fan for NVME module or 2nd PSU
Dell initially selects PSU Fan for NVME module or 2nd PSU. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Network Card
- None
- Intel x710-T2L 10GbE Dual Port Full Height, RJ45 connection
- Intel i226 2.5G 1P Ethernet NIC FH Bracket PCIe
- Intel Ethernet Network Adapter E810 25GbE, dual ports, Full Height
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Add-in Cards
- None
- PCIe Serial Card, Full Height
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗SFP Modules (Multi)
- None
- Intel Ethernet SFP+ 10G-SR Optics Module
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Zoom Card
- None
- Dell Ultra-Speed Drive Duo Card, Low profile
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Brackets and Cables
- Screw for internal SSD
- Holder for Single Zoom2 Card
- Holder for Dual Zoom2 cards
Dell initially selects Screw for internal SSD. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Flexbay NVMe Carrier
- None
- FlexBay with Dual Blank Tray (Empty)
Dell initially selects FlexBay with Dual Blank Tray (Empty). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Camera
- None
- Security Bezel
Dell initially selects Security Bezel. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Placemat
- Quick Setup Guide
Dell initially selects Quick Setup Guide. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Packaging
- Single Pack Shipping Material
Dell initially selects Single Pack Shipping Material. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗System Label
- Precision 7 R1 Regulatory Label
Dell initially selects Precision 7 R1 Regulatory Label. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Packaging Label
- 3 in 1 Packaging Label (DAO, APCC, China, Japan, KR, HK, BCC, EMEA)
Dell initially selects 3 in 1 Packaging Label (DAO, APCC, China, Japan, KR, HK, BCC, EMEA). These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Processor Label
- Regular - Intel® Core™ Ultra 5 vPro Processor Label
Dell initially selects Regular - Intel® Core™ Ultra 5 vPro Processor Label. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Documentation
- Regular - No Documentation
Dell initially selects Regular - No Documentation. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Energy Star
- None
- ENERGY STAR Qualified
Dell initially selects ENERGY STAR Qualified. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗EPEAT
- None
- EPEAT Gold with Climate+
- EPEAT Silver with Climate+
Dell initially selects EPEAT Gold with Climate+. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Remote Switch
- None
- Remote Switch
Dell initially selects None. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Rack Rails
- Precision 7 R1 1U Rack Sliding Rails
- Precision 7 R1 1U Rack Static Rails
Dell initially selects Precision 7 R1 1U Rack Static Rails. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Base Warranty
- Basic Hardware Service with Onsite Support After Remote Diagnosis
Dell initially selects Basic Hardware Service with Onsite Support After Remote Diagnosis. These are documented model choices. Selecting an option can change other specifications, price and availability. Confirm the final build in Dell’s configurator.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:35.188573+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T02:20:35.188573+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
Compare Configurations
Other configurable in the catalog. No ranking is implied.
