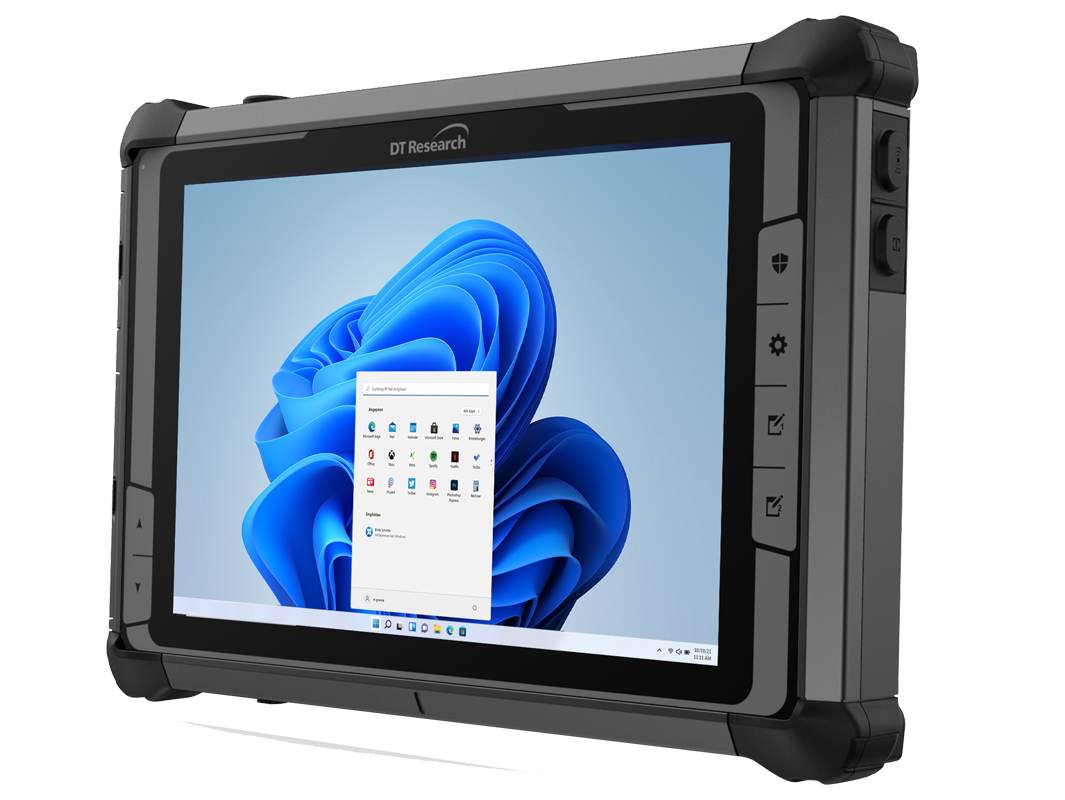

DT Research DT382W

Documented processor alternatives

Advertised base: Unpublished

• DT382WN: Intel N250, 4-core (up to 3.80 GHz)
• DT382WH: Intel Core N350, 8-core (up to 3.90 GHz)

Official alternatives without a selected base. No first-listed CPU is assumed installed. Core counts and clock speeds apply to the stated processor.

Configurator processor choices

Advertised base: Unpublished

• Intel N250

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=347. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Documented memory specifications

• 16GB

Official technical ranges, CPU-dependent capacity and special-order conditions. A range is not an installed capacity or an invented list of intermediate orderable sizes. Selected base: 16.0 GB.

Documented storage specifications

• 512GB

Official technical ranges, CPU-dependent capacity and special-order conditions. A range is not an installed capacity or an invented list of intermediate orderable sizes. Selected base: 512.0 GB.

Configurator memory choices

• 16GB

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=347. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Configurator primary storage choices

• 512GB

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=347. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Accessories for memory

• IP65 rated Mini Docking Keyboard with VESA and RAM Mounting Holes (ACC-MK382-01)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=347. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. IP65 rated Mini Docking Keyboard with VESA and RAM Mounting Holes (ACC-MK382-01): IP65 rated Mini Docking Keyboard with VESA and RAM Mounting Holes

Configurator screen choices

• Capacitive Touch

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=347. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

microSD Slot optional connections

• 1 x microSD card slot (optional)

Optional module/connector, not an included native port. Interface types and counts are retained.

GNSS module options

• GPS module

Optional factory module, not included base hardware or confirmation of every combination.

Mobile Broadband module options

• 4G LTE/AWS

Optional factory module, not included base hardware or confirmation of every combination.

Factory modules for networking

• GPS (UGPS-382W)
• 4G LTE (ULTE-US-382W)
• Micro UHF RFID reader with embedded antenna (UUHF-382W)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=347. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. GPS (UGPS-382W): GPS | 4G LTE (ULTE-US-382W): 4G LTE | Micro UHF RFID reader with embedded antenna (UUHF-382W): Micro UHF RFID reader with embedded antenna

Accessories for connections

• AC/DC Power Adapter (65W) with Power Cord, USB-C Plug (ACC-001-38)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=347. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. AC/DC Power Adapter (65W) with Power Cord, USB-C Plug (ACC-001-38): AC/DC Power Adapter (65W) with Power Cord, USB-C Plug

Documented operating systems

• Microsoft Windows 11 IoT Enterprise

Official shipping OS wording. Different OS alternatives are not a selected base. Versions alone do not block publication. The configurator may narrow currently selectable choices.

Battery alternatives

• 60W Hot-swappable battery (11.4V, 5400mAh)
• 90W Hot-swappable battery (11.4V, 8000mAh)

Optional packs are not installed by default. Source W is not silently converted to Wh. Wh totals are not inferred from voltage or mAh.

Enclosure and environmental specifications

Enclosure: ABS + PC Plastic | Durability: IP65, MIL-STD-810H certified | Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing: Yes | Regulatory: FCC Class B, IC, CE, RCM, RoHS compliant | Temperature: Operation*: -10°C to 60°C (14°F to 140°F) | Temperature: Optional -30°C to 60°C (-22°F to 140°F) | Temperature: Storage: -50°C to 70°C (-58°F to 158°F) | Temperature: *For battery safety and optimal functionality and performance, the recommended usage temperature range is from -10°C to 45°C (14°F to 113°F) | Humidity: 0% to 90% non-condensing

Barcode Scanner module options

• 2D barcode scanner (reads 1D and 2D)
• Long range 2D barcode scanner (up to 60 ft)

Optional factory module, not included base hardware or confirmation of every combination.

Camera module options

• 8 MP back camera with auto focus, white balance,
• gain control and exposure control

Optional factory module, not included base hardware or confirmation of every combination.

NFC/RFID Reader module options

• HF 13.56 MHz, ISO 15693, 14443A(B) and 18000-3 mode 1

Optional factory module, not included base hardware or confirmation of every combination.

UHF RFID Reader module options

• 865 to 928MHz, EPCglobal Class 1 Gen 2/ ISO 18000-6C; 16 ft (4.87m) reading distance

Optional factory module, not included base hardware or confirmation of every combination.

Smart Card/CAC Reader module options

• Full-slot (reads ISO 7816 T=0, T=1); 1.8/3/5V smart card

Optional factory module, not included base hardware or confirmation of every combination.

Long Range BT module options

• Class 1 BT (1000 ft)

Optional factory module, not included base hardware or confirmation of every combination.

Configurator operating system choices

• WIN 11 IoT Enterprise

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=347. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Warranty for this model

• Three years of No-Fault Accidents Warranty for DT382 series (UEW-NFW3-382)
• Five years of No-Fault Accidents Warranty for DT382 series (UEW-NFW5-382)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=347. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

System upgrades for this model

• Upgrade from 43W battery to 60W battery with new unit purchase (UBATT-004)
• Upgrade from 43W battery to 90W battery with new unit purchase (UBATT-005)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=347. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

Factory modules for this model

• Back camera (UCCD-382WB)
• Long range Bluetooth (ULRBT-382W)
• EX30 Long Range 2D Scanner (ULRS-382W)
• HF NFC/RFID reader (UNFC-382W)
• 2D barcode scanner (US2D-382W)
• Integrated Smart Card Reader for DT382 Series (replaces SD Slot) (USCR-382)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=347. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. Back camera (UCCD-382WB): Back camera | Long range Bluetooth (ULRBT-382W): Long range Bluetooth | EX30 Long Range 2D Scanner (ULRS-382W): EX30 Long Range 2D Scanner | HF NFC/RFID reader (UNFC-382W): HF NFC/RFID reader | 2D barcode scanner (US2D-382W): 2D barcode scanner | Integrated Smart Card Reader for DT382 Series (replaces SD Slot) (USCR-382): Integrated Smart Card Reader for DT382 Series (replaces SD Slot)

Accessories for this model

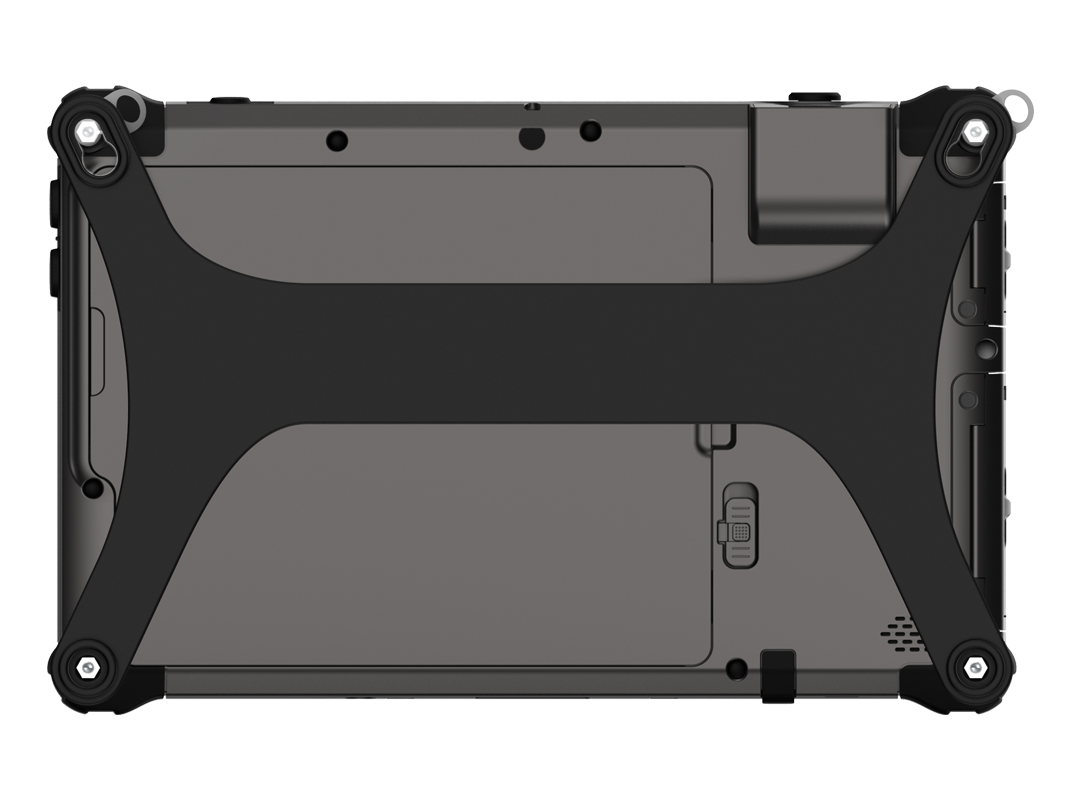

• Handstrap (AAC-010-382)
• Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery (ACC-001-34A)
• Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries (ACC-001-35A)
• 43W Battery Pack (ACC-006-29)
• 60W Battery Pack (ACC-006-60K)
• 90W Battery Pack (ACC-006-90K)
• Digital Pen (ACC-007-35)
• Carrying Pouch (ACC-010-22)
• 8” Screen Protector (single-sheet of film) (ACC-011-24)
• 8” Tempered Glass Screen Protector (2 in 1 package) (ACC-011-34)
• Desktop Charging Cradle. (ACC-DC282P-B1)
• Pole Mount Cradle. (ACC-PM282P-B1)
• Pole Mount Bracket (ACC-PM382-01)
• Wall Mount Cradle. Power supply is not included (ACC-WM282P-B1)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=347. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. Handstrap (AAC-010-382): Handstrap | Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery (ACC-001-34A): Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery | Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries (ACC-001-35A): Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries. Power supply is included. | 43W Battery Pack (ACC-006-29): 43W Battery Pack | 60W Battery Pack (ACC-006-60K): 60W Battery Pack | 90W Battery Pack (ACC-006-90K): 90W Battery Pack | Digital Pen (ACC-007-35): Digital Pen | Carrying Pouch (ACC-010-22): Carrying Pouch | 8” Screen Protector (single-sheet of film) (ACC-011-24): 8” Screen Protector (single-sheet of film) | 8” Tempered Glass Screen Protector (2 in 1 package) (ACC-011-34): 8” Tempered Glass Screen Protector (2 in 1 package) | Desktop Charging Cradle. (ACC-DC282P-B1): Desktop Charging Cradle. | Pole Mount Cradle. (ACC-PM282P-B1): Pole Mount Cradle. | Pole Mount Bracket (ACC-PM382-01): Pole Mount Bracket | Wall Mount Cradle. Power supply is not included (ACC-WM282P-B1): Wall Mount Cradle. Power supply is not included
