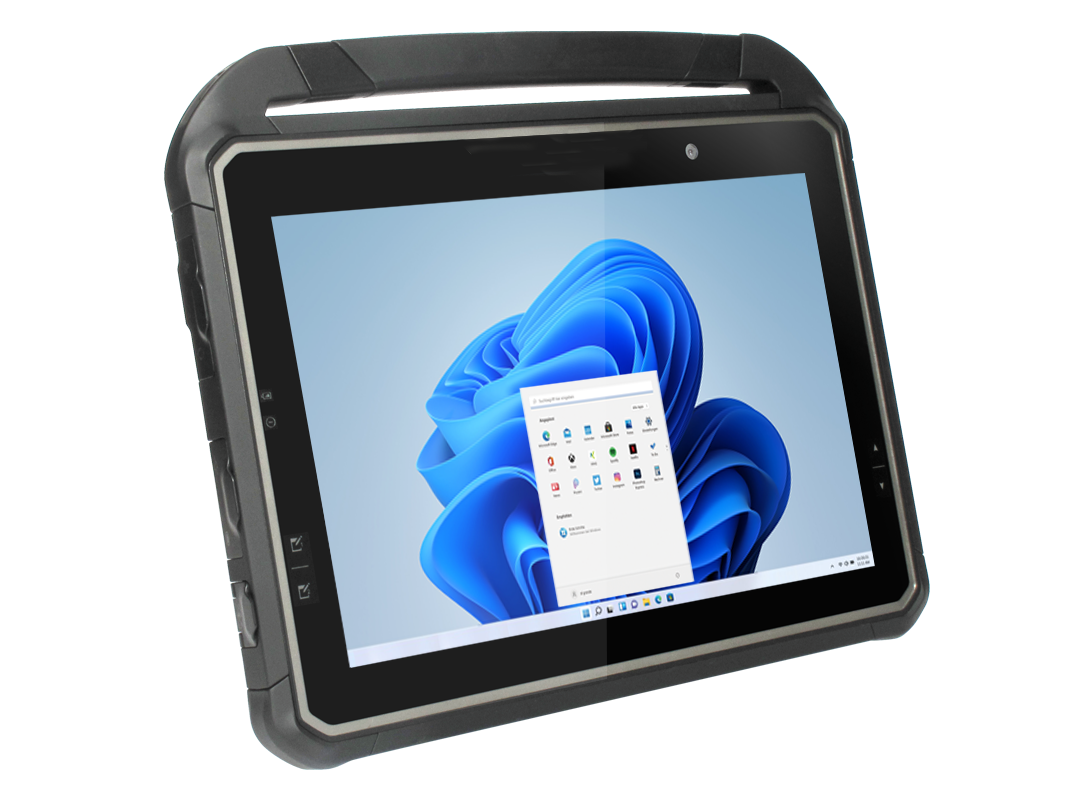

DT Research DT302RP

Documented processor alternatives

Advertised base: Unpublished

• Intel Core i7-1355U, 10-core, up to 5.0 GHz
• Intel Core i5-1335U, 10-core, up to 4.6 GHz

Official alternatives without a selected base. No first-listed CPU is assumed installed. Core counts and clock speeds apply to the stated processor.

Configurator processor choices

Advertised base: Unpublished

• 13th Gen. Core i5
• 13th Gen. Core i7

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=298. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Documented memory specifications

Advertised base: Unpublished

• 8GB to 32GB

Official technical ranges, CPU-dependent capacity and special-order conditions. A range is not an installed capacity or an invented list of intermediate orderable sizes. Selected base: Unpublished.

Documented storage specifications

Advertised base: Unpublished

• 512GB to 2TB flash
• *Support quick access SSD function to easily replace the SSD without opening
• the back cover

Official technical ranges, CPU-dependent capacity and special-order conditions. A range is not an installed capacity or an invented list of intermediate orderable sizes. Selected base: Unpublished.

Configurator memory choices

Advertised base: Unpublished

• 8GB
• 16GB

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=298. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Configurator primary storage choices

Advertised base: Unpublished

• 512GB
• 1TB
• 2TB

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=298. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Configurator screen choices

• Capacitive Touch

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=298. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

GNSS module options

• GPS

Optional factory module, not included base hardware or confirmation of every combination.

Mobile Broadband module options

• 4G LTE

Optional factory module, not included base hardware or confirmation of every combination.

Factory modules for networking

• GPS (UGPS-302)
• 4G LTE (EU) (ULTE-EU-302)
• 4G LTE (US) (ULTE-US-302)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=298. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. GPS (UGPS-302): GPS | 4G LTE (EU) (ULTE-EU-302): 4G LTE (EU)Note: can not co-exist with 2D Scanner or GPS | 4G LTE (US) (ULTE-US-302): 4G LTE (US)Note: can not co-exist with 2D Scanner or GPS

Documented operating systems

• Microsoft Windows 10/11 IoT Enterprise

Official shipping OS wording. Different OS alternatives are not a selected base. Versions alone do not block publication. The configurator may narrow currently selectable choices.

Battery alternatives

• 60W Hot-swappable battery (11.4V, 5400mAh)
• 90W Hot-swappable battery (11.4V, 8000mAh)

Optional packs are not installed by default. Source W is not silently converted to Wh. Wh totals are not inferred from voltage or mAh.

Enclosure and environmental specifications

Enclosure: ABS + PC plastics and magnesium-aluminum alloy with anti-microbial coating | Durability: IP65, MIL-STD-810H and MIL-STD-461G certified | Regulatory: CE, FCC Class B, RoHS | Temperature: Operation: -10°C to 60°C (14°F to 140°F); | Temperature: Storage: -50°C to 70°C (-58°F to 158°F) | Temperature: *For battery optimal functionality and performance, the recommended usage | Temperature: temperature range is from 0°C to 50°C (32°F to 122°F) | Temperature: *When use DT302 with AC power adapter, to comply with safety regulation, the | Temperature: recommended usage temperature is from 0°C to 40°C | Humidity: 0% to 90% non-condensing

Barcode Scanner module options

• 2D barcode scanner (reads 1D and 2D)

Optional factory module, not included base hardware or confirmation of every combination.

Camera module options

• 5 MP front camera and 8 MP back camera

Optional factory module, not included base hardware or confirmation of every combination.

Smart Card/CAC Reader module options

• Half-slot (supports ISO 7816 T=0, T=1); 1.8V/3V/5V smart card

Optional factory module, not included base hardware or confirmation of every combination.

Configurator operating system choices

• WIN 11 IoT

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=298. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Warranty for this model

• Three years of No-Fault Accidents Warranty. (UEW-NFW3-302)
• Five years of No-Fault Accidents Warranty. (UEW-NFW5-302)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=298. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

System upgrades for this model

• Upgrade from 43W battery to 60W battery with new unit purchase (UBATT-004)
• Upgrade from 43W battery to 90W battery with new unit purchase (UBATT-005)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=298. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

Factory modules for this model

• Back camera (UCCD-302B)
• Front camera (UCCD-302F)
• RFID (Raw Data) (URFID-302-R)
• 2D Area Imager Scanner (US2D-302)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=298. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. Back camera (UCCD-302B): Back camera | Front camera (UCCD-302F): Front camera | RFID (Raw Data) (URFID-302-R): RFID (Raw Data) | 2D Area Imager Scanner (US2D-302): 2D Area Imager Scanner

Accessories for this model

• AC Adapter with Power Cord (ACC-001-09)
• Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery (ACC-001-34A)
• Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries (ACC-001-35A)
• 461G Power Adapter with Power Cord (ACC-001-67)
• 43W Battery Pack (ACC-006-29)
• 60W Battery Pack (ACC-006-60K)
• 90W Battery Pack (ACC-006-90K)
• Digital Pen (ACC-007-35)
• Shoulder Strap for Tablets (ACC-010-07)
• Handle Kits (ACC-010-29)
• Handstrap (ACC-010-302)
• 10.1” Screen Protector (single-sheet of film) (ACC-011-302)
• 10.1” Tempered Glass Screen Protector (2 in 1 package) (ACC-011-33)
• Desktop Charging Cradle (ACC-DC300-B1)
• IP65 rated Slim Keyboard (ACC-KB302-B)
• Wall/Vehicle Mount Cradle with keylock. Power supply is not included. (ACC-WM210P-02A)
• Wall/Vehicle Mount Cradle without keylock. Power supply is not included. (ACC-WM210P-02B)
• Wall/Vehicle Mount Cradle with I/O box and keylock. Power supply is not included (ACC-WM302-B1)
• Wall/Vehicle Mount Cradle without I/O box, with keylock. Power supply is not included (ACC-WM302-B2)
• Wall/Vehicle Mount Cradle with I/O box, without keylock. Power supply is not included (ACC-WM302-BA1)
• Wall/Vehicle Mount Cradle without I/O box and keylock. Power supply is not included (ACC-WM302-BA2)
• VESA Mounting Bracket (ACC-WM302B-01)
• Sealed IP68 Bluetooth keyboard (ATM-ISK31B-BUS)
• Sealed IP68 USB Keyboard (ATM-ISK31BL-BUS)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=298. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. AC Adapter with Power Cord (ACC-001-09): AC/DC Power Adapter with Power Cord | Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery (ACC-001-34A): Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery | Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries (ACC-001-35A): Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries. Power supply is included. | 461G Power Adapter with Power Cord (ACC-001-67): 461G Power Adapter with Power Cord | 43W Battery Pack (ACC-006-29): 43W Battery Pack | 60W Battery Pack (ACC-006-60K): 60W Battery Pack | 90W Battery Pack (ACC-006-90K): 90W Battery Pack | Digital Pen (ACC-007-35): Digital Pen | Shoulder Strap for Tablets (ACC-010-07): Shoulder Strap for Tablets. Padded for comfort, provides convenient mobile operation, strap is adjustable. | Handle Kits (ACC-010-29): Handle kits. Factory installed only. | Handstrap (ACC-010-302): Handstrap. | 10.1” Screen Protector (single-sheet of film) (ACC-011-302): 10.1” Screen Protector (single-sheet of film) | 10.1” Tempered Glass Screen Protector (2 in 1 package) (ACC-011-33): 10.1” Tempered Glass Screen Protector (2 in 1 package) | Desktop Charging Cradle (ACC-DC300-B1): Desktop Charging Cradle | IP65 rated Slim Keyboard (ACC-KB302-B): IP65 rated Slim Keyboard | Wall/Vehicle Mount Cradle with keylock. Power supply is not included. (ACC-WM210P-02A): Wall/Vehicle Mount Cradle with keylock. Power supply is not included. | Wall/Vehicle Mount Cradle without keylock. Power supply is not included. (ACC-WM210P-02B): Wall/Vehicle Mount Cradle without keylock. Power supply is not included. | Wall/Vehicle Mount Cradle with I/O box and keylock. Power supply is not included (ACC-WM302-B1): Wall/Vehicle Mount Cradle with I/O box and keylock. Power supply is not included | Wall/Vehicle Mount Cradle without I/O box, with keylock. Power supply is not included (ACC-WM302-B2): Wall/Vehicle Mount Cradle without I/O box, with keylock. Power supply is not included | Wall/Vehicle Mount Cradle with I/O box, without keylock. Power supply is not included (ACC-WM302-BA1): Wall/Vehicle Mount Cradle with I/O box, without keylock. Power supply is not included | Wall/Vehicle Mount Cradle without I/O box and keylock. Power supply is not included (ACC-WM302-BA2): Wall/Vehicle Mount Cradle without I/O box and keylock. Power supply is not included | VESA Mounting Bracket (ACC-WM302B-01): VESA Mounting Bracket | Sealed IP68 Bluetooth keyboard (ATM-ISK31B-BUS): Sealed IP68 Bluetooth keyboard | Sealed IP68 USB Keyboard (ATM-ISK31BL-BUS): Sealed IP68 USB Keyboard
