DT Research 373T/MD

Documented processor alternatives

Advertised base: Unpublished

• Intel Core i5-1335U, 10-core, up to 4.6 GHz
• Intel Core i7-1355U, 10-core, up to 5.0 GHz

Official alternatives without a selected base. No first-listed CPU is assumed installed. Core counts and clock speeds apply to the stated processor.

Configurator processor choices

Advertised base: Unpublished

• Core i5
• Core i7

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=286. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Documented memory specifications

Advertised base: Unpublished

• 8GB to 32GB

Official technical ranges, CPU-dependent capacity and special-order conditions. A range is not an installed capacity or an invented list of intermediate orderable sizes. Selected base: Unpublished.

Documented storage specifications

Advertised base: Unpublished

• 512GB to 2TB flash

Official technical ranges, CPU-dependent capacity and special-order conditions. A range is not an installed capacity or an invented list of intermediate orderable sizes. Selected base: Unpublished.

Configurator memory choices

Advertised base: Unpublished

• 8GB
• 16GB

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=286. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Configurator primary storage choices

Advertised base: Unpublished

• 512GB
• 1TB

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=286. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Native resolution alternatives

• 1980 x 1080 (Optional: 3840 x 2160)

No selected alternative panel is assumed.

Configurator screen choices

• Capacitive Touch

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=286. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

USB Port optional connections

• : additional 3 x USB Type-A ports at the optional back service door)

Optional module/connector, not an included native port. Interface types and counts are retained.

COM Port optional connections

• : 1 at the optional back service door)

Optional module/connector, not an included native port. Interface types and counts are retained.

Ethernet Port optional connections

• : 1 at the optional back service door DC and RJ)

Optional module/connector, not an included native port. Interface types and counts are retained.

DC-in Jack optional connections

• : 1 at the optional back service door DC and RJ)

Optional module/connector, not an included native port. Interface types and counts are retained.

DC-out Jack optional connections

• : 1 at the Optional Back Service Door DC only)

Optional module/connector, not an included native port. Interface types and counts are retained.

Documented operating systems

Advertised base: Unpublished

• Microsoft Windows 10/11 IoT Enterprise or Ubuntu

Official shipping OS wording. Different OS alternatives are not a selected base. Versions alone do not block publication. The configurator may narrow currently selectable choices.

Enclosure and environmental specifications

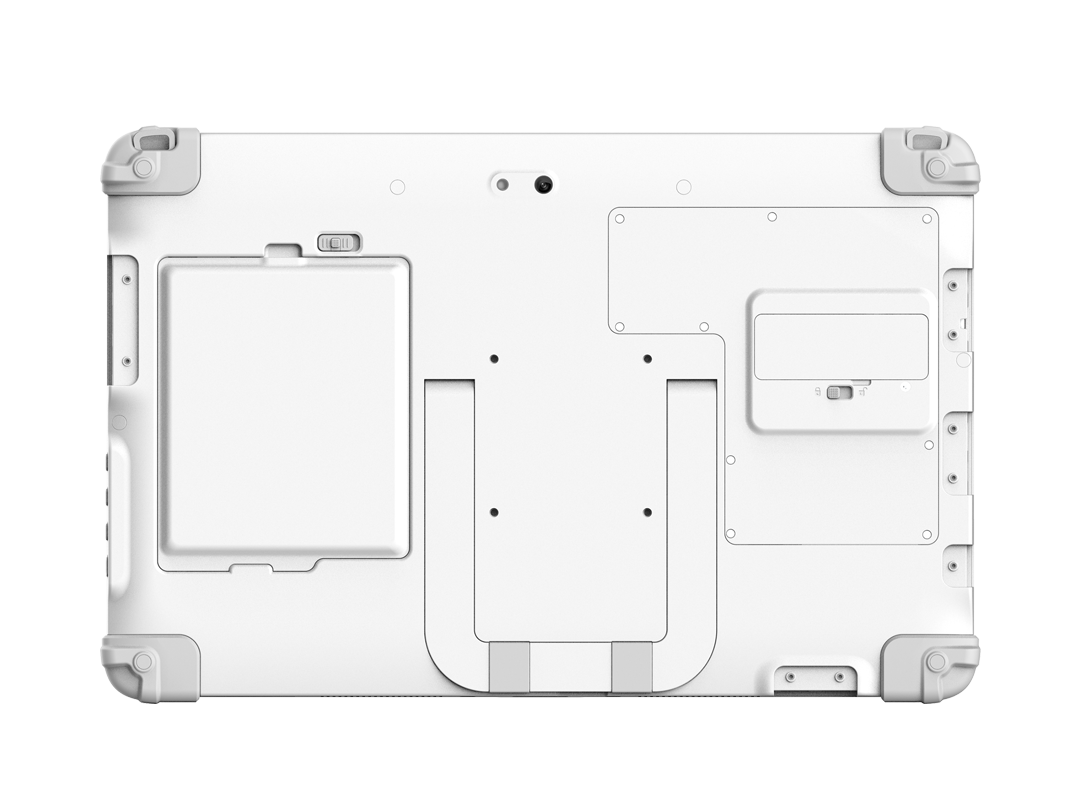

Back Service Door: a. Back service door DC: back service door with an additional set of I/O ports | Back Service Door: (3 x USB Type-A, 1 x COM port, 1 x DC-in jack, and 1 DC-out jack) | Back Service Door: *Eliminates 3 right side USB and 2 bottom USB ports | Back Service Door: b. Back service door RJ: back service door with an additional set of I/O ports | Back Service Door: (3 x USB Type-A, 1 x COM port, 1 x DC-in jack, and 1 RJ45 out) | Back Service Door: *Eliminates 2 bottom USB ports | Enclosure: ABS + PC plastic and magnesium-aluminum alloy with antimicrobial enclosure | VESA-Compliant Mounting: 75 x 75 mm VESA standard | Durability: IP65-rated front panel | Regulatory: FCC/IC, CE/CB, ANSI/AAMI ES60601-1, RCM | Temperature: Operation: -10°C to 50°C (14°F to 122°F), | Temperature: Storage: -50°C to 70°C (-58°F to 158°F) | Humidity: 0% to 90% non-condensing

CAC Card Reader module options

• Half-slot (reads ISO 7816 T=0, T=1); 1.8/3/5V smart card

Optional factory module, not included base hardware or confirmation of every combination.

Back Service Door module options

• An additional set of I/O ports, including 3 x USB Type-A, 1 x COM port, 1 x DC-in jack, and 1 DC-out jack

Optional factory module, not included base hardware or confirmation of every combination.

Configurator operating system choices

Advertised base: Unpublished

• WIN 11 IoT Enterprise

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=286. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Warranty for this model

• Three years of No-Fault Accidents Warranty. (UEW-NFW3-373)
• Five years of No-Fault Accidents Warranty. (UEW-NFW5-373)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=286. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

System upgrades for operating system

Advertised base: Unpublished

• For Pentium units with Windows 11 license and Windows 10 downgrade right. New unit purchase only. (DWIN10-EHE)
• For i5 units with Windows 11 license and Windows 10 downgrade right. New unit purchase only. (DWIN10-VHE )

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=286. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

System upgrades for this model

• Upgrade from 60W to 90W battery with new unit purchase (UBATT-001)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=286. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

Factory modules for this model

• 12V DC-out (10W), 19V DC-in, 3x USB3.0, RS323 COM (UDC1-373)
• RFID (Raw Data) (URFID-373T-R)
• RJ45 Ethernet, 19V DC-in, 3x USB3.0, RS232 COM (URJ45-373)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=286. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. 12V DC-out (10W), 19V DC-in, 3x USB3.0, RS323 COM (UDC1-373): 12V DC-out (10W), 19V DC-in, 3x USB3.0, RS323 COM | RFID (Raw Data) (URFID-373T-R): RFID (Raw Data) | RJ45 Ethernet, 19V DC-in, 3x USB3.0, RS232 COM (URJ45-373): RJ45 Ethernet, 19V DC-in, 3x USB3.0, RS232 COM

Accessories for this model

• Battery Holster (DR202 battery is not included) (ACC-001-15)
• Battery Holster (battery is not included) with 3 DC-outputs (ACC-001-29)
• Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery (ACC-001-34A)
• Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries (ACC-001-35A)
• Medical Grade AC/DC adapter (72W) with Power Cord (ACC-001-53)
• 3-slot Battery Holster (batteries are not included) with charger (ACC-001-64)
• DR202 Battery for Battery Holster (ACC-006-591)
• 60W Battery Pack (ACC-006-60MD)
• 90W Battery Pack (ACC-006-90MD)
• Shoulder Strap for Tablets (ACC-010-07)
• Sealed IP68 BT Keyboard (ATM-ISK31B-WUS)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=286. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. Battery Holster (DR202 battery is not included) (ACC-001-15): Battery Holster (DR202 battery is not included) | Battery Holster (battery is not included) with 3 DC-outputs (ACC-001-29): Battery Holster (battery is not included) with 12V, 15V and 19V DC-outputs | Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery (ACC-001-34A): Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery | Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries (ACC-001-35A): Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries. Power supply is included. | Medical Grade AC/DC adapter (72W) with Power Cord (ACC-001-53): Medical Grade AC/DC adapter (72W) with Power Cord | 3-slot Battery Holster (batteries are not included) with charger (ACC-001-64): 3-slot Battery Holster (batteries are not included) with charger | DR202 Battery for Battery Holster (ACC-006-591): DR202 Battery | 60W Battery Pack (ACC-006-60MD): 60W Battery Pack | 90W Battery Pack (ACC-006-90MD): 90W Battery Pack | Shoulder Strap for Tablets (ACC-010-07): Shoulder Strap for Tablets. Padded for comfort, provides convenient mobile operation, strap is adjustable. | Sealed IP68 BT Keyboard (ATM-ISK31B-WUS): Sealed IP68 BT Keyboard

Accessories for operating system

Advertised base: Unpublished

• Standalone Windows 11 IoT Enterprise General Availability Channel (GAC) High-End EPKEA license. (ZCLI-001-49)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=286. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. Standalone Windows 11 IoT Enterprise General Availability Channel (GAC) High-End EPKEA license. (ZCLI-001-49): Standalone Windows 11 IoT Enterprise General Availability Channel (GAC) High-End EPKEA license.
