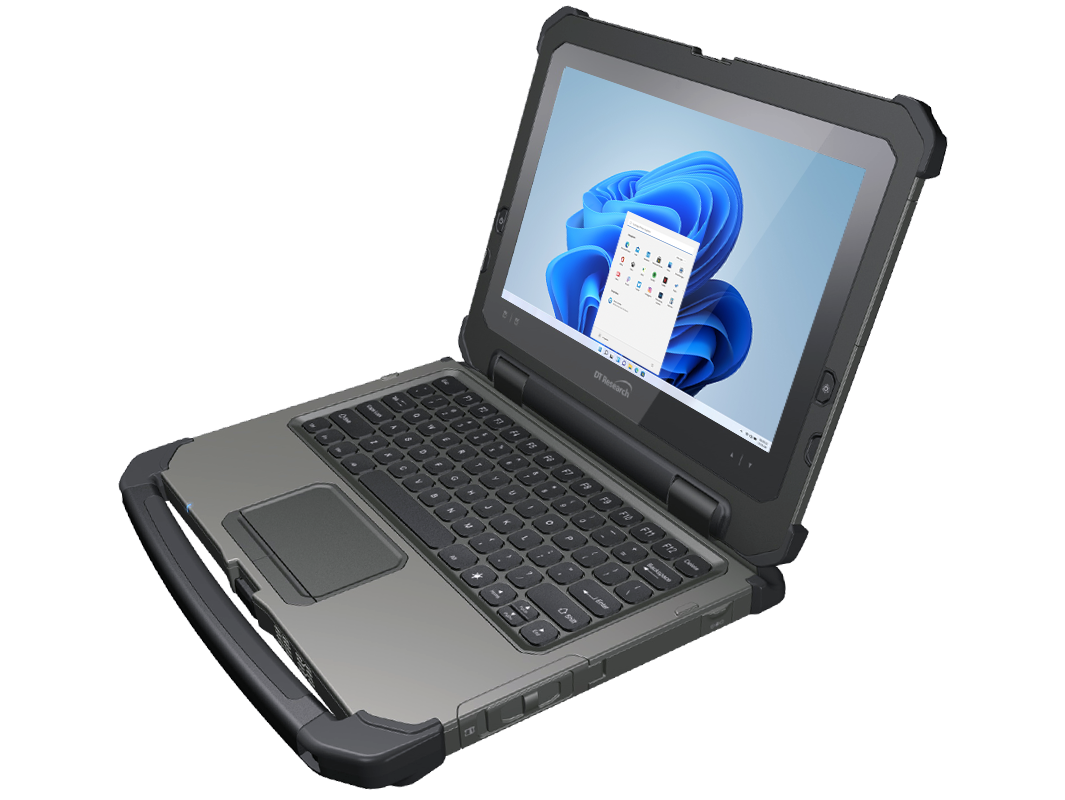

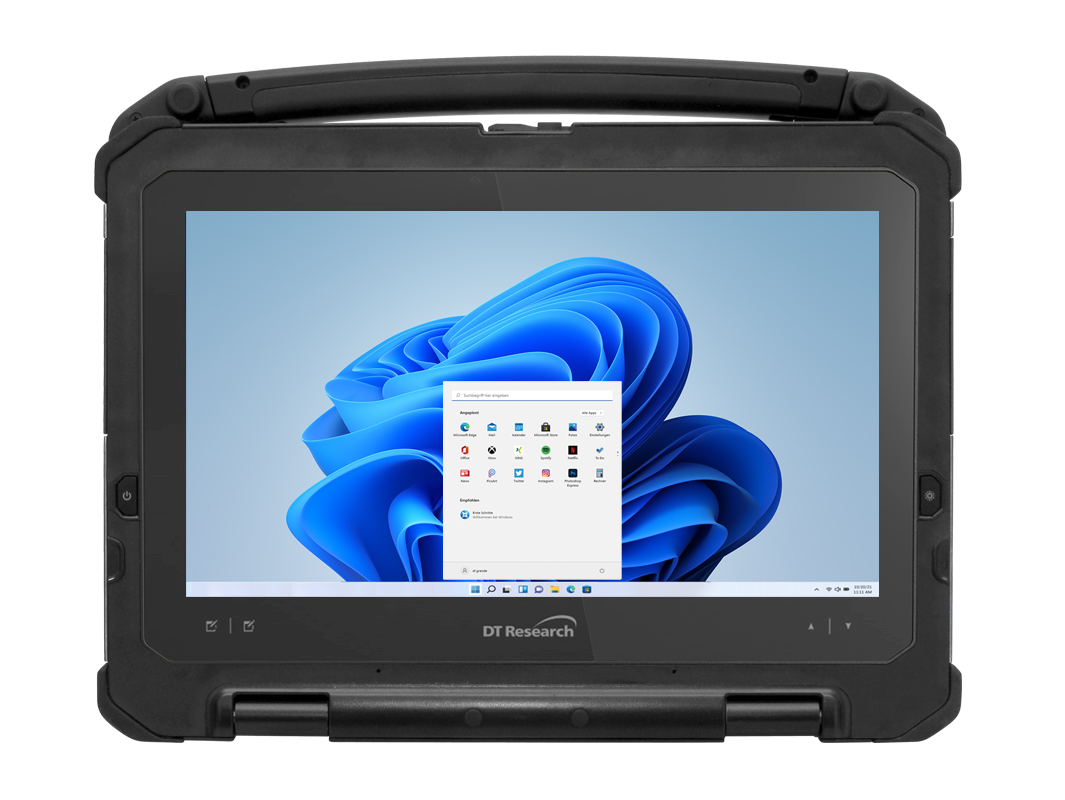

DT Research LT320

Configurator processor choices

• Core i7

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=255. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Documented memory specifications

Advertised base: Unpublished

• 8GB to 64GB (dual-slot)

Official technical ranges, CPU-dependent capacity and special-order conditions. A range is not an installed capacity or an invented list of intermediate orderable sizes. Selected base: Unpublished.

Documented storage specifications

Advertised base: Unpublished

• 512GB to 2TB SSD

Official technical ranges, CPU-dependent capacity and special-order conditions. A range is not an installed capacity or an invented list of intermediate orderable sizes. Selected base: Unpublished.

Configurator memory choices

Advertised base: Unpublished

• 8GB

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=255. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Configurator primary storage choices

Advertised base: Unpublished

• 512GB
• 1TB
• 2TB

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=255. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

System upgrades for memory

Advertised base: Unpublished

• Upgrade from 8GB to 16GB RAM (UD8GB-16GB)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=255. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

Factory modules for storage

Advertised base: Unpublished

• Add 2nd 1TB SSD (U2NDSSD-1TB)
• Add 2nd 2TB SSD (U2NDSSD-2TB)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=255. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. Add 2nd 1TB SSD (U2NDSSD-1TB): Add 2nd 1TB SSD | Add 2nd 2TB SSD (U2NDSSD-2TB): Add 2nd 2TB SSD

Luminance options

• night vision screen – daylight mode: 800 nits; NVIS mode: 0 to 20 nits. MIL-STD-3009 Class B compliant, providing clear readability of the display with naked eyes in dark environments and does not interfere with NVGs.
• night vision screen – daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits. MIL-STD-3009 Class B compliant, providing clear readability of the display with NVGs in dark environments.

Optional native-screen variants; brightness, night vision and resolution depend on the selected panel.

Configurator screen choices

• Capacitive Touch

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=255. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

GNSS module options

• GPS

Optional factory module, not included base hardware or confirmation of every combination.

Mobile Broadband module options

• 4G LTE/AWS

Optional factory module, not included base hardware or confirmation of every combination.

Factory modules for networking

• 4G LTE (US) (ULTE-US-LT320)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=255. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. 4G LTE (US) (ULTE-US-LT320): 4G LTE (US)

Accessories for connections

• USB-C I/O ports station (ACC-001-55 )

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=255. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. USB-C I/O ports station (ACC-001-55 ): USB-C I/O ports station. A 90W 19V adapter is included

Documented operating systems

• Microsoft Windows 10/11 IoT Enterprise

Official shipping OS wording. Different OS alternatives are not a selected base. Versions alone do not block publication. The configurator may narrow currently selectable choices.

Battery alternatives

• 90W Hot-swappable battery (11.4V, 8000mAh)

Optional packs are not installed by default. Source W is not silently converted to Wh. Wh totals are not inferred from voltage or mAh.

Enclosure and environmental specifications

Enclosure: ABS + PC plastic and magnesium-aluminum alloy with antimicrobial coating | Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing: Yes | Durability: IP65, MIL-STD-810H and MIL-STD-461G certified | Regulatory: FCC Class B, CE, IC, CB, RoHS, EPEAT, RCM compliant | Temperature: Operation: -10°C to 60°C (14°F to 140°F), Optional -30°C to 60°C (-22°F to 140°F) | Temperature: Storage: -55°C to 70°C (-67°F to 158°F) | Humidity: 0% to 95% non-condensing

Camera module options

• Front full-HD camera with auto white balance and Gain/Exposure control

Optional factory module, not included base hardware or confirmation of every combination.

Configurator operating system choices

• WIN 11 IoT Enterprise

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=255. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Warranty for this model

• Three years of No-Fault Accidents Warranty (UEW-NFW3-LT)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=255. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

System upgrades for operating system

• For i5 units with Windows 11 license and Windows 10 downgrade right. New unit purchase only. (DWIN10-VHE )

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=255. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

System upgrades for this model

• Upgrade from 60W to 90W battery with new unit purchase (UBATT-001)
• Upgrade system with Low Temperature Heat Pad (ULTHP-LT320)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=255. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

Factory modules for this model

• Front CMOS camera (UCCD-LT320F)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=255. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. Front CMOS camera (UCCD-LT320F): Front CMOS camera

Accessories for this model

• AC Adapter with Power Cord (ACC-001-09)
• Battery Charger Kit with AC Adapter and Power Cord (ACC-001-34)
• Battery Gang Charger (ACC-001-35)
• 461G Power Adapter with Power Cord (ACC-001-67)
• 60W Battery Pack (ACC-006-60K)
• 90W Battery Pack (ACC-006-90K)
• Digital Pen (ACC-007-35)
• 11.6” Screen Protector for 311YR/LT320 series (ACC-011-17)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=255. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. AC Adapter with Power Cord (ACC-001-09): AC/DC Power Adapter with Power Cord | Battery Charger Kit with AC Adapter and Power Cord (ACC-001-34): Single-bay Battery Charger Kit with AC Adapter and Power cord for 60W or 90W battery | Battery Gang Charger (ACC-001-35): Battery Gang Charger. Simultaneously charge 6 60W/90W battery packs. Power Supply is included. | 461G Power Adapter with Power Cord (ACC-001-67): 461G Power Adapter with Power Cord | 60W Battery Pack (ACC-006-60K): 60W Battery Pack | 90W Battery Pack (ACC-006-90K): 90W Battery Pack | Digital Pen (ACC-007-35): Digital Pen | 11.6” Screen Protector for 311YR/LT320 series (ACC-011-17): 11.6” Screen Protector for 311YR/LT320/312RP series (single-sheet of films)

Accessories for operating system

• Standalone Windows 11 IoT Enterprise General Availability Channel (GAC) High-End EPKEA license. (ZCLI-001-49)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=255. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. Standalone Windows 11 IoT Enterprise General Availability Channel (GAC) High-End EPKEA license. (ZCLI-001-49): Standalone Windows 11 IoT Enterprise General Availability Channel (GAC) High-End EPKEA license.
