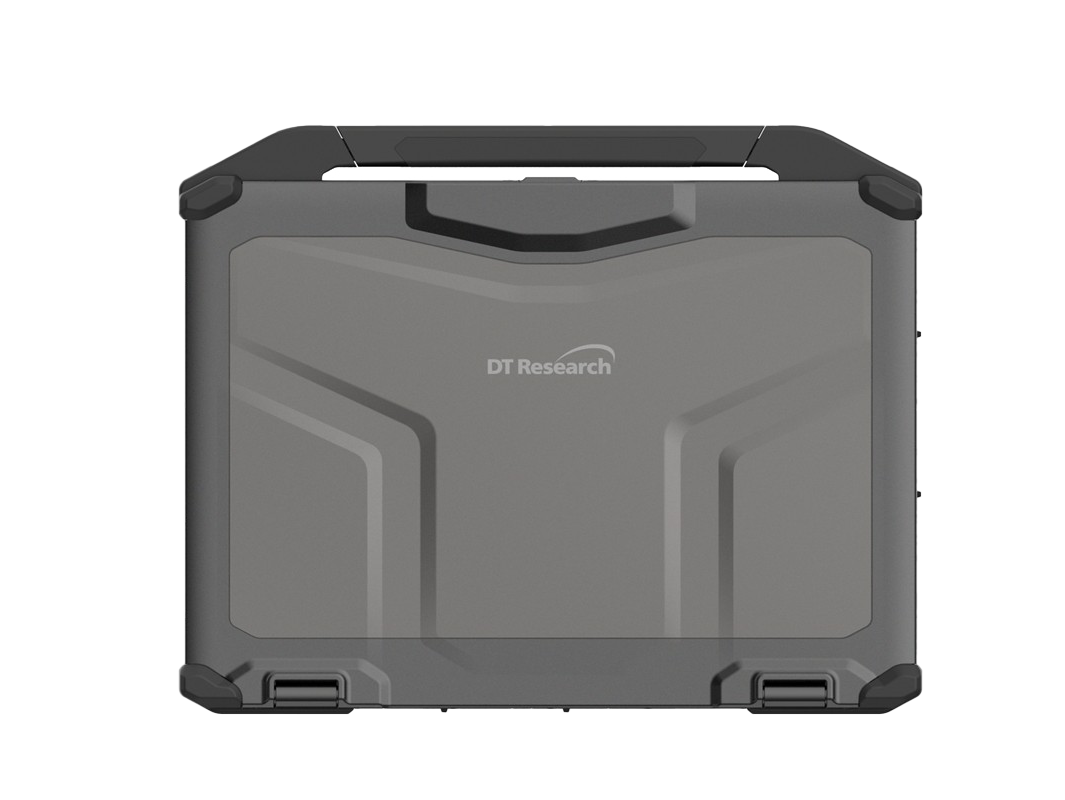

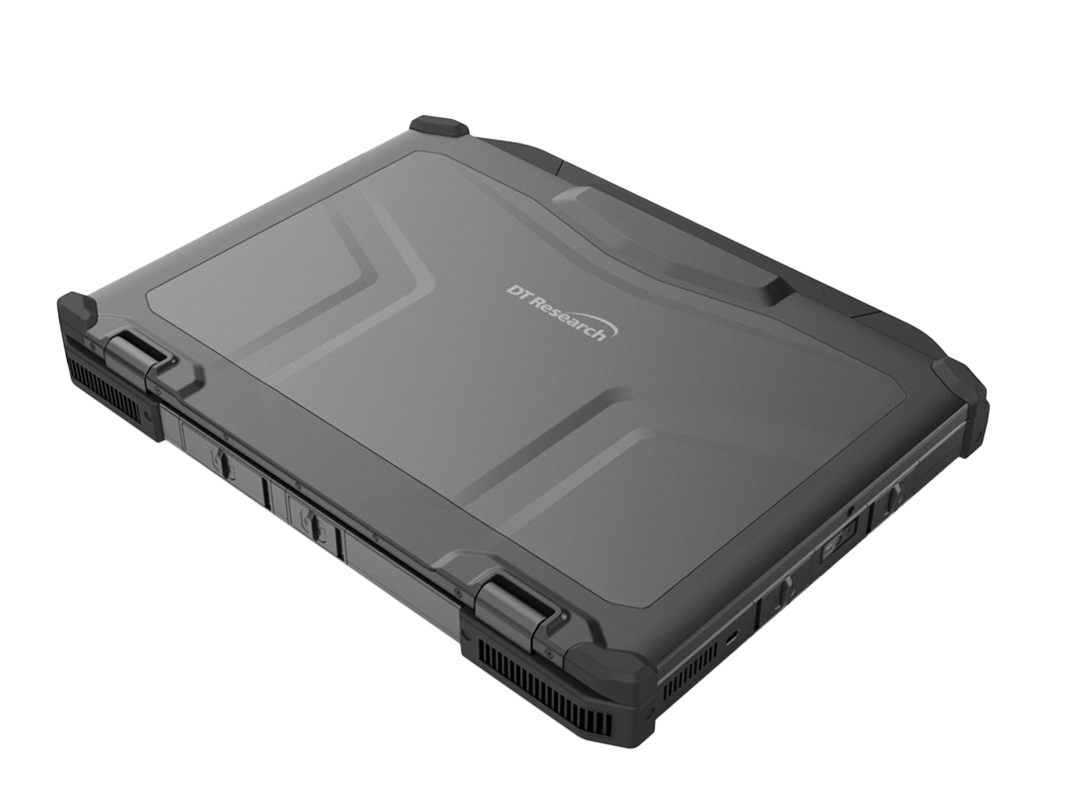

DT Research LT360PA

Documented processor alternatives

Advertised base: Unpublished

• Intel Core Ultra 5 processor 225H, 14-core (up to 4.9 GHz)
• Intel Core Ultra 7 processor 255H, 16-core (up to 5.1 GHz)

Official alternatives without a selected base. No first-listed CPU is assumed installed. Core counts and clock speeds apply to the stated processor.

Configurator processor choices

Advertised base: Unpublished

• Intel Core Ultra 5
• Intel Core Ultra 7

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=338. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Documented memory specifications

Advertised base: Unpublished

• Ultra 5: 16GB LPDDR5
• Ultra 7: 16GB to 32GB LPDDR5

Official technical ranges, CPU-dependent capacity and special-order conditions. A range is not an installed capacity or an invented list of intermediate orderable sizes. Selected base: Unpublished.

Documented storage specifications

Advertised base: Unpublished

• 256GB to 2TB SSD

Official technical ranges, CPU-dependent capacity and special-order conditions. A range is not an installed capacity or an invented list of intermediate orderable sizes. Selected base: Unpublished.

Configurator memory choices

Advertised base: Unpublished

• 16GB

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=338. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Configurator primary storage choices

Advertised base: Unpublished

• 512GB
• 1TB
• 2TB

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=338. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Luminance options

• night vision screen – daylight mode: 800 nits; NVIS mode: 0 to 20 nits
• night vision screen – daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits

Optional native-screen variants; brightness, night vision and resolution depend on the selected panel.

Native resolution alternatives

• 1920 x 1080, or 3840 x 2160 (optional)

No selected alternative panel is assumed.

Night Vision Screen / Luminance module options

• Option 1: Daylight mode: 800 nits; NVIS mode: 0 to 20 nits. MIL-STD-3009 class B compliant, providing clear readability of display with the
• naked eye in dark environments, does not interfere with NVGs
• Option 2: Daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits. MIL-STD-3009 class B compliant, providing clear readability of display with
• NVGs in dark environments

Optional factory module, not included base hardware or confirmation of every combination.

Configurator screen choices

• Capacitive Touch

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=338. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Factory modules for screen

• Night Vision with MIL-STD-3009 Class B compliant 0 to 20 nits. (UNVIS-360-01 )
• Night Vision MIL-STD-3009 Class B compliant 0 to 0.7 nits (UNVIS-360-02)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=338. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. Night Vision with MIL-STD-3009 Class B compliant 0 to 20 nits. (UNVIS-360-01 ): Night Vision with MIL-STD-3009 Class B compliant 0 to 20 nits. | Night Vision MIL-STD-3009 Class B compliant 0 to 0.7 nits (UNVIS-360-02): Night Vision MIL-STD-3009 Class B compliant 0 to 0.7 nits

USB Port optional connections

• : additional 1 x latest USB/charging)

Optional module/connector, not an included native port. Interface types and counts are retained.

Ethernet optional connections

• : additional 1 x RJ45)

Optional module/connector, not an included native port. Interface types and counts are retained.

24-pin Fischer Connector (Optional) optional connections

• 1

Optional module/connector, not an included native port. Interface types and counts are retained.

SFP Connector (Optional) optional connections

• 1

Optional module/connector, not an included native port. Interface types and counts are retained.

Mobile Broadband module options

• 4G LTE

Optional factory module, not included base hardware or confirmation of every combination.

GNSS module options

• GPS

Optional factory module, not included base hardware or confirmation of every combination.

Factory modules for networking

• GPS (UGPS-360)
• 4G LTE (EU) (ULTE-EU-360)
• 4G LTE (US) (ULTE-US-360)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=338. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. GPS (UGPS-360): GPS | 4G LTE (EU) (ULTE-EU-360): 4G LTE (EU) | 4G LTE (US) (ULTE-US-360): 4G LTE (US)

Documented operating systems

• Microsoft Windows 11 IoT Enterprise

Official shipping OS wording. Different OS alternatives are not a selected base. Versions alone do not block publication. The configurator may narrow currently selectable choices.

Battery alternatives

• 2 x Hot-swappable batteries (11.4V, 8000mAh) (optional)

Optional packs are not installed by default. Source W is not silently converted to Wh. Wh totals are not inferred from voltage or mAh.

Enclosure and environmental specifications

Enclosure: ABS + PC plastic and magnesium-aluminum alloy with antimicrobial coating | Kensington Lock: 1 | Durability: IP65, MIL-STD-810H and MIL-STD-461G certified | Regulatory: FCC Class B, CE, CB, RoHS, EPEAT, Cyber, Energy Star 9.0 compliant | Temperature: Operation: -10°C to 60°C (14°F to 140°F), optional -30°C to 60°C (-22°F to 140°F) | Temperature: storage: -55°C to 70°C (-67°F to 158°F) | Humidity: 0% to 90% non-condensing

Barcode Scanner module options

• 2D barcode scanner (reads 1D and 2D)

Optional factory module, not included base hardware or confirmation of every combination.

Smart Card/CAC Reader module options

• Full-slot (reads ISO 7816 T=0, T=1); 1.8/3/5V smart card

Optional factory module, not included base hardware or confirmation of every combination.

RFID Reader module options

• Dual frequency (reads 125 KHz and 13.56 MHz credentials)

Optional factory module, not included base hardware or confirmation of every combination.

Configurator operating system choices

• WIN 11 IoT

Visible controls on https://www.dtresearch.com/productconfig/config.php?model=338. No order or selection was submitted. Choices depend on OS, processor, upgrades and modules; not all combinations are confirmed. Generic CPU tiers do not override detailed official CPU names. Technical limits/special-order ranges are documented separately.

Warranty for this model

• Three years of No-Fault Accidents Warranty (UEW-NFW3-LT)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=338. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

System upgrades for this model

• Upgrade to two of 90W batteries with new unit purchase (UBATT-003)
• Upgrade system with Low Temperature Heat Pad (ULTHP-360)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=338. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained.

Factory modules for this model

• Front camera (UCCD-360F)
• Fiber Optics port (UFOP-360)
• Dual Frequency RFID (URFID-360)
• 2D Scanner (US2D-360)
• Smart Card Reader (USCR-360)
• USB Type-C port and Ethernet port (UUSBCLAN-360)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=338. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. Front camera (UCCD-360F): Front camera | Fiber Optics port (UFOP-360): Fiber Optics port | Dual Frequency RFID (URFID-360): Dual Frequency RFID | 2D Scanner (US2D-360): 2D Scanner | Smart Card Reader (USCR-360): Smart Card Reader | USB Type-C port and Ethernet port (UUSBCLAN-360): USB Type-C port and Ethernet port

Accessories for this model

• AC Adapter with Power Cord (ACC-001-09)
• Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery (ACC-001-34A)
• Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries (ACC-001-35A)
• 461G Power Adapter with Power Cord (ACC-001-67)
• 60W Battery Pack (ACC-006-60K)
• 90W Battery Pack (ACC-006-90K)
• Digital Pen (ACC-007-35)
• Sealed IP68 Bluetooth keyboard (ATM-ISK31B-BUS)
• Sealed IP68 USB Keyboard (ATM-ISK31BL-BUS)

Exact linked controls on https://www.dtresearch.com/productconfig/config.php?model=338. Optional add-ons are not included base hardware. Additional SSDs stay separate from primary drive capacity. License upgrades/downgrade rights do not select a shipping OS. Regional US/EU LTE distinctions are retained. AC Adapter with Power Cord (ACC-001-09): AC/DC Power Adapter with Power Cord | Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery (ACC-001-34A): Single-bay Battery Charger kit with AC Adapter and Power cord for 43W or 60W or 90W battery | Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries (ACC-001-35A): Battery Gang Charger. Simultaneously charge 6 of 43W or 60W or 90W batteries. Power supply is included. | 461G Power Adapter with Power Cord (ACC-001-67): 461G Power Adapter with Power Cord | 60W Battery Pack (ACC-006-60K): 60W Battery Pack | 90W Battery Pack (ACC-006-90K): 90W Battery Pack | Digital Pen (ACC-007-35): Digital Pen | Sealed IP68 Bluetooth keyboard (ATM-ISK31B-BUS): Sealed IP68 Bluetooth keyboard | Sealed IP68 USB Keyboard (ATM-ISK31BL-BUS): Sealed IP68 USB Keyboard
