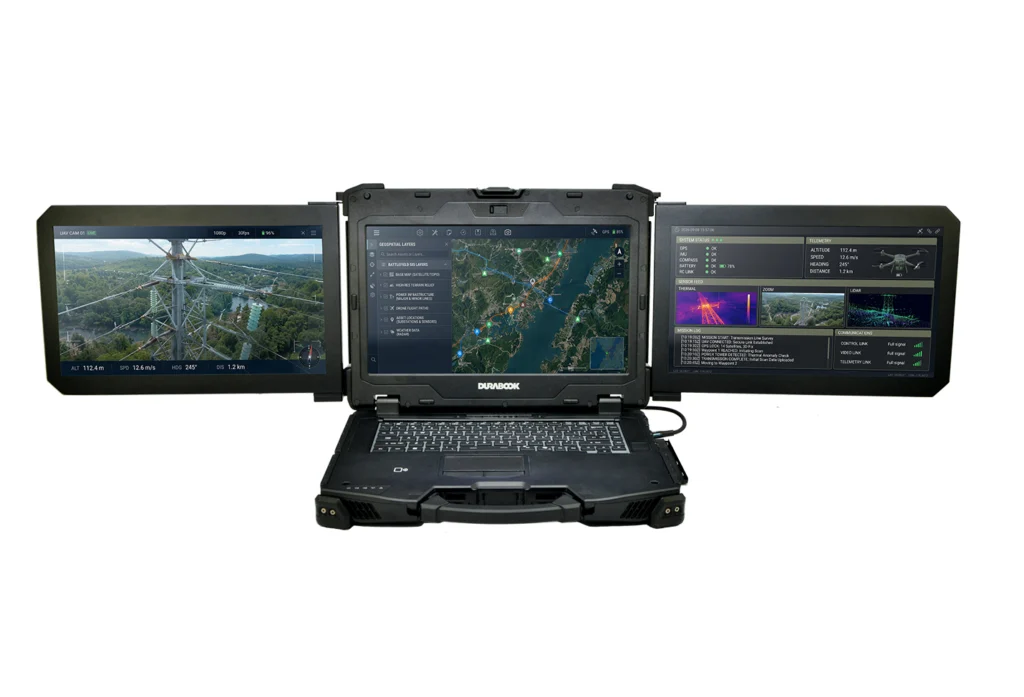

DURABOOK Z14I-DX3 Rugged Workstation

Processor choices

Advertised base: Unpublished

• Intel Core Ultra 7 165U (12MB Cache, up to 4.9 GHz, 12 cores, 14 threads with Intel AI Boost NPU)
• Intel Core Ultra 7 155U (12MB Cache, up to 4.8 GHz, 12 cores, 14 threads with Intel AI Boost NPU)
• Intel Core Ultra 5 135U (12MB Cache, up to 4.4 GHz, 12 cores, 14 threads with Intel AI Boost NPU)
• Intel Core Ultra 5 125U (12MB Cache, up to 4.3 GHz, 12 cores, 14 threads with Intel AI Boost NPU)

The source lists these CPUs without a selected base. No first-listed CPU is assumed installed. Contact your sales representative for feature availability. | Mutually exclusive options. | For optimal graphics performance, an upgrade of the system memory to 32GB or higher and the SSD capacity to 512GB or higher is recommended.

Graphics choices and CPU conditions

• Intel Graphics
• Optional NVIDIA RTX A5001,3
• Optional NVIDIA RTX 3500 Ada with 12GB GDDR6 memory
• Optional NVIDIA RTX 5000 Ada with 16GB GDDR6

Official GPU descriptions and CPU conditions. Optional discrete graphics are not installed by default.

Memory choices and supported range

Advertised base: Unpublished

• 2 slots 16GB up to 64GB (5600MHz DDR5)

Official memory range, slot/onboard/package arrangement and maximum. Intermediate sizes are not inferred; RAM on package depends on the selected CPU. No installed capacity is selected by this range.

Storage choices

• 256GB NVME PCIE SSD
• Optional 512GB/1TB/2TB PCIE SSD
• Optional OPAL 2.0 SSD
• Optional 2nd storage NVME PCIE SSD
• Optional 3rd storage SATA SSD

Official standard drive and optional primary/secondary drive choices. A secondary drive is not included in the standard capacity.

I/O Ports options

• Optional RF antenna pass-through for GPS, WWAN, and WLAN

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Communications options

• Optional dedicated GPS module (UBLOX-NEO-M9N)
• Optional 4G LTE multi-carrier mobile broadband
• Optional 5G
• Optional RF antenna pass-through for GPS, WWAN, and WLAN

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Expansion Slots options

• Optional PCI-Express 3.0 (2 slots)
• Optional discrete VGA
• Optional storage extension with RAID 0/1/5/10

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Media Bay (One Option Only) options

• Optional DVD super Multi
• Optional 2nd battery
• Optional SATA SSD

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Manufacturer compatibility and specification notes

Contact your sales representative for feature availability. | Mutually exclusive options. | For optimal graphics performance, an upgrade of the system memory to 32GB or higher and the SSD capacity to 512GB or higher is recommended.

Camera options

• Optional 5.0 MP IR camera for Windows Hello

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Security options

• Optional Windows Hello1
• Optional fingerprint scanner
• Optional LF/HF-RFID (NFC) reader

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Battery and power options

• Optional 2nd battery Li-Ion 10.8V, 4700mAh

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Ruggedness and certifications

MIL-STD 810H certified (Shock, Vibration, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation) | MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility) | Magnesium alloy chassis | Port covers | Removable quick-release battery | Two removable quick-release storage drives | Sunlight readable display

Environmental limits

Temperature | Operating: -29°C ~ 63°C / -20°F ~ 145°F | Storage: -51°C ~ 71°C / -60°F ~ 160°F | Humidity: 5% ~ 95%

Warranty details

3-Year Accidental Damage Warranty

Documented accessories

• 3rd SSD for media bay
• Battery Charger - 2 bays
• Battery Charger - 8 bays
• Removable 2nd Battery for media bay
• Removable Super Multi DVD for media bay
• Screen Protector Film Z14I
• Spare Main Battery Z14I
• Spare PCIE SSD with canister Z14I
• Spare Stylus & Tether for capacitive touch
• USB 3.0 Docking Station
• USB-C Docking Station

Accessories are separate add-ons, not standard included hardware. Model-specific restrictions apply.
