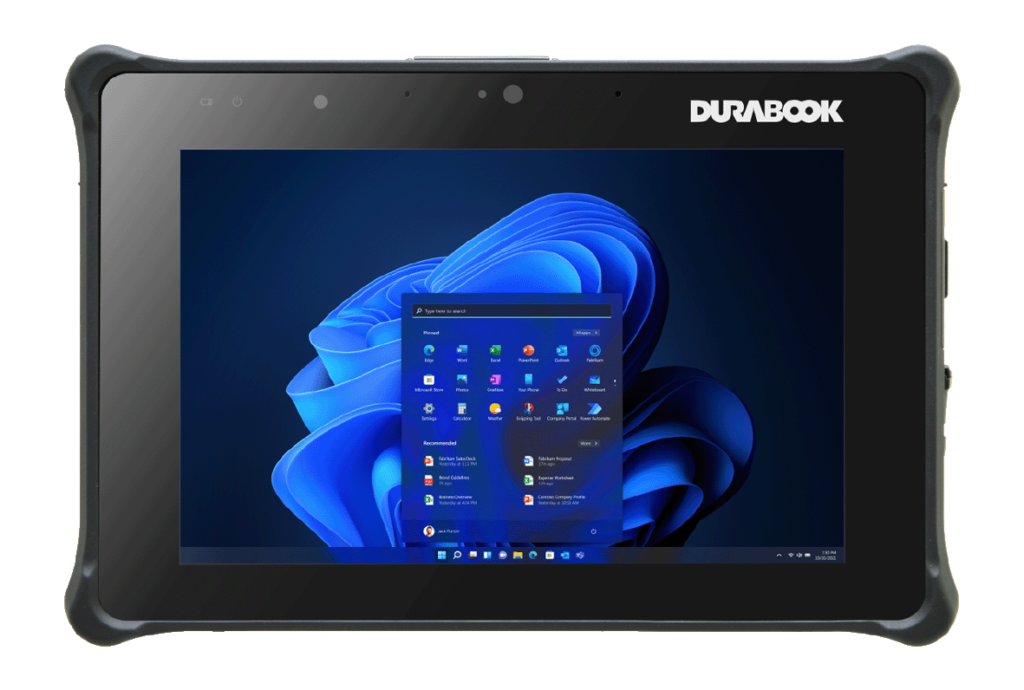

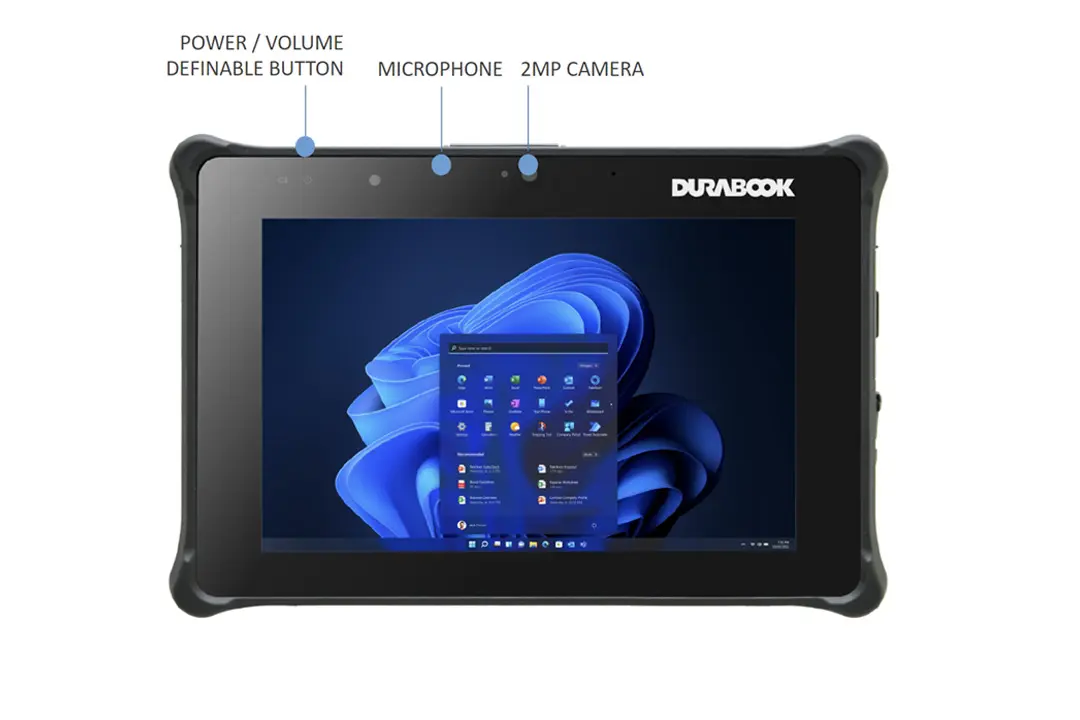

DURABOOK R8 Rugged Tablet

Processor choices

Advertised base: Unpublished

• Intel Core i7-1250U (12th Gen) Processor with vPro (12MB Cache, up to 4.7 GHz, 2P+8E cores)
• Intel Core i5-1230U (12th Gen) Processor with vPro (12MB Cache, up to 4.4 GHz, 2P+8E cores)
• Intel Pentium Gold Processor 8500 (8MB Cache, up to 4.4 GHz, 1P+4E cores)

The source lists these CPUs without a selected base. No first-listed CPU is assumed installed. Contact your sales representative for feature availability. | Mutual exclusive options. | Second USB 3.2 Gen 1 (type A) and second RJ45 ports are provided via an expansion module; this option is mutually exclusive with the smart card reader expansion modules. | GPS/WWAN and dedicated GPS are mutually exclusive. | Tested using the MobileMark 2014 battery life benchmark and using no cellular mobile broadband. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors. | The system will stay operating (within 300 seconds in standby mode) when user swaps the battery.

Memory choices and supported range

Advertised base: Unpublished

• Onboard 8GB up to 16GB (LPDDR4x)

Official memory range, slot/onboard/package arrangement and maximum. Intermediate sizes are not inferred; RAM on package depends on the selected CPU. No installed capacity is selected by this range.

I/O Ports options

• Optional USB 3.2 Gen1 (type A) x 1 or 2
• Optional 10/100/1000 Ethernet (RJ45) x 1 or 2
• Optional serial port (RS232) x 1
• Optional 1D/2D barcode reader x 1
• Optional RF antenna pass-through for GPS, WWAN and WLAN

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Wireless & Communications options

• Optional dedicated GPS module
• Optional GPS and 4G LTE multi-carrier mobile broadband
• Optional RF antenna pass-through for GPS, WWAN and WLAN

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Expansion Slot options

• Optional magnetic stripe reader
• Optional smart card reader with LF/HF-RFID (NFC) or UHF-RFID (NFC) or RS232/RJ45/USB 3.2 Gen1 (type A)

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Manufacturer compatibility and specification notes

Contact your sales representative for feature availability. | Mutual exclusive options. | Second USB 3.2 Gen 1 (type A) and second RJ45 ports are provided via an expansion module; this option is mutually exclusive with the smart card reader expansion modules. | GPS/WWAN and dedicated GPS are mutually exclusive. | Tested using the MobileMark 2014 battery life benchmark and using no cellular mobile broadband. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors. | The system will stay operating (within 300 seconds in standby mode) when user swaps the battery.

Display and touch options

• 8.0" LCD (1280 x 800)
• 800 nits DynaVue sunlight readable display with capacitive multi-touch screen
• Optional with digitizer
• User selectable touch mode for Finger/Water, Glove or Stylus programmable function

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Camera options

• Optional 11.0 MP auto-focus rear camera with flash

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Security options

• Optional smart card reader
• Optional LF/HF-RFID (NFC) reader
• Optional UHF-RFID (NFC) reader

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Battery and power options

• Optional long life battery Li-Ion 7.6V, 7200mAh, 17 hours
• Optional swappable battery: 5 minutes swap time

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Ruggedness and certifications

MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Salt Fog) | MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility) | Optional ANSI/UL 121201, Class I, Division 2 | 6′ drop 26 faces | IP 66 certified | Magnesium alloy chassis | Port covers | Sunlight readable display | Optional swappable battery technology

Warranty details

3-Year Accidental Damage Warranty

Documented accessories

• 65W AC Adapter with power cord
• Battery Charger - 2 bays
• Battery Charger - 8 bays
• Car Adapter (11-24V DC 90W)
• Cradle R8
• Expansion Module - Magnetic Stripe Reader
• Expansion Module - Smart Card Reader R8
• Expansion Module - Smart Card Reader with LF/HF-RFID (NFC)
• Expansion Module - Smart Card Reader with RS-232 + RJ-45 & USB3.2
• Expansion Module - Smart Card Reader with UHF-RFID (NFC)
• Hand Strap R8
• LIND 12-16V Car Adapter with 180 degree connector & 72" cable-bare wire
• LIND 12-16V Car Adapter with cigarette plug
• LIND 12-32V Car Adapter with bare wire
• LIND 12-32V Car Adapter with cigarette plug
• NTi Drone Controller
• Office Dock R8
• Pen Holder
• PMT Cradle R8
• PMT Vehicle Dock with Tri-RF Pass-through
• PMT Vehicle Dock without Tri-RF Pass-through
• Rotating Hand Strap with Kickstand
• Screen Protector Film R8
• Shoulder Strap (2 Point)
• Shoulder Strap (4 Point) R8
• Spare Digitizer Pen
• Spare Hi-Cap Battery R8
• Spare Main Battery R8
• Spare Stylus & Tether for capacitive touch
• Tablet Stand
• USB 3.0 Docking Station
• USB-C AC Adapter with power cord
• USB-C Docking Station
• Vehicle Lite Dock R8 with Tri-RF Pass-through
• Vehicle Lite Dock R8 without Tri-RF Pass-through
• X Strap R8

Accessories are separate add-ons, not standard included hardware. Model-specific restrictions apply.
