DURABOOK U11 Rugged Tablet

Processor choices

Advertised base: Unpublished

• Intel Core i7-1250U (12th Gen) Processor with vPro (12MB Cache, up to 4.7 GHz, 2P+8E cores)
• Intel Core i5-1230U (12th Gen) Processor with vPro (12MB Cache, up to 4.4 GHz, 2P+8E cores)

The source lists these CPUs without a selected base. No first-listed CPU is assumed installed. Dedicated GPS with 4G LTE and 5G are mutually exclusive options. | Contact your sales representative for feature availability. | ExpressCard 54, RFID and 2nd smart card reader are mutually exclusive options. | Night vision mode is available only for sunlight readable display. | USB 3.2 type C, 2nd USB 3.2 type A, USB 2.0, RS232 or 1D/2D barcode reader are mutually exclusive options. USB 3.2 type C or USB 2.0 are available as project-based features. | Tested using the MobileMark 2014 battery life benchmark and using no cellular mobile broadband. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors. | The system will stay operating within 300 seconds when user swaps the battery.

Memory choices and supported range

Advertised base: Unpublished

• Onboard 8GB up to 32GB (LPDDR4x)

Official memory range, slot/onboard/package arrangement and maximum. Intermediate sizes are not inferred; RAM on package depends on the selected CPU. No installed capacity is selected by this range.

Storage choices

• 256GB NVMe PCIe SSD
• Optional 512GB/1TB/2TB PCIe SSD
• Optional OPAL 2.0 SSD

Official standard drive and optional primary/secondary drive choices. A secondary drive is not included in the standard capacity.

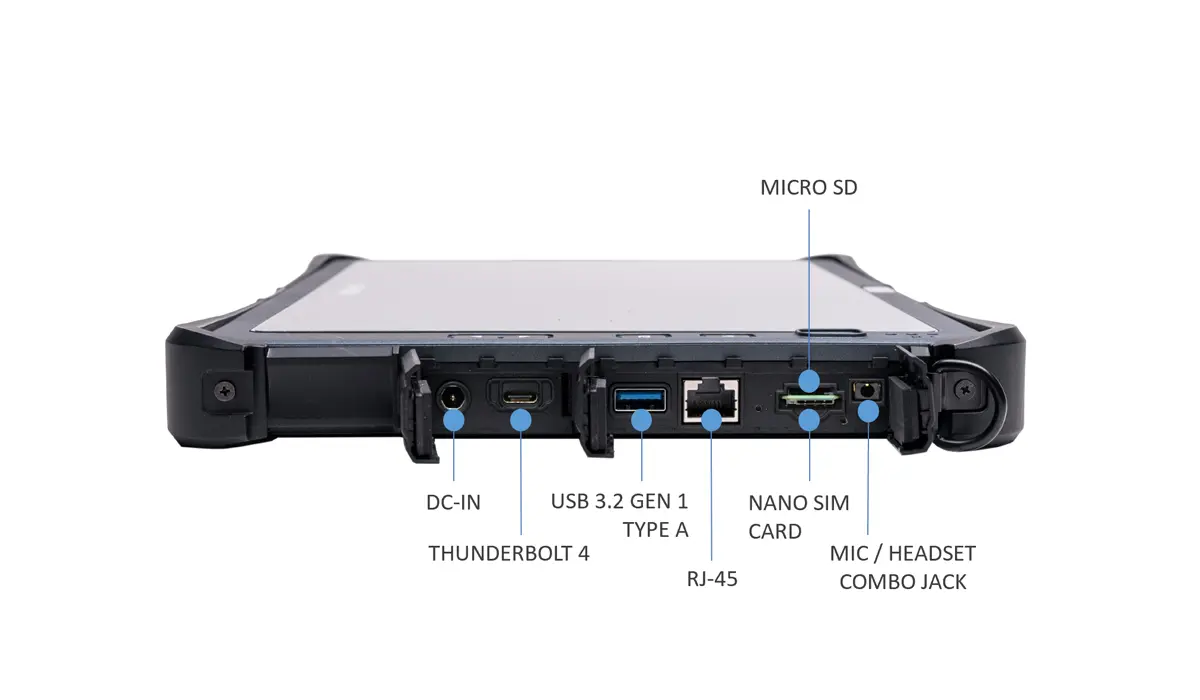

I/O Ports options

• Optional smart card reader x 1 or 2
• Optional USB 3.2 Gen2 (type C) x 1
• Optional 2nd USB 3.2 Gen1 (type A) x 1
• Optional USB 2.0 (type A) x 1
• Optional serial port (RS232, 422 and 485 : D-sub,9-pin) x 1
• Optional 1D/2D barcode reader x 1
• Optional RF antenna pass-through for GPS, WWAN, and WLAN

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Communications options

• Optional dedicated GPS module (UBLOX-NEO-M9N)
• Optional 4G LTE multi-carrier mobile broadband
• Optional 5G (project based)
• Optional RF antenna pass-through for GPS, WWAN, and WLAN

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Expansion Slots options

• Optional ExpressCard 54 or LF/HF-RFID (NFC) or 2nd smart card reader

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Manufacturer compatibility and specification notes

Dedicated GPS with 4G LTE and 5G are mutually exclusive options. | Contact your sales representative for feature availability. | ExpressCard 54, RFID and 2nd smart card reader are mutually exclusive options. | Night vision mode is available only for sunlight readable display. | USB 3.2 type C, 2nd USB 3.2 type A, USB 2.0, RS232 or 1D/2D barcode reader are mutually exclusive options. USB 3.2 type C or USB 2.0 are available as project-based features. | Tested using the MobileMark 2014 battery life benchmark and using no cellular mobile broadband. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors. | The system will stay operating within 300 seconds when user swaps the battery.

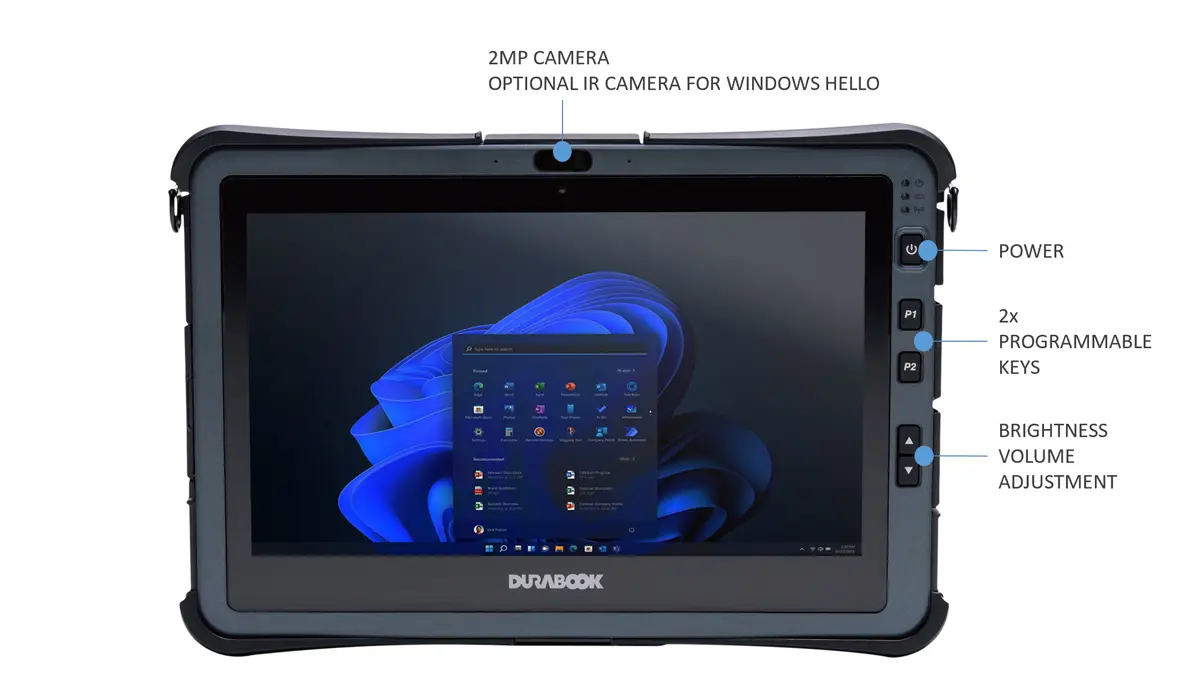

Display and touch options

• 11.6" FHD (1920 x1080)
• Optional 1000 nits DynaVue sunlight readable display with capacitive multi-touch screen
• Optional with digitizer
• User selectable touch mode for Finger/Water, Glove, or Stylus programmable function

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Camera options

• Optional 11.0MP auto-focus rear camera with flash
• Optional 5.0MP IR camera for Windows Hello

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Security options

• Optional smart card reader x 1 or x 2
• Optional Windows Hello
• Optional night vision mode
• Optional fingerprint scanner
• Optional LF/HF-RFID (NFC) reader

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Battery and power options

• Optional hi-cap battery Li-Ion 7.6V, 9600mAh, 20 hours
• Optional bridge battery: 5 minutes swap time

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Ruggedness and certifications

MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Salt Fog) | MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility) | Optional ANSI/UL 121201, Class I, Division 2 | 6′ drop 26 faces | IP 66 certified | Magnesium alloy chassis | Port covers | Optional sunlight readable display | Optional swappable battery technology

Warranty details

3-Year Accidental Damage Warranty

Documented accessories

• 120W AC Adapter with power cord
• 65W AC Adapter with power cord
• Battery Charger - 2 bays
• Battery Charger - 8 bays
• Car Adapter (11-24V DC 90W)
• Cradle U11
• Detachable Membrane Backlit Keyboard
• Expansion Module - Express Card 54
• Expansion Module - RFID (NFC) Reader U11
• Expansion Module - Smart Card Reader U11
• Expansion Module - Smart Card+RFID Reader
• Folio Case U11*
• Hand Strap
• Hard Handle
• LIND 12-16V Car Adapter with 180 degree connector & 72" cable-bare wire
• LIND 12-16V Car Adapter with cigarette plug
• LIND 12-32V Car Adapter with bare wire
• LIND 12-32V Car Adapter with cigarette plug
• Office Dock U11
• PMT Expanded Vehicle Dock with Tri-RF Pass-through
• PMT Expanded Vehicle Dock without Tri-RF Pass-through
• PMT Slim Profile Vehicle Dock with Tri-RF Pass-through
• PMT Slim Profile Vehicle Dock without Tri-RF Pass-through
• Rotating Hand Strap U11
• Screen Protector Film U11
• Shoulder Strap (2 Point)
• Shoulder Strap (4 Point)
• Spare Digitizer Pen
• Spare Hi-Cap Battery
• Spare Main Battery
• Spare PCIE SSD with canister U11
• Spare Stylus & Tether for capacitive touch
• Tablet Stand
• USB 3.0 Docking Station
• USB-C AC Adapter with power cord
• USB-C Docking Station

Accessories are separate add-ons, not standard included hardware. Model-specific restrictions apply.
