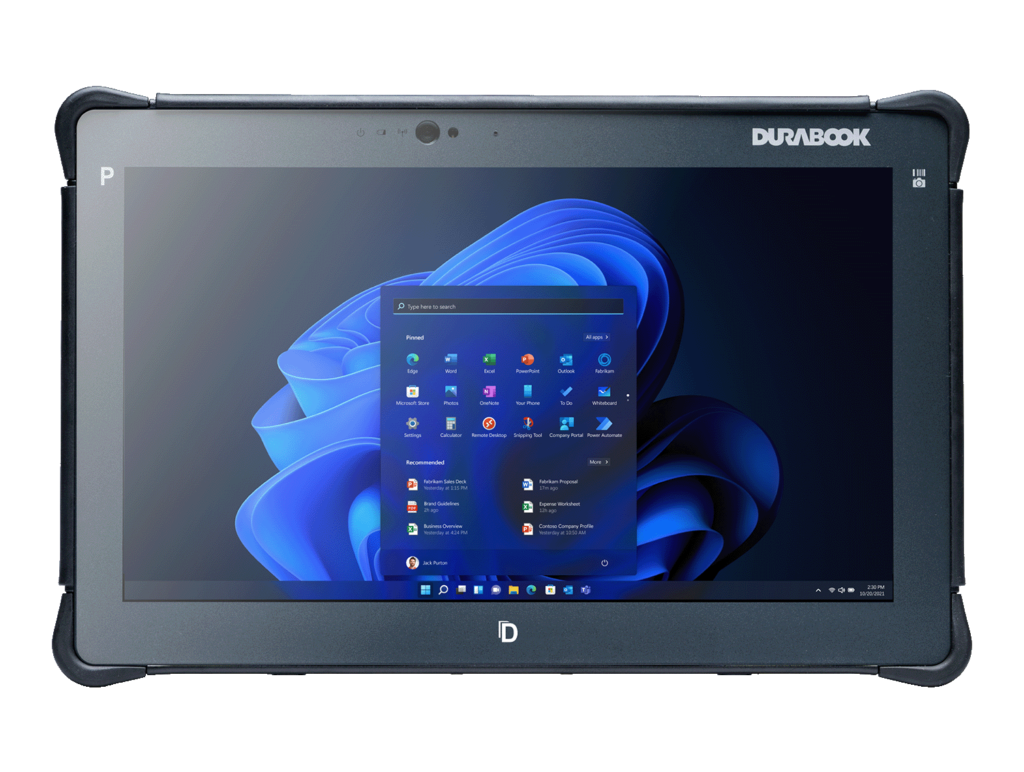

DURABOOK R11 Rugged Tablet

Processor choices

Advertised base: Unpublished

• Intel Core i7-1255U (12th Gen) Processor with vPro (12MB Cache, up to 4.7 GHz, 2P+8E cores)
• Intel Core i5-1235U (12th Gen) Processor with vPro (12MB Cache, up to 4.4 GHz, 2P+8E cores)

The source lists these CPUs without a selected base. No first-listed CPU is assumed installed. GPS/WWAN and dedicated GPS are mutually exclusive. | Mutually exclusive options. | Tested using the MobileMark 2014 battery life benchmark and using no cellular mobile broadband. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors. | Night vision mode is available only for sunlight readable display.

Memory choices and supported range

Advertised base: Unpublished

• 1 slot of 8GB up to 32GB (4800MHz DDR5)

Official memory range, slot/onboard/package arrangement and maximum. Intermediate sizes are not inferred; RAM on package depends on the selected CPU. No installed capacity is selected by this range.

Storage choices

• 256GB NVMe PCIe SSD
• Optional 512GB/1TB PCIe SSD

Official standard drive and optional primary/secondary drive choices. A secondary drive is not included in the standard capacity.

I/O Ports options

• Optional 10/100/1000 Ethernet (RJ-45) x 1
• Optional smart card reader x 1
• Optional 1D/2D barcode reader x 1
• Optional RF antenna pass-through for GPS and WWAN

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Wireless & Communications options

• Optional dedicated GPS module (UBLOX-NEO-M8N)
• Optional GPS and 4G LTE multi-carrier mobile broadband
• Optional RF antenna pass-through for GPS and WWAN

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Expansion Slots options

• Optional RJ-45 x 1 or LF/HF-RFID (NFC) or Smart Card Reader or MSR+Smart Card Reader or RJ-45/RS-232/Smart Card Reader

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Manufacturer compatibility and specification notes

GPS/WWAN and dedicated GPS are mutually exclusive. | Mutually exclusive options. | Tested using the MobileMark 2014 battery life benchmark and using no cellular mobile broadband. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors. | Night vision mode is available only for sunlight readable display.

Display and touch options

• 11.6" FHD (1920 x 1080)
• Optional 1000 nits DynaVue sunlight readable display with capacitive multi-touch screen
• User selectable touch mode for Finger/Water, Glove, or Stylus programmable function

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Camera options

• Optional 11.0 MP auto-focus rear camera with flash

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Security options

• Optional Night vision mode
• Optional smart card reader
• Optional LF/HF-RFID (NFC) reader

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Battery and power options

• Optional long life battery Li-Ion 11.1V, 6900mAh, 15 hours

Documented official factory choices and limits. Final selections and compatibility depend on the complete build; confirm availability with DURABOOK.

Ruggedness and certifications

MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity) | MIL-STD-461F certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility) | Optional ANSI/UL 121201, Class I, Division 2 | 4′ drop 26 faces | IP 66 certified | Magnesium alloy chassis | Port covers | Optional sunlight readable display

Warranty details

3-Year Accidental Damage Warranty

Green Design

RoHS compliant, REACH, Energy Star, EPEAT

Certifications

FCC, CE, CUS, CB

Documented accessories

• 65W AC Adapter with power cord
• Battery Charger - 2 bays
• Car Adapter (11-24V DC 90W)
• Cradle
• Expansion Module - MSR+Smart Card Reader
• Expansion Module - RFID (NFC) Reader
• Expansion Module - RJ-45
• Expansion Module - RJ-45 + RS-232 & Smart Card Reader
• Expansion Module - Smart Card Reader
• Folio Case R11
• Folio Case with Hi-Cap Battery R11
• Hand Strap R11
• iKEY Detachable Backlit Keyboard R11
• LIND 12-16V Car Adapter with 180 degree connector & 72" cable-bare wire
• LIND 12-16V Car Adapter with cigarette plug
• LIND 12-32V Car Adapter with bare wire
• LIND 12-32V Car Adapter with cigarette plug
• Office Dock
• PMT Cradle
• PMT Expanded Vehicle Dock with Dual RF Pass-through
• PMT Slim Profile Vehicle Dock with Dual RF Pass-through
• Rotating Hand Strap
• Screen Protector Film R11
• Shoulder Strap (2 Point)
• Shoulder Strap (4 Point)
• Spare Extended Hi-Cap Battery
• Spare Main Battery R11
• Spare Stylus & Tether for capacitive touch
• Tablet Stand
• USB 3.0 Docking Station
• USB-C AC Adapter with power cord
• USB-C Docking Station
• Vehicle Light Dock with Dual RF Pass-through
• X Strap

Accessories are separate add-ons, not standard included hardware. Model-specific restrictions apply.
