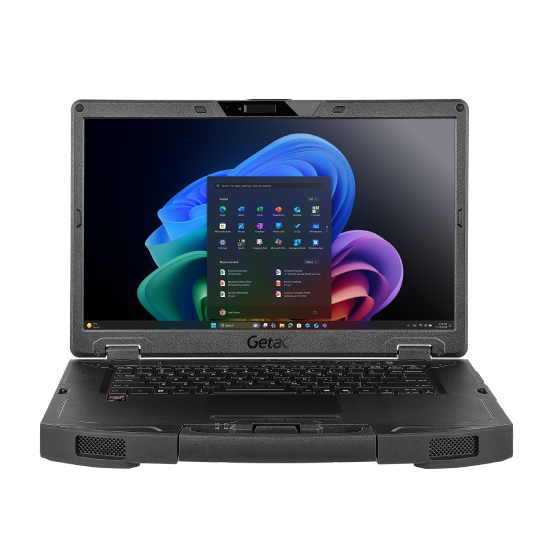

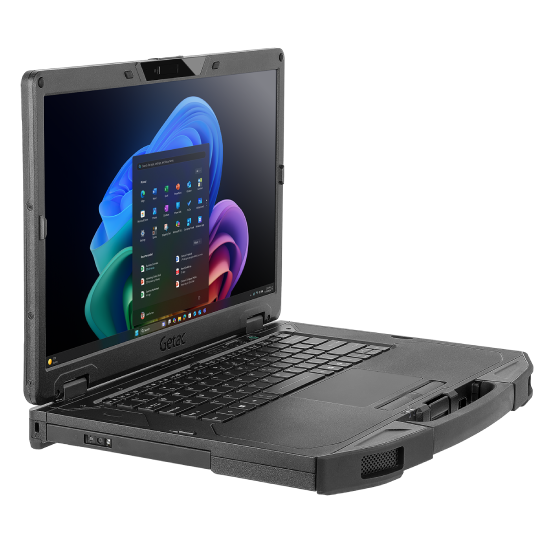

Getac S510AD

Processor options

• AMD Ryzen AI 5 340 Processor
• AMD Ryzen AI 5 PRO 340 Processor
• AMD Ryzen AI 7 350 Processor
• AMD Ryzen AI 7 PRO 350 Processor

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Graphics options and CPU conditions

• AMD Radeon 840M
• (For AMD Ryzen AI 5 340 Processor)
• AMD Radeon 860M
• (For AMD Ryzen AI 7 350 Processor)
• Optional: NVIDIA Quadro
• RTX A500 discrete graphics controller

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Official graphics conditions

NVIDIA Quadro RTX A500 discrete graphics controller is required to configure with dual battery and 90W AC adapter. | NVIDIA Quadro RTX A500 discrete graphics controller and 1D/2D imager barcode reader are mutually exclusive options.

Memory options

• 16GB DDR5
• Optional: 32GB / 64GB DDR5

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Storage options

• 256GB PCIe NVMe SSD
• Optional: 512GB / 1TB / 2TB PCIe NVMe SSD

Official primary-drive alternatives and explicitly optional secondary drives. Additional drives are not included in the stated standard storage capacity.

I/O Interface options

• Optional: MicroSD x 1
• Optional: SIM card slot x 1 (Nano-SIM, 4FF)
• Optional:USB4 Type-C x 1
• Optional: RF antenna pass-through for GPS, WWAN , and WLAN
• 1. LAN (RJ45) + Serial port (9-pin; D-sub) + USB 3.2 Gen 1 Type-A
• 2. LAN (RJ45) + Serial port (9-pin; D-sub) + Rugged USB Type-C

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Expansion Slot options

• Optional: Smart card reader

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Communication Interface options

• Optional: 2.5GBASE-T Ethernet
• Optional: Dual SIM (Nano-SIM 4FF and e-SIM)
• Optional: 4G LTE mobile broadband with integrated GPS
• Optional: 5G Sub-6 with integrated GPS
• Optional: Dedicated GPS with L1/L5

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Manufacturer compatibility and specification notes

NVIDIA Quadro RTX A500 discrete graphics controller is required to configure with dual battery and 90W AC adapter. | NVIDIA Quadro RTX A500 discrete graphics controller and 1D/2D imager barcode reader are mutually exclusive options. | Units with 4G/5G option come with an embedded SIM card slot. | The optional 2nd LAN is 2.5G BASE-T Ethernet. | Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to reduce effects of interference by minimizing the number of active Bluetooth wireless devices that are operating in the area. | One physical SIM card slot and one eSIM. Network service may vary depending on local telecommunication providers. | Only available in the US, UK, EU, Australia, and New Zealand. | Support GPS, GLONASS, Galileo, BeiDou and QZSS. | 13.56MHz HF RFID reader (ISO 15693, 14443 A/B, Mifare and FeliCa compliant). | Weight and dimensions vary from configurations and optional accessories. | Drop test results vary from configurations and optional accessories. | Tested by an independent third-party test lab following MIL-STD-810H. | Available when barcode reader option is selected. | Models require either embedded or standalone GPS module. | Gamber-Johnson and Havis vehicle docks are e-mark certified.

NPU specifications

AMD XDNA 2 (Up to 50 TOPS)

Environmental specifications

Temperature : | - Operating: -29˚C to 63°C / -20°F to 145°F | - Storage: -51°C to 71°C / -60°F to 160°F | Humidity: | - 95% RH, non-condensing

Display options

• 15.6" TFT LCD FHD (1920 x 1080)
• Protection film
• 1,000 nits display with Getac sunlight readable technology
• Optional: Capacitive multi-touch LumiBond screen

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Pointing Device options

• - Optional: Capacitive multi-touch screen

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Security Feature options

• Optional: AMD PRO Technology
• Optional: Fingerprint reader
• Optional: HF RFID reader
• Optional: Absolute Persistence

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Power options

• Optional: 2nd battery (10.8V, typical 6900mAh; min. 6600mAh)
• Optional: AC adapter (90W, 100-240VAC, 50/60Hz)

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Accessories options

• Carry bag
• Battery (10.8V, typical 6900mAh; min. 6600mAh)
• AC adapter (90W, 100-240VAC, 50/60Hz)
• DC-DC vehicle adapter (120W, 11-32VDC)
• Multi-Bay charger (Dual-Bay)
• Multi-Bay charger (Eight-Bay)
• Capacitive stylus with tether
• Protection film
• Vehicle cradle
• Vehicle dock
• Spare SSD kit
• 100W Type-C adapter
• Getac DS100 USB-C docking station with AC adapter
• Rugged USB-C Cable

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Optional software

• Getac Driving Safety Utility
• Getac Monitoring
• Getac VGPS Utility
• Absolute Secure Access

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Warranty details

Nothing says quality like a manufacturer standing behind their product. We’ve designed the notebook from the inside out to survive drops, shocks, spills, vibration and more. We’re confident in our quality and that’s why it comes standard with the industry leading 3 year warranty. It’s the peace-of-mind protection of knowing you’re covered. | Standard | 3 years limited warranty
