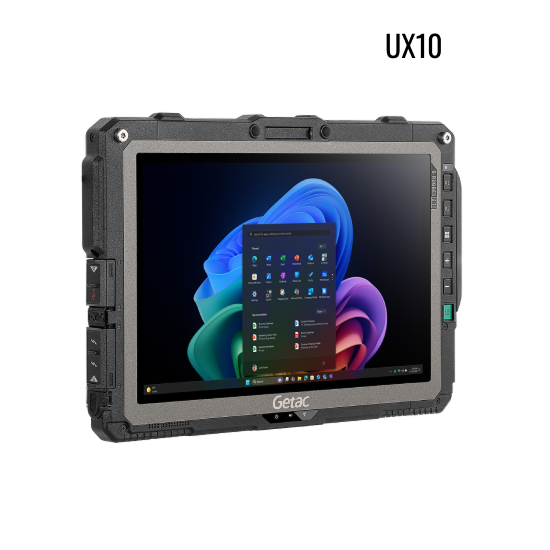

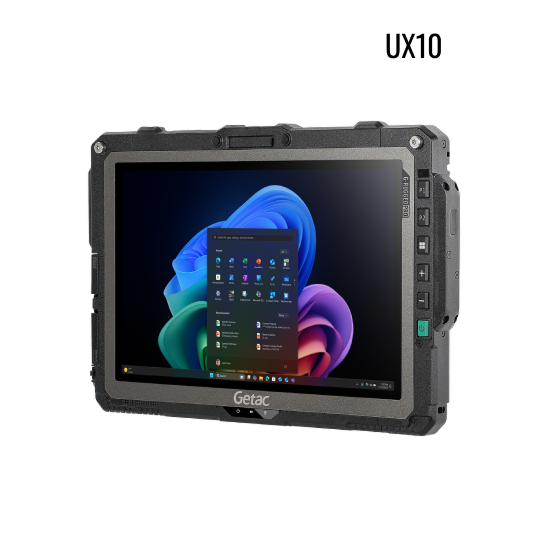

Getac UX10

Processor options

• Intel Core Ultra 5 Processor 226V 16GB
• Intel Core Ultra 5 processor 236V 16GB, vPro Enterprise
• Intel Core Ultra 7 processor 256V 16GB
• Intel Core Ultra 7 processor 258V 32GB
• Intel Core Ultra 7 processor 266V 16GB, vPro Enterprise
• Intel Core Ultra 7 processor 268V 32GB, vPro Enterprise

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Graphics options and CPU conditions

• Intel Arc 130V GPU (For Intel Core Ultra 5 CPUs)
• Intel Arc 140V GPU (For Intel Core Ultra 7 CPUs)

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Memory options

• 16GB LPDDR5X (Memory on Package)
• Optional: 32GB LPDDR5X (Memory on Package)

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Storage options

• 256GB PCIe NVMe SSD
• Optional: 512GB / 1TB / 2TB PCIe NVMe SSD

Official primary-drive alternatives and explicitly optional secondary drives. Additional drives are not included in the stated standard storage capacity.

I/O Interface options

• Optional: SIM card slot x 1 (Micro-SIM, 3FF)
• Optional: RF antenna pass-through for GPS, WWAN and WLAN
• Optional keyboard dock:

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Expansion Slot options

• Optional (top side): 1D/2D imager barcode reader, or Serial port, or USB 2.0 Gen 1 Type-A port, or LAN port (RJ45) , or microSD, or HF RFID reader , or HDMI 2.0, or Thermal camera
• Optional (right side): LAN port (RJ45) or Fingerprint reader
• Optional (back side): Smart card reader, or Bridge battery, or Bridge battery + Smart card reader

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Communication Interface options

• Optional: 10/100/1000 base-T Ethernet
• Optional: Dedicated GPS with L1/L5
• Optional: 4G LTE mobile broadband with integrated GPS
• Optional: 5G Sub-6 with integrated L1 GPS

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Manufacturer compatibility and specification notes

13.56MHz contactless HF RFID reader (ISO 15693, 14443 A/B, Mifare and FeliCa compliant). | 1D/2D imager barcode reader, Serial port, USB 2.0 Gen 1 Type-A port, LAN port (RJ45), HF RFID reader, MicroSD, HDMI 2.0 and Thermal camera are mutually exclusive options. | Fingerprint reader and LAN Port are mutually exclusive options. | Smart card reader, Bridge battery and Bridge battery + Smart card reader are mutually exclusive options. | Units with 4G/5G option come with an embedded SIM card slot. | Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices. Users may be able to reduce effects of interference by minimizing the number of active Bluetooth wireless devices that are operating in the area. | Supports GPS, GLONASS, Galileo, BeiDou and QZSS. Only available in US, UK, EU, Australia and New Zealand. | One physical SIM card slot and one eSIM. Network service may vary depending on local telecommunication providers. | Weight and dimensions vary from configurations and optional accessories. | MIL-STD-461 90W AC adapter sold separately. | Drop test results vary from configurations and optional accessories. | Available with limited configurations and environment conditions. | Tested by an independent third-party test lab following MIL-STD-810H. | Available when barcode reader option is selected. | Models require either embedded or standalone GPS module. | Gamber Johnson and Havis vehicle docks are e-mark certified. | Available when thermal camera option is selected.

NPU specifications

Intel AI Boost (Up to 48 TOPS)

Environmental specifications

Temperature : | - Operating: -29°C to 63°C / -20°F to 145°F | - Storage: -51°C to 71°C / -60°F to 160°F | Humidity: | - 95% RH, non-condensing

Pointing Device options

• - Optional: Dual mode touchscreen

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Security Feature options

• Optional: Intel vPro Technology
• Optional: Fingerprint reader
• Optional: HF RFID reader
• Optional: Smart card reader
• Optional: Absolute Persistence

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Power options

• Optional: High capacity Li-ion battery (10.8V, 9240mAh) x 1
• Optional: Bridge battery

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Rugged Feature options

• Optional: ANSI/UL 121201, CSA C22.2 NO. 213 (Class I, Division 2, Groups A, B, C, D)

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Accessories options

• Carry bag
• Folio case
• Battery (11.61V, typical 4070mAh; min. 3800mAh)
• High capacity Li-ion battery (10.8V, 9240mAh)
• Multi-Bay charger (Dual-Bay)
• Multi-Bay charger (Eight-Bay)
• AC adapter (65W, 100-240VAC)
• DC-DC vehicle adapter (120W, 11-32VDC)
• Digitizer pen with tether
• Capacitive stylus with tether
• Protection film
• Hard handle
• Rotating hand strap with kickstand
• Shoulder strap (2-point)
• Shoulder harness (4-point; handsfree)
• Detachable keyboard
• Vehicle cradle
• Keyboard dock
• Vehicle dock
• Office dock
• 65W USB-C AC Adapter
• 100W USB-C AC Adapter
• Getac DS100 USB-C docking station with AC adapter

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Optional software

• Getac Driving Safety Utility
• Getac KeyWedge Barcode Reader Utility
• Getac Monitoring
• Getac VGPS Utility
• Absolute Secure Access

Documented official factory alternatives. Compatibility depends on the selected CPU and other components; confirm the final configuration with Getac.

Warranty details

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. | That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. | Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days. | Standard | 3 years Bumper-to-Bumper
