Home›Configurable›HP-BASE-C30ZBAV_MB

HP/Configurable

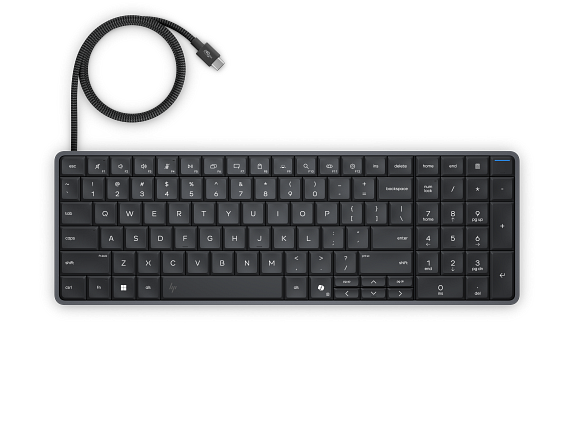

HP EliteBoard G1a Keyoard PC - Customizable

US · HP-BASE-C30ZBAV_MB

Business

Configurable desktop · Advertised base configuration

Configurable modelHP-BASE-C30ZBAV_MB
The hardware

Full Specifications

Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.

Performance — CPU / GPU▾
GraphicsAMD Radeon™ 820M graphics (attached cable)
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

HP exact US native Included in Current Configuration specifications

Base features

  • HP EliteBoard G1a Keyboard PC with AMD Ryzen™ AI 5 330 (3.4 GHz, up to 4.5 GHz w/Boost, 4 cores) + AMD Radeon™ 820M graphics (attached cable)
  • HP EliteBoard G1a Keyboard PC with AMD Ryzen™ AI 5 340 (3.4 GHz, up to 4.8 GHz w/Boost, 6 cores) + AMD Radeon™ 840M graphics (attached cable)
  • HP EliteBoard G1a Keyboard PC with AMD Ryzen™ AI 7 PRO 350 (3.5 GHz, up to 5 GHz w/Boost, 8 cores) + AMD Radeon™ 860M graphics (attached cable)
  • HP EliteBoard G1a Keyboard PC with AMD Ryzen™ AI 5 330 (3.4 GHz, up to 4.5 GHz w/Boost, 4 cores) + AMD Radeon™ 820M graphics (detached cable)
  • HP EliteBoard G1a Keyboard PC with AMD Ryzen™ AI 5 340 (3.4 GHz, up to 4.8 GHz w/Boost, 6 cores) + AMD Radeon™ 840M graphics (detached cable)
  • HP EliteBoard G1a Keyboard PC with AMD Ryzen™ AI 7 PRO 350 (3.5 GHz, up to 5 GHz w/Boost, 8 cores) + AMD Radeon™ 860M graphics (detached cable)

HP marks HP EliteBoard G1a Keyboard PC with AMD Ryzen™ AI 5 330 (3.4 GHz, up to 4.5 GHz w/Boost, 4 cores) + AMD Radeon™ 820M graphics (attached cable) as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗
Memory & Storage▾
Installed RAM16GB (1 X 16GB)
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

HP exact US native Included in Current Configuration specifications

View RAM layout source ↗

Observed 2026-10-06T15:37:25.767796+00:00

Installed RAM modules stated for the exact product or selected build

View RAM stick count source ↗

Observed 2026-10-06T15:37:25.767796+00:00

Installed RAM modules stated for the exact product or selected build

Memory

  • 16 GB (1 x 16 GB) DDR5-5600 SODIMM Memory
  • 24 GB (1 x 24 GB) DDR5-5600 SODIMM Memory
  • 32 GB (1 x 32 GB) DDR5-5600 SODIMM Memory
  • 32 GB (2 x 16 GB) DDR5-5600 SODIMM Memory

HP marks 16 GB (1 x 16 GB) DDR5-5600 SODIMM Memory as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Internal M.2 storage

  • 512 GB PCIe 2280 NVMe Value SSD
  • 512 GB PCIe Gen5 2280 NVMe Value SSD
  • 1 TB PCIe 2280 NVMe Value SSD
  • 1 TB PCIe Gen5 2280 NVMe Value SSD
  • 2 TB PCIe Gen 5 2280 NVMe Value SSD

HP marks 512 GB PCIe 2280 NVMe Value SSD as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗
Display▾
Screen technologyNot applicable
SizeNot applicable
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

HP exact US native Included in Current Configuration specifications

ResolutionNot applicable
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

HP exact US native Included in Current Configuration specifications

Refresh rateNot applicable
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

HP exact US native Included in Current Configuration specifications

Battery & Power▾
Battery capacityUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

HP exact US native Included in Current Configuration specifications

Power supplyUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

HP exact US native Included in Current Configuration specifications

Connectivity▾
PortsRear : 1 USB Type-C® 40Gbps signaling rate (USB Power Delivery, DisplayPort™ 2.1b) | 1 nano security lock slot | 1 USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4)
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

HP exact US native Included in Current Configuration specifications

Wireless & networkingUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

HP exact US native Included in Current Configuration specifications

Build & Physical▾
WeightUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

HP exact US native Included in Current Configuration specifications

Dimensions14.1 x 4.7 x 0.7 in
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

HP exact US native Included in Current Configuration specifications

Software & Bundle▾
Included bundleUnpublished

Operating system

  • Windows 11 Pro
  • FreeDOS

HP marks Windows 11 Pro as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

ENERGY STAR compliance

  • ENERGY STAR Qualified Configuration

HP marks ENERGY STAR Qualified Configuration as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

TCO Certified compliance

  • Compliant with TCO Certified

HP marks Compliant with TCO Certified as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Additional networking options

  • Mediatek MT7925 Wi-Fi 7 +Bluetooth 6.0 AIM-T WLAN
  • Mediatek RZ616 Wi-Fi 6E AIM-T 160 MHz +Bluetooth 5.3 WW WLAN

HP marks Mediatek MT7925 Wi-Fi 7 +Bluetooth 6.0 AIM-T WLAN as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Keyboard

  • HP Premium Backlit Keyboard with Numeric Keypad – Spill‑Resistant, Copilot Key

HP marks HP Premium Backlit Keyboard with Numeric Keypad – Spill‑Resistant, Copilot Key as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Mouse

  • HP 675M Eclipse Gray Wireless Mouse

HP marks HP 675M Eclipse Gray Wireless Mouse as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Finger print reader

  • No Fingerprint Sensor Option
  • Fingerprint Sensor

HP marks No Fingerprint Sensor Option as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Accessories (optional)

  • HP HDMI to Multi-port Hub - Required for older monitors
  • HP EliteBoard Soft Canvas Case
  • HP USB-C to USB 3.0 Adapter 2nd
  • HP USB-C to DisplayPort Adapter G2 Plant Fiber Packaging

HP marks HP HDMI to Multi-port Hub - Required for older monitors as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Compliance options

  • ENERGY STAR Qualified Configuration

HP marks ENERGY STAR Qualified Configuration as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗
Motherboard & Memory Expansion▾
Motherboard modelUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

Unpublished: no unambiguous exact-device manufacturer specification

Total RAM slots2 slots
Source & observationView specification source ↗

Observed 2026-10-06T15:37:25.767796+00:00

Exact-device manufacturer specification row

Independent testing

Benchmarks & Reviews

1 video
Expand benchmarksCollapse benchmarksComparison charts, test conditions & full reviews

Benchmarks & Reviews

Published test results and reviewer comments.

1 video

No test results available (for now).

Watch the reviews

PCWorld

HP EliteBoard G1a: A computer inside a keyboard

Model review. The video may test a different processor, memory or storage option; check its stated setup.

Sample origin and sponsorship: see the reviewer’s disclosure in the video.Watch on YouTube ↗

More benchmarks and reviews →

Configuration matching & limitations

PCWorld: Model video; use the video for the reviewed hardware and settings. No numeric result is inferred from metadata.

gaming pilot

cpu
Not measured
gpu
Not measured
gaming
Not measured

performance pilot

cpu
Not measured
gpu
Not measured
gaming
Not measured
sustained
Not measured

whole device

cpu
Not measured
gpu
Not measured
gaming
Not measured
sustained
Not measured
noise
Not measured
battery
not applicable
display
not applicable
build
Not measured

An overall buying score is unavailable. The available measurements do not cover every aspect of the device.
