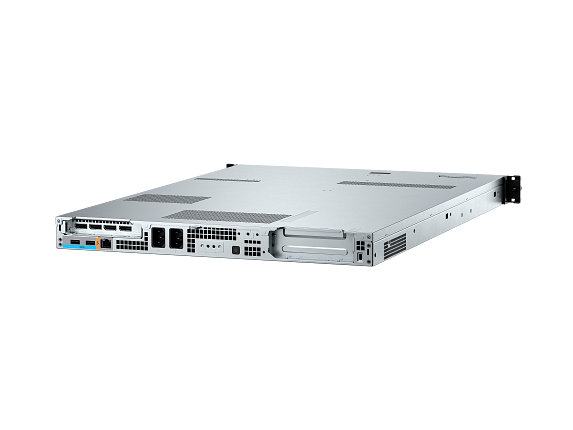

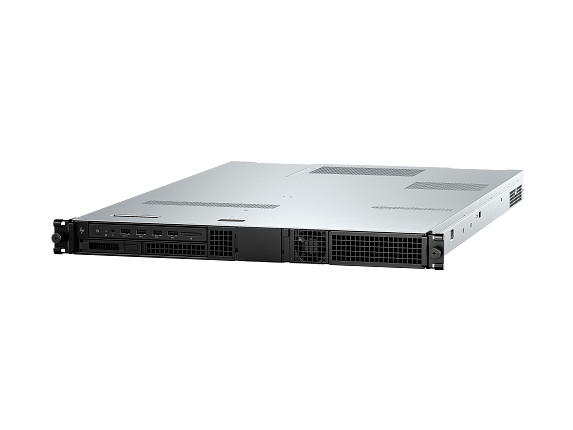

HP Z4 Rack G5 Workstation - Customizable

Processor

• Intel® Xeon® w3-2423 Processor (2.1 GHz, up to 4.2 GHz w/Boost, 15 MB cache, 6 core, 120W)
• Intel® Xeon® w3-2425 Processor (3.0 GHz, up to 4.4 GHz w/Boost, 15 MB cache, 6 core, 130W)
• Intel® Xeon® w3-2525 Processor (3.5 GHz, up to 4.5 GHz w/Boost, 22.5 MB cache, 8 core, 175W)
• Intel® Xeon® w3-2435 Processor (3.1 GHz, up to 4.5 GHz w/Boost, 22.5 MB cache, 4800 MHz, 8 core, 165W)
• Intel® Xeon® w3-2535 Processor (3.5 GHz, up to 4.6 GHz w/Boost, 26.25 MB cache, 10 core, 185W)
• Intel® Xeon® w5-2545 Processor (3.5 GHz, 4.7 GHz w/Boost, 30 MB cache, 12 core, 210W, vPro Enterprise)
• Intel® Xeon® w5-2555X Processor (3.3 GHz, 4.8 GHz w/Boost, 33.75 MB cache, 14 core, 210W, vPro Enterprise)
• Intel® Xeon® w5-2565X Processor (3.2 GHz, 4.8 GHz w/Boost, 37.5 MB cache, 18 core, 240W, vPro Enterprise)
• Intel® Xeon® w7-2575X Processor (3 GHz, up to 4.8 GHz w/Boost, 45 MB cache, 22 core, 250W, vPro Enterprise)
• Intel® Xeon® w7-2595X Processor (2.8 GHz, up to 4.8 GHz w/Boost, 48.75 cache, 26 core, 250W, vPro Enterprise)

HP marks Intel® Xeon® w3-2423 Processor (2.1 GHz, up to 4.2 GHz w/Boost, 15 MB cache, 6 core, 120W) as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Graphics

• AMD Radeon™ PRO W7500 (8 GB GDDR6, 4 x DisplayPort 2.1) Graphics Card
• No Integrated Graphics
• NVIDIA RTX™ A1000 (8 GB GDDR6; 4 x mini DisplayPort 1.4) Graphics
• AMD Radeon™ PRO W7600 (8 GB GDDR6; 4 x DisplayPort 2.1) Graphics Card
• NVIDIA RTX™ 2000E Ada Generation (16 GB GDDR6 with ECC, 4x mini DisplayPort 1.4a) Graphics
• NVIDIA RTX PRO™ 2000 Blackwell (16 GB ECC GDDR7, 4x mini DisplayPort 2.1b) Graphics
• NVIDIA RTX PRO™ 4000 Blackwell (24 GB ECC GDDR7, 4x DisplayPort 2.1b) Graphics
• NVIDIA RTX PRO™ 4500 Blackwell (32 GB ECC GDDR7, 4x DisplayPort 2.1b) Graphics
• NVIDIA RTX™ 4500 Ada Generation (24 GB GDDR6 ECC, 4 x DisplayPort 1.4a) Graphics
• NVIDIA RTX™ 5000 Ada Generation (32 GB GDDR6 ECC, 4 x DisplayPort 1.4) Graphics
• NVIDIA RTX PRO™ 5000 Blackwell (48 GB GDDR7, 4x DisplayPort 2.1b) Graphics
• NVIDIA RTX PRO™ 5000 Blackwell (72 GB ECC GDDR7, 4x DisplayPort 2.1b) Graphics
• NVIDIA RTX 6000 Ada Generation (48 GB GDDR6, 4 x DisplayPort 1.4) Graphics
• NVIDIA RTX PRO™ 6000 Blackwell Max-Q (96 GB ECC GDDR7, 4x DisplayPort 2.1b, 300 W) Graphics

HP marks AMD Radeon™ PRO W7500 (8 GB GDDR6, 4 x DisplayPort 2.1) Graphics Card as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Memory

• 16 GB (1 x 16 GB) DDR5-4800 DIMM ECC Registered Memory
• 32 GB (1 x 32 GB) DDR5-5600 DIMM ECC Registered Memory
• 32 GB (1 x 32 GB) DDR5-4800 DIMM ECC Registered Memory
• 32 GB (2 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
• 64 GB (1 x 64 GB) DDR5-4800 DIMM ECC Registered Memory
• 64 GB (1 x 64 GB) DDR5-5600 DIMM ECC Registered Memory
• 64 GB (2 x 32 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
• 64 GB (4 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
• 128 GB (2 x 64 GB) DDR5-4800 DIMM ECC Registered Memory
• 128 GB (4 x 32 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
• 128 GB (1 x 128 GB) DDR5-5600 DIMM ECC Registered Memory
• 192 (2 x 96 GB) DDR5-5600 ECC Registered Memory
• 256 GB (4 x 64 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
• 256 GB (2 x 128 GB) DDR5-5600 DIMM ECC Registered Memory
• 384 GB (4 x 96 GB) DDR5-5600 DIMM ECC Registered Memory
• 512 GB (4 x 128 GB) DDR5-5600 DIMM ECC Registered Memory

HP marks 16 GB (1 x 16 GB) DDR5-4800 DIMM ECC Registered Memory as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Internal PCIe storage

Advertised base: Unpublished

• 1 TB HP Z Turbo Drive Dual Pro TLC SSD
• 2 TB HP Z Turbo Drive Dual Pro TLC SSD
• 4 TB HP Z Turbo Drive Dual Pro NVMe SSD
• 8 TB HP Z Turbo PCIe-4x4 NVMe Dual Pro M.2 SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Secondary internal PCIe storage

Advertised base: Unpublished

• 1 TB HP Z Turbo Drive PCIe NVMe Dual Pro TLC 2nd SSD
• 2 TB HP Z Turbo Drive Dual Pro TLC 2nd SSD
• 4 TB HP Z Turbo Drive Dual Pro NVMe 2nd SSD
• 8 TB HP Z Turbo PCIe-4x4 NVMe Dual Pro M.2 2nd SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Internal M.2 storage

Advertised base: Unpublished

• 1 TB HP Z Turbo PCIe 4x4 OPAL 2 Self-Encrypted (SED) M.2 TLC SSD
• 1 TB HP Z Turbo PCIe 4x4 M.2 TLC SSD
• 2 TB HP Z Turbo Drive TLC M.2 SSD
• 2 TB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 TLC SSD
• 4 TB HP Z Turbo Drive OPAL 2 Self-Encryting (SED) M.2 SSD
• 8 TB HP Z Turbo NVMe M.2 SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Secondary internal M.2 storage

Advertised base: Unpublished

• 1 TB HP Z Turbo PCIe 4x4 M.2 TLC 2nd SSD
• 2 TB HP Z Turbo Drive TLC M.2 2nd SSD
• 4 TB HP Z Turbo Drive M.2 2nd SSD
• 8 TB HP Z Turbo NVMe M.2 2nd SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

3rd internal M.2 storage

Advertised base: Unpublished

• 1 TB HP Z Turbo PCIe 4x4 OPAL 2 Self-Encrypted (SED) M.2 TLC 3rd SSD
• 2 TB HP Z Turbo Drive TLC M.2 3rd SSD
• 4 TB HP Z Turbo Drive M.2 3rd SSD
• 8 TB HP Z Turbo NVMe M.2 3rd SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

4th internal M.2 storage

Advertised base: Unpublished

• 1 TB HP Z Turbo PCIe 4x4 M.2 TLC 4th SSD
• 2 TB HP Z Turbo Drive TLC M.2 4th SSD
• 4 TB HP Z Turbo Drive M.2 4th SSD
• 8 TB HP Z Turbo PCIe 4x4 NVMe M.2 4th SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Internal storage

Advertised base: Unpublished

• 8 TB 7200 RPM SATA Enterprise 3.5" HDD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Internal storage removable

Advertised base: Unpublished

• 1 TB HP Z Turbo M.2 2nd Front Load Removable SSD
• 2 TB HP Z Turbo M.2 2nd Front Load Removable SSD
• 4 TB HP Z Turbo M.2 2nd Front Load Removable SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Power supply

• C13 1.83m Sticker Conventional Straight Desktop Power Cord
• C13 1.8m Sticker Conventional Straight CCC Desktop Power Cord
• C13 1.83m 15A Sticker Conventional Straight Desktop Power Cord
• C13 1.83m 15A Sticker Conventional Straight x2 Desktop Power Cord
• C13-C14 2.0m 15A 100-127V Countries Sticker Conventional Straight x2 Desktop Power Cord

HP marks C13 1.83m Sticker Conventional Straight Desktop Power Cord as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Operating system

• Windows 11 Pro for Workstations - HP recommends Windows 11 Pro for business
• Ubuntu Linux 24.04
• Ubuntu Linux 22.04
• Linux-ready

HP marks Windows 11 Pro for Workstations - HP recommends Windows 11 Pro for business as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

ENERGY STAR compliance

• ENERGY STAR Qualified Configuration

HP marks ENERGY STAR Qualified Configuration as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Internal OS load storage options

• Operating System Load to M.2
• Operating System Load to SATA
• Operating System Load to Front Removable NMVe

HP marks Operating System Load to M.2 as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Real-time data backup

• RAID 0 Striped Array Configuration
• RAID 1 Mirrored Array Configuration

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Second graphics card

• NVIDIA RTX™ 2000E Ada Generation (16 GB GDDR6 with ECC, 4x mini DisplayPort 1.4a) 2nd Graphics
• NVIDIA RTX™ A1000 (8 GB GDDR6; 4 x mini DisplayPort 1.4) 2nd Graphics

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Additional networking options

• Intel® I226-T1 2.5GbE Ethernet Network Adapter
• Allied Telesis AT-2911Ta/2-901 Dual Port 1 GBE RJ45 PCIe Network Adapter
• Broadcom 5720 1GbE RJ45 PCIe Ethernet Network Adapter
• Intel® I225-T1 2.5GbE Ethernet Network Adapter
• AT-2914SX/LC PCIe Fiber Adapter
• Intel® X550-T2 10GbE Dual Port NIC
• Intel E810-XXVDA2 10/25GbE SFP28 PCIe Network Adapter
• NVIDIA® Mellanox ConnectX®-6 Dx Dual Port 10/25GBE SFP28 Network Interface Card

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Application software

• Data Science Stack
• WSL2/Ubuntu Data Science Stack

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Additional application software

• No HP Anyware Needed

HP marks No HP Anyware Needed as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Keyboard

• HP USB 320K Keyboard
• No Included Keyboard

HP marks HP USB 320K Keyboard as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Mouse

• HP Wired 320M Mouse
• No included mouse - Reduce plastic

HP marks HP Wired 320M Mouse as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Graphics connectors

• No Adapters Needed
• HP mini DisplayPort-to-DisplayPort Adapter
• HP Display to DVI SL Adapter
• HP DisplayPort to HDMI 2.0
• HP mini DisplayPort-to-DisplayPort Adapter (2-pack)
• HP DP to VGA Adapter
• HP mini DisplayPort-to-DisplayPort Adapter (4-pack)

HP marks No Adapters Needed as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Label

• FDA Class 1 Medical Device Label

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

LAN Transceivers

• HP 10GbE SFP+ SR/SW LC Fiber Optic Transceiver
• HP 10GbE SFP+ SR/SW LC 2nd Fiber Optic Transceiver
• HP 25GbE SFP 28 LC Fiber Optic Transceiver
• HP 25GbE SFP 28 LC 2nd Fiber Optic Transceiver

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Accessories

• HP Internal Serial Port/PS/2 Ports
• HP 3.5 in Drive Cage Adapter
• HP Z4 G4 Rack Front Bezel/Security
• HP 2.5 in M.2 Dual Adapter Carriers
• HP 2.5 in Drive Carrier
• HP Z4 Rack Dual PCIe Gen5 x16 + PCIe Gen5 x16(x8) slot Riser Kit
• No Rail Rack Kit
• HP Z4 Rack Remote System Controller Support Bracket
• HP ZCentral 4R Rail Rack Kit
• Intel® VROC NVMe SSD Standard Controller Module
• Intel® VROC NVMe SSD Premium Controller Module

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Warranty

• One-year (1/1/1) limited warranty

HP marks One-year (1/1/1) limited warranty as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
