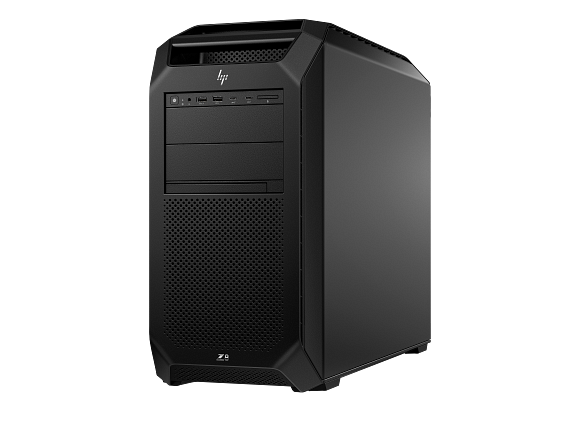

HP Z8 Fury G5 Tower Workstation - Customizable

US · HP-BASE-3F0P6AV_MB

Business

Configurable desktop · Advertised base configuration

Configurable modelHP-BASE-3F0P6AV_MB
The hardware

Full Specifications

Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.

Performance — CPU / GPU▾

Processor

  • Intel® Xeon® w5-3423 Processor (2.1 GHz, 12 core, 220 W)
  • Intel® Xeon® w5-3425 Processor (3.2 GHz, up to 4.6 GHz w/Boost, 12 core, 270 W)
  • Intel® Xeon® w5-3433 Processor (2.0 GHz, 16 core, 220 W)
  • Intel® Xeon® w5-3525 Processor (3.2 GHz, up to 4.8 GHz w/Boost , 16 core, 290 W)
  • Intel® Xeon® w5-3535X Processor (2.9 GHz, up to 4.8 GHz w/Boost, 20 core, 300 W)
  • Intel® Xeon® w5-3435X Processor (3.1 GHz, up to 4.7 GHz w/Boost, 16 core, 270 W)
  • Intel® Xeon® w7-3555 Processor (2.7 GHz, up to 4.8 GHz w/Boost, 28 core, 325 W)
  • Intel® Xeon® w7-3545 Processor (2.7 GHz, up to 4.8 GHz w/Boost, 24 core, 310 W)
  • Intel® Xeon® w7-3565X Processor (2.5 GHz, up to 4.8 GHz w/Boost, 32 core, 335 W)
  • Intel® Xeon® w9-3575X Processor (2.2 GHz, up to 4.8 GHz w/Boost, 44 core, 340 W)
  • Intel® Xeon® w9-3595X Processor (2 GHz, up to 4.8 GHz w/Boost, 60 core, 385W)

HP marks Intel® Xeon® w5-3423 Processor (2.1 GHz, 12 core, 220 W) as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Graphics

Advertised base: Unpublished

  • No Integrated Graphics
  • AMD Radeon™ RX 6400 Graphics (4 GB GDDR6; FH; PCIe x16)
  • Intel® Arc™ Pro A40 Graphics (6 GB GDDR6, 4x mini-DispalyPort 2.0)
  • AMD Radeon™ PRO W7500 (8 GB GDDR6, 4x DisplayPort 2.1) Graphics
  • AMD Radeon™ PRO W7600 (8 GB GDDR6, 4x DisplayPort 2.1) Graphics
  • NVIDIA RTX™ 2000E Ada Generation (16 GB GDDR6 with ECC, 4x mini DisplayPort 1.4a) Graphics
  • NVIDIA RTX PRO™ 2000 Blackwell (16 GB ECC GDDR7, 4x mini DisplayPort 2.1b) Graphics
  • NVIDIA RTX™ 2000 Ada Generation (16 GB GDDR6 ECC, 4 x mini DisplayPort 1.4a) Graphics
  • NVIDIA RTX PRO™ 4000 Blackwell (24 GB ECC GDDR7, 4x DisplayPort 2.1b) Graphics
  • NVIDIA RTX PRO™ 4500 Blackwell (32 GB ECC GDDR7, 4x DisplayPort 2.1b) Graphics
  • NVIDIA RTX™ 4500 Ada Generation (24 GB GDDR6 ECC, 4 x DisplayPort 1.4a) Graphics
  • NVIDIA RTX™ 5000 Ada (32 GB EEC GDDR6; 4 x DisplayPort 1.4a) Graphics
  • NVIDIA RTX PRO™ 5000 Blackwell (48 GB ECC GDDR7, 4x DisplayPort 2.1b) Graphics
  • NVIDIA RTX 6000 Ada Generation (48 GB GDDR6, 4 x DisplayPort 1.4) Graphics
  • NVIDIA RTX PRO™ 6000 Blackwell (96 GB ECC GDDR7, 4x DisplayPort 2.1b) Graphics
  • NVIDIA RTX PRO™ 6000 Blackwell Max-Q (96 GB ECC GDDR7, 4x DisplayPort 2.1b, 300 W) Graphics

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗
Memory & Storage▾
Installed RAM16GB (1 X 16GB)
Source & observationView specification source ↗

Observed 2026-10-06T15:38:43.588878+00:00

HP exact US native Included in Current Configuration specifications

View RAM layout source ↗

Observed 2026-10-06T15:38:43.588878+00:00

Installed RAM modules stated for the exact product or selected build

View RAM stick count source ↗

Observed 2026-10-06T15:38:43.588878+00:00

Installed RAM modules stated for the exact product or selected build

Memory

  • 16 GB (1 x 16 GB) DDR5-4800 DIMM ECC Registered Memory
  • 64 GB (4 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
  • 32 GB (2 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
  • 64 GB (2 x 32 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
  • 96 GB (6 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
  • 128 GB (4 x 32 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
  • 128 GB (8 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
  • 512 GB (16 x 32 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
  • 192 GB (6 x 32 GB) DDR5-4800 ECC Registered Memory (1 processor)
  • 256 GB (4 x 64 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
  • 256 GB (8 x 32 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
  • 256 GB (16 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
  • 512 GB (8 x 64 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
  • 1 TB (16 x 64 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)

HP marks 16 GB (1 x 16 GB) DDR5-4800 DIMM ECC Registered Memory as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Internal PCIe storage

  • 512 GB HP Z Turbo Drive PCIe NVMe Quad Pro TLC SSD
  • 512 GB HP Z Turbo Drive Dual Pro TLC SSD
  • 1 TB HP Z Turbo Drive Quad Pro TLC SSD
  • 1 TB HP Z Turbo Drive Dual Pro TLC SSD
  • 2 TB HP Z Turbo Drive Dual Pro TLC SSD
  • 2 TB HP Z Turbo Drive Quad Pro TLC SSD
  • 4 TB HP Z Turbo Drive Dual Pro NVMe SSD
  • 8 TB HP Z Turbo PCIe-4x4 NVMe Dual Pro M.2 SSD
  • 4 TB HP Z Turbo Drive PCIe NVMe Quad Pro TLC SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Secondary internal PCIe storage

  • 512 GB HP Z Turbo Drive PCIe NVMe Quad Pro TLC 2nd SSD
  • 2 TB HP Z Turbo Drive Quad Pro TLC 2nd SSD
  • 4 TB HP Z Turbo Drive PCIe NVMe Quad Pro TLC 2nd SSD
  • 4 TB HP Z Turbo Drive Dual Pro NVMe 2nd SSD
  • 1 TB HP Z Turbo Drive Quad Pro TLC 2nd SSD
  • 8 TB HP Z Turbo PCIe-4x4 NVMe Dual Pro M.2 2nd SSD
  • 8 TB HP Z Turbo PCIe-4x4 NVMe Quad Pro M.2 2nd SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

3rd internal PCIe storage

  • 1 TB HP Z Turbo Drive Quad Pro TLC 3rd SSD
  • 2 TB HP Z Turbo Drive Quad Pro TLC 3rd SSD
  • 4 TB HP Z Turbo Drive PCIe NVMe Quad Pro TLC 3rd SSD
  • 512 GB HP Z Turbo Drive PCIe NVMe Quad Pro TLC 3rd SSD
  • 8 TB HP Z Turbo PCIe-4x4 NVMe Quad Pro M.2 3rd SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

4th internal PCIe storage

  • 1 TB HP Z Turbo Drive Quad Pro TLC 4th SSD
  • 2 TB HP Z Turbo Drive Quad Pro TLC 4th SSD
  • 4 TB HP Z Turbo Drive PCIe NVMe Quad Pro TLC 4th SSD
  • 512 GB HP Z Turbo Drive PCIe NVMe Quad Pro TLC 4th SSD
  • 8 TB HP Z Turbo PCIe-4x4 NVMe Quad Pro M.2 4th SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Internal M.2 storage

  • 1 TB HP Z Turbo PCIe 4x4 M.2 TLC SSD
  • 1 TB HP Z Turbo PCIe 4x4 OPAL 2 Self-Encrypted (SED) M.2 TLC SSD
  • 2 TB HP Z Turbo Drive TLC M.2 SSD
  • 2 TB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 TLC SSD
  • 4 TB HP Z Turbo Drive M.2 SSD
  • 4 TB HP Z Turbo Drive OPAL 2 Self-Encryting (SED) M.2 SSD
  • 8 TB HP Z Turbo NVMe M.2 SSD

HP marks 1 TB HP Z Turbo PCIe 4x4 M.2 TLC SSD as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Secondary internal M.2 storage

  • 512 GB HP Z Turbo Drive M.2 2nd SSD
  • 512 GB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 2nd SSD
  • 1 TB HP Z Turbo PCIe 4x4 M.2 TLC 2nd SSD
  • 1 TB HP Z Turbo PCIe 4x4 OPAL 2 Self-Encrypted (SED) M.2 TLC 2nd SSD
  • 2 TB HP Z Turbo Drive TLC M.2 2nd SSD
  • 2 TB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 TLC 2nd SSD
  • 4 TB HP Z Turbo Drive M.2 2nd SSD
  • 4 TB HP Z Turbo Drive OPAL 2 Self-Encryting (SED) M.2 2nd SSD
  • 8 TB HP Z Turbo NVMe M.2 2nd SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

3rd internal M.2 storage

  • 512 GB HP Z Turbo Drive M.2 3rd SSD
  • 512 GB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 3rd SSD
  • 1 TB HP Z Turbo PCIe 4x4 M.2 TLC 3rd SSD
  • 1 TB HP Z Turbo PCIe 4x4 OPAL 2 Self-Encrypted (SED) M.2 TLC 3rd SSD
  • 2 TB HP Z Turbo Drive TLC M.2 3rd SSD
  • 2 TB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 TLC 3rd SSD
  • 4 TB HP Z Turbo Drive M.2 3rd SSD
  • 4 TB HP Z Turbo Drive OPAL 2 Self-Encryting (SED) M.2 3rd SSD
  • 8 TB HP Z Turbo NVMe M.2 3rd SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

4th internal M.2 storage

  • 512 GB HP Z Turbo Drive PCIe M.2 TLC 4th SSD
  • 512 GB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 4th SSD
  • 1 TB HP Z Turbo PCIe 4x4 M.2 TLC 4th SSD
  • 1 TB HP Z Turbo PCIe 4x4 OPAL 2 Self-Encrypted (SED) M.2 TLC 4th SSD
  • 2 TB HP Z Turbo Drive TLC M.2 4th SSD
  • 2 TB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 TLC 4th SSD
  • 4 TB HP Z Turbo Drive M.2 4th SSD
  • 4 TB HP Z Turbo Drive OPAL 2 Self-Encryting (SED) M.2 4th SSD
  • 8 TB HP Z Turbo PCIe 4x4 NVMe M.2 4th SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Internal storage

  • 8 TB 7200 RPM SATA Enterprise 3.5" HDD
  • 12 TB 7200 RPM SATA-6G 3.5" Enterprise HDD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Second internal storage

  • 8 TB 7200 RPM SATA Enterprise 3.5" 2nd HDD
  • 12 TB 7200 RPM SATA-6G 3.5" Enterprise 2nd HDD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Third internal storage

  • 8 TB 7200 RPM SATA Enterprise 3.5" 3rd HDD
  • 12 TB 7200 RPM SATA-6G 3.5" Enterprise 3rd HDD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Fifth internal storage

  • 8 TB 7200 RPM SATA Enterprise 3.5" 5th HDD
  • 12 TB 7200 RPM SATA-6G 3.5" Enterprise 5th HDD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Sixth internal storage

  • 8 TB 7200 RPM SATA Enterprise 3.5" 6th HDD
  • 12 TB 7200 RPM SATA-6G 3.5" Enterprise 6th HDD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Internal storage removable

  • HP DX175 Removable 1st HDD Frame/Carrier
  • HP CRU QX448 PCIe - Gen4 Removable SSD Carrier
  • 4 TB 7200 RPM SATA 3.5" Enterprise Front Load Removable HDD
  • 512 GB HP Z Turbo Drive PCIe M.2 TLC Front Load Removable SSD
  • 1 TB HP Z Turbo Drive PCIe M.2 TLC Front Load Removable SSD
  • 2 TB HP Z Turbo Drive PCIe M.2 TLC Front Load Removable SSD

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗
Display▾
Screen technologyNot applicable
SizeNot applicable
Source & observationView specification source ↗

Observed 2026-10-06T15:38:43.588878+00:00

HP exact US native Included in Current Configuration specifications

ResolutionNot applicable
Source & observationView specification source ↗

Observed 2026-10-06T15:38:43.588878+00:00

HP exact US native Included in Current Configuration specifications

Refresh rateNot applicable
Source & observationView specification source ↗

Observed 2026-10-06T15:38:43.588878+00:00

HP exact US native Included in Current Configuration specifications

Battery & Power▾
Battery capacityUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T15:38:43.588878+00:00

HP exact US native Included in Current Configuration specifications

Power supply

  • C13 1.83m 15A Sticker Conventional Straight Desktop Power Cord
  • C13 1.83m Sticker Conventional Straight Desktop Power Cord
  • C13 1.83m Sticker Conventional Straight x2 Desktop Power Cord
  • C13 1.83m 15A Sticker Conventional Straight x2 Desktop Power Cord

HP marks C13 1.83m 15A Sticker Conventional Straight Desktop Power Cord as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗
Connectivity▾

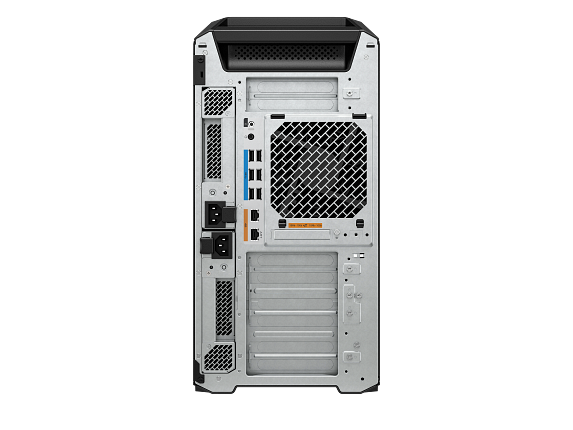

PortsFront : 4 USB Type-A 5Gbps signaling rate | 1 headphone/microphone combo | Front (Entry version) : 4 USB Type-A 5Gbps signaling rate | 1 headphone/microphone combo
Source & observationView specification source ↗

Observed 2026-10-06T15:38:43.588878+00:00

HP exact US native Included in Current Configuration specifications

Wireless & networkingUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T15:38:43.588878+00:00

HP exact US native Included in Current Configuration specifications

Build & Physical▾
WeightUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T15:38:43.588878+00:00

HP exact US native Included in Current Configuration specifications

DimensionsUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T15:38:43.588878+00:00

HP exact US native Included in Current Configuration specifications

Software & Bundle▾
Included bundleUnpublished

Operating system

  • Windows 11 Pro for Workstations - HP recommends Windows 11 Pro for business
  • Ubuntu Linux 22.04
  • Ubuntu Linux 24.04
  • Linux-ready

HP marks Windows 11 Pro for Workstations - HP recommends Windows 11 Pro for business as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

ENERGY STAR compliance

  • ENERGY STAR Qualified Configuration

HP marks ENERGY STAR Qualified Configuration as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

TCO Certified compliance

  • Compliant with TCO Certified

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Internal OS load storage options

  • Operating System Load to M.2
  • Operating System Load to SATA
  • Operating System Load to Front Removable NMVe
  • Operating System Load to Front Removable SATA

HP marks Operating System Load to M.2 as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Real-time data backup

  • RAID 0 Striped Array Configuration
  • RAID 1 Mirrored Array Configuration

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Second graphics card

  • NVIDIA® T1000 Long Life (8 GB GDDR6, 4xMini DisplayPort, PCIe x16) 2nd Graphics
  • AMD Radeon™ PRO W7500 (8 GB GDDR6, 4x DisplayPort 2.1) 2nd Graphics
  • AMD Radeon™ PRO W7600 (8 GB GDDR6; 4 x DisplayPort 2.1) 2nd Graphics Card
  • NVIDIA RTX™ 2000 Ada Generation (16 GB GDDR6 ECC, 4 x mini DisplayPort 1.4a) 2nd Graphics
  • NVIDIA RTX™ 5000 Ada (32 GB EEC GDDR6; 4 x DisplayPort 1.4a) 2nd Graphics
  • NVIDIA RTX 6000 Ada Generation (48 GB GDDR6, 4 x DisplayPort 1.4) 2nd Graphics
  • NVIDIA RTX™ 4500 Ada Generation (24 GB GDDR6 ECC, 4 x DisplayPort 1.4a) 2nd Graphics
  • NVIDIA RTX PRO™ 2000 Blackwell (16 GB ECC GDDR7, 4x mini DisplayPort 2.1b) 2nd Graphics
  • NVIDIA RTX PRO™ 4000 Blackwell (24 GB ECC GDDR7, 4x DisplayPort 2.1b) 2nd Graphics
  • NVIDIA RTX PRO™ 4500 Blackwell (32 GB ECC GDDR7, 4x DisplayPort 2.1b) 2nd Graphics
  • NVIDIA RTX PRO™ 5000 Blackwell (48 GB ECC GDDR7, 4x DisplayPort 2.1b) 2nd Graphics
  • NVIDIA RTX PRO™ 6000 Blackwell Max-Q (96 GB ECC GDDR7, 4x DisplayPort 2.1b, 300 W) 2nd Graphics

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Third graphics card

  • NVIDIA® T1000 Long Life (8 GB GDDR6, 4xMini DisplayPort, PCIe x16) 3rd Graphics
  • AMD Radeon™ PRO W7500 (8 GB GDDR6, 4x DisplayPort 2.1) 3rd Graphics
  • AMD Radeon™ PRO W7600 (8 GB GDDR6; 4 x DisplayPort 2.1) 3rd Graphics Card
  • NVIDIA RTX™ 2000 Ada Generation (16 GB GDDR6 ECC, 4 x mini DisplayPort 1.4a) 3rd Graphics
  • NVIDIA RTX™ 4500 Ada Generation (24 GB GDDR6 ECC, 4 x DisplayPort 1.4a) 3rd Graphics
  • NVIDIA RTX™ 5000 Ada (32 GB EEC GDDR6; 4 x DisplayPort 1.4a) 3rd Graphics
  • NVIDIA RTX 6000 Ada Generation (48 GB GDDR6, 4 x DisplayPort 1.4) 3rd Graphics
  • NVIDIA RTX PRO™ 2000 Blackwell (16 GB ECC GDDR7, 4x mini DisplayPort 2.1b) 3rd Graphics
  • NVIDIA RTX PRO™ 4000 Blackwell (24 GB ECC GDDR7, 4x DisplayPort 2.1b) 3rd Graphics
  • NVIDIA RTX PRO™ 4500 Blackwell (32 GB ECC GDDR7, 4x DisplayPort 2.1b) 3rd Graphics
  • NVIDIA RTX PRO™ 5000 Blackwell (48 GB ECC GDDR7, 4x DisplayPort 2.1b) 3rd Graphics
  • NVIDIA RTX PRO™ 6000 Blackwell Max-Q (96 GB ECC GDDR7, 4x DisplayPort 2.1b, 300 W) 3rd Graphics

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Additional networking options

  • Intel® AX210 Wi-Fi 6E + Bluetooth 5.2 (no-vPro™) with External Antenna
  • Intel I225-T1 2.5GbE Ethernet Network Adapter
  • Broadcom 5720 1GbE RJ45 PCIe Ethernet Network Adapter
  • HP Dual Port 10GB-T NIC Module
  • Intel E810-XXVDA2 10/25GbE SFP28 PCIe Network Adapter
  • AT-2914SX/LC PCIe Fiber Adapter
  • Intel® X550-T2 10GbE Dual Port NIC
  • NVIDIA® Mellanox ConnectX®-6 Dx Dual Port 10/25GBE SFP28 Network Interface Card

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Application software

  • Data Science Stack
  • WSL2/Ubuntu Data Science Stack

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Media reader

  • HP SD Card Reader

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Optical drive

  • No included Optical Disc Drive
  • 9.5mm DVD-ROM 1st Optical Disc Drive
  • 9.5mm DVD-Writer 1st Optical Disc Drive
  • 9.5mm Blu-ray Writer 1st Optical Disc Drive

HP marks No included Optical Disc Drive as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Secondary optical drive

  • 9.5mm DVD-Writer 2nd Optical Disc Drive
  • 9.5mm Blu-ray Writer 2nd Optical Disc Drive

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Keyboard

  • HP 125 Black Wired Keyboard
  • No Included Keyboard
  • HP USB 320K Keyboard
  • HP USB Business Slim Wired SmartCard CCID Keyboard

HP marks HP 125 Black Wired Keyboard as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Mouse

  • HP Wired 320M Mouse
  • No Included Mouse
  • HP Wired 128 Laser Mouse

HP marks HP Wired 320M Mouse as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Graphics connectors

  • No Adapters Needed
  • HP mini DisplayPort-to-DisplayPort Adapter
  • HP DisplayPort to HDMI 2.0
  • HP mini DisplayPort-to-DisplayPort Adapter (2-pack)
  • HP mini DisplayPort-to-DisplayPort Adapter (4-pack)
  • HP mini DisplayPort-to-DisplayPort Adapter (8-pack)

HP marks No Adapters Needed as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Label

  • FDA Class 1 Medical Device Label

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

LAN Transceivers

  • HP 10GbE SFP+ SR/SW LC Fiber Optic Transceiver
  • HP 10GbE SFP+ SR/SW LC 2nd Fiber Optic Transceiver
  • HP 25GbE SFP 28 LC Fiber Optic Transceiver
  • HP 25GbE SFP 28 LC 2nd Fiber Optic Transceiver

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Accessories

  • HP Internal Serial Port/PS/2 Ports
  • HP Type-A 2.0 Internal Port Adapter Kit
  • HP Dual Thunderbolt™ 4 PCIe x4 Low Profile Card
  • Intel® VROC NVMe SSD Standard Controller Module

HP does not mark an included base selection for this row. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗

Warranty

  • One-year (1/1/1) limited warranty

HP marks One-year (1/1/1) limited warranty as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.

Manufacturer options ↗
Motherboard & Memory Expansion▾
Motherboard modelUnpublished
Source & observationView specification source ↗

Observed 2026-10-06T15:38:43.588878+00:00

Unpublished: no unambiguous exact-device manufacturer specification

Total RAM slots16 slots
Source & observationView specification source ↗

Observed 2026-10-06T15:38:43.588878+00:00

Exact-device manufacturer specification row

Independent testing

Benchmarks & Reviews

1 written review
Expand benchmarksCollapse benchmarksComparison charts, test conditions & full reviews

Benchmarks & Reviews

Published test results and reviewer comments.

1 written review

No test results available (for now).

Read the reviews

More benchmarks and reviews →

Configuration matching & limitations

StorageReview: Model review. Results describe the tested hardware; unspecified power modes and RAM topology do not establish an exact target test.

gaming pilot

cpu
Not measured
gpu
Not measured
gaming
Not measured

performance pilot

cpu
Not measured
gpu
Not measured
gaming
Not measured
sustained
Not measured

whole device

cpu
Not measured
gpu
Not measured
gaming
Not measured
sustained
Not measured
noise
Not measured
battery
not applicable
display
not applicable
build
Not measured

An overall buying score is unavailable. The available measurements do not cover every aspect of the device.

Compare Configurations

Other configurable in the catalog. No ranking is implied.
