HP/Configurable

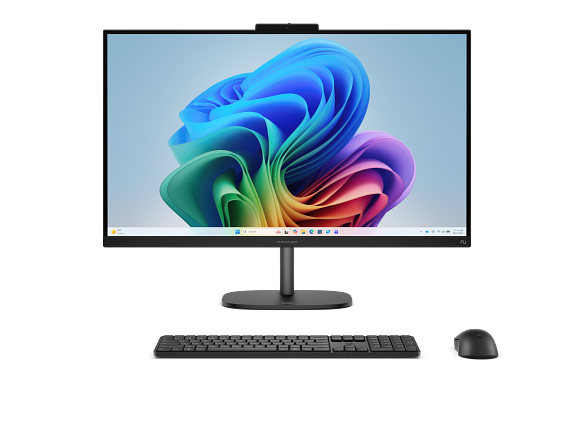

HP OmniStudio 27 inch All-in-One Desktop Next Gen AI PC
US · HP-BASE-C17VMAV_1
Configurable device · Advertised base configuration
Configurable modelHP-BASE-C17VMAV_1
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | Intel® GraphicsSource & observationView specification source ↗Observed 2026-10-06T15:45:37.766882+00:00 HP exact US native Included in Current Configuration specifications |
|---|
Processor and graphics
- Intel® Core™ Ultra 5 322 (up to 4.4 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores, 6 threads) + Intel® AI Boost (46 NPU TOPS) + Intel® Graphics
- Intel® Core™ Ultra 5 325 (up to 4.5 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 8 cores, 8 threads) + Intel® AI Boost (47 NPU TOPS) + Intel® Graphics
- Intel® Core™ Ultra 7 355 (up to 4.7 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 8 cores, 8 threads) + Intel® AI Boost (49 NPU TOPS) + Intel® Graphics
- Intel® Core™ Ultra 5 322 (up to 4.4 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores, 6 threads) + Intel® AI Boost (46 NPU TOPS) + Intel® Graphics for QHD
- Intel® Core™ Ultra 5 325 (up to 4.5 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 8 cores, 8 threads) + Intel® AI Boost (47 NPU TOPS) + Intel® Graphics for QHD
- Intel® Core™ Ultra 7 355 (up to 4.7 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 8 cores, 8 threads) + Intel® AI Boost (49 NPU TOPS) + Intel® Graphics for QHD
HP marks Intel® Core™ Ultra 5 322 (up to 4.4 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores, 6 threads) + Intel® AI Boost (46 NPU TOPS) + Intel® Graphics as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 16GB (2 X 8GB)Source & observationView specification source ↗Observed 2026-10-06T15:45:37.766882+00:00 HP exact US native Included in Current Configuration specifications View RAM layout source ↗ Observed 2026-10-06T15:45:37.766882+00:00 Installed RAM modules stated for the exact product or selected build View RAM stick count source ↗ Observed 2026-10-06T15:45:37.766882+00:00 Installed RAM modules stated for the exact product or selected build |
|---|
Memory
- 16 GB DDR5-5600 MT/s (2 x 8 GB)
- 24 GB DDR5-5600 MT/s (1 x 24 GB)
- 32 GB DDR5-5600 MT/s (2 x 16 GB)
HP marks 16 GB DDR5-5600 MT/s (2 x 8 GB) as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Storage
- 512 GB PCIe® NVMe™ M.2 SSD
- 1 TB PCIe® NVMe™ M.2 SSD
- 2 TB PCIe® NVMe™ M.2 SSD
HP marks 512 GB PCIe® NVMe™ M.2 SSD as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 27 inSource & observationView specification source ↗Observed 2026-10-06T15:45:37.766882+00:00 HP exact US native Included in Current Configuration specifications |
| Refresh rate | 120 HzSource & observationView specification source ↗Observed 2026-10-06T15:45:37.766882+00:00 HP exact US native Included in Current Configuration specifications |
Display
- 27" diagonal, FHD (1920 x 1080), 120Hz, UWVA, IPS, anti-glare, Low Blue Light, 350 nits, 100% sRGB
- 27" diagonal, QHD (2560 x 1440), 100 Hz, UWVA, IPS, anti-glare, Low Blue Light, 350 nits, 100% sRGB
- 27" diagonal, FHD (1920 x 1080), 75 Hz, WLED,touch IPS anti-glare, Low Blue Light, 350 nits, sRGB 100%
HP marks 27" diagonal, FHD (1920 x 1080), 120Hz, UWVA, IPS, anti-glare, Low Blue Light, 350 nits, 100% sRGB as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T15:45:37.766882+00:00 HP exact US native Included in Current Configuration specifications |
|---|---|
| Power supply | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T15:45:37.766882+00:00 HP exact US native Included in Current Configuration specifications |
Connectivity▾
| Ports | Rear : 2 USB Type-C® 10Gbps signaling rate | 1 USB Type-A 10Gbps signaling rate | 2 USB 2.0 Type-A | 1 headphone/microphone combo | 1 RJ-45 · 1 HDMI-out 2.0bSource & observationView specification source ↗Observed 2026-10-06T15:45:37.766882+00:00 HP exact US native Included in Current Configuration specifications |
|---|
Wireless technology
- Realtek Wi-Fi 6 (2x2) and Bluetooth® 5.4 wireless card
- Realtek Wi-Fi 7 (2x2) and Bluetooth® 6.0 wireless card
HP marks Realtek Wi-Fi 6 (2x2) and Bluetooth® 5.4 wireless card as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T15:45:37.766882+00:00 HP exact US native Included in Current Configuration specifications |
|---|---|
| Dimensions | 24.11 × 7.28 × 19.19 in (FHD fix height stand) | 24.11 × 7.28 × 20.69 in (FHD height adjustable stand max) | 24.11 × 7.28 × 16.78 in (FHD height adjustable stand min) | 24.17 × 7.28 × 19.21 in (QHD fix height stand) | 24.17 × 7.28 × 20.75 in (QHD height adjustable stand max) | 24.17 × 7.28 × 16.81 in (QHD height adjustable stand min)Source & observationView specification source ↗Observed 2026-10-06T15:45:37.766882+00:00 HP exact US native Included in Current Configuration specifications |
Software & Bundle▾
| Included bundle | Unpublished |
|---|
Operating system
- Windows 11 Home
- Windows 11 Pro
HP marks Windows 11 Home as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Keyboard and mouse
- HP 175C USB Black Wired Keyboard and Mouse Combo
- HP 275C USB Black Wireless Keyboard and Mouse Combo
- HP 175C USB Cashmere White Wired Keyboard and Mouse Combo
- HP 275C USB Cashmere White Wireless Keyboard and Mouse Combo
HP marks HP 175C USB Black Wired Keyboard and Mouse Combo as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Power Adapter
- 90W 4.5mm AC power adapter
- 120 W AC power adapter
HP marks 90W 4.5mm AC power adapter as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Office software
- No Additional Office Software
- Microsoft Office 365 Personal
- Microsoft Office 365 Family
- Microsoft Office Home 2024
HP marks No Additional Office Software as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗McAfee AI Powered Security Software
- Security Software Trial
- McAfee LiveSafe - 1 Year - Service
- McAfee LiveSafe - 2 Year – Service
- McAfee LiveSafe - 3 Year - Service
HP marks Security Software Trial as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T15:45:37.766882+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | 2 slotsSource & observationView specification source ↗Observed 2026-10-06T15:45:37.766882+00:00 Exact-device manufacturer specification row |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
