HP/Configurable

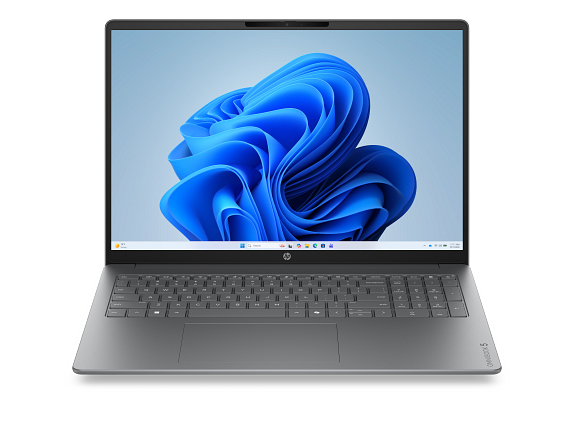

HP OmniBook 5 Laptop AI 16Z-CH000, 16"
US · HP-BASE-C5BR2AV_1
Configurable laptop · Advertised base configuration
Configurable modelHP-BASE-C5BR2AV_1
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | AMD Radeon™ 760M GraphicsSource & observationView specification source ↗Observed 2026-10-06T15:49:14.699383+00:00 HP exact US native Included in Current Configuration specifications |
|---|
Processor and graphics
- AMD Ryzen™ 5 230 (up to 4.9 GHz max boost clock, 16 MB L3 cache, 6 cores, 12 threads) + AMD Ryzen™ AI (16 NPU TOPS) + AMD Radeon™ 760M Graphics
- AMD Ryzen™ 7 250 (up to 5.1 GHz max boost clock, 16 MB L3 cache, 8 cores, 16 threads) + AMD Ryzen™ AI (16 NPU TOPS) + AMD Radeon™ 780M Graphics
HP marks AMD Ryzen™ 5 230 (up to 4.9 GHz max boost clock, 16 MB L3 cache, 6 cores, 12 threads) + AMD Ryzen™ AI (16 NPU TOPS) + AMD Radeon™ 760M Graphics as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 8GB (1 X 8GB)Source & observationView specification source ↗Observed 2026-10-06T15:49:14.699383+00:00 HP exact US native Included in Current Configuration specifications View RAM layout source ↗ Observed 2026-10-06T15:49:14.699383+00:00 Installed RAM modules stated for the exact product or selected build View RAM stick count source ↗ Observed 2026-10-06T15:49:14.699383+00:00 Installed RAM modules stated for the exact product or selected build |
|---|
Memory
- 8 GB DDR5-5600 MT/s (1 x 8 GB)
- 12 GB DDR5-5600 MT/s (1 x 12 GB)
- 16 GB DDR5-5600 MT/s (2 x 8 GB)
- 24 GB DDR5-5600 MT/s (2 x 12 GB)
- 32 GB DDR5-5600 MT/s (1 x 32 GB)
HP marks 8 GB DDR5-5600 MT/s (1 x 8 GB) as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Storage
- 256 GB PCIe® Gen4 NVMe™ M.2 SSD
- 512 GB PCIe® Gen4 NVMe™ M.2 SSD
- 1 TB PCIe® Gen4 NVMe™ M.2 SSD
HP marks 256 GB PCIe® Gen4 NVMe™ M.2 SSD as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 16 inSource & observationView specification source ↗Observed 2026-10-06T15:49:14.699383+00:00 HP exact US native Included in Current Configuration specifications |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T15:49:14.699383+00:00 HP exact US native Included in Current Configuration specifications |
Display
- 16" diagonal, 2K (1920 x 1200), IPS, micro-edge, anti-glare, 300 nits, 62.5% sRGB
- 16" diagonal, 2K (1920 x 1200), touch, IPS, micro-edge, anti-glare, 300 nits, 62.5% sRGB
- 16" diagonal, 2K (1920x1200), OLED, 0.2 ms response time, UWVA, micro-edge, BrightView, Low Blue Light, 300 nits, 100% DCI-P3
- 16" diagonal, 2K (1920 x 1200), IPS, micro-edge, anti-glare, 400 nits, 100% sRGB
HP marks 16" diagonal, 2K (1920 x 1200), IPS, micro-edge, anti-glare, 300 nits, 62.5% sRGB as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T15:49:14.699383+00:00 HP exact US native Included in Current Configuration specifications |
|---|---|
| Power supply | 65 W USB Type-C® GaN power adapterSource & observationView specification source ↗Observed 2026-10-06T15:49:14.699383+00:00 HP exact US native Included in Current Configuration specifications |
Connectivity▾
| Ports | 2 USB Type-A 5Gbps signaling rate | 1 HDMI-out 2.1 | 1 headphone/microphone combo | 2 USB Type-C® 10Gbps signaling rate (USB Power Delivery 3.1, DisplayPort™ 1.4, HP Sleep and Charge)Source & observationView specification source ↗Observed 2026-10-06T15:49:14.699383+00:00 HP exact US native Included in Current Configuration specifications |
|---|
Wireless technology
- MediaTek Wi-Fi 6 MT7920 (2x2) and Bluetooth® 5.4 wireless card
- Realtek Wi-Fi 7 (2x2) and Bluetooth® 6.0 wireless card
HP marks MediaTek Wi-Fi 6 MT7920 (2x2) and Bluetooth® 5.4 wireless card as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Build & Physical▾
| Weight | 1724 gSource & observationView specification source ↗Observed 2026-10-06T15:49:14.699383+00:00 HP exact US native Included in Current Configuration specifications |
|---|---|
| Dimensions | 14.12 x 9.91 x 0.58 inSource & observationView specification source ↗Observed 2026-10-06T15:49:14.699383+00:00 HP exact US native Included in Current Configuration specifications |
Software & Bundle▾
| Included bundle | Unpublished |
|---|
Operating system
- Windows 11 Home
- Windows 11 Pro
HP marks Windows 11 Home as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Personalization
- 1080p FHD IR camera + integrated dual array digital microphones (Meteor Silver)
HP marks 1080p FHD IR camera + integrated dual array digital microphones (Meteor Silver) as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Keyboard
- Full-size, darker meteor silver opaque keyboard with numeric keypad
- Full-size, backlit, darker meteor silver opaque keyboard with numeric keypad
HP marks Full-size, darker meteor silver opaque keyboard with numeric keypad as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Primary battery
- 4-cell, 68 Wh Li-ion polymer
HP marks 4-cell, 68 Wh Li-ion polymer as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Office software
- No Additional Office Software
- Microsoft® 365 Personal 1 Year
- Microsoft® 365 Family 1 Year
- Microsoft Office Home 2024
- Microsoft Office Home and Business 2024
HP marks No Additional Office Software as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗McAfee AI Powered Security Software
- Security Software Trial
- M+ Prem Individual - 12 month
- M+ Prem Individual - 24 month
- M+ Prem Individual - 36 month
HP marks Security Software Trial as Included in Current Configuration. Alternatives are documented for this exact model. Linked assemblies stay together. Availability, compatibility and price can change when options change; confirm the final build with HP.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T15:49:14.699383+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-06T15:49:14.699383+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
