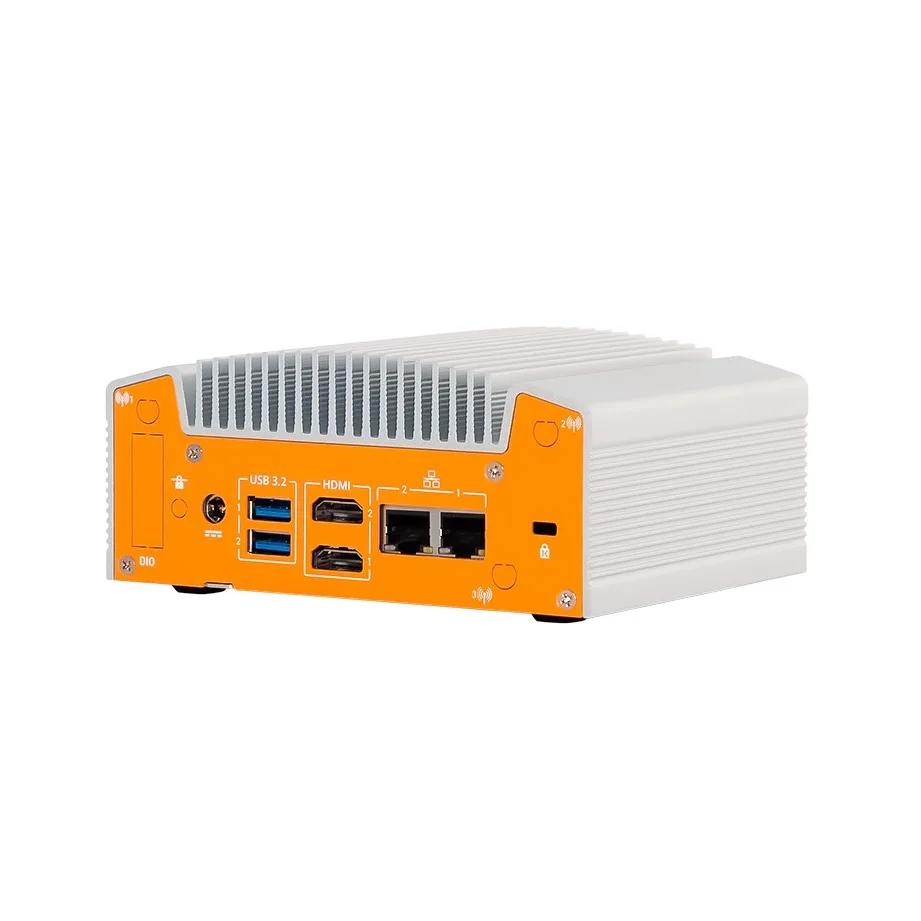

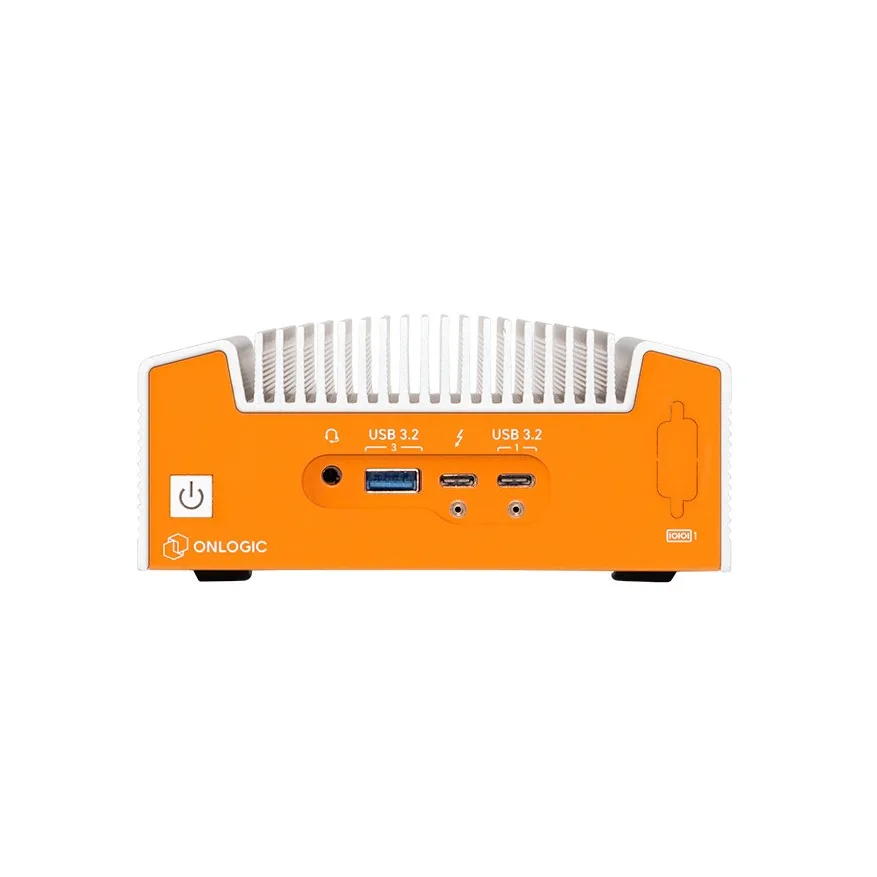

ML100G-56 Fanless Intel Core Ultra Industrial NUC

Motherboard options

• NUC-125U R2 Core Ultra 5 Series 1 Meteor Lake 15W Motherboard
• NUC-155U R2 Core Ultra 7 Series 1 Meteor Lake 15W Motherboard

Selected default: NUC-125U R2 Core Ultra 5 Series 1 Meteor Lake 15W Motherboard; quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: Intel Core Ultra 5 125U | Intel Core Ultra 7 155U

SO-DIMM DDR5 Memory options

• 8GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 8GB SO-DIMM DDR5 5600 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR5 5600 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)
• 32GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 32GB SO-DIMM DDR5 5600 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)
• 48GB SO-DIMM DDR5 5600 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)

Selected default: 8GB SO-DIMM DDR5 5600 MT/s (-20~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.

Primary Storage options

• 256GB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃)
• 512GB NVMe Gen 4x4 M.2 2242 M, OPAL SED (-20°C~75°C)
• 1TB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20°C~75°C)
• 2TB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃)

Selected default: 256GB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃); quantity 1. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 96

DC Barrel Jack Power Adapter options

• None
• Power Adapter DC 60 W, 12 V, 5 A - North American Power Cord

Selected default: Power Adapter DC 60 W, 12 V, 5 A - North American Power Cord; quantity 1. Choices are for this model; final compatibility depends on other selections.

Additional Storage or Accelerator options

• None
• 256GB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃)
• 512GB NVMe Gen 4x4 M.2 2242 M, OPAL SED (-20°C~75°C)
• 1TB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20°C~75°C)
• 2TB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃)
• ML100G Hailo M.2 and Thermal Pad Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Optional Expansion options

• None
• DIO expansion in the ML100G

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Optional COM options

• None
• Serial Cable, 175mm Shield,s DB9 to 2mm header

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Wi-Fi options

• None
• Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

SIM Provider options

• None
• Verizon Tri-Cut SIM Card

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

WIFI Antennas options

• None
• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Operating System options

• None
• Windows 11 IoT Enterprise 2024 LTSC Value (Celeron/i3/i5)
• Windows 11 IoT Enterprise 2024 LTSC High End (i7 / Xeon)
• Windows 10 IoT Enterprise 2021 LTSC Value (Celeron/i3/i5) - 64 Bit
• Windows 10 IoT Enterprise 2021 LTSC High End (i7, Xeon) - 64 Bit
• Ubuntu Desktop 24.04 LTS 64-bit
• Ubuntu Server 24.04 LTS 64-bit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Auto Power On options

• None
• Set System to Auto Power On via BIOS

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Mounting options

• None
• DIN Rail Mounting Clip Set with Brackets - Short, Silver (Back)
• VESA MIS-D Mounting Plate for CL100/ML100 with Screws
• Wall Mounting Brackets for OnLogic Compact Systems (Silver)
• MK022 Fanless Rackmount Adapter ML100 Mounting Bracket Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Build and Test options

• Standard Build (3-5 business days from parts availability) - Integrated CPU
• Rush Build (1-2 business days from parts availability) - Integrated CPU

Selected default: Standard Build (3-5 business days from parts availability) - Integrated CPU; quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Standard Onboard
• 5 Year Extended Warranty - Standard Onboard

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.
