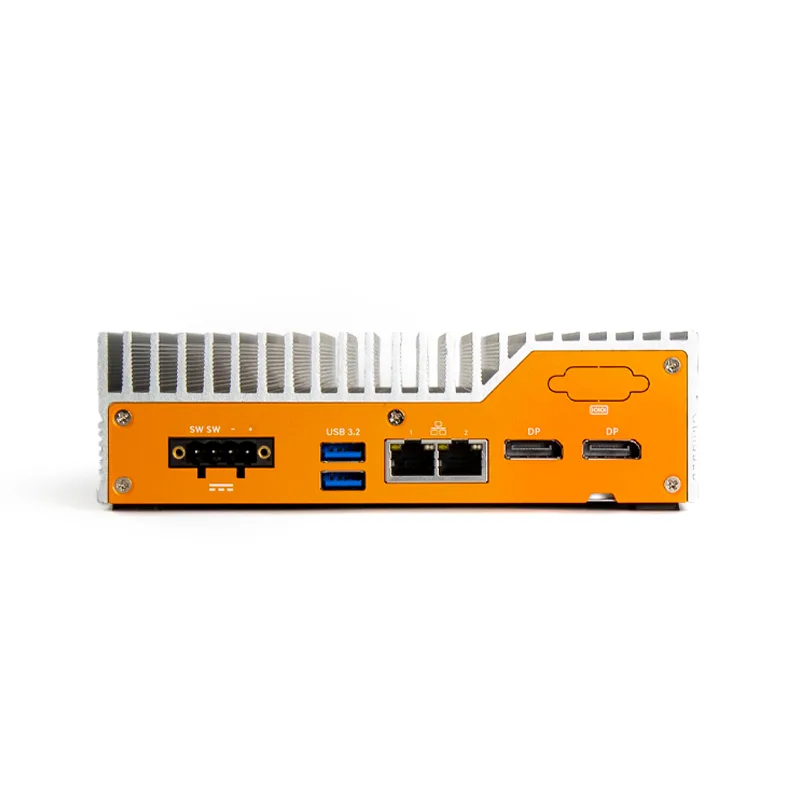

ZEDEDA-HX511-W OnLogic Helix 511 Fanless Industrial Edge Computer powered by ZEDEDA (WiFi version)

Processor options

• Intel Core i5-12600HL (Alder Lake) 2.7~4.5 GHz 12-Core Processor - 45W

Selected default: Intel Core i5-12600HL (Alder Lake) 2.7~4.5 GHz 12-Core Processor - 45W; quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: Intel Alder Lake 12th Gen i5-12600HL

Graphics/GPU platform capability

Platform specification, not an installed selection: Intel Iris Xe (i5, i7) - Dual Channel memory required | Intel UHD Graphics

SO-DIMM DDR5 Memory options

• 8GB SO-DIMM DDR5 4800 (0ºC~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR5 4800 (0ºC~95ºC) (quantity selectable, up to 2 modules)
• 32GB SO-DIMM DDR5 4800 MT/s (0~95ºC) (quantity selectable, up to 2 modules)
• 8GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)

Selected default: 8GB SO-DIMM DDR5 4800 (0ºC~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.

Primary Storage options

• 1TB NVMe Gen3x4 M.2 2280 M (-20°C~75°C)
• 512GB NVMe 2280 2 DWPD -20~75C
• 256GB NVMe Gen4x4 M.2 2280 M (-20°C~75°C)

Selected default: 256GB NVMe Gen4x4 M.2 2280 M (-20°C~75°C); quantity 1. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 64

Terminal Block Power Input options

• None
• Power Adapter DC 24 V, 7.5 A, 180 W (US Power Cord)
• Power Adapter DC 24 V, 13.75 A, 330 W (US Power Cord)

Selected default: Power Adapter DC 24 V, 7.5 A, 180 W (US Power Cord); quantity 1. Choices are for this model; final compatibility depends on other selections.

Wi-Fi options

• Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables

Selected default: Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables; quantity 1. Choices are for this model; final compatibility depends on other selections.

Onboard COM options

• Single RS232/422/485 Expansion for HX511

Selected default: Single RS232/422/485 Expansion for HX511; quantity 1. Choices are for this model; final compatibility depends on other selections.

Wi-Fi / Bluetooth Antennas options

• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna

Selected default: Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna; quantity 2. Choices are for this model; final compatibility depends on other selections.

Operating System options

• ZEDEDA GMTWUS for x86

Selected default: ZEDEDA GMTWUS for x86; quantity 1. Choices are for this model; final compatibility depends on other selections.

Auto Power On options

• Set System to Auto Power On via BIOS

Selected default: Set System to Auto Power On via BIOS; quantity 1. Choices are for this model; final compatibility depends on other selections.

Mounting options

• None
• Wall Mounting Brackets for OnLogic Compact Systems (Silver)
• DIN Rail Mounting Clip Set with Brackets - Short, Silver (Back)
• VESA Mount Plate Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Assembly & Validation options

• Standard Build (3-5 business days from parts availability) - Advanced Fanless
• Rush Build (1-2 business days from parts availability) - Advanced Fanless

Selected default: Standard Build (3-5 business days from parts availability) - Advanced Fanless; quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Advanced Socket
• 5 Year Extended Warranty - Advanced Socket

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.
