OnLogic/Configurable

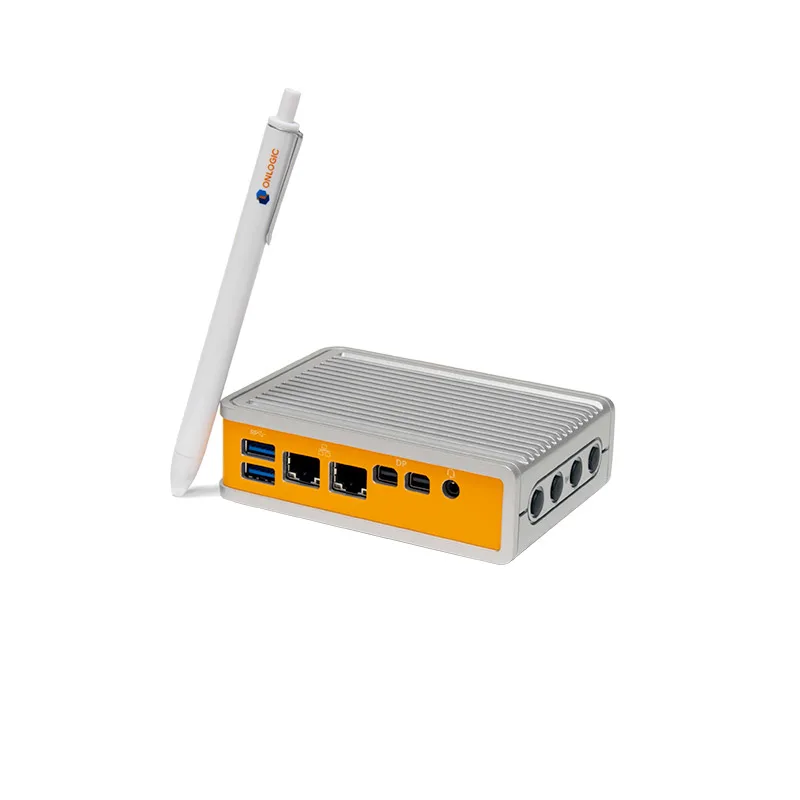

CL210G-11 Ultra Small Quad Core Fanless Industrial Edge Computer

Name: CL210G-11 Ultra Small Quad Core Fanless Industrial Edge Computer
Brand: OnLogic

US · ONLOGIC-BASE-d797c7ae-4b3c-4bb5-a7a2-b690f4359527

Configurable device · Advertised base configuration

Configurable modelONLOGIC-BASE-d797c7ae-4b3c-4bb5-a7a2-b690f4359527

Before you buy +

Configurable industrial mini PC. Specs describe the manufacturer-selected default components; optional unselected OS means no OS included. Choices can change hardware and price. Confirm final compatibility with OnLogic. The catalog reference is not a fixed manufacturer part number. Configure on the manufacturer’s site ↗

Specifications below preserve the published source wording. Unpublished values are unknown; they do not mean a feature is absent.

Independent assessment

A buying verdict and benchmark scores are not available for this exact configuration.

Explore the full specifications ↓

The hardware

Full Specifications

Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.

Performance — CPU / GPU▾

Processor	Intel Pentium N4200 Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate
Graphics	Intel HD Graphics 505 Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate

Processor platform capability

Platform specification, not an installed selection: Intel Pentium N4200

Manufacturer options ↗

Graphics/GPU platform capability

Platform specification, not an installed selection: Intel HD Graphics 505

Manufacturer options ↗

Memory & Storage▾

Installed RAM	4 GB Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate
Total storage	64 GB Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate

Memory Capacity platform capability

Platform specification, not an installed selection: 4

Manufacturer options ↗

Display▾

Screen technology	Not applicable
Size	Not applicable Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate
Resolution	Not applicable Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate
Refresh rate	Not applicable Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate

Battery & Power▾

Battery capacity	Unpublished Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate

Display Adapter Cables options

Advertised base: Unpublished

None
Mini DisplayPort to HDMI Adapter Cable - 1 Meter (quantity selectable, up to 10 modules)
Mini DisplayPort to VGA Adapter Cable - 1 Meter (quantity selectable, up to 10 modules)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Manufacturer options ↗

Connectivity▾

Ports

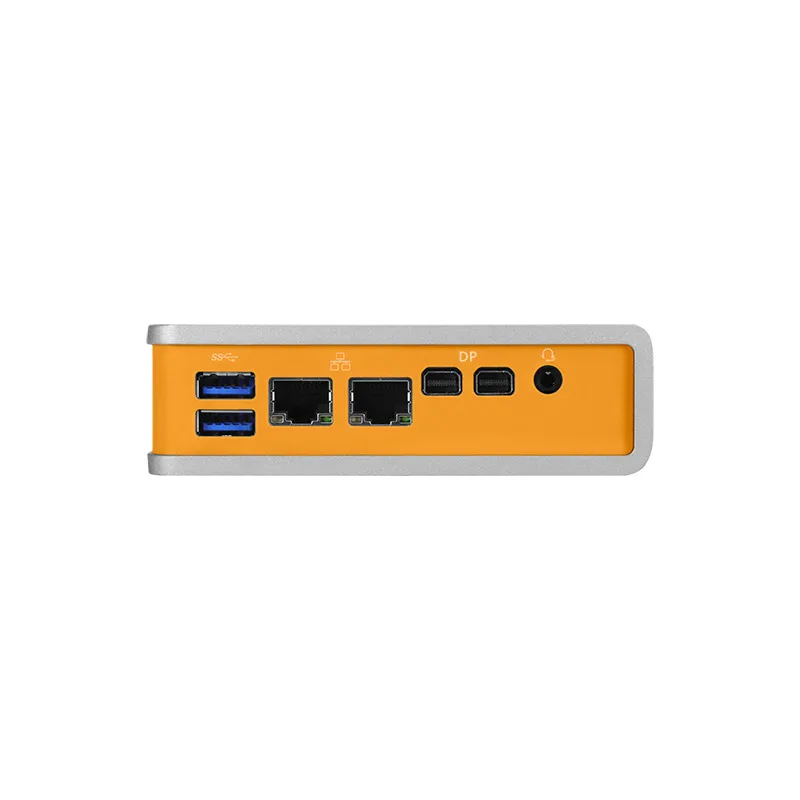

Front I/O: 2x USB 3.2 Gen 1 ports · Front I/O: 2x mini-DisplayPorts · Front I/O: 2x 1GbE LAN ports · Rear I/O: 1x MicroSD Card slot · Rear I/O: 1x Power Button · Rear I/O: 1x Power Indicator LED · Rear I/O: 1x COM port (RS-232) · Rear I/O: 1x USB 2.0 port · Rear I/O: 1x DC input jack (12 V, 12 mm <a href="https://www.onlogic.com/store/pw-12v3a-ic-v3/">incl. AC/DC power adapter

Source & observation

View specification source ↗

Observed 2026-10-03T14:14:58.456070+00:00

Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate

Wi-Fi options

None
Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables and mPCIe Adapter

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Manufacturer options ↗

Additional Storage & 4G Connectivity [Please Call for 4G] options

None
64GB SATA III mSATA (-20°C~75°C)
128GB SATA III mSATA (-20°C~75°C)
256GB SATA III mSATA (-20℃~75℃)
512GB SATA III mSATA (-20°C~75°C)
1TB SATA III mSATA (-20°C~75°C)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Manufacturer options ↗

Build & Physical▾

Weight	Unpublished Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate
Dimensions	115.5 x 34 x 82mm 4.53" x 1.34" x 3.23" Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate

Software & Bundle▾

Included bundle	Unpublished

Antennas for Wi-Fi and Bluetooth options

None
Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Manufacturer options ↗

Serial Cable options

None
Serial Cable 200mm, DB9 to 2.54mm IDC, AT/Everex

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Manufacturer options ↗

Auto Power On options

None
Set System to Auto Power On via BIOS

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Manufacturer options ↗

Mounting options

None
OnLogic DIN Rail Mounting Clip
Mounting bracket for CL200 Series

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Manufacturer options ↗

Operating System options

None
Ubuntu Server 22.04 LTS 64-bit
Ubuntu Desktop 20.04 LTS 64-bit
Ubuntu Server 20.04 LTS 64-bit
Ubuntu Server 18.04 LTS 64-bit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Manufacturer options ↗

Assembly & Validation options

Standard Build (3-5 business days from parts availability)
Rush Build (1-2 business days from parts availability) - Integrated CPU

Selected default: Standard Build (3-5 business days from parts availability); quantity 1. Choices are for this model; final compatibility depends on other selections.

Manufacturer options ↗

Warranty options

2 Year Standard Warranty
3 Year Extended Warranty - Advanced Onboard
5 Year Extended Warranty - Advanced Onboard

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.

Manufacturer options ↗

Motherboard & Memory Expansion▾

Motherboard model	Unpublished Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Unpublished: no unambiguous exact-device manufacturer specification
Total RAM slots	Unpublished Source & observation View specification source ↗ Observed 2026-10-03T14:14:58.456070+00:00 Unpublished: no unambiguous exact-device manufacturer specification

Independent testing

Benchmarks & Reviews

No published tests or reviews

No test results available (for now). A buying verdict is unavailable for this exact configuration.
