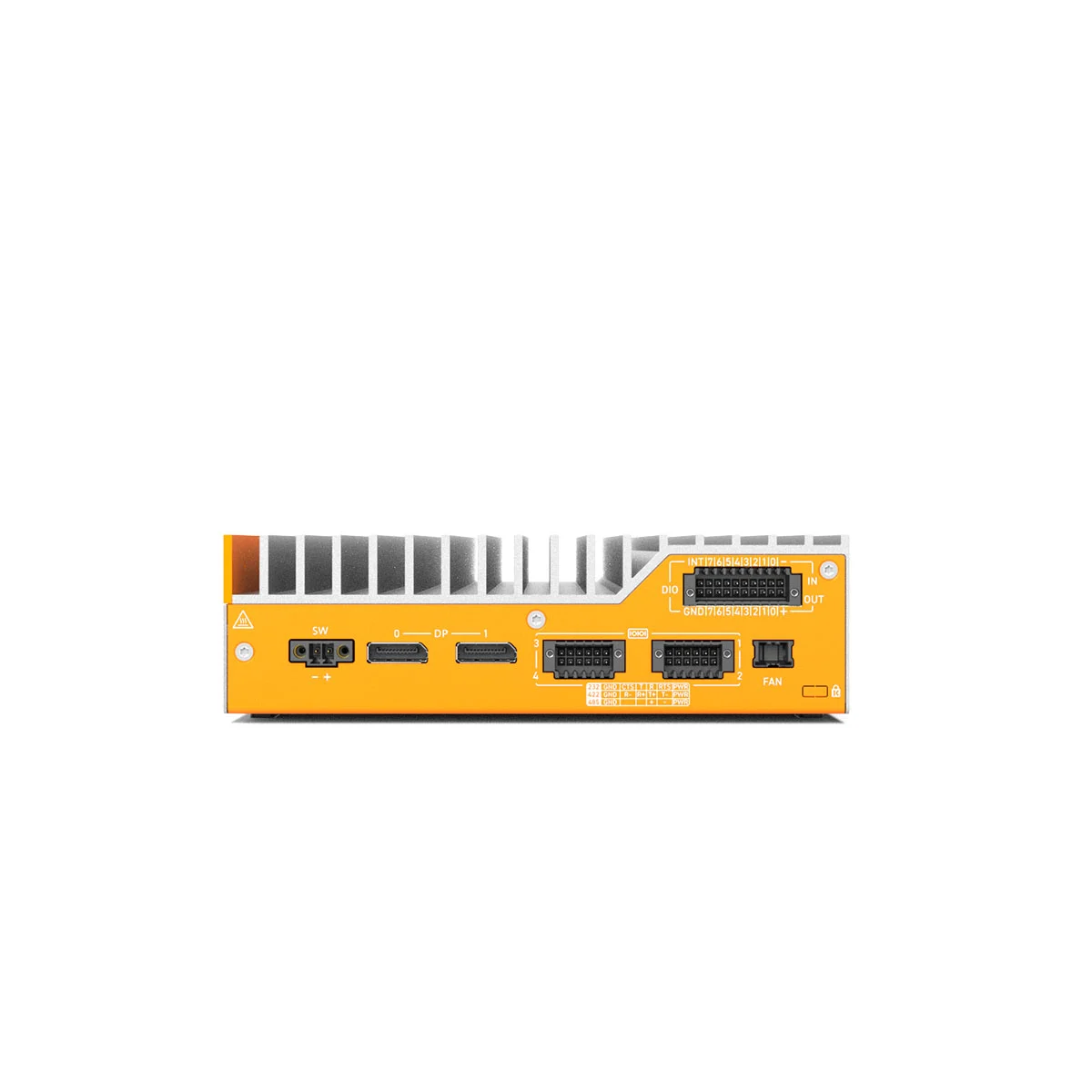

ZEDEDA-HX521 Helix 521 Industrial Low Profile Fanless Computer

Motherboard options

• Industrial 28W Core 5 - Meteor Lake (non vPro) [125H]
• Industrial 28W Core 5 - Meteor Lake (vPro Enabled) [135H]
• Industrial 28W Core 7 - Meteor Lake (vPro Enabled) [165H]

Selected default: Industrial 28W Core 5 - Meteor Lake (non vPro) [125H]; quantity 1. Choices are for this model; final compatibility depends on other selections.

Optional External Fan options

• None
• HX52X Fan Hat, Bulk

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: Intel Core Ultra 5 125H | Intel Core Ultra 5 135H | Intel Core Ultra 7 165H

Graphics/GPU platform capability

Platform specification, not an installed selection: Intel ARC Graphics

SO-DIMM DDR5 Memory options

• 8GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 32GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 48GB SO-DIMM DDR5 5600 MT/s (0~95ºC) (quantity selectable, up to 2 modules)
• 48GB SO-DIMM DDR5 5600 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)

Selected default: 8GB SO-DIMM DDR5 5600 MT/s (-20~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.

Primary Storage options

• 256GB NVMe Gen4x4 M.2 2280 M, OPAL SED (-20°C~75°C)
• 512GB NVMe Gen4x4 M.2 2280 M, OPAL SED (-20°C~75°C)
• 512GB NVMe Gen4x4 M.2 2280 M, PLP (0℃~70℃)
• 1TB NVMe Gen4x4 M.2 2280 M, OPAL SED (-20°C~75°C)
• 1TB NVMe Gen4x4 M.2 2280 M, PLP (0°C~70°C)
• 2TB NVMe Gen4x4 M.2 2280 M, OPAL SED (-20°C~75°C)
• 2TB NVMe Gen4x4 M.2 2280 M (0℃~70℃)
• 4TB NVMe Gen4x4 M.2 2280 M (0°C~70°C)
• 128GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 256GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 512GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 1TB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)

Selected default: 256GB NVMe Gen4x4 M.2 2280 M, OPAL SED (-20°C~75°C); quantity 1. Choices are for this model; final compatibility depends on other selections.

Additional Storage or Expansion options

• None
• 128GB SATA III M.2 2280 B+M (-20°C~75°C)
• 256GB SATA III M.2 2280 B+M (-20°C~75°C)
• 512GB SATA III M.2 2280 B+M (-20°C~75°C)
• 1TB SATA III M.2 2280 B+M (-20°C~75°C)
• 2TB SATA III M.2 2280 B+M (-20°C~75°C)
• 4TB SATA III M.2 2280 B+M (-20°C~75°C)
• 64GB SATA III M.2 2280 B+M (0-70ºC)
• 128GB SATA III M.2 2280 B+M (0°C~70°C)
• 256GB SATA III M.2 2280 B+M (0°C~70°C)
• 512GB SATA III M.2 2280 B+M (0-70ºC)
• 1TB SATA III M.2 2280 B+M (0℃~70℃)
• 2TB SATA III M.2 2280 B+M (0℃~70℃)
• 128GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 512GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 1TB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 256GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 96

Power Supply options

• None
• 4-pin Phoenix-style Terminal Block Connector, Black
• Power Adapter DC 24 V, 7.5 A, 180 W (US Power Cord)
• Power Adapter DC 24 V, 13.75 A, 330 W (US Power Cord)
• Power Adapter DC 24 V, 7.5 A, 180 W (UK Power Cord)
• Power Adapter DC 24 V, 7.5 A, 180 W (EU Power Cord)
• Power Adapter DC 24 V, 13.75 A, 330 W (EU Power Cord)
• Power Adapter DC 24 V, 13.75 A, 330 W (UK Power Cord Included)

Selected default: Power Adapter DC 24 V, 7.5 A, 180 W (US Power Cord); quantity 1. Choices are for this model; final compatibility depends on other selections.

Wi-Fi options

• None
• Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables
• Intel Wide-Temp M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables
• Intel M.2 2230 (0-50ºC) 802.11be Wi-Fi 7 Bluetooth 5.4 Card

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Terminal Block COM or DB9 Break Out Cable options

• None
• COM Mating Connector (quantity selectable, up to 2 modules)
• Dual COM 12 Pinout to Dual DB9 Locking Breakout Cable (quantity selectable, up to 2 modules)

Selected default: COM Mating Connector; quantity 1. Choices are for this model; final compatibility depends on other selections.

WIFI Antennas options

• None
• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Mounting Hardware options

• None
• Wall Mounting Brackets for OnLogic Compact Systems (Silver)
• VESA Mount Plate Kit
• VESA Through Bracket for OnLogic Systems
• MK022 Fanless Rackmount Adapter HX511 + HX52X Mounting Bracket Kit
• OnLogic DIN Rail Mounting Clip

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Advanced Socket
• 5 Year Extended Warranty - Advanced Socket

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.

Assembly & Validation options

• Standard Build (3-5 business days from parts availability) - Integrated CPU
• Rush Build (1-2 business days from parts availability) - Integrated CPU

Selected default: Standard Build (3-5 business days from parts availability) - Integrated CPU; quantity 1. Choices are for this model; final compatibility depends on other selections.

Operating System options

• ZEDEDA GMTWUS for x86

Selected default: ZEDEDA GMTWUS for x86; quantity 1. Choices are for this model; final compatibility depends on other selections.
