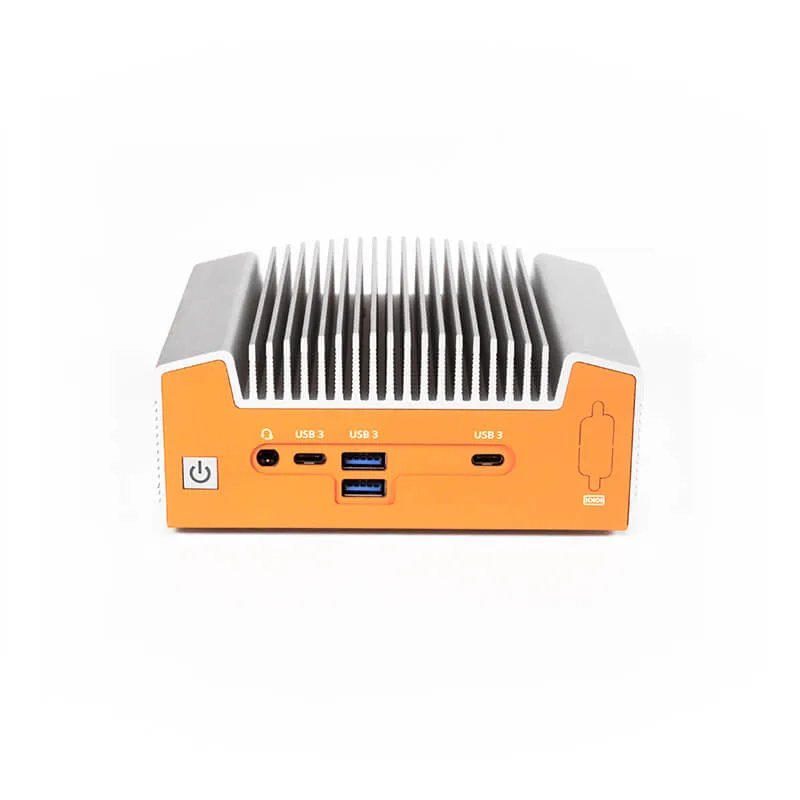

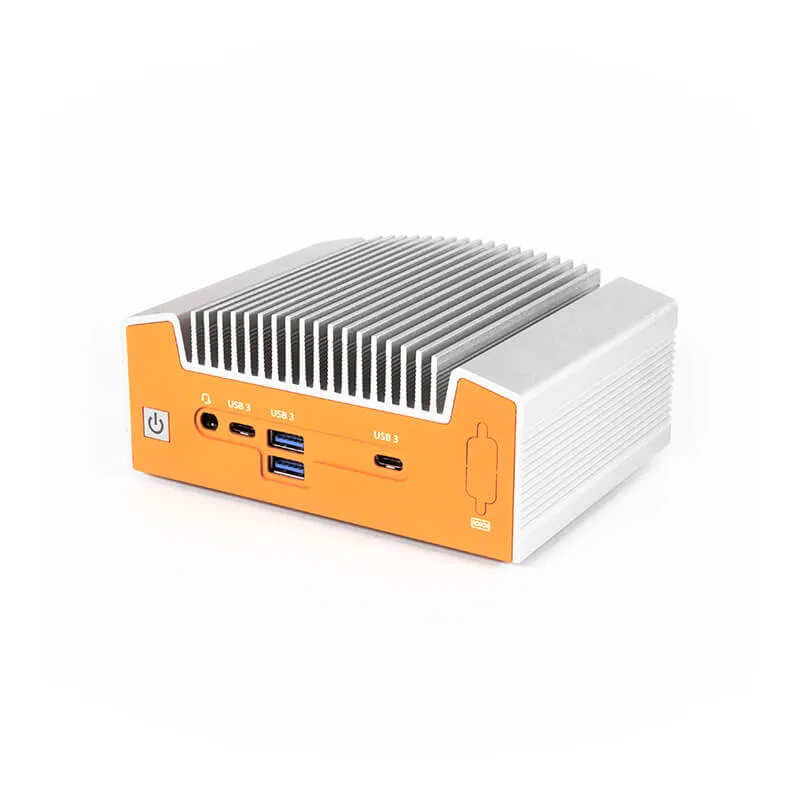

ML100G-41 Industrial Fanless AMD Ryzen 4000 Compact Computer

Motherboard options

• AMD 4x4 form factor motherboard with Ryzen V2516 Embedded Lifecycle
• AMD 4x4 form factor motherboard with Ryzen V2718 Embedded Lifecycle

Selected default: AMD 4x4 form factor motherboard with Ryzen V2516 Embedded Lifecycle; quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: AMD Ryzen 7 4800U, AMD Ryzen V2516, AMD Ryzen V2718

Graphics/GPU platform capability

Platform specification, not an installed selection: AMD Radeon Graphics

SO-DIMM DDR4 Memory options

• 4GB SO-DIMM DDR4 3200 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 8GB SO-DIMM DDR4 3200 MT/s (0~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR4 3200 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)
• 32GB SO-DIMM DDR4 3200 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)

Selected default: 8GB SO-DIMM DDR4 3200 MT/s (0~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.

Primary Storage options

• 64GB SATA 2280 1.61 DWPD -40~85C
• 128GB SATA 2280 1.61 DWPD -40~85C
• 256GB SATA 2280 1.61 DWPD -40~85C
• 512GB SATA III M.2 2280 B+M (-40°C~85°C)
• 1TB SATA III M.2 2280 B+M (-40°C~85°C)
• 128GB NVMe Gen4x4 M.2 2280 M (-40°C~85°C)
• 256GB NVMe Gen4x4 M.2 2280 M (-40°C~85°C)
• 512GB NVMe Gen4x4 M.2 2280 M (-40°C~85°C)
• 1TB NVMe Gen3x4 M.2 2280 M (-40°C~85°C)
• 2TB NVMe Gen3x4 M.2 2280 M (-40°C~85°C)

Selected default: 64GB SATA 2280 1.61 DWPD -40~85C; quantity 1. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 64

AC Adapter options

• None
• Power Adapter DC 60 W, 12 V, 5 A - North American Power Cord
• Power Adapter DC 100 W, 12 V, 8.33 A - North American Power Cord

Selected default: Power Adapter DC 60 W, 12 V, 5 A - North American Power Cord; quantity 1. Choices are for this model; final compatibility depends on other selections.

Wi-Fi, Cellular, or DIO Expansion options

• None
• AMIT mPCIe 4G LTE Modem for ML100 Series (Verizon Only - No SIM Included) - US Only
• DIO expansion in the ML100G
• Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Serial Port Expansion (Cannot be selected with 4G) options

• None
• RS-232 COM Shielded Port Header Cable, AT/Everex, 250mm

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Antennas for Wi-Fi, Bluetooth, or 4G LTE options

• None
• Taoglas GA.110 2G/3G/4G LTE Flexible Magnetic Whip Antenna, 1M RG-174
• Taoglas T-Bar GSA.8822 2G/3G/4G LTE Adhesive Antenna, SMA(M), 3M RG-174
• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Operating System options

• None
• Windows 10 IoT Enterprise 2019 LTSC Value (Celeron/i3/i5) - 64 Bit
• Windows 10 IoT Enterprise 2021 LTSC Value (Celeron/i3/i5) - 64 Bit
• Ubuntu Desktop 22.04 LTS 64-bit
• Ubuntu Desktop 20.04 LTS 64-bit
• Ubuntu Server 22.04 LTS 64-bit
• Windows 10 IoT Enterprise 2021 LTSC High End (i7, Xeon) - 64 Bit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Auto Power On options

• None
• Set System to Auto Power On via Jumper/Dip Switch

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit (quantity selectable, up to 5 modules)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Mounting options

• None
• Wall Mounting Brackets for OnLogic Compact Systems (Silver)
• VESA MIS-D Mounting Plate for CL100/ML100 with Screws
• DIN Rail Mounting Clip Set with Brackets - Short, Silver (Back)
• VESA Through Bracket for OnLogic Systems
• MK022 Fanless Rackmount Adapter ML100 Mounting Bracket Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Assembly & Validation options

• Standard Build (3-5 business days from parts availability) - Integrated CPU
• Rush Build (1-2 business days from parts availability) - Integrated CPU

Selected default: Standard Build (3-5 business days from parts availability) - Integrated CPU; quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Advanced Onboard
• 5 Year Extended Warranty - Advanced Onboard

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.

4G LTE SIM options

• None
• Verizon Tri-Cut SIM Card

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.
