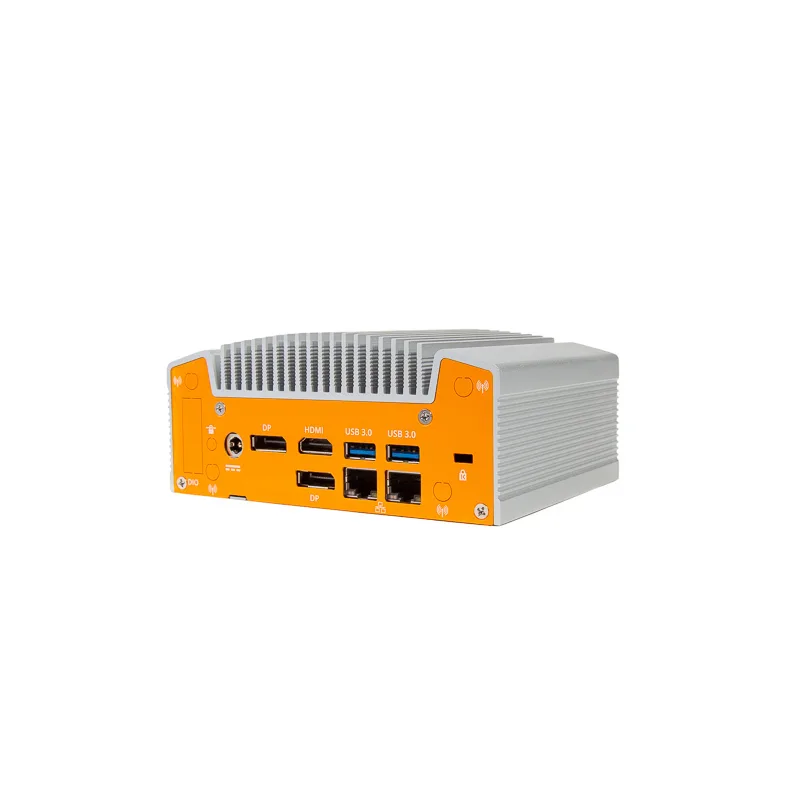

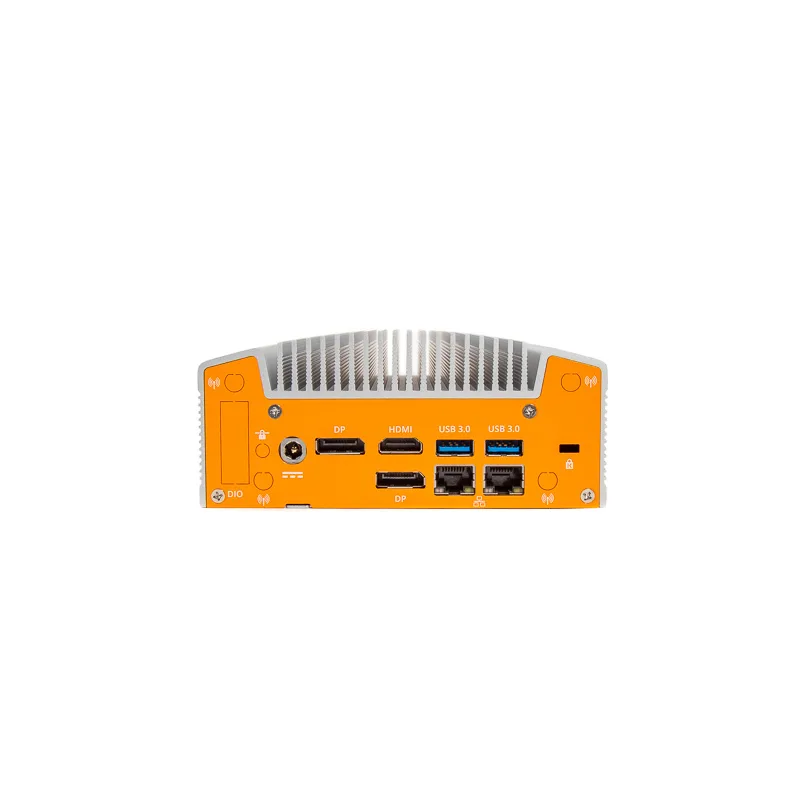

ML100G-40 Compact Fanless AMD Ryzen Mini PC

Motherboard options

• AMD 4x4 form factor motherboard with AMD Ryzen R1505G
• AMD 4x4 form factor motherboard with AMD Ryzen V1605B

Selected default: AMD 4x4 form factor motherboard with AMD Ryzen R1505G; quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: AMD Ryzen R1505G | AMD Ryzen V1605B

Graphics/GPU platform capability

Platform specification, not an installed selection: AMD Radeon Vega 3 Graphics (R1505G) | AMD Radeon Vega 8 Graphics

SO-DIMM DDR4 Memory options

• 4GB SO-DIMM DDR4 3200 MT/s (-20~95ºC)
• 8GB SO-DIMM DDR4 3200 MT/s (0~95ºC)
• 16GB SO-DIMM DDR4 3200 MT/s (-40~95ºC)

Selected default: 8GB SO-DIMM DDR4 3200 MT/s (0~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.

Primary Storage options

• 64GB SATA III M.2 2260 B+M (0°C~70°C)
• 128GB SATA III M.2 2260 B+M (0°C~70°C)
• 265GB SATA III M.2 2260 B+M (0°C~70°C)
• 512GB SATA III M.2 2260 B+M (0°C~70°C)
• 64GB SATA III M.2 2242 B+M (-40℃~85℃)
• 256GB SATA III M.2 2280 B+M (-40°C~85°C)

Selected default: 64GB SATA III M.2 2260 B+M (0°C~70°C); quantity 1. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 16

AC Adapter options

• None
• Power Adapter DC 60 W, 12 V, 5 A - North American Power Cord

Selected default: Power Adapter DC 60 W, 12 V, 5 A - North American Power Cord; quantity 1. Choices are for this model; final compatibility depends on other selections.

Wi-Fi, Cellular, or DIO Expansion (one USB will be depopulated if Cellular is chosen) options

• None
• AMIT mPCIe 4G LTE Modem for ML100 Series (Verizon Only - No SIM Included) - US Only
• DIO expansion in the ML100G
• Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Serial Port Expansion (Cannot be selected with 4G) options

• None
• RS-232 COM Shielded Port Header Cable, AT/Everex, 250mm

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Antennas for Wi-Fi, Bluetooth, or 4G LTE options

• None
• Taoglas T-Bar GSA.8822 2G/3G/4G LTE Adhesive Antenna, SMA(M), 3M RG-174
• Taoglas GA.110 2G/3G/4G LTE Flexible Magnetic Whip Antenna, 1M RG-174
• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit (quantity selectable, up to 5 modules)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Mounting options

• None
• Wall Mounting Brackets for OnLogic Compact Systems (Silver)
• DIN Rail Mounting Clip Set with Brackets - Short, Silver (Back)
• VESA MIS-D Mounting Plate for CL100/ML100 with Screws
• VESA Through Bracket for OnLogic Systems
• MK022 Fanless Rackmount Adapter ML100 Mounting Bracket Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Additional Rackmount Bracket options

• None
• MK022 Fanless Rackmount Adapter ML100 Mounting Bracket

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Auto Power On options

• None
• Set System to Auto Power On via BIOS

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Operating System options

• None
• Windows 10 IoT Enterprise 2019 LTSC Value (Celeron/i3/i5) - 64 Bit
• Ubuntu Desktop 18.04 LTS 64-bit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Assembly & Validation options

• Standard Build (3-5 business days from parts availability) - Integrated CPU
• Rush Build (1-2 business days from parts availability) - Integrated CPU

Selected default: Standard Build (3-5 business days from parts availability) - Integrated CPU; quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Advanced Onboard
• 5 Year Extended Warranty - Advanced Onboard

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.

SIM Provider options

• None
• Verizon Tri-Cut SIM Card

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.
