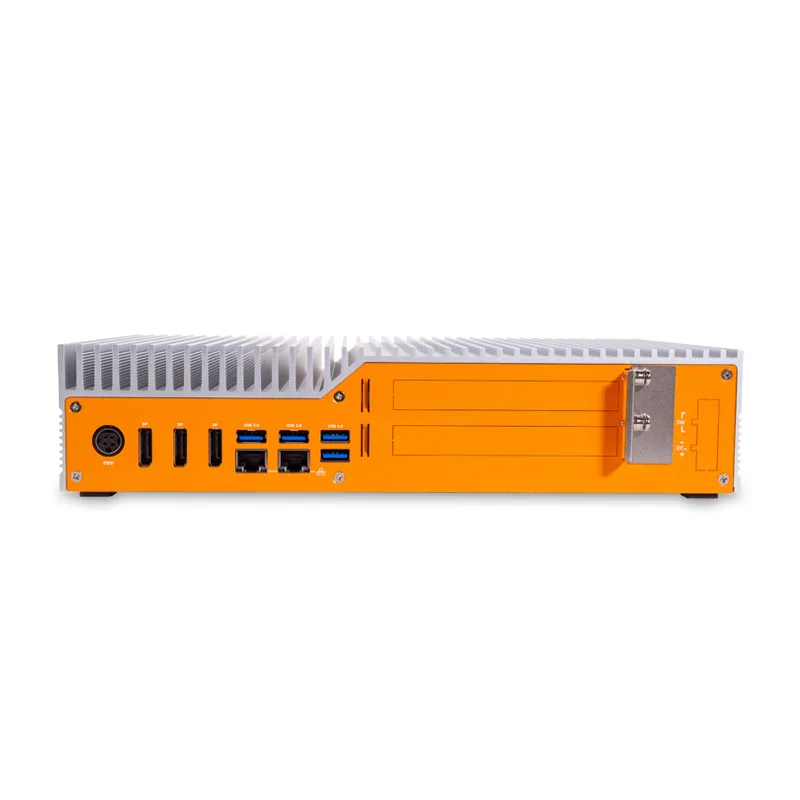

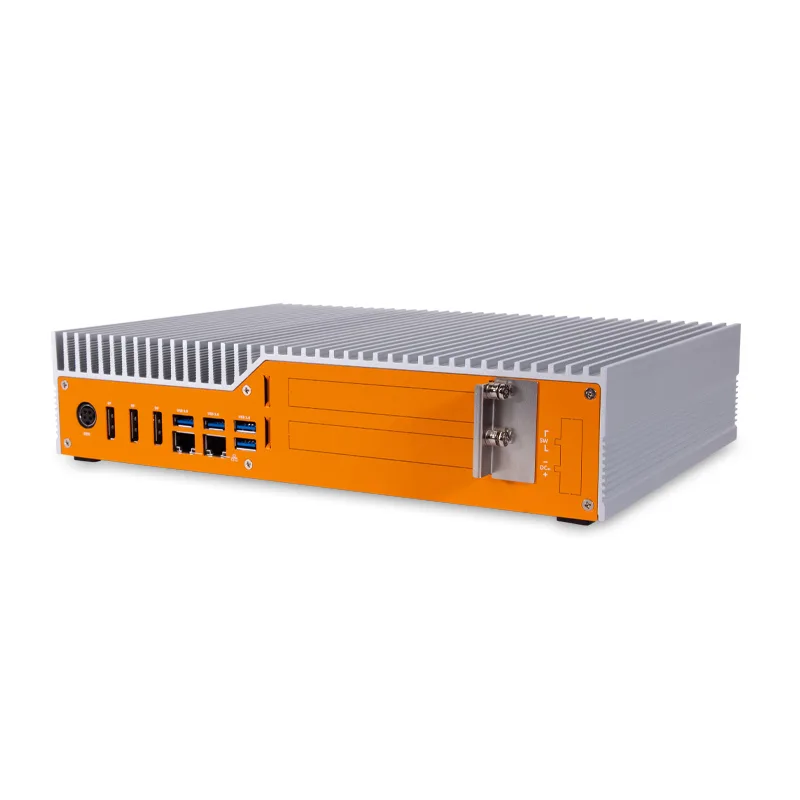

HX600 OnLogic Helix 600 Intel Comet Lake Expanded Industrial Edge Computer

Processor options

• Intel Celeron G5900TE (Comet Lake) 3.0 GHz 2-Core Processor - 35W
• Intel Core i3-10100TE (Comet Lake) 2.3~3.6 GHz 4-Core Processor - 35W
• Intel Core i5-10500TE (Comet Lake) 2.3~3.7 GHz 6-Core Processor - 35W
• Intel Core i7-10700TE (Comet Lake) 2.0~4.4 GHz 8-Core Processor - 35W
• Intel Core i9-10900TE (Comet Lake) 1.8~4.5 GHz 10-Core Processor - 35W

Selected default: Intel Celeron G5900TE (Comet Lake) 3.0 GHz 2-Core Processor - 35W; quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: Intel Comet Lake Core i3/i5/i7/i9

Graphics/GPU platform capability

Platform specification, not an installed selection: Intel UHD Graphics 630

SO-DIMM DDR4 Memory options

• 8GB SO-DIMM DDR4 3200 MT/s (0~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR4 3200 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)
• 32GB SO-DIMM DDR4 3200 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)

Selected default: 8GB SO-DIMM DDR4 3200 MT/s (0~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.

Primary Storage options

• 128GB SATA III M.2 2280 B+M (-20°C~75°C)
• 256GB SATA III M.2 2280 B+M (-20°C~75°C)
• 512GB SATA III M.2 2280 B+M (-20°C~75°C)
• 1TB SATA III M.2 2280 B+M (-20°C~75°C)
• 2TB SATA III M.2 2280 B+M (-20°C~75°C)
• 256GB NVMe Gen4x4 M.2 2280 M, OPAL SED (-20°C~75°C)
• 512GB NVMe Gen4x4 M.2 2280 M, OPAL SED (-20°C~75°C)
• 1TB NVMe Gen4x4 M.2 2280 M (0°C~70°C)
• 2TB NVMe Gen4x4 M.2 2280 M (-20°C~75°C)
• 128GB NVMe Gen3x4 2280 M.2 M, OPAL SED (-20°C~75°C)
• 1TB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 128GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 512GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 256GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)

Selected default: 128GB SATA III M.2 2280 B+M (-20°C~75°C); quantity 1. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 64

AC Adapter or Terminal Block Power Input options

• None
• Power Adapter DC 220 W, 20 V, 11 A - North American Power Cord
• Power Adapter DC 220 W, 20 V, 11 A - European Power Cord
• 4-pin Terminal Block Power Input for Helix HX600
• Power Adapter DC 330 W, 24 V, 13.75 A - North American Power Cord with Helix 600 Adapter
• Power Adapter 120W AC 24V Adapter with 4-Pin Connector for Helix Series, North American Power Cord

Selected default: Power Adapter DC 220 W, 20 V, 11 A - North American Power Cord; quantity 1. Choices are for this model; final compatibility depends on other selections.

Additional Storage / 5G Connectivity options

• None
• 64GB SATA III M.2 2280 B+M (-20°C~75°C)
• 128GB SATA III M.2 2280 B+M (-20°C~75°C)
• 256GB SATA III M.2 2280 B+M (-20°C~75°C)
• 512GB SATA III M.2 2280 B+M (-20°C~75°C)
• 1TB SATA III M.2 2280 B+M (-20°C~75°C)
• 2TB SATA III M.2 2280 B+M (-20°C~75°C)
• 1TB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 128GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 512GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 256GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 5G NR Modem (Activation Required) - M.2 Adapter Kit
• Hailo M.2 AI Accelerator 2242 Form Factor B+M Key

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Expansion (Single Slot PCIe x16) options

• None
• Supplemental power and cooling kit (required for GPU self-installation)
• Nvidia RTX A400 4GB GPU Kit for HX600
• Nvidia T1000 GPU for HX600 - 8GB
• Nvidia RTX A1000 GPU kit for HX600 - 8GB
• Nvidia RTX PRO 2000 Blackwell 16GB GPU kit for HX600
• Nvidia RTX PRO 4000 SFF Blackwell 20GB GPU kit for HX600
• Intel i350-T2V2 GbE 2-port PCIe Network Adapter
• Intel i350-T4V2 GbE 4-port PCIe Network Adapter
• Intel X550-T2 10GbE 2-port PCIe Network Adapter
• Intel Ethernet Network Adapter E810-XXVDA2 25 GbE SFP
• Intel X710-T4L 10GbE 4-port PCIe Network Adapter
• Intel X710-DA2 10GbE 2-port SFP+ PCIe Network Adapter
• 1 LAN 1 COM expansion for HX600
• Pro Capture Quad HDMI
• Intel Quad-port 10GbE Network Adapter with SFP+

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

TPM 2.0 Module options

• None
• OnLogic Wide-Temp Nuvoton NPCT750 TPM 2.0 Module

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Wi-Fi options

Advertised base: Unpublished

• None
• Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables
• Intel Wide-Temp M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

4G LTE Connectivity options

Advertised base: Unpublished

• None
• NWK300 OnLogic 4G LTE-Advanced Pro Modem (Activation Required) - mPCIe Adapter Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Wi-Fi / Bluetooth Antennas options

• None
• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Operating System (Primary Storage Req.) options

• None
• Windows 11 IoT Enterprise 2024 LTSC Value (Celeron/i3/i5)
• Windows 11 IoT Enterprise 2024 LTSC High End (i7 / Xeon)
• Windows 10 IoT Enterprise 2021 LTSC Value (Celeron/i3/i5) - 64 Bit
• Windows 10 IoT Enterprise 2021 LTSC High End (i7, Xeon) - 64 Bit
• Windows 10 IoT Enterprise 2019 LTSC Value (Celeron/i3/i5) - 64 Bit
• Windows 10 IoT Enterprise 2019 LTSC High End (i7, Xeon) - 64 Bit
• Ubuntu Desktop 24.04 LTS 64-bit
• Ubuntu Server 24.04 LTS 64-bit
• Ubuntu Desktop 22.04 LTS 64-bit
• Ubuntu Server 22.04 LTS 64-bit
• Ubuntu Desktop 20.04 LTS 64-bit
• Ubuntu Server 20.04 LTS 64-bit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Auto Power On options

• None
• Set System to Auto Power On via Jumper/Dip Switch

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Mounting options

• None
• Wall Mounting Brackets for OnLogic Systems (Silver)
• DIN Rail Mounting Clip Set with Brackets - Long, Silver

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

4G LTE SIM options

• None
• AT&T Tri-Cut 4G/5G SIM Card and EM7590 Modem Configuration (For NWK300)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

4G LTE Antennas options

• None
• Taoglas T-Bar GSA.8822 2G/3G/4G LTE Adhesive Antenna, SMA(M), 3M RG-174
• Taoglas GA.110 2G/3G/4G LTE Flexible Magnetic Whip Antenna, 1M RG-174
• Taoglas Terminal TG.46.8113 – Apex IV Wideband 4G/5G Dipole Terminal Antenna 400MHz – 6GHz
• Taoglas TGX.04.A.001 5G/4G LTE MIMO Cross-Polarized Antenna with Multi Mount Bracket

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Assembly & Validation options

• Standard Build (3-5 business days from parts availability) - Advanced Fanless
• Rush Build (1-2 business days from parts availability) - Advanced Fanless

Selected default: Standard Build (3-5 business days from parts availability) - Advanced Fanless; quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Advanced Socket
• 5 Year Extended Warranty - Advanced Socket

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.
