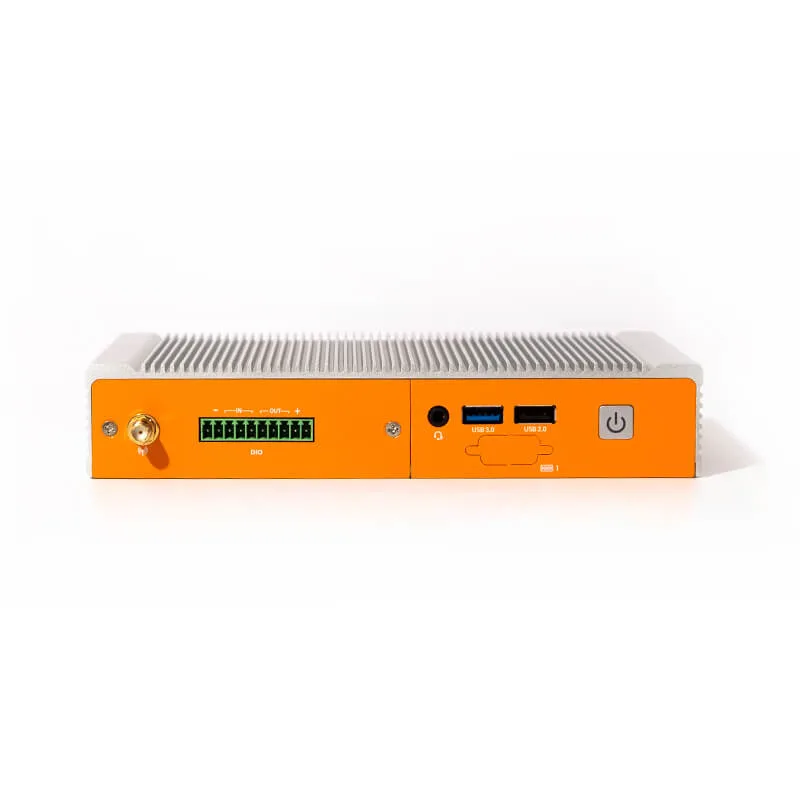

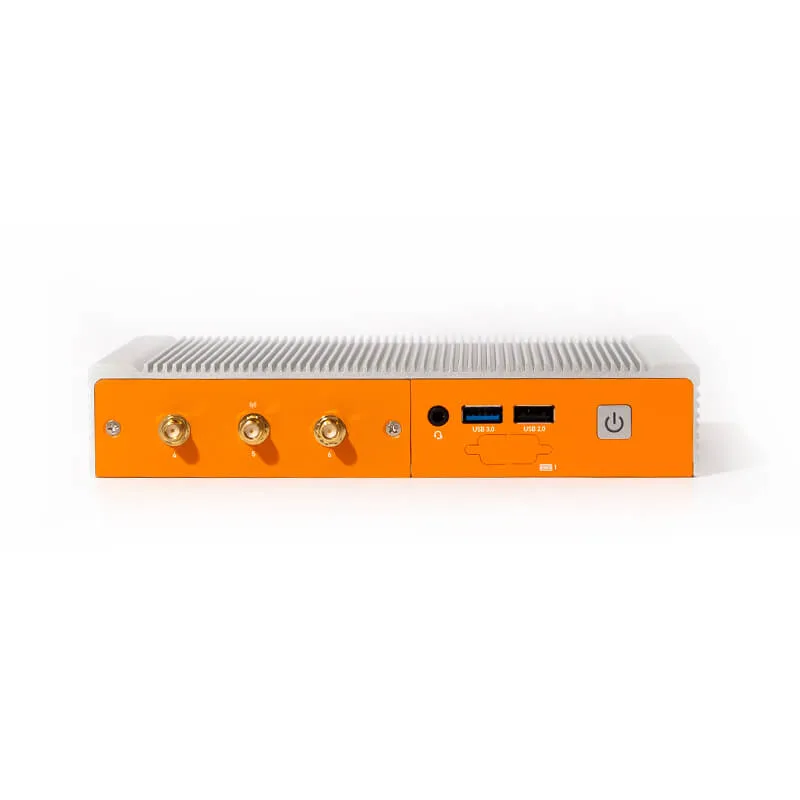

ZEDEDA-HX310 OnLogic Helix 310 Fanless Industrial Edge Computer powered by ZEDEDA

Motherboard options

• Intel Pentium J6426 Amit Compatible Motherboard Dual LAN (Audio Supported)

Selected default: Intel Pentium J6426 Amit Compatible Motherboard Dual LAN (Audio Supported); quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: Intel Pentium J6426

Graphics/GPU platform capability

Platform specification, not an installed selection: Intel UHD Graphics

SO-DIMM DDR4 Memory options

• 4GB SO-DIMM DDR4 3200 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 8GB SO-DIMM DDR4 3200 MT/s (0~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR4 3200 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)

Selected default: 4GB SO-DIMM DDR4 3200 MT/s (-20~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.

Primary Storage options

• 256GB SATA III M.2 2280 B+M (0°C~70°C)
• 64GB SATA III M.2 2280 B+M (0°C~70°C)
• 1TB SATA III M.2 2280 B+M (0°C~70°C)

Selected default: 256GB SATA III M.2 2280 B+M (0°C~70°C); quantity 1. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 32

AC Adapter options

• None
• Power Adapter DC 36 W, 12 V, 3 A - Interchangeable Plug
• Power Adapter DC 60 W, 12 V, 5 A - North American Power Cord
• 4 Pin Terminal Block Power Input for Helix HX300

Selected default: Power Adapter DC 36 W, 12 V, 3 A - Interchangeable Plug; quantity 1. Choices are for this model; final compatibility depends on other selections.

Serial Port options

• Serial Cable 200mm, DB9 to 2.54mm IDC, AT/Everex, Shielded

Selected default: Serial Cable 200mm, DB9 to 2.54mm IDC, AT/Everex, Shielded; quantity 1. Choices are for this model; final compatibility depends on other selections.

Operating System options

• ZEDEDA GMTWUS for x86

Selected default: ZEDEDA GMTWUS for x86; quantity 1. Choices are for this model; final compatibility depends on other selections.

Mounting options

• None
• Wall Mounting Brackets for OnLogic Compact Systems (Silver)
• DIN Rail Mounting Clip Set with Brackets - Short, Silver (Back)
• Vertical Din Mount for HX300 Series
• Fanless Rackmount Adapter
• VESA Mount Plate
• VESA Through Bracket

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit (quantity selectable, up to 5 modules)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Assembly & Validation options

• Standard Build (3-5 business days from parts availability)
• Rush Build (1-2 business days from parts availability) - Integrated Motherboard

Selected default: Standard Build (3-5 business days from parts availability); quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Advanced Socket
• 5 Year Extended Warranty - Standard Rugged

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.
