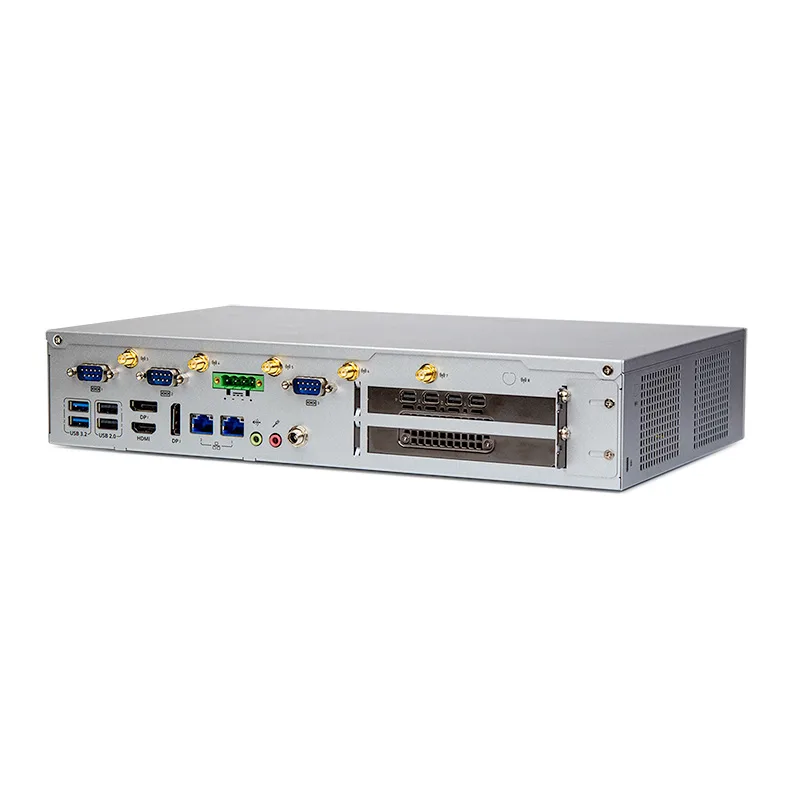

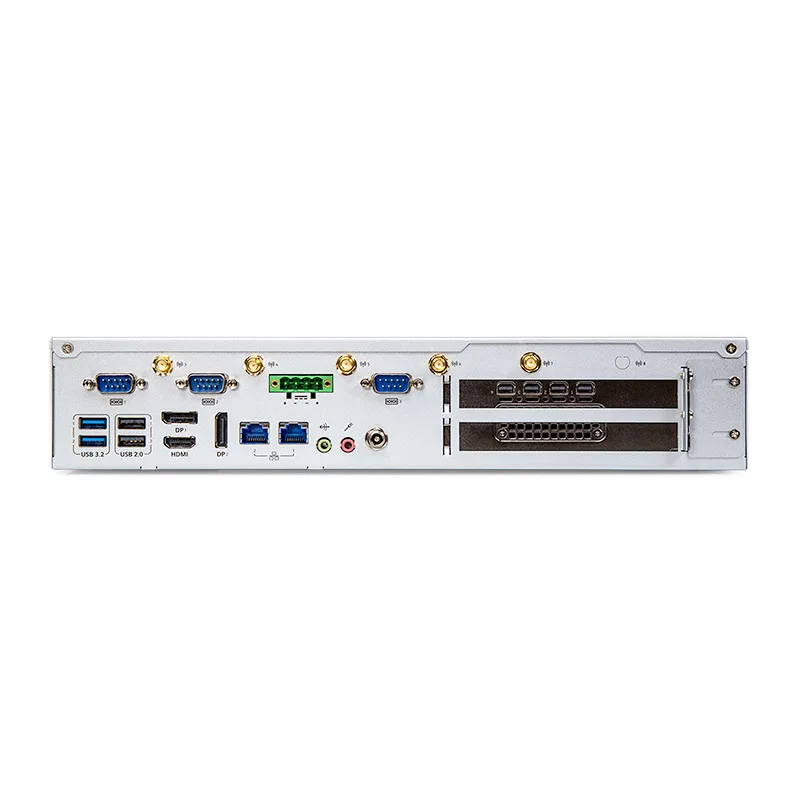

MC610-55 OnLogic MC610-55 Intel 13th Gen GPU Computer

Processor options

• Intel Celeron G6900E (Alder Lake) 3.0 GHz 2-Core Processor - 46W
• Intel Core i3-12100TE (Alder Lake) 2.1~4.0 GHz 4-core Processor - 35W
• Intel Core i3-13100TE Processor
• Intel Core i5-13500TE Processor
• Intel Core i7-13700TE Processor
• Intel Core i9-13900TE Processor 35W
• Intel Core 5 221TE (Bartlett Lake) 1.3-5.0 GHz 14 Core Processor - 45W
• Intel Core 7 251TE (Bartlett Lake) 1.0-5.4 GHz 24 Core Processor - 45W
• Intel Core 7 253PE (Bartlett Lake) Processor - 65W
• Intel Core 7 251E (Bartlett Lake) 1.6-5.6 GHz 24 Core Processor - 65W
• Intel Core 5 211TE (Bartlett Lake) 2.0-4.9 GHz 10 Core Processor - 45W
• Intel Core 3 201TE (Bartlett Lake) 2.9-4.6GHz 4 Core Processor - 45W
• Intel Core 5 221E (Bartlett Lake) 1.3-5.0 GHz 14 Core Processor - 65W
• Intel Core 7 253PTE (Bartlett Lake) Processor - 45W
• Intel Core 3 201E (Bartlett Lake) 3.6-4.8 GHz 4 Core Processor - 65W
• Intel Core 5 211E (Bartlett Lake) 2.0-4.9 GHz 10 Core Processor - 65W
• Intel Core 9 273PTE (Bartlett Lake) Processor - 45W
• Intel Core 9 273PE (Bartlett Lake) Processor - 65W
• Intel Core i5-12500E (Alder Lake) 2.9~4.5 GHz 6-core Processor - 65W
• Intel Core i5-12500TE (Alder Lake) 1.9~4.3 GHz 6-core Processor - 35W

Selected default: Intel Celeron G6900E (Alder Lake) 3.0 GHz 2-Core Processor - 46W; quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: Socket LGA 1700 - Raptor/Alder Lake S

SO-DIMM DDR4 Memory options

• 4GB SO-DIMM DDR4 3200 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 8GB SO-DIMM DDR4 3200 MT/s (0~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR4 3200 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)
• 32GB SO-DIMM DDR4 3200 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)

Selected default: 8GB SO-DIMM DDR4 3200 MT/s (0~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.

Primary Storage options

• 128GB NVMe Gen3x4 M.2 2242 M, OPAL SED (-20℃~75℃)
• 256GB NVMe Gen3x4 M.2 2242 M, OPAL SED (-20℃~75℃)
• 512GB NVMe Gen3x4 M.2 2242 M, OPAL SED (-20°C~75°C)
• 256GB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃)
• 512GB NVMe Gen 4x4 M.2 2242 M, OPAL SED (-20°C~75°C)
• 1TB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20°C~75°C)
• 2TB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃)

Selected default: 128GB NVMe Gen3x4 M.2 2242 M, OPAL SED (-20℃~75℃); quantity 1. Choices are for this model; final compatibility depends on other selections.

Additional Storage options

• None
• 512GB SATA III 2.5" (-20°C~75°C)
• 1TB SATA III 2.5" (-20°C~75°C)
• 2TB SATA III 2.5" (-20°C~75°C)
• 256GB SATA III 2.5" (-20°C~75°C)
• 128GB 2.5" SATA 1.84 DWPD -20~75C

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 64

AC Adapter options

• None
• Power Adapter DC 330W, 24V, 13.75A with 4-pin Standard Terminal Block Adapter - US Power Cord
• Power Adapter DC 330W, 24V, 13.75A with 4-pin Standard Terminal Block Adapter - EU Power Cord
• Power Adapter DC 330W, 24V, 13.75A with 4-pin Terminal Block Adapter - UK Power Cord

Selected default: Power Adapter DC 330W, 24V, 13.75A with 4-pin Standard Terminal Block Adapter - US Power Cord; quantity 1. Choices are for this model; final compatibility depends on other selections.

Wi-Fi / Bluetooth Connectivity options

• None
• Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

4G LTE Connectivity or Expansion options

• None
• AMIT MDG200 4G LTE Modem for MC510/610 - US Only
• Innodisk M.2 2242 to Dual Isolated LAN WT with PCIe Bracket
• Hailo M.2 AI Accelerator 2242 Form Factor B+M Key

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Optional COM Ports options

• None
• DB9 to JST Serial Cable, 275mm (quantity selectable, up to 3 modules)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Expansion Cards options

• None
• PCIe to four GbE LAN module
• PCIE to Four PoE/PoE+ Kit
• Neousys 8-port USB 3.1 PCIe x4 Host Adapter
• 2-Port SFP28 25/10/1Gbe Intel X710 Network Adapter
• Pro Capture Quad HDMI
• Nvidia RTX A400 GPU - 4GB
• Nvidia RTX A1000 GPU - 8GB
• NVIDIA RTX PRO 4000 SFF Blackwell GPU Edition
• NVIDIA RTX PRO 2000 Blackwell GPU

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Additional Chassis Fan (Recommended for Ambient Temperatures above 40°C) options

• None
• Vapo-Bearing Cooling Fan, 60x60x10

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Wi-Fi / Bluetooth Antennas options

• None
• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

4G LTE SIM options

• None
• Verizon Tri-Cut SIM Card
• AT&T Tri-Cut 4G/5G SIM Card

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

4G LTE Antennas options

• None
• Taoglas GA.110 2G/3G/4G LTE Flexible Magnetic Whip Antenna, 1M RG-174
• Taoglas T-Bar GSA.8822 2G/3G/4G LTE Adhesive Antenna, SMA(M), 3M RG-174

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Operating System options

• None
• Windows 11 IoT Enterprise 2024 LTSC Value (Celeron/i3/i5)
• Windows 11 IoT Enterprise 2024 LTSC High End (i7 / Xeon)
• Windows 10 IoT Enterprise 2021 LTSC Value (Celeron/i3/i5) - 64 Bit
• Windows 10 IoT Enterprise 2021 LTSC High End (i7, Xeon) - 64 Bit
• Windows 10 IoT Enterprise 2019 LTSC Value (Celeron/i3/i5) - 64 Bit
• Windows 10 IoT Enterprise 2019 LTSC High End (i7, Xeon) - 64 Bit
• Ubuntu Desktop 22.04 LTS 64-bit - IoT Image

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Auto Power On options

• None
• Set System to Auto Power On via BIOS

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Mounting Brackets options

• None
• Wall Mounting Brackets for OnLogic Systems (Silver)
• VESA Mount Plate
• DIN Rail Mounting Clip Set with Brackets - Long, Silver

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Assembly & Validation options

• Standard Build (3-5 business days from parts availability) - Socketed CPU
• Rush Build (1-2 business days from parts availability) - Socketed CPU

Selected default: Standard Build (3-5 business days from parts availability) - Socketed CPU; quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Standard Socket
• 5 Year Extended Warranty - Standard Socket

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.
