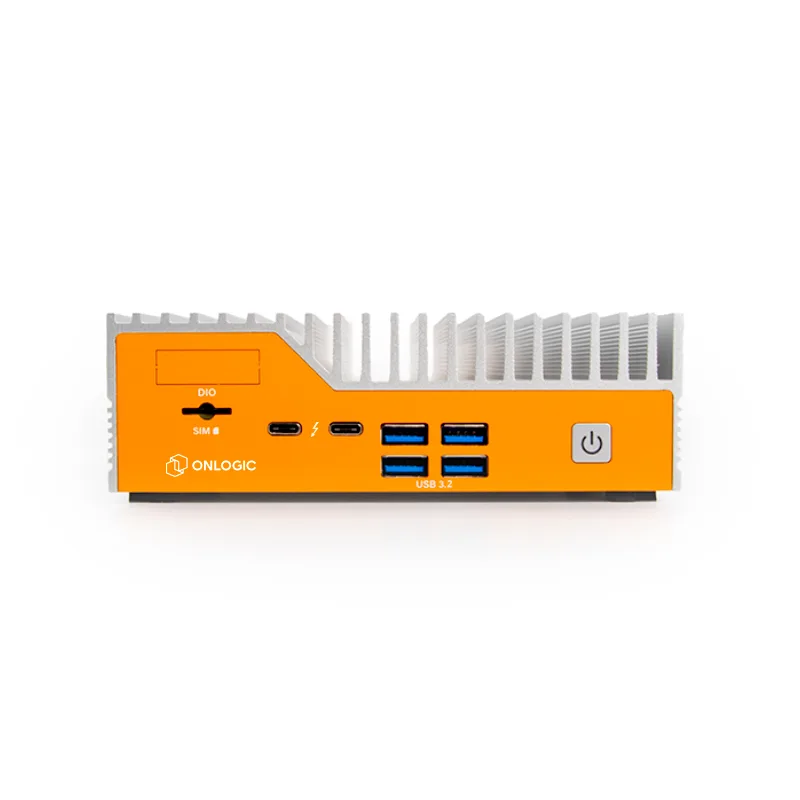

HX401 OnLogic Helix 401 Fanless Hybrid-Core Computer

Processor options

• HX401 motherboard with Intel Alder Lake 28W i3
• HX401 motherboard with Intel Alder Lake 28W i5
• HX401 motherboard with Intel Alder Lake 28W i7
• HX401 motherboard with Intel Alder Lake 15W Celeron

Selected default: HX401 motherboard with Intel Alder Lake 15W Celeron; quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: Intel Alder Lake 12th Gen Celeron 7305E | Intel Alder Lake 12th Gen i3-1220PE | Intel Alder Lake 12th Gen i5-1250PE | Intel Alder Lake 12th Gen i7-1270PE

Graphics/GPU platform capability

Platform specification, not an installed selection: Intel Iris Xe (i5, i7) - Dual Channel memory required | Intel UHD Graphics (Celeron, i3)

SO-DIMM DDR5 Memory options

• 8GB SO-DIMM DDR5 4800 (0ºC~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR5 4800 (0ºC~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR5 4800 (-40ºC~85ºC) (quantity selectable, up to 2 modules)
• 32GB SO-DIMM DDR5 4800 (0ºC~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 8GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 32GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)

Selected default: 8GB SO-DIMM DDR5 4800 (0ºC~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.

Primary Storage options

• 128GB NVMe Gen3x4 2280 M.2 M, OPAL SED (-20°C~75°C)
• 128GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 256GB NVMe Gen4x4 M.2 2280 M, OPAL SED (-20°C~75°C)
• 256GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 512GB NVMe Gen4x4 M.2 2280 M, OPAL SED (-20°C~75°C)
• 512GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 1TB NVMe Gen4x4 M.2 2280 M (0°C~70°C)
• 1TB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 2TB NVMe Gen4x4 M.2 2280 M (-20°C~75°C)
• HDMI Ingest Expansion for HX401
• 256GB NVMe Gen3x4 M.2 2280 M, PLP (-20°C~75°C)
• 2TB NVMe Gen3x4 M.2 2280 M (-20°C~75°C)
• 1TB NVMe Gen3x4 M.2 2280 M (-20°C~75°C)
• 512GB NVMe Gen3x4 M.2 2280 M, PLP (-20°C~75°C)
• 1TB NVMe Gen3x4 M.2 2280 M, PLP (-20°C~75°C)
• 128GB NVMe Gen3x4 M.2 2280 M, PLP (-20°C~75°C)

Selected default: 128GB NVMe Gen3x4 2280 M.2 M, OPAL SED (-20°C~75°C); quantity 1. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 64

Power Supply options

• None
• HX401 Terminal Block Kit
• Power Adapter DC 20 V, 6A, 120 W (US Power Cord Included)
• Terminal Block w/ North American Power Adapter (flying leads) - DC 120 W, 20 V, 6 A
• Terminal Block w/ UK Power Adapter (flying leads) - DC 120 W, 20 V, 6 A

Selected default: Power Adapter DC 20 V, 6A, 120 W (US Power Cord Included); quantity 1. Choices are for this model; final compatibility depends on other selections.

Additional Storage or Cellular Connectivity options

• None
• 64GB SATA III M.2 2280 B+M (-20°C~75°C)
• 128GB SATA III M.2 2280 B+M (-20°C~75°C)
• 256GB SATA III M.2 2280 B+M (-20°C~75°C)
• 512GB SATA III M.2 2280 B+M (-20°C~75°C)
• 1TB SATA III M.2 2280 B+M (-20°C~75°C)
• 2TB SATA III M.2 2280 B+M (-20°C~75°C)
• 128GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 256GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 512GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 1TB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• NWK300 OnLogic 4G LTE-Advanced Pro Modem (Activation Required) - M.2 Adapter Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Wi-Fi options

• None
• Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables
• Intel Wide-Temp M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Serial Port Expansion (CAN/COM) options

• None
• Serial Cable, 175mm Shield,s DB9 to 2mm header
• HX401 CAN Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

DIO options

• None
• DIO Kit for Helix HX401 with ADP130

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Wi-Fi / Bluetooth Antennas options

• None
• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

4G LTE Antennas (if 4G LTE Connectivity is selected) options

• None
• Taoglas Triton TG.10 2G/3G/4G LTE Terminal Antenna
• Taoglas T-Bar GSA.8822 2G/3G/4G LTE Adhesive Antenna, SMA(M), 3M RG-174
• Taoglas GA.110 2G/3G/4G LTE Flexible Magnetic Whip Antenna, 1M RG-174
• Taoglas Terminal TG.46.8113 – Apex IV Wideband 4G/5G Dipole Terminal Antenna 400MHz – 6GHz

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

4G LTE SIM (if 4G LTE Connectivity is selected) options

• None
• Verizon Tri-Cut SIM Card
• AT&T Tri-Cut 4G/5G SIM Card and EM7590 Modem Configuration (For NWK300)
• Verizon Tri-Cut SIM Card and EM7590 Modem Configuration (For NWK300)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Operating System options

• None
• Windows 11 IoT Enterprise 2024 LTSC High End (i7 / Xeon)
• Windows 11 IoT Enterprise 2024 LTSC Value (Celeron/i3/i5)
• Windows 10 IoT Enterprise 2021 LTSC Value (Celeron/i3/i5) - 64 Bit
• Windows 10 IoT Enterprise 2021 LTSC High End (i7, Xeon) - 64 Bit
• Ubuntu Certified Hardware - Ubuntu 22.04 Server IOT - 64 Bit
• Ubuntu Certified Hardware - Ubuntu 22.04 Desktop IOT - 64 Bit
• Ubuntu Desktop 24.04 LTS 64-bit
• Ubuntu Server 24.04 LTS 64-bit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Auto Power On options

• None
• Set System to Auto Power On via BIOS

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

BIOS Setting options

• Efficiency Mode BIOS for HX401
• Performance Mode BIOS for HX401

Selected default: Efficiency Mode BIOS for HX401; quantity 1. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Mounting options

• None
• Wall Mounting Brackets for OnLogic Compact Systems (Silver)
• DIN Rail Mounting Clip Set with Brackets - Short, Silver (Back)
• VESA Mount Plate Kit
• VESA Through Bracket for OnLogic Systems
• MK022 Fanless Rackmount Adapter HX401 Mounting Bracket Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Assembly & Validation options

• Standard Build (3-5 business days from parts availability) - Integrated CPU
• Rush Build (1-2 business days from parts availability) - Integrated CPU

Selected default: Standard Build (3-5 business days from parts availability) - Integrated CPU; quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Advanced Onboard
• 5 Year Extended Warranty - Advanced Onboard

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.
