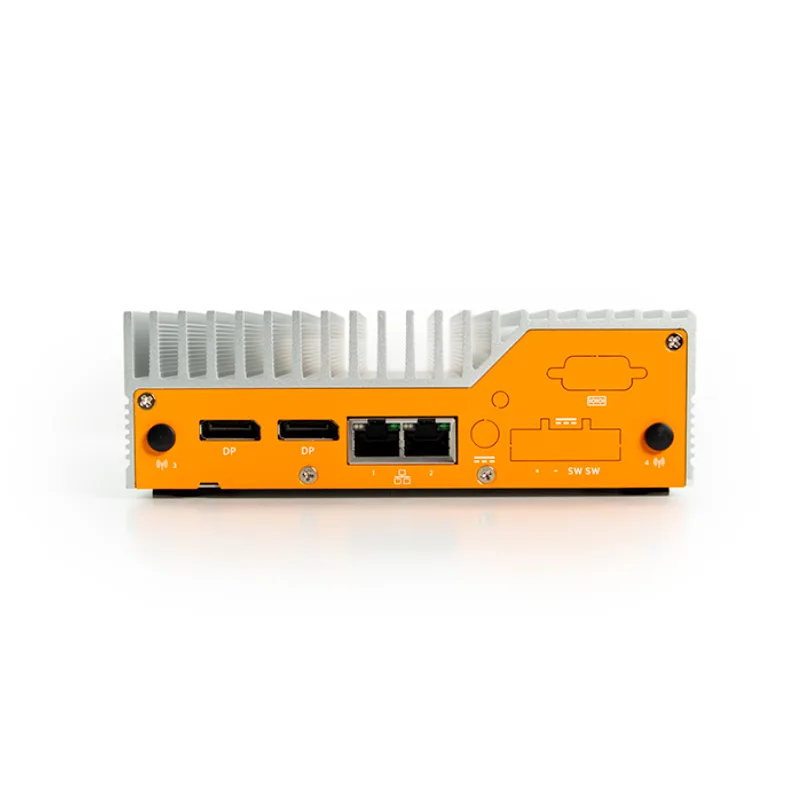

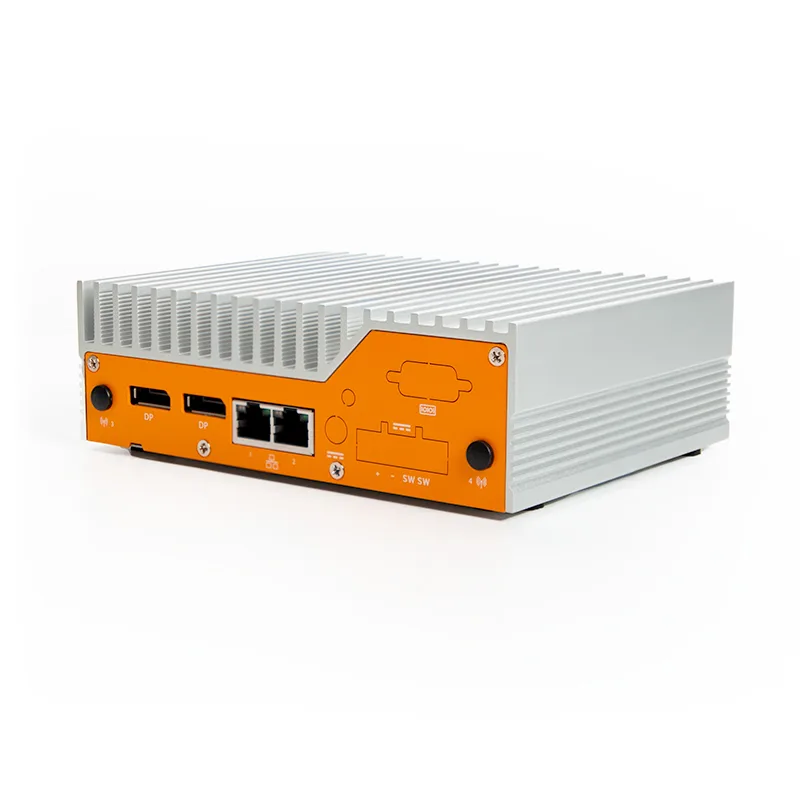

ZEDEDA-HX401-W OnLogic Helix 401 Fanless Hybrid-Core Industrial Edge Computer powered by ZEDEDA (WiFi version)

Processor options

• HX401 motherboard with Intel Alder Lake 28W i3

Selected default: HX401 motherboard with Intel Alder Lake 28W i3; quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: Intel Alder Lake 12th Gen i3-1220PE

Graphics/GPU platform capability

Platform specification, not an installed selection: Intel UHD Graphics

SO-DIMM DDR5 Memory options

• 8GB SO-DIMM DDR5 4800 (0ºC~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR5 4800 (0ºC~95ºC) (quantity selectable, up to 2 modules)
• 32GB SO-DIMM DDR5 4800 MT/s (0~95ºC) (quantity selectable, up to 2 modules)
• 8GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)

Selected default: 8GB SO-DIMM DDR5 4800 (0ºC~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.

Primary Storage options

• 256GB NVMe Gen4x4 M.2 2280 M (-20°C~75°C)
• 512GB NVMe 2280 2 DWPD -20~75C
• 1TB NVMe Gen3x4 M.2 2280 M (-20°C~75°C)

Selected default: 256GB NVMe Gen4x4 M.2 2280 M (-20°C~75°C); quantity 1. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 64

AC Adapter options

• None
• HX401 Terminal Block Kit
• Power Adapter DC 20 V, 6A, 120 W (US Power Cord Included)
• Terminal Block w/ North American Power Adapter (flying leads) - DC 120 W, 20 V, 6 A

Selected default: Power Adapter DC 20 V, 6A, 120 W (US Power Cord Included); quantity 1. Choices are for this model; final compatibility depends on other selections.

Wi-Fi options

• Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables

Selected default: Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables; quantity 1. Choices are for this model; final compatibility depends on other selections.

Serial Port Expansion options

• None
• Serial Cable, 175mm Shield,s DB9 to 2mm header

Selected default: Serial Cable, 175mm Shield,s DB9 to 2mm header; quantity 1. Choices are for this model; final compatibility depends on other selections.

Wi-Fi / Bluetooth Antennas options

• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna

Selected default: Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna; quantity 2. Choices are for this model; final compatibility depends on other selections.

Operating System options

• ZEDEDA GMTWUS for x86

Selected default: ZEDEDA GMTWUS for x86; quantity 1. Choices are for this model; final compatibility depends on other selections.

Auto Power On options

• Set System to Auto Power On via BIOS

Selected default: Set System to Auto Power On via BIOS; quantity 1. Choices are for this model; final compatibility depends on other selections.

BIOS Setting options

• Efficiency Mode BIOS for HX401
• Performance Mode BIOS for HX401

Selected default: Efficiency Mode BIOS for HX401; quantity 1. Choices are for this model; final compatibility depends on other selections.

Mounting options

• None
• Wall Mounting Brackets for OnLogic Compact Systems (Silver)
• DIN Rail Mounting Clip Set with Brackets - Short, Silver (Back)
• VESA Mount Plate Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Assembly & Validation options

• Standard Build (3-5 business days from parts availability) - Integrated CPU
• Rush Build (1-2 business days from parts availability) - Integrated CPU

Selected default: Standard Build (3-5 business days from parts availability) - Integrated CPU; quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Advanced Onboard
• 5 Year Extended Warranty - Advanced Onboard

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.
