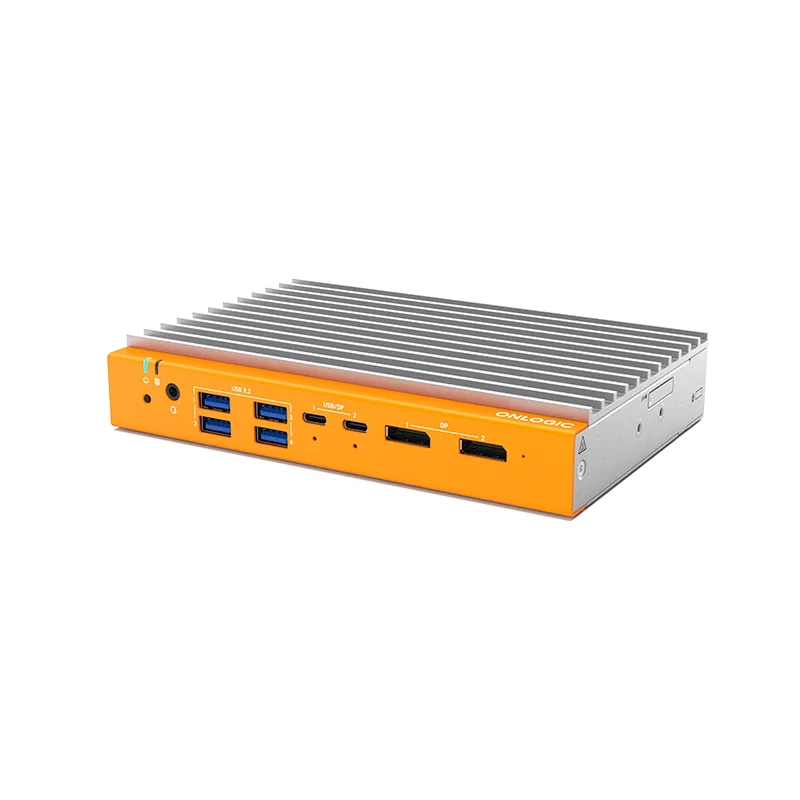

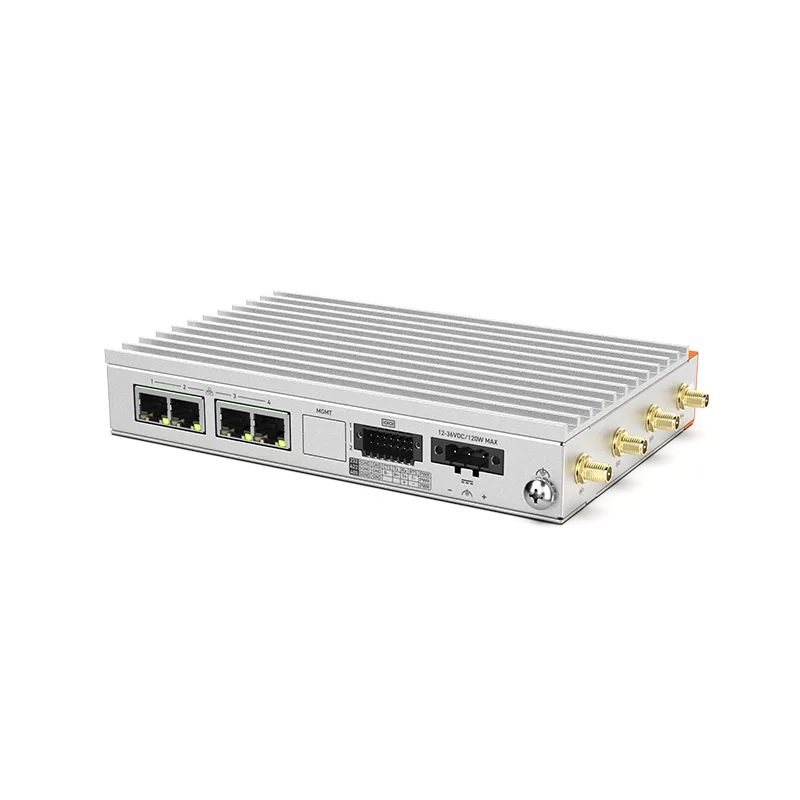

ZEDEDA-HX320-W Intel N-Series Industrial Edge Gateway powered with ZEDEDA (Wi-Fi Version) 07-JM

Platform options

• Intel N250 Quad Core CPU with 8GB LPDDR5
• Intel N355 8 Core CPU with 16GB LPDDR5

Selected default: Intel N250 Quad Core CPU with 8GB LPDDR5; quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: Intel N250 | Intel N355

Graphics/GPU platform capability

Platform specification, not an installed selection: Intel Graphics

Primary Storage options

• 128GB NVMe Gen3x2 M.2 2280 B+M (-40°C ~ 85°C)
• 256GB NVMe Gen3x2 M.2 2280 B+M (-40°C ~ 85°C)
• 512GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 1TB NVMe Gen3x2 M.2 2280 B+M (-40°C ~ 85°C)
• 2TB NVMe Gen4x4 M.2 2280 M, OPAL SED (-40°C~85°C)

Selected default: 128GB NVMe Gen3x2 M.2 2280 B+M (-40°C ~ 85°C); quantity 1. Choices are for this model; final compatibility depends on other selections.

Secondary Storage options

• None
• 128GB NVMe Gen3x2 M.2 2280 B+M (-40°C ~ 85°C)
• 256GB NVMe Gen3x2 M.2 2280 B+M (-40°C ~ 85°C)
• 512GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 1TB NVMe Gen3x2 M.2 2280 B+M (-40°C ~ 85°C)
• NWK300 OnLogic 4G LTE-Advanced Pro Modem (Activation Required) - M.2 Adapter Kit for HX300

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 16

Power Supply options

• None
• Power Adapter DC 120 W, 24 V, 5 A - North American Power Cord
• Power Adapter DC 120 W, 24 V, 5 A - British Power Cord

Selected default: Power Adapter DC 120 W, 24 V, 5 A - North American Power Cord; quantity 1. Choices are for this model; final compatibility depends on other selections.

COM Connector options

• None
• Dual COM 14 Pinout to Dual DB9 Locking Breakout Cable
• COM Terminal Block Mating Connector - 14 Pin

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Wi-Fi options

• Intel Wide-Temp M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables

Selected default: Intel Wide-Temp M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables; quantity 1. Choices are for this model; final compatibility depends on other selections.

Accessories options

• None
• Taoglas Terminal TG.46.8113 – Apex IV Wideband 4G/5G Dipole Terminal Antenna 400MHz – 6GHz (quantity selectable, up to 4 modules)
• Joymax All-in-1 MIMO Antenna (2x 5G/LTE, 2x WiFi, 1x GPS/GNSS) - Panel Mount, IP67
• LTE/5G 4x4 MIMO Antenna - IP67

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Wi-Fi Antennas options

• None
• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Operating System options

• ZEDEDA GMTWUS for x86

Selected default: ZEDEDA GMTWUS for x86; quantity 1. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Rubber Feet options

• None
• Rubber Feet (7.25x14.5x3)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Mounting Brackets options

• None
• Universal DIN Clip
• VESA MIS-D Mounting Plate with Screws
• Wall Mounting Brackets for OnLogic Compact Systems (Silver)
• VESA Through Mounting Bracket
• DIN Rail Mounting Clip Set with Brackets - Short, Silver (Back)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Build and Test options

• Rush Build (1-2 business days from parts availability) - Integrated CPU
• Standard Build (3-5 business days from parts availability)

Selected default: Standard Build (3-5 business days from parts availability); quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Advanced Onboard
• 5 Year Extended Warranty - Advanced Onboard

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.

Zededa Insert options

• Zededa Insert

Selected default: Zededa Insert; quantity 1. Choices are for this model; final compatibility depends on other selections.
