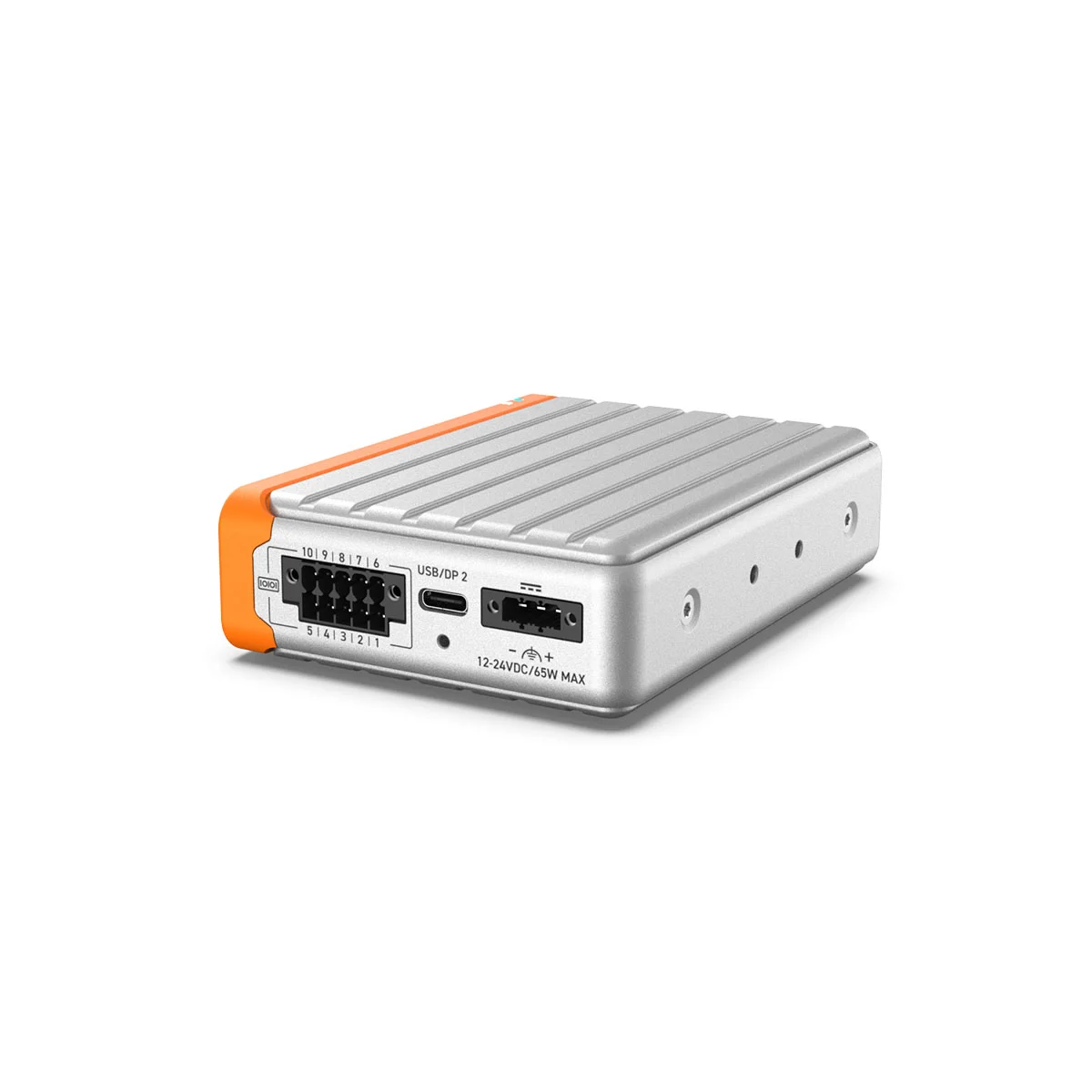

TM720 ThinManager Ultra Small Fanless Industrial Edge Gateway

CPU Selection options

• Intel N150 Platform
• Intel N250 Platform

Selected default: Intel N150 Platform; quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: Intel N150 | Intel N250

Primary Storage options

Advertised base: Unpublished

• None
• 128GB SATA III M.2 2280 B+M (-40°C~85°C)
• 256GB SATA III M.2 2280 B+M (-40°C~85°C)
• 512GB SATA III M.2 2280 B+M (-40°C~85°C)
• 1TB SATA III M.2 2280 B+M (-40°C~85°C)
• 2TB SATA III M.2 2280 B+M (-40°C~85°C)
• 128GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 256GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 512GB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 1TB NVMe Gen3x2 M.2 2280 B+M (0℃~70℃)
• 512GB NVMe Gen4x4 M.2 2280 M, OPAL SED (-40°C~85°C)
• 256GB NVMe Gen 4x4 M.2 2280 M, OPAL SED(-40°C~85°C)
• 1TB NVMe Gen4x4 M.2 2280 M, OPAL SED (-40°C~85°C)
• 2TB NVMe Gen4x4 M.2 2280 M, OPAL SED (-40°C~85°C)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Advertised base: Unpublished

Platform specification, not an installed selection: 8

Power Supply (TB Mating Connector Included) options

• None
• 75W, 12V, 6.25A, 6-Pin Molex with North American Power Cord
• 75W, 12V, 6.25A, 6-Pin Molex with European Power Cord
• 25W PoE Splitter to 10/100/1000Mbps Ethernet with DC 12-24 V Output - Not UL Listed

Selected default: 75W, 12V, 6.25A, 6-Pin Molex with North American Power Cord; quantity 1. Choices are for this model; final compatibility depends on other selections.

Wi-Fi options

• None
• Intel Industrial M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

COM Terminal Block Mating Connector options

• None
• 10 Pin Serial Terminal Block Mating Connector

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Wi-Fi Antennas options

• None
• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna (quantity selectable, up to 2 modules)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Display Cables or Dongle options

• None
• USB-C to HDMI (quantity selectable, up to 2 modules)
• USB-C to 3.5mm Audio Dongle
• USB-C to DisplayPort (quantity selectable, up to 2 modules)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Mounting options

• None
• CL260 VESA Mounting Bracket
• Universal DIN Clip

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Disable Auto Power On options

• None
• Set System to Auto Power Off via BIOS

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Advanced Onboard
• 5 Year Extended Warranty - Advanced Onboard

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.

Build and Test options

• Standard Build (3-5 business days from parts availability)
• Rush Build (1-2 business days from parts availability) - Integrated CPU

Selected default: Standard Build (3-5 business days from parts availability); quantity 1. Choices are for this model; final compatibility depends on other selections.
