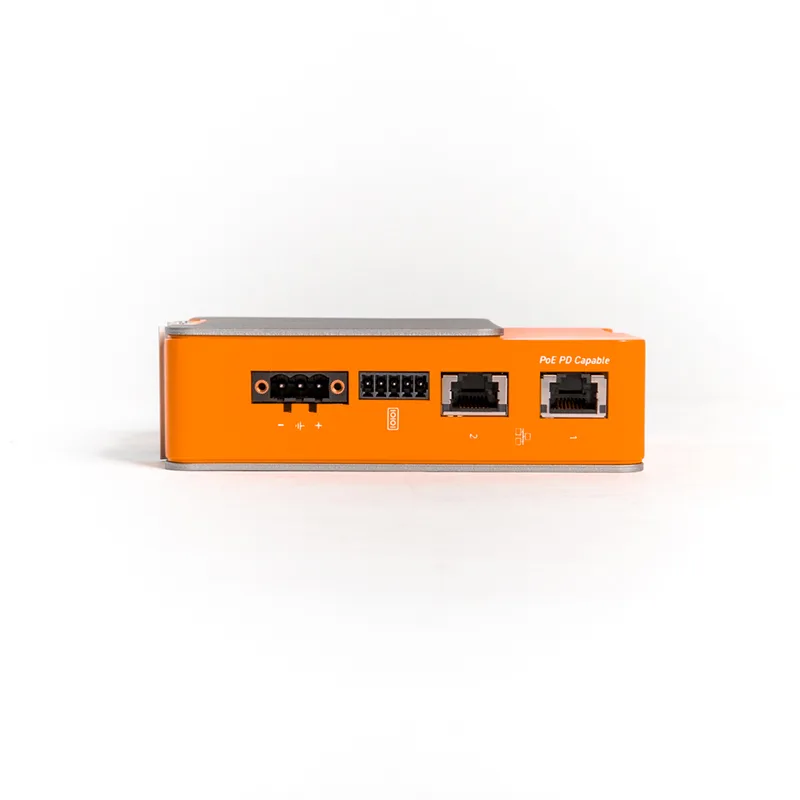

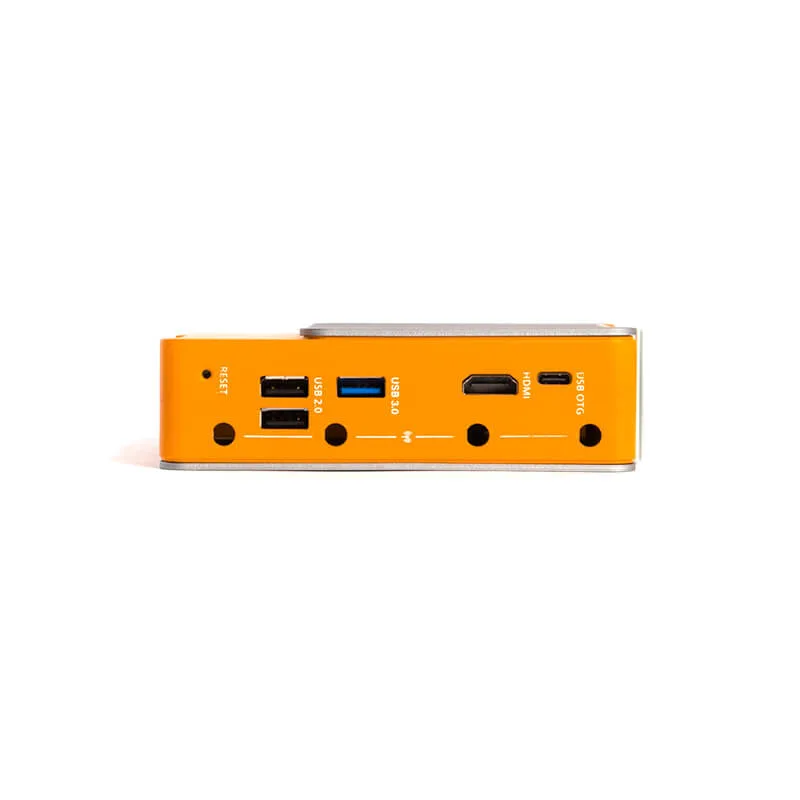

FR201 Factor 201 Raspberry Pi Industrial IoT Gateway

Processor platform capability

Platform specification, not an installed selection: Broadcom BCM2711 with ARM Cortex-A72

Raspberry Pi CM4 (Memory, eMMC, Wi-Fi) options

• Raspberry Pi CM4 with 4GB memory
• Raspberry Pi CM4 with 8GB memory
• Raspberry Pi CM4 with 4GB memory, Wi-Fi and Cable
• Raspberry Pi CM4 with 8GB memory, Wi-Fi and Cable
• Raspberry Pi CM4 with 8GB memory, 64GB eMMC, Wi-Fi and Cable
• Raspberry Pi CM4 with 4GB memory, 64GB eMMC, Wi-Fi and Cable

Selected default: Raspberry Pi CM4 with 4GB memory; quantity 1. Choices are for this model; final compatibility depends on other selections.

SATA Storage options

• 128GB SATA III M.2 2280 B+M (-20°C~75°C)
• 256GB SATA III M.2 2280 B+M (-20°C~75°C)
• 512GB SATA III M.2 2280 B+M (-20°C~75°C)
• 1TB SATA III M.2 2280 B+M (-20°C~75°C)
• 2TB SATA III M.2 2280 B+M (-20°C~75°C)

Selected default: 128GB SATA III M.2 2280 B+M (-20°C~75°C); quantity 1. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 8

AC Adapter options

Advertised base: Unpublished

• None
• Power Adapter DC 60 W, 12 V, 5 A - North American Power Cord
• Industrial 40W DIN Rail Power Supply with Terminal Block Output Cable

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

PoE PD Module options

• None
• Factor 200 Series PoE PD Module

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Cellular / LoRa Connectivity options

• None
• AMIT 4G LTE Modem for FR201 (No SIM Included) - US Only
• NWK300 OnLogic 4G LTE-Advanced Pro Modem (Activation Required) - M.2 Adapter Kit for FR201
• RAKWireless M.2 Form Factor LoRaWAN Module Kit for US (902-928MHZ) - Includes LoRa Antenna

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

TPM 2.0 Module options

• None
• OnLogic Wide-Temp Nuvoton NPCT750 TPM 2.0 Module

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Wi-Fi Antenna (requires selecting a CM4 with WiFi) options

• None
• Dual-Band Wireless 6.3" Terminal PIFA Antenna

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Operating System options

• None
• Raspberry Pi OS Lite (Bookworm) for FR200 (32-bit)
• Raspberry Pi OS (Bookworm) with Desktop for FR200
• Raspberry Pi OS (Bookworm) with Desktop 64-bit for FR200
• Raspberry Pi OS Lite (Bookworm) 64-bit for FR200 - not for emmc
• Ubuntu Desktop 22.04 64-bit for FR200 (at least 32GB EMMC required)
• Ubuntu Server 22.04 64-bit for FR200 (at least 32GB EMMC required)
• Ubuntu Server 24.04 64-bit for FR200 (at least 32GB EMMC required)
• Ubuntu Desktop 24.04 64-bit for FR200 (at least 32GB EMMC required)

Selected default: Raspberry Pi OS Lite (Bookworm) for FR200 (32-bit); quantity 1. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Mounting options

• None
• OnLogic DIN Rail Mounting Clip
• Factor 201 Wall Mounting Kit (Back)
• Factor 201 Edge Wall Mounting Kit
• Factor 201 DIN Rail Mounting Kit (Back)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Display Cable options

• None
• Active HDMI to Displayport Cable - 500MM (quantity selectable, up to 2 modules)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Assembly & Validation options

• Standard Build (3-5 business days from parts availability)
• Rush Build (1-2 business days from parts availability) - Fanless Standard

Selected default: Standard Build (3-5 business days from parts availability); quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Standard Socket
• 5 Year Extended Warranty - Standard Socket

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.

4G LTE SIM options

• None
• AT&T Tri-Cut 4G/5G SIM Card and EM7590 Modem Configuration (For NWK300)
• Verizon Tri-Cut SIM Card and EM7590 Modem Configuration (For NWK300)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

4G LTE Antennas options

• None
• Taoglas Terminal TG.46.8113 – Apex IV Wideband 4G/5G Dipole Terminal Antenna 400MHz – 6GHz
• Taoglas T-Bar GSA.8822 2G/3G/4G LTE Adhesive Antenna, SMA(M), 3M RG-174
• Taoglas GA.110 2G/3G/4G LTE Flexible Magnetic Whip Antenna, 1M RG-174

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.
