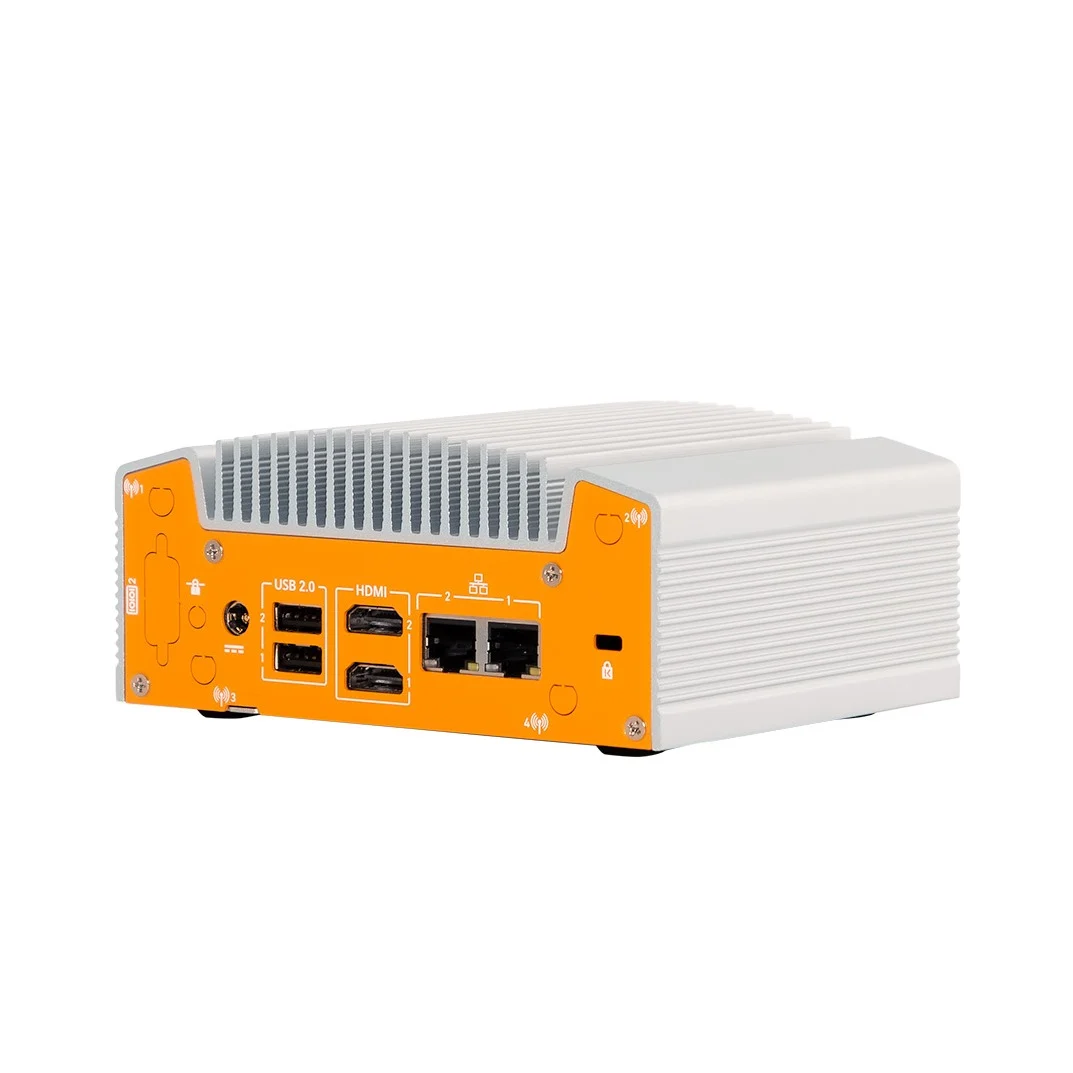

ML100G-42 Fanless AMD Ryzen 8000 Industrial NUC
US · ONLOGIC-BASE-a169b9d0-246a-45d4-8c1b-fb5c49aed162
Configurable device · Advertised base configuration
Configurable modelONLOGIC-BASE-a169b9d0-246a-45d4-8c1b-fb5c49aed162
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | AMD Radeon GraphicsSource & observationView specification source ↗Observed 2026-10-03T14:14:57.654784+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate |
|---|
Motherboard options
- 4X4-8840U (AMD Ryzen 8040U-Series)
Selected default: 4X4-8840U (AMD Ryzen 8040U-Series); quantity 1. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Processor platform capability
Platform specification, not an installed selection: AMD Ryzen 8840U
Manufacturer options ↗Graphics/GPU platform capability
Platform specification, not an installed selection: AMD Radeon Graphics
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 8 GBSource & observationView specification source ↗Observed 2026-10-03T14:14:57.654784+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate |
|---|
SO-DIMM DDR5 Memory options
- 8GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
- 8GB SO-DIMM DDR5 5600 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)
- 16GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
- 16GB SO-DIMM DDR5 5600 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)
- 32GB SO-DIMM DDR5 5600 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
- 32GB SO-DIMM DDR5 5600 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)
- 48GB SO-DIMM DDR5 5600 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)
Selected default: 8GB SO-DIMM DDR5 5600 MT/s (-20~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Primary Storage options
- 256GB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃)
- 512GB NVMe Gen 4x4 M.2 2242 M, OPAL SED (-20°C~75°C)
- 1TB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20°C~75°C)
- 2TB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃)
Selected default: 256GB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃); quantity 1. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Memory Capacity platform capability
Platform specification, not an installed selection: 96
Manufacturer options ↗Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-03T14:14:57.654784+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-03T14:14:57.654784+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-03T14:14:57.654784+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T14:14:57.654784+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate |
|---|
DC Barrel Jack Power Adapter options
- None
- Power Adapter DC 60 W, 12 V, 5 A - North American Power Cord
Selected default: Power Adapter DC 60 W, 12 V, 5 A - North American Power Cord; quantity 1. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Connectivity▾

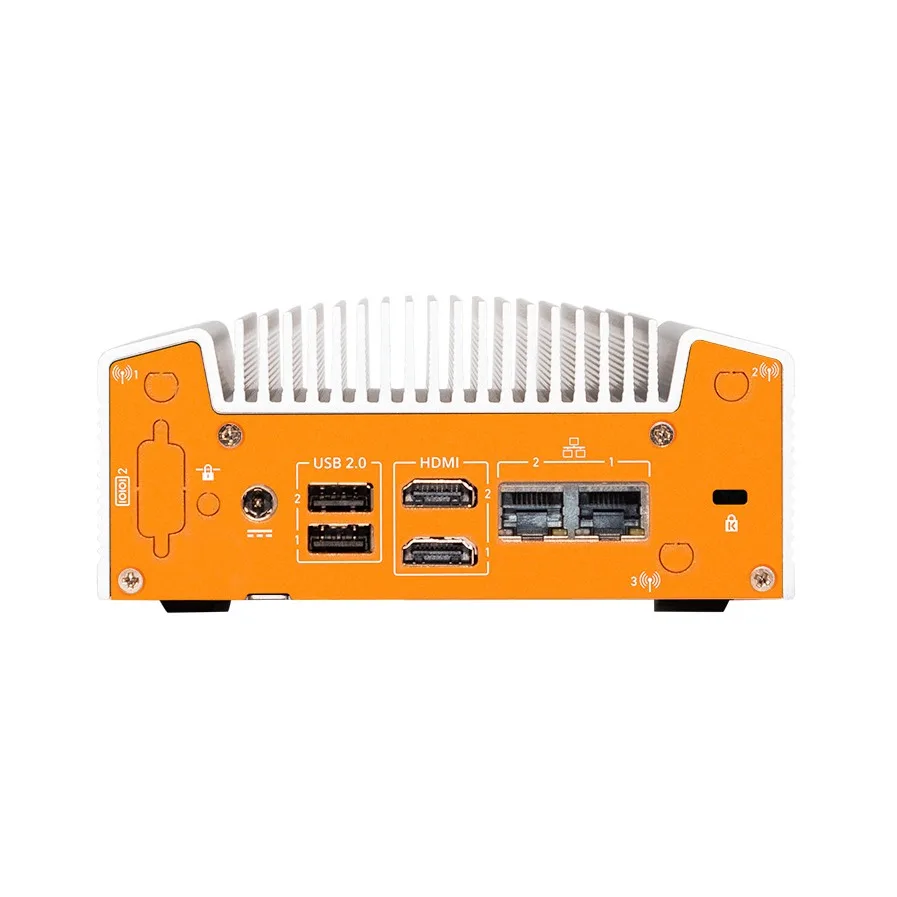

| Ports | Front I/O: 1 x USB 3.2 Gen2 (Type-A) · Front I/O: 2 x USB4 (Type-C, 5V/3A, supports DP1.4a display output) · Front I/O: 1 Audio jack (Mic-in, Line-out) · Front I/O: Power Button · Rear I/O: 2 x HDMI ports · Rear I/O: 1 x 2.5 GbE LAN Port · Rear I/O: 1 x 1GbE LAN Port · Rear I/O: 2 x USB 2.0 · Rear I/O: DC Barrel JackSource & observationView specification source ↗Observed 2026-10-03T14:14:57.654784+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate |
|---|
Additional Storage or Add On options
- None
- 256GB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃)
- 512GB NVMe Gen 4x4 M.2 2242 M, OPAL SED (-20°C~75°C)
- 1TB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20°C~75°C)
- 2TB NVMe Gen4x4 M.2 2242 M, OPAL SED (-20℃~75℃)
- Innodisk M.2 2242 to dual RS-232 Module
- ML100G Hailo M.2 and Thermal Pad Kit
Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Wi-Fi options
- None
- Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables
Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Build & Physical▾
| Weight | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T14:14:57.654784+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate |
|---|---|
| Dimensions | 142 x 61.5 x 107 mm (5.6 x 2.4 x 4.2")Source & observationView specification source ↗Observed 2026-10-03T14:14:57.654784+00:00 Exact US OnLogic model specifications and default configuration controls; platform limits and optional components kept separate |
Software & Bundle▾
| Included bundle | Unpublished |
|---|
Wifi Antennas options
- None
- Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna
Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Operating System options
- None
- Windows 11 IoT Enterprise 2024 LTSC High End (i7 / Xeon)
- Windows 10 IoT Enterprise 2021 LTSC High End (i7, Xeon) - 64 Bit
- Ubuntu Desktop 24.04 LTS 64-bit
- Ubuntu Server 24.04 LTS 64-bit
Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Auto Power On options
- None
- Set System to Auto Power On via BIOS
Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Mounting Hardware options
- None
- VESA MIS-D Mounting Plate for CL100/ML100 with Screws
- Wall Mounting Brackets for OnLogic Compact Systems (Silver)
- DIN Rail Mounting Clip Set with Brackets - Short, Silver (Back)
- VESA Through Bracket for OnLogic Systems
- MK022 Fanless Rackmount Adapter ML100 Mounting Bracket Kit
Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Port Blocking Kit options
- None
- 41 Piece Port and Dust Blocking Kit
Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Build and Test options
- Standard Build (3-5 business days from parts availability) - Integrated CPU
- Rush Build (1-2 business days from parts availability) - Integrated CPU
Selected default: Standard Build (3-5 business days from parts availability) - Integrated CPU; quantity 1. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Warranty options
- 2 Year Standard Warranty
- 3 Year Extended Warranty - Advanced Onboard
- 5 Year Extended Warranty - Advanced Onboard
Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T14:14:57.654784+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-03T14:14:57.654784+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
