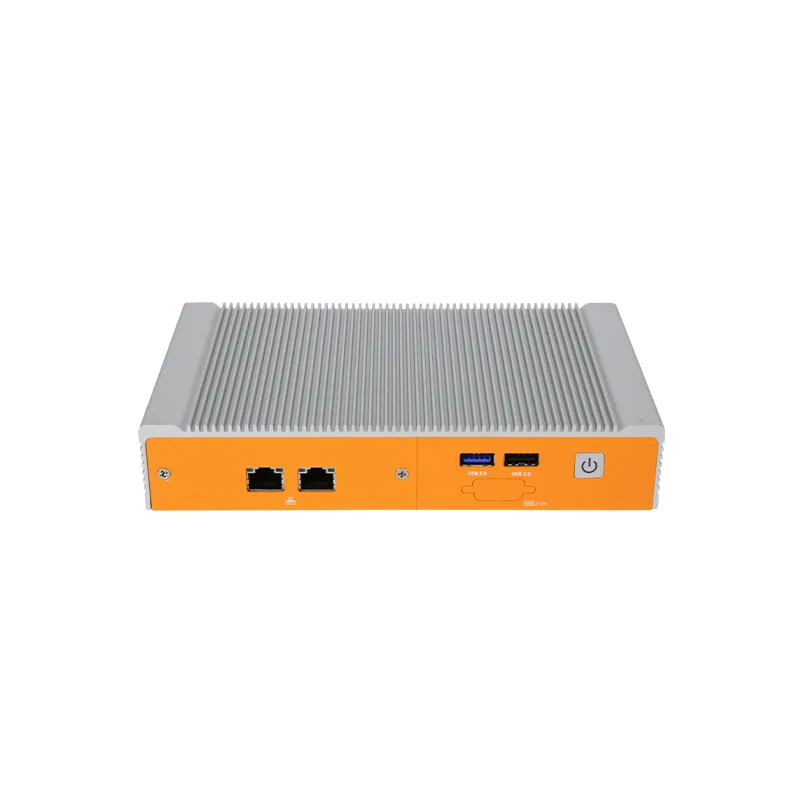

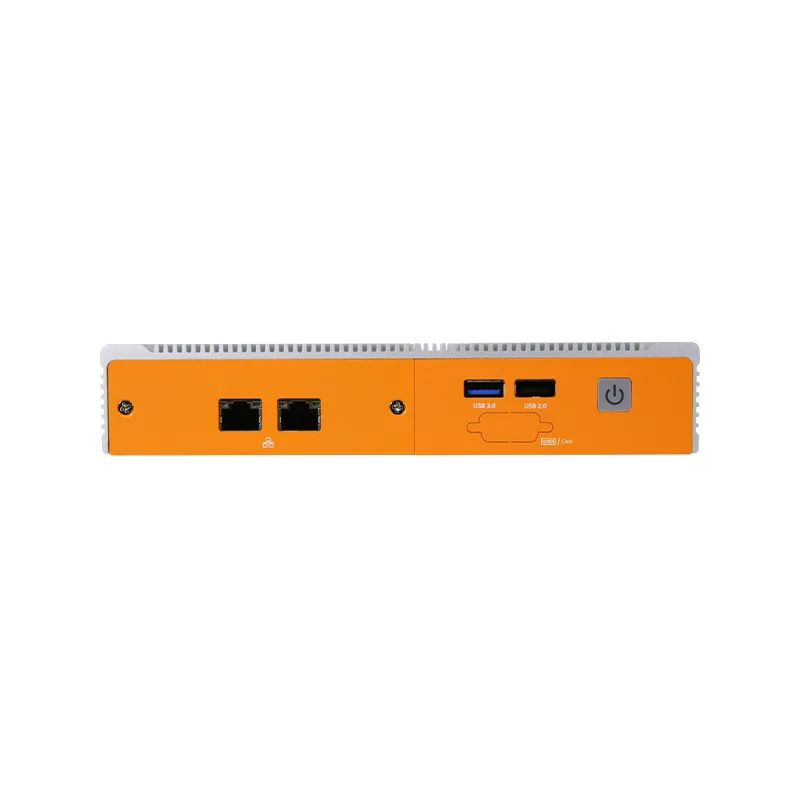

HX330 OnLogic Helix 330 Intel Elkhart Lake Industrial Edge Computer w/Additional LAN

Motherboard options

• Intel Pentium J6426 Amit Compatible Motherboard Dual LAN (Audio Supported)

Selected default: Intel Pentium J6426 Amit Compatible Motherboard Dual LAN (Audio Supported); quantity 1. Choices are for this model; final compatibility depends on other selections.

Processor platform capability

Platform specification, not an installed selection: Intel Celeron N6211 | Intel Pentium J6426

Graphics/GPU platform capability

Platform specification, not an installed selection: Intel UHD Graphics

SO-DIMM DDR4 Memory options

• 4GB SO-DIMM DDR4 3200 MT/s (-20~95ºC) (quantity selectable, up to 2 modules)
• 8GB SO-DIMM DDR4 3200 MT/s (0~95ºC) (quantity selectable, up to 2 modules)
• 16GB SO-DIMM DDR4 3200 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)
• 32GB SO-DIMM DDR4 3200 MT/s (-40~95ºC) (quantity selectable, up to 2 modules)

Selected default: 4GB SO-DIMM DDR4 3200 MT/s (-20~95ºC); quantity 1. Choices are for this model; final compatibility depends on other selections.

Primary Storage options

• 128GB SATA III M.2 2280 B+M (-20°C~75°C)
• 256GB SATA III M.2 2280 B+M (-20°C~75°C)
• 512GB SATA III M.2 2280 B+M (-20°C~75°C)
• 1TB SATA III M.2 2280 B+M (-20°C~75°C)
• 2TB SATA III M.2 2280 B+M (-20°C~75°C)

Selected default: 128GB SATA III M.2 2280 B+M (-20°C~75°C); quantity 1. Choices are for this model; final compatibility depends on other selections.

Memory Capacity platform capability

Platform specification, not an installed selection: 32

AC Adapter options

• None
• Power Adapter DC 36 W, 12 V, 3 A - Interchangeable Plug
• Power Adapter DC 60 W, 12 V, 5 A - North American Power Cord
• 4 Pin Terminal Block Power Input for Helix HX300

Selected default: Power Adapter DC 36 W, 12 V, 3 A - Interchangeable Plug; quantity 1. Choices are for this model; final compatibility depends on other selections.

Wi-Fi options

• None
• Intel Embedded M.2 2230 802.11ax Wi-Fi 6E Bluetooth 5.2 Card with Cables
• 5G NR Modem (Activation Required) - M.2 Adapter Kit for HX300

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Onboard COM options

• None
• Serial Cable 200mm, DB9 to 2.54mm IDC, AT/Everex, Shielded

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

TPM 2.0 Module options

• None
• OnLogic Wide-Temp Nuvoton NPCT750 TPM 2.0 Module

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Antennas for Wi-Fi and Bluetooth options

• None
• Tri-Band 802.11ax Wi-Fi 6 Terminal PIFA, 124mm (4.9") Antenna
• Taoglas TGX.04.A.001 5G/4G LTE MIMO Cross-Polarized Antenna with Multi Mount Bracket

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Operating System options

• None
• Windows 10 IoT Enterprise 2021 LTSC Entry (Atom) - 64 Bit
• Windows 10 IoT Enterprise 2019 LTSC Entry (Atom) - 64 Bit (HX300 series)
• Ubuntu Certified Hardware - Ubuntu 22.04 Server IOT - 64 Bit
• Ubuntu Certified Hardware - Ubuntu 22.04 Desktop IOT - 64 Bit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Auto Power On options

• None
• Set System to Auto Power On via Jumper/Dip Switch

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Port Blocking Kit options

• None
• 41 Piece Port and Dust Blocking Kit (quantity selectable, up to 5 modules)

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Mounting options

• None
• Wall Mounting Brackets for OnLogic Compact Systems (Silver)
• DIN Rail Mounting Clip Set with Brackets - Short, Silver (Back)
• Vertical Din Mount for HX300 Series
• Fanless Rackmount Adapter
• VESA Mount Plate
• VESA Through Bracket
• MK022 Fanless Rackmount Adapter HX300 Mounting Bracket Kit

Optional slot is unselected in the default build. Choices are for this model; final compatibility depends on other selections.

Assembly & Validation options

• Standard Build (3-5 business days from parts availability)
• Rush Build (1-2 business days from parts availability) - Integrated Motherboard

Selected default: Standard Build (3-5 business days from parts availability); quantity 1. Choices are for this model; final compatibility depends on other selections.

Warranty options

• 2 Year Standard Warranty
• 3 Year Extended Warranty - Advanced Onboard
• 5 Year Extended Warranty - Advanced Onboard

Selected default: 2 Year Standard Warranty; quantity 1. Choices are for this model; final compatibility depends on other selections.
