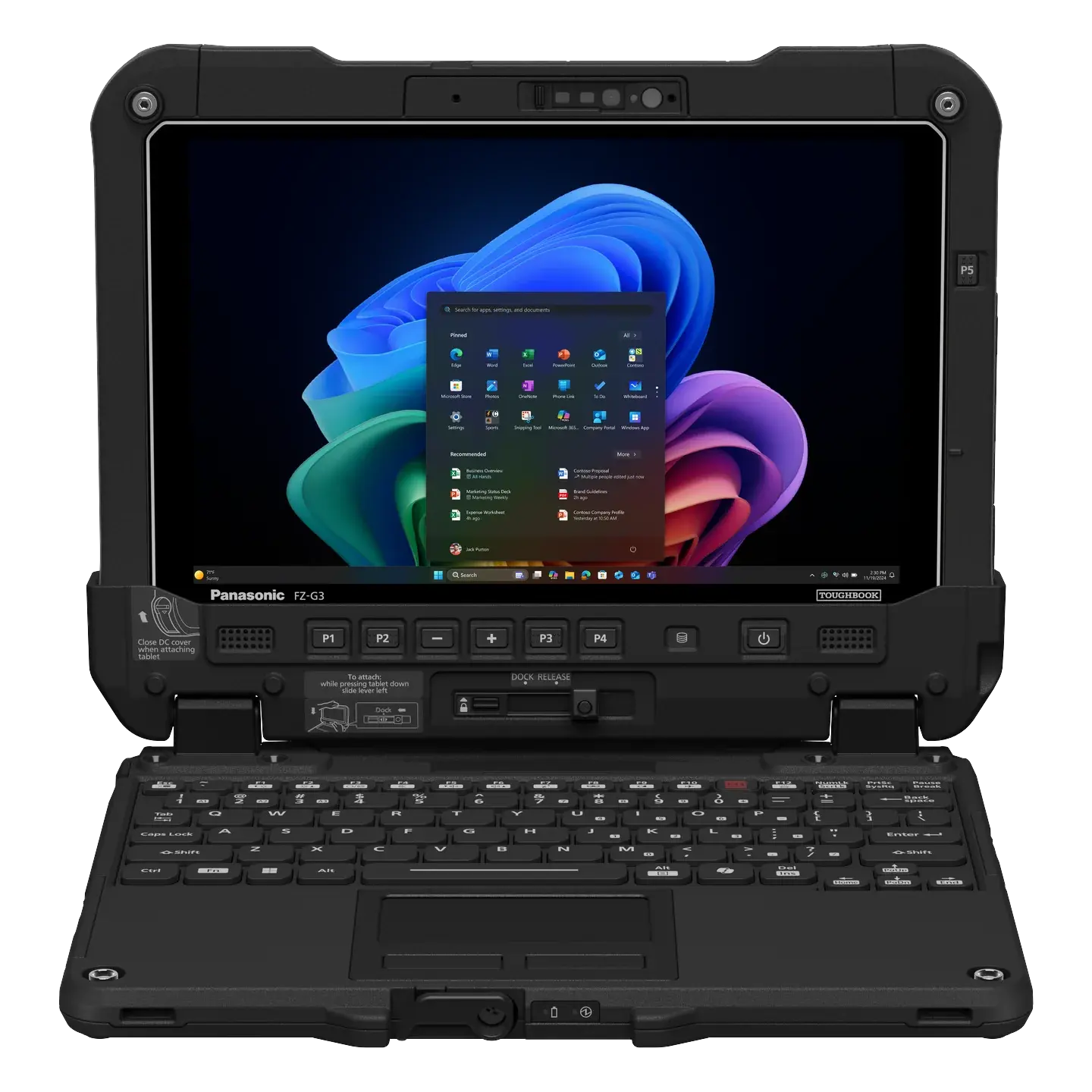

Panasonic TOUGHBOOK G3

CPU documented alternatives

• Intel Core Ultra 5 vPro 335 w/ AI Boost (up to 4.6GHz, 12MB cache, 8 cores); optional Intel Core Ultra X7 vPro 368H (up to 5.0GHz, 18MB cache, 16 cores)

Official model-page alternatives, not confirmed selected components.

Graphics documented alternatives

• • 10" WUXGA 1920 x 1200 capacitive gloved touch + digitizer (2-1000 nit) • IPS with direct bonding • Anti-reflective (AR) screen treatment • Supports up to 4 displays (including PC display) • Graphics – Intel Graphics (Ultra 5 models) – Opt. Intel Arc B390 GPU (Ultra X7 models) – Opt. Intel Arc Pro B390 GPU (Ultra X7 models) • Concealed Mode; Night Mode

Graphics options depend on CPU. Intel Arc options apply to Ultra X7, not the advertised Ultra 5 base.

Memory documented choices

Advertised base: Unpublished

• 16GB, 32GB or 64GB

Official model sheet alternatives. No selected installed base is stated. Confirm the final build with Panasonic.

Storage documented choices

Advertised base: Unpublished

• 16GB, 32GB or 64GB RAM2 (LPDDR5x 8533MHz) • 512GB or 1TB or 2TB

Official model sheet alternatives. No selected installed base is stated. Confirm the final build with Panasonic.

Wireless documented alternatives

• Optional 5G EM9291 (up to 3.5 Gbps): 4G (LTE, LTE-A), 5G (Sub6, C-band), multi-carrier (AT&T, FirstNet, T-Mobile, Verizon & Verizon Frontline), Satellite GPS & CBRS B48/B106/n48 capable; Intel Wi-Fi 7 BE211 (up to 5.8Gbps); Bluetooth v5.4; optional dedicated GPS (u-blox NEO-M9N)

Official model-page alternatives, not confirmed selected components.

Documented optional ports and expansion limits

• optional USB-A (0.5Gbps)
• optional True Serial D-sub 9-pin
• optional 2D Barcode
• optional Audio In/Out 3.5mm
• optional 2nd Ethernet RJ-45
• optional MicroSD card slot
• optional Smart Card
• optional Contactless Smart Card
• optional Fingerprint Reader

Optional modules and maximum port counts. These are not installed base ports.

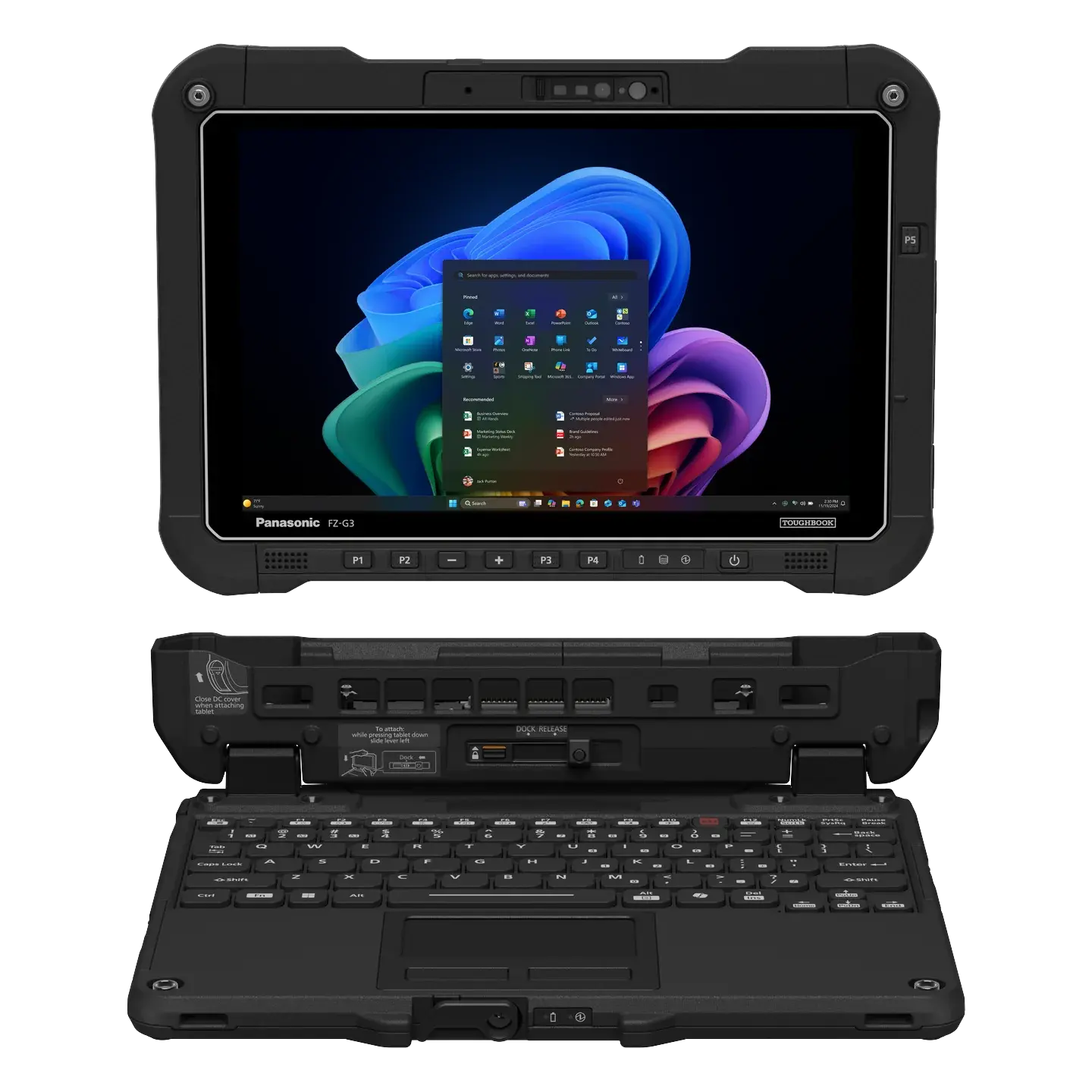

Optional keyboard ports

• Docking Connector 25-pin, USB-A x 1, USB-C x 1, DC IN

Ports belong to an optional keyboard. They are not included in tablet-only base specifications.

Battery choices documented details

• • Lite: 8 hours,11.61V, 2980mAh • Standard: 16 hours, 11.61V, 6029mAh • Long Lite: 23 hours, 11.55V, 8571mAh • Optional bridge battery: 1 minute hot swap time • Battery charging time: 2.5 hours • TOUGHBOOK Smart Battery Technology • AC Adapter: AC 100V-240V 50/60Hz, Auto Sensing/Switching worldwide power supply

Official linked model-sheet choices and requirements; no optional module or battery selection is assumed installed.

Modular expansion and security choices documented details

• • 5G EM9291 • Dedicated GPS (u-blox NEO M9N) • Dual antenna pass-through (BIOS selectable) • Keyboard – Backlit Emissive...............FZ-VEKG21ALM – Backlit Rubber...................FZ-VEKG21ARM • SSD – 512GB OPAL SSD FZ-VSD3G0T1M – 1TB OPAL SSD FZ-VSD3G1T1M – 2TB OPAL SSD FZ-VSD3G2T1M • Top Expansion Area xPAK's – Barcode Reader FZ-VBRG31M 2nd USB-A FZ-VUBG31U – Headset Jack FZ-VAJG31U – 2nd LAN FZ-VLNG31U – True Serial Dongle FZ-VSRG31U – MicroSDXC FZ-VSMG31U • Rear Expansion Area xPAK's – Insertable Smart Card FZ-VSC3G1U – Contactless Smart Card FZ-VNF3G1M – Fingerprint (Active Dir) FZ-VFP3G1M Please consult your reseller or Panasonic representative to learn more about the TOUGHBOOK 34 and the wide variety of accessories and services offered. 1 Base model tested by national independent third party lab following MIL-STD-810H Method 516.8 Procedure IV for transit drop test and IEC 60529 Sections 13.4, 13.6.2, 14.2.5 and 14.3 for IP. 2 1GB = 1,000,000,000 bytes. Total usable memory will be less depending upon actual system configuration. 3 Barcode Reader, 2nd USB-A, 2nd LAN, MicroSDXC, Serial (True) Dongle xPAK's are mutually exclusive. 4 The module firmware and the device antenna system have obtained technical approval by commercial carriers in the US. It is customer’s responsibility to assure that the module firmware and the device antenna system are compatible with the customer’s Private LTE network using Band 48. 5 Requires software and activation to enable theft protection. 6 Insertable Smart Card CAC Reader, Contactless Smart Card CAC Reader and Finderprint reader are mutually exclusive 7 Battery performance features such as charge time and life span can vary according to the conditions under which the computer and battery are used. Battery operation and recharge times will vary based on many factors, including screen brightness, applications, features, power management, battery conditioning and other customer preferences. Battery testing results from MobileMark 30. 8 Rear camera is not certified with Red Hat Enterprise Linux 9 TAA-compliant products are available upon request.

Official linked model-sheet choices and requirements; no optional module or battery selection is assumed installed.

Documented OS alternatives

• Windows 11 Pro
• Red Hat Enterprise Linux 10.2

Official model sheet alternatives. The selected base OS is shown separately; licensing and availability require confirmation.
