SNUC/Configurable

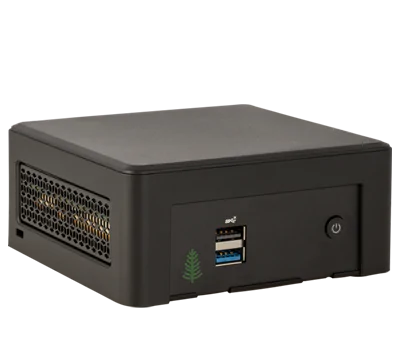

Cypress LLM2v8CY Full
US · SNUC-BASE-52380
Configurable device · Advertised base configuration
Configurable modelSNUC-BASE-52380
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Processor | AMD Ryzen V2748 ProcessorSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
|---|---|
| Graphics | AMD Radeon Vega 7Source & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
Memory & Storage▾
| Installed RAM | 4 GBSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
|---|
Memory (RAM) options
- 4GB DDR4 3200MHz Memory Pre-Installed
- 8GB DDR4 3200MHz Memory Pre-Installed
- 16GB DDR4 3200MHz Memory Pre-Installed
- 32GB DDR4 3200MHz Memory Pre-Installed
- 64GB DDR4 3200MHz Memory Pre-Installed
- 16GB ECC 2666MHz Memory Pre-Installed
- 32GB ECC 2666MHz Memory Pre-Installed
- 64GB ECC 2666MHz Memory Pre-Installed
No selection is set in the source. Required order choice. This unit comes with one 4 GB DDR4 RAM card. Upgrade now and get a second card to increase your RAM as high as 64 GB at a discounted price. Confirm final compatibility and the order with SNUC.
Manufacturer options ↗M.2 Storage options
- 256GB NVMe PCIe M.2 SSD, Pre-Installed
- 512GB NVMe PCIe M.2 SSD, Pre-Installed
- 1TB NVMe PCIe M.2 SSD, Pre-Installed
- 2TB NVMe PCIe M.2 SSD, Pre-Installed
- 8TB NVMe PCIe M.2 SSD, Pre-Installed
No selection is set in the source. Required order choice. Confirm final compatibility and the order with SNUC.
Manufacturer options ↗M.2 Secondary Storage options
- None
- 128GB M.2 SATA SSD, Pre-Installed
- 256GB M.2 SATA SSD, Pre-Installed
- 512GB M.2 SATA SSD, Pre-Installed
- 1TB M.2 SATA SSD, Pre-Installed
- 2TB M.2 SATA SSD, Pre-Installed
No selection is set in the source. Optional order choice. This unit can have a secondary M.2 with either a NVME PCIE Drive or a SATA drive Confirm final compatibility and the order with SNUC.
Manufacturer options ↗Memory capability / compatibility
Manufacturer capability or compatibility, not a confirmed installed selection: 64GB
Manufacturer options ↗Storage capability / compatibility
Manufacturer capability or compatibility, not a confirmed installed selection: 256GB M.2 PCIe SSD
Manufacturer options ↗Display▾
| Screen technology | Not applicable |
|---|---|
| Size | Not applicableSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
| Resolution | Not applicableSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
| Refresh rate | Not applicableSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
|---|---|
| Power supply | UnpublishedSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
Connectivity▾
| Ports | 1x USB 3.2 Type-A port (front), 1x USB 2.0 Type-A port (front) 2x USB 3.2 Type-C port (rear)Source & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
|---|---|
| Wireless & networking | 1x 10/100/1000/2500 Mbps RJ45 Ethernet, Intel WiFi 6 AX200 + Bluetooth 5.0Source & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
NUC Lid options
- None
- Dual USB 2.0 Type A Port Lid
- Audio
- RJ45 and USB 2.0 Type A Lid
- Quad USB 2.0
- VGA Port Lid
- RS-232 Port Lid
- HDMI Port Lid
- HDMI Port and VGA Port Lid
- Dual HDMI Port Lid
- Quad-HDTV Tuner
No selection is set in the source. Optional order choice. Confirm final compatibility and the order with SNUC.
Manufacturer options ↗Build & Physical▾
| Weight | 1021 gSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
|---|---|
| Dimensions | 2.25lbs | 5.5 × 5 × 4.5 inchSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
Software & Bundle▾
| Operating system | UnpublishedSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 SNUC exact US catalog base specification and bound product configurator; unselected choices and maxima are not installed facts |
|---|---|
| Included bundle | Unpublished |
Extended Support Service options
- 3-yr Support Service
- 5-yr Extended Support Service
No selection is set in the source. Required order choice. This unit comes with 3 FREE years of Simply NUC support service, which includes part and labor support as well as outbound shipping. Optionally, this coverage can be extended to 5 years. Confirm final compatibility and the order with SNUC.
Manufacturer options ↗HDMI Port Accessories options
- None
- 2 Foot HDMI Male to HDMI Male Cable
- 3 Foot HDMI Male to HDMI Male Cable
- 6 Foot HDMI Male to HDMI Male Cable
No selection is set in the source. Optional order choice. Confirm final compatibility and the order with SNUC.
Manufacturer options ↗Second HDMI Port Accessories options
- None
- 2 Foot HDMI Male to HDMI Male Cable
- 3 Foot HDMI Male to HDMI Male Cable
- 6 Foot HDMI Male to HDMI Male Cable
No selection is set in the source. Optional order choice. Confirm final compatibility and the order with SNUC.
Manufacturer options ↗USB Type-C Port Accessories options
- None
- Type-C Male to DP Female Pigtail
- 6 Foot Type-C Male to HDMI Male Cable
- 6 Foot Type-C Male to DP Male Cable
- Type-C Male to mDP Female Pigtail
- Type-C Male to HDMI Female Active Pigtail
- Type-C
No selection is set in the source. Optional order choice. Confirm final compatibility and the order with SNUC.
Manufacturer options ↗USB 2.0 Port Accessories options
- None
- Single Monitor Display Controller – USB 2.0 or 3.0 to DVI, HDMI, or VGA
No selection is set in the source. Optional order choice. Confirm final compatibility and the order with SNUC.
Manufacturer options ↗USB 3.2 Port Accessories options
- None
- USB 3.0 to 2x DVI, HDMI, or VGA and extra Gigabit Ethernet port
No selection is set in the source. Optional order choice. Here is a list of available accessories that connect to a USB 3.1 port. Need multiple accessories for your unit? Check out the NUC Accessories under the Products menu! Confirm final compatibility and the order with SNUC.
Manufacturer options ↗Mouse and Keyboard Pack options
- None
- Wired Mouse and Keyboard Pack
- Wireless Mouse and Keyboard Pack
No selection is set in the source. Optional order choice. Confirm final compatibility and the order with SNUC.
Manufacturer options ↗USB OS Restore Key options
- None
- USB OS Restore Key
No selection is set in the source. Optional order choice. Confirm final compatibility and the order with SNUC.
Manufacturer options ↗Motherboard & Memory Expansion▾
| Motherboard model | UnpublishedSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
|---|---|
| Total RAM slots | UnpublishedSource & observationView specification source ↗Observed 2026-10-02T19:53:46.818545+00:00 Unpublished: no unambiguous exact-device manufacturer specification |
Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
Compare Configurations
Other configurable in the catalog. No ranking is implied.
