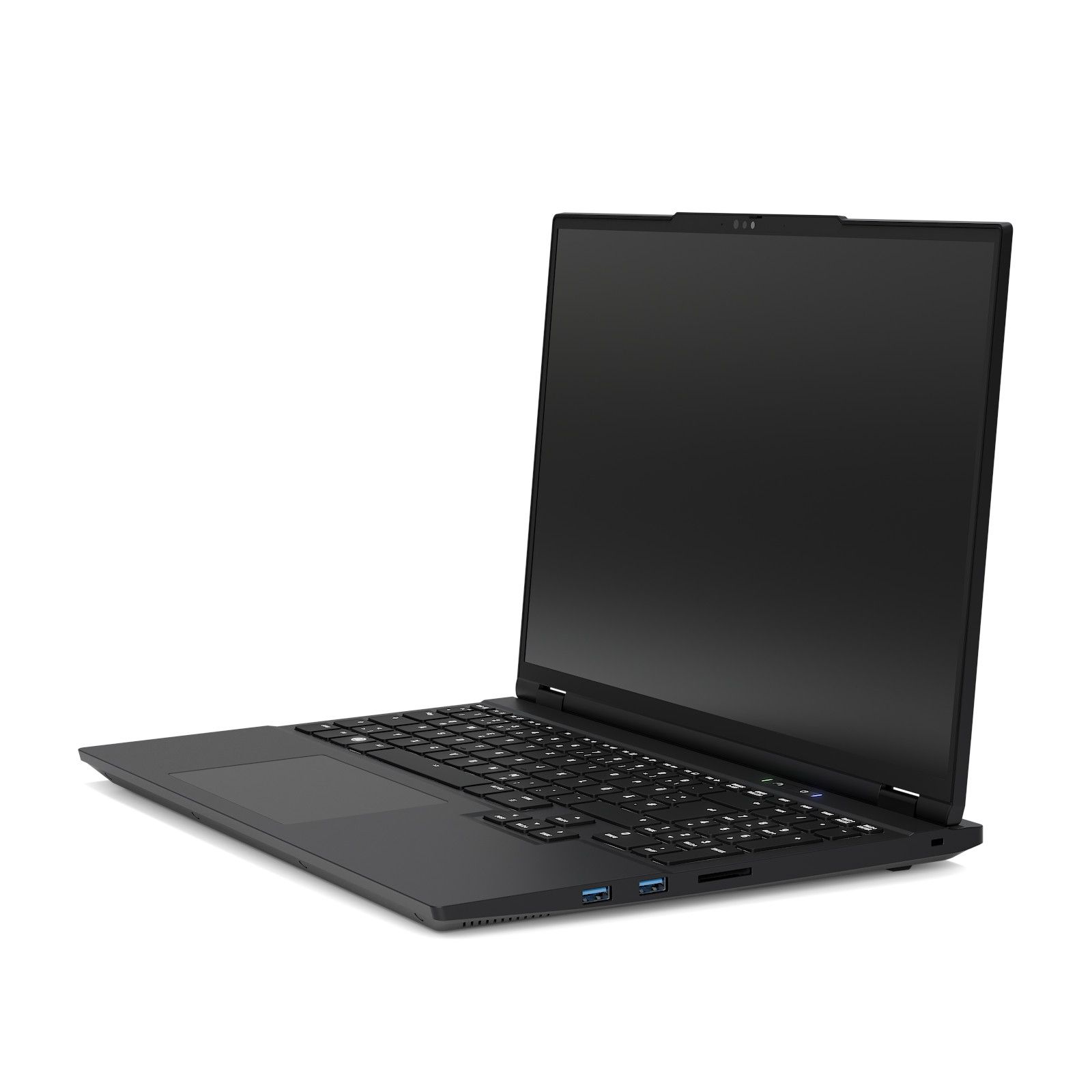

TUXEDO InfinityBook Max 16 - Gen10 - AMD

CPU | Graphics options

• AMD Ryzen AI 7 350 | GeForce RTX 5060 8GB
• AMD Ryzen AI 9 365 | GeForce RTX 5060 8GB ( +84,03 EUR)
• AMD Ryzen AI 9 370 | GeForce RTX 5060 8GB ( +210,08 EUR)
• AMD Ryzen AI 7 350 | GeForce RTX 5070 8GB ( +168,07 EUR)
• in stock from 30.10.2026: AMD Ryzen AI 9 365 | GeForce RTX 5070 8GB ( +252,10 EUR)
• AMD Ryzen AI 9 370 | GeForce RTX 5070 8GB ( +361,34 EUR)

Selected base: AMD Ryzen AI 7 350 | GeForce RTX 5060 8GB. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Linked processor and graphics assemblies

• AMD Ryzen AI 7 350 | GeForce RTX 5060 8GB
• AMD Ryzen AI 9 365 | GeForce RTX 5060 8GB ( +84,03 EUR)
• AMD Ryzen AI 9 370 | GeForce RTX 5060 8GB ( +210,08 EUR)
• AMD Ryzen AI 7 350 | GeForce RTX 5070 8GB ( +168,07 EUR)
• in stock from 30.10.2026: AMD Ryzen AI 9 365 | GeForce RTX 5070 8GB ( +252,10 EUR)
• AMD Ryzen AI 9 370 | GeForce RTX 5070 8GB ( +361,34 EUR)

Exact linked assemblies, not independent CPU/GPU/screen choices.

Main processor technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. AMD Ryzen AI 7 350 | (8 cores| 16 threads | max. 5 GHz | 16 MB L3 cache | 10 - 70 W*) | AMD Ryzen AI 9 365 | (10 cores | 20 threads | max. 5 GHz | 24 MB L3 cache | 10 - 90 W*) | AMD Ryzen AI 9 HX 370 | (12 cores | 24 threads | max. 5,1 GHz | 24 MB L3 cache | 10 - 90 W*) | *Power limits can be freely set within the range specified above using the TUXEDO Control Center | Thermal compound: Honeywell PTM7958

Graphics card technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. NVIDIA GeForce RTX 5060 | 8 GB GDDR7 VRAM | 50 - 100 W TGP (+15 W Dynamic Boost)* | NVIDIA GeForce RTX 5070 | 8 GB GDDR7 VRAM | 50 - 100 W TGP (+15 W Dynamic Boost)* | *Power limits can be freely set within the range specified above using the TUXEDO Control Center | Thermal compound: Honeywell PTM7958 | Energy efficient CPU integrated Graphics: | AMD Ryzen AI 7 350: AMD Radeon 860M (GPU cores: 8 | Max graphics frequency: 3 GHz) | AMD Ryzen AI 9 365: AMD Radeon 880M (GPU cores: 12 | Max graphics frequency: 2.9 GHz) | AMD Ryzen AI 9 HX 370: AMD Radeon 890M (GPU cores: 16 | Max graphics frequency: 2.9 GHz) | 5 displays can be driven simultaneously: | - 1x internal notebook display (iGPU or dGPU) | - 1x HDMI 2.1 (dGPU) | - 1x Mini DisplayPort 2.1 (dGPU) | - 1x USB 4.0 (DisplayPort 2.1 | iGPU) | - 1x USB 3.2 Gen2 (DisplayPort 1.4 | iGPU) | Max. Resolution (HDMI 2.1): 3840 x 2160 @ 120 Hz | Max. Resolution (DisplayPort 2.1): 7680 x 4320 @ 60 Hz | 3840 x 2160 @ 240 Hz | Max. Resolution (DisplayPort 1.4): 7680 x 4320 @ 30 Hz | 3840 x 2160 @ 120 Hz

RAM (DDR5 SO-DIMM) options

• 16 GB (2x 8GB) DDR5 5600MHz ADATA
• 32 GB (2x 16GB) DDR5 5600MHz Crucial ( +193,28 EUR)
• 64 GB (2x 32GB) DDR5 5600MHz Crucial ( +420,17 EUR)
• 128 GB (2x 64GB) DDR5 5600MHz ADATA ( +1.495,80 EUR)

Selected base: 16 GB (2x 8GB) DDR5 5600MHz ADATA. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage M.2 SSD options

• 500 GB WD_Blue SN5100 (NVMe PCIe 4.0)
• 1 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +46,22 EUR)
• 2 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +163,87 EUR)
• 4 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +373,95 EUR)
• 2 TB Crucial P510 (NVMe PCIe 5.0) ( +180,67 EUR)
• 1 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +113,45 EUR)
• 2 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +247,90 EUR)
• 4 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +516,81 EUR)
• 2 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +180,67 EUR)
• 4 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +432,77 EUR)
• 1 TB Samsung 9100 PRO (NVMe PCIe 5.0 x4) ( +155,46 EUR)
• 2 TB Samsung 9100 PRO (NVMe PCIe 5.0 x4) ( +323,53 EUR)
• 4 TB Samsung 9100 PRO (NVMe PCIe 5.0 x4) ( +810,92 EUR)
• 8 TB Samsung 9100 PRO (NVMe PCIe 5.0 x4) ( +1.861,34 EUR)
• 8 TB WD Black SN850X (NVMe PCIe 4.0) ( +1.315,13 EUR)
• without M.2 SSD ( -113,45 EUR)

Selected base: 500 GB WD_Blue SN5100 (NVMe PCIe 4.0). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage M.2 SSD 2 options

• without M.2 SSD 2 (upgradable later)
• 500 GB WD_Blue SN5100 (NVMe PCIe 4.0) ( +113,45 EUR)
• 1 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +159,66 EUR)
• 2 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +277,31 EUR)
• 4 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +487,39 EUR)
• 2 TB Crucial P510 (NVMe PCIe 5.0) ( +294,12 EUR)
• 1 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +226,89 EUR)
• 2 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +361,34 EUR)
• 4 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +630,25 EUR)
• 2 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +294,12 EUR)
• 4 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +546,22 EUR)
• 1 TB Samsung 9100 PRO (NVMe PCIe 5.0 x4) ( +268,91 EUR)
• 2 TB Samsung 9100 PRO (NVMe PCIe 5.0 x4) ( +436,97 EUR)
• 4 TB Samsung 9100 PRO (NVMe PCIe 5.0 x4) ( +924,37 EUR)
• 8 TB Samsung 9100 PRO (NVMe PCIe 5.0 x4) ( +1.974,79 EUR)
• 8 TB WD Black SN850X (NVMe PCIe 4.0) ( +1.428,57 EUR)

Selected base: without M.2 SSD 2 (upgradable later). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Memory technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. 2x DDR5 SO-DIMM (up to 5600 MT/s) | Manufacturer and speed see configurator | Default and maximum see configurator

Mass storage (SSD / HDD) technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. 2x M.2 2280 SSD via PCI Express 4.0 x4 | Supports double-sided SSDs

Display options

• Omnia Display | 2560 x 1600 | 16:10 | max. 300Hz | 500 cd/m²

Selected base: Omnia Display | 2560 x 1600 | 16:10 | max. 300Hz | 500 cd/m². Details on pixel error classes can be found here. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Display / Monitor technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. Modern displays with IPS panels have bright areas along the frame as a normal characteristic. This has hardly any influence on everyday operation, not least because the displays are optimized for daylight operation. It can only be minimized, but not completely avoided, regardless of the manufacturer and for manufacturing reasons. Details on pixel error classes can be found here. | 16'' WQXGA LED | 16:10 | 300 Hz | Type: LED backlight display, matte / non-glare | Viewing angles: 89°/89°/89°/89° | Refresh rates: 60 / 240 / 300 Hz | Resolution: 2560 x 1600 Pixels | Color gamut: 100 % DCI-P3 | Brightness: 500 nits | Contrast: 1200:1 | No PWM used | Additional features: MUX switch, Adaptive Sync | Display models: CSOT MNG007DA6-4, Tianma TL160ADMP36 | For technical production reasons, the measured values always vary slightly from panel to panel. More information | Opening angle: ~ 180° | Internal display connection (changeable via UEFI): | iGPU: iGPU Only or MsHybrid (NVIDIA Optimus) | dGPU: dGPU Only (via MUX switch)

Power supply incl. power cord options

Advertised base: Unpublished

• EU power cord | F C6
• UK power cord | G C6
• CH power cord | J C6
• IT power cord | L C6
• US power cord | B C6
• Without power cord & without charger

Selected base: EU power cord | F C6. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

WIFI & Bluetooth options

• AMD Wi-Fi 6E RZ616 (802.11ax | 2.4 & 5 GHz & 6 Ghz | Bluetooth 5.2)
• Intel Wi-Fi 6 AX210 (802.11ax | 2.4 & 5 GHz | Bluetooth 5.3)
• without WIFI & Bluetooth ( -15,97 EUR)

Selected base: AMD Wi-Fi 6E RZ616 (802.11ax | 2.4 & 5 GHz & 6 Ghz | Bluetooth 5.2). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Ports technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. Left side (from left to right): | - RJ45 LAN (1 GBit/s) | - USB-C 3.2 Gen2 (Hardwired to: iGPU | 10GBit/s | DisplayPort 1.4a (up to 32.4 GBit/s) | 100 W PowerDelivery DC-In*) | - USB-A 3.2 Gen1 (5 GBit/s) | - 2-in-1-Audio (Microphone & headphone) | Right side (from left to right): | - 2x USB-A 3.2 Gen1 (5 GBit/s) | - SD card reader (SD/SDHC/SDXC | SD Express | UHS-II) | - Kensington Lock (NanoSaver) | Back side (from left to right): | - USB4 (Hardwired to: iGPU | 40 GBit/s | DisplayPort 2.1 (up to 40 GBit/s) | PowerDelivery DC-In**) | - Power plug (DC-In | 5,5 x 12,5 mm) | - Mini DisplayPort 2.1 (Hardwired to: dGPU | up to 80 GBit/s (DP80)) | - HDMI 2.1 (Hardwired to: dGPU | up to 48 GBit/s | HDCP 2.3 | VRR / G-SYNC) | *Requirement: 20V / 5A (100 W) | **Requirement: min. 20V / 5A (100 W) | recommended: 20V / 7A (140 W)

Chassis Logo options

• TUXEDO Logo
• Custom Logo (+ 5 days processing) ( +83,19 EUR)
• Without Logo ( +24,37 EUR)

Selected base: TUXEDO Logo. More details about custom logos & keyboards here. You can find instructions on print data creation and its requirements here. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Keyboard Layout options

• GERMAN (DE QWERTZ) with backlit with TUX super-key
• GERMAN (DE QWERTZ) with backlit with WIN super-key
• ENGLISH US ISO (EN-QWERTY international) with backlit with TUX super-key
• ENGLISH UK (EN-UK QWERTY) with backlit with TUX super-key
• SWISS (CH-FR QWERTZ) with backlit with TUX super-key
• SWISS (CH-DE QWERTZ) with backlit with TUX super-key
• BELGIUM (BE AZERTY) with backlit with TUX super-key
• CZECH (CZ QWERTZ for Windows) with backlit with TUX super-key
• CZECH (CZ-US QWERTY for Linux) with backlit with TUX super-key
• DANISH (DK QWERTY) with backlit with TUX super-key
• ESTONIAN (ET QWERTY) with backlit with TUX super-key
• FRENCH (FR AZERTY) with backlit with TUX super-key
• GREEK (GR QWERTY) with backlit with TUX super-key
• HUNGARIAN (HU QWERTZ) with backlit with TUX super-key
• ITALIAN (IT QWERTY) with backlit with TUX super-key
• NORWEGIAN (NO QWERTY) with backlit with TUX super-key
• POLISH (PL QWERTY Programmers) with backlit with TUX super-key
• PORTUGUESE (PT QWERTY) with backlit with TUX super-key
• RUSSIAN ISO (RU-EN QWERTY) with backlit with TUX super-key
• SLOVAK (SK-CZ-US QWERTY) with backlit with TUX super-key
• SLOVAK (SK QWERTZ) with backlit with TUX super-key
• SLOVENIAN / CROATIAN (SL/HR QWERTZ) with backlit with TUX super-key
• SPANISH (ES QWERTY) with backlit with TUX super-key
• SWEDISH / FINNISH (SE/FI QWERTY) with backlit with TUX super-key
• TURKISH (TR QWERTY) with backlit with TUX super-key
• UKRAINIAN (UA QWERTY) with backlit with TUX super-key
• DVORAK DE ISO with backlit with TUX super-key
• DVORAK US ISO with backlit with TUX super-key
• Custom Super-Key ISO Style (+ 5 days processing) ( +24,37 EUR)
• Custom Layout ISO Style (+ 5 days processing) ( +66,39 EUR)
• Completely blank keyboard | ISO keymap ( +24,37 EUR)

Selected base: GERMAN (DE QWERTZ) with backlit with TUX super-key. Please note the additional information on keyboard layouts and languages here. Further languages and individual keyboard layouts can be found here. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Operating System Linux options

• TUXEDO OS (recommended)
• Ubuntu 26.04 LTS
• Ubuntu 24.04 LTS
• TUXEDO OS (ENCRYPTED)
• Ubuntu 26.04 LTS (ENCRYPTED)
• Ubuntu 24.04 (ENCRYPTED)
• without Linux

Selected base: TUXEDO OS (recommended). We are not pre-installing other distributions, but others are also compatible. Adding our repository as described here will usually do the trick! Due to our fully automated installation, an individual partitioning is not possible! TUXEDO OS is Ubuntu-based with KDE Plasma Desktop. Here we explain how our encrypted installation works. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Operating System Windows options

• without Windows
• Windows 11 Home 64Bit | Installation incl. license ( +125,21 EUR)
• Windows 11 Pro 64Bit | Installation incl. license ( +158,82 EUR)
• Windows 11 Home 64Bit | Installation without license ( +32,77 EUR)
• Windows 11 Pro 64Bit | Installation without license ( +32,77 EUR)

Selected base: without Windows. A crypted Linux- and Windows installation is technically not possible! Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Operating System Windows as virtual machine options

• without virtual Windows
• Windows 11 Home 64Bit as virtual machine within Linux incl. license ( +125,21 EUR)
• Windows 11 as virtual machine within Linux incl. Windows Pro License ( +158,82 EUR)
• Windows 11 Home as virtual machine within Linux without license ( +24,37 EUR)

Selected base: without virtual Windows. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Warranty options

• 2 years warranty (Incl. parts, labour & shipping)
• 3 years warranty (Incl. parts, labour & shipping) ( +125,21 EUR)
• 4 years warranty (Incl. parts, labour & shipping) ( +209,24 EUR)
• 5 years warranty (Incl. parts, labour & shipping) ( +293,28 EUR)

Selected base: 2 years warranty (Incl. parts, labour & shipping). You can check our warranty conditions here Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Assembling time options

• Assembled within 1-3 weeks when in stock

Selected base: Assembled within 1-3 weeks when in stock. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.
