TUXEDO Atlas S - Gen1 - INTEL

Processor options

• Intel Core i7-14700 (max. 5.4 GHz, 20 Cores, 28 Threads, 33 MB Cache, 65 W TDP)
• Intel Core i9-14900 (max. 5.8 GHz, 24 Cores, 32 Threads, 36 MB Cache, 65 W TDP) ( +218,49 EUR)

Selected base: Intel Core i7-14700 (max. 5.4 GHz, 20 Cores, 28 Threads, 33 MB Cache, 65 W TDP). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Slot 1 / Graphics / Extensions options

• without additional graphics, integrated only
• NVIDIA GeForce GT 1030 passiv 4 GB GDDR4, 1x HDMI2.0b, 1x DisplayPort 1.4 ( +109,24 EUR)
• NVIDIA Quadro A1000 8 GB GDDR6, 4x Mini DisplayPort 1.4 ( +462,18 EUR)
• NVIDIA GeForce RTX 3050 6GB GDDR6 | Dual Fan | 2x HDMI2.1 + 2x DP 1.4a ( +252,10 EUR)
• NVIDIA GeForce RTX 5060 8GB GDDR7 | Dual Fan | 1x HDMI 2.1b + 3x DP 2.1b ( +336,13 EUR)
• NVIDIA GeForce RTX 5060 Ti 8GB GDDR7 | Dual Fan | 1x HDMI 2.1b + 3x DP 2.1b ( +462,18 EUR)
• NVIDIA GeForce RTX 5060 Ti 16GB GDDR7 | Dual Fan | 1x HDMI 2.1b + 3x DP 2.1b ( +672,27 EUR)
• AMD Radeon RX 6400 | 4GB GDDR6 | 1x DisplayPort 1.4 + 1x HDMI 2.1 ( +167,23 EUR)
• AMD Radeon RX 7600 | 8GB GDDR6 | 3x DisplayPort 1.4 + 1x HDMI 2.1 ( +335,29 EUR)
• AMD Radeon RX 9060 XT | 8GB GDDR6 | 1x DisplayPort 2.1 + 2x HDMI 2.1 ( +419,33 EUR)
• AMD Radeon RX 9060 XT | 16GB GDDR6 | 1x DisplayPort 2.1 + 2x HDMI 2.1 ( +503,36 EUR)
• Intel Arc A310 | 4GB GDDR6 | Single Fan | 4x HDMI 2.0b ( +168,07 EUR)
• Intel Arc B580 | 12 GDDR6 | Dual Fan | 3x DP 2.1 + 1x HDMI 2.1 ( +361,34 EUR)
• with 3x USB-A and 2x USB-C (USB 3.2 Gen2 / 1 PCIe Card) ( +49,58 EUR)
• with 4x USB-C 3.2 10GBit Addon-Card (1 PCIe Card) ( +49,58 EUR)
• with 1 additional LAN-Port (+1 Gbit RJ45 LAN-Port, 1 PCIe card) ( +20,92 EUR)
• with 2 additional LAN-Ports | Intel 82576 (+2 Gbit RJ45 LAN-Ports, 1 PCIe card) ( +32,77 EUR)
• with 4 additional LAN-Ports Intel I350 (+4 Gbit LAN-Ports, 1 PCIe card) ( +116,81 EUR)
• with 2 additional 10G LAN-Ports | Intel X540 (+2 10Gbit RJ45 LAN-Ports, 1 PCIe card) ( +142,02 EUR)
• with additional 1x serial port + 1x parallel port ( +41,18 EUR)

Selected base: without additional graphics, integrated only. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

CPU-Cooling options

• Metallheatsink with one fan

Selected base: Metallheatsink with one fan. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Main processor technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. Energy efficient powersaving processors of the "T" series (TDP: 35 Watts) | High-performance processors for gaming and content creation (TDP: 65 Watts) | Compatibility dimensions for GPU upgrades: | Max CPU cooler width: 48 mm (configured* for max GPU width) bis 77 mm | * The position of the central mainboard plate inside the case can be offset by up to 30 mm to give either the CPU or the GPU more space for wider components or cooling. Offsetting the mainboard panel allows a higher GPU width at the expense of the CPU cooler width and vice versa.

Graphics card technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. The power efficient graphics chip integrated in the processor can be supersedet by a more powerful NVIDIA GeForce or AMD Radeon RX graphics card. | For details, please have a look at the configurator. | The graphics card is connected to the mainboard via a PCIe 4.0 riser cable. | Compatibility dimensions for GPU upgrades: | Max length: 322 mm | Max width: 43 mm (configured* for max CPU cooler) to 72 mm | Max height: 131 mm (configured* for max CPU cooler) to 145 mm | * The position of the central mainboard plate inside the case can be offset by up to 30 mm to give either the CPU or the GPU more space for wider components or cooling. Offsetting the mainboard panel allows a higher GPU width at the expense of the CPU cooler width and vice versa.

RAM (DDR5 DIMM) options

• 16 GB (1x 16GB) DDR5 DIMM-6000
• 32 GB (2x 16GB) DDR5 DIMM-6000 ( +252,10 EUR)
• 64 GB (2x 32GB) DDR5 DIMM-6000 ( +789,92 EUR)
• 96 GB (2x 48GB) DDR5 DIMM-6000 ( +1.075,63 EUR)

Selected base: 16 GB (1x 16GB) DDR5 DIMM-6000. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage M.2 SSD options

• 500 GB WD_Blue SN5100 (NVMe PCIe 4.0)
• 1 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +46,22 EUR)
• 2 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +163,87 EUR)
• 4 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +373,95 EUR)
• 2 TB Crucial P510 (NVMe PCIe 5.0) ( +180,67 EUR)
• 1 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +113,45 EUR)
• 2 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +247,90 EUR)
• 4 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +516,81 EUR)
• 2 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +180,67 EUR)
• 4 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +432,77 EUR)
• 8 TB WD Black SN850X (NVMe PCIe 4.0) ( +1.315,13 EUR)
• without M.2 SSD ( -113,45 EUR)

Selected base: 500 GB WD_Blue SN5100 (NVMe PCIe 4.0). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage M.2 SSD 2 options

• without M.2 SSD 2 (upgradable later)
• 500 GB WD_Blue SN5100 (NVMe PCIe 4.0) ( +113,45 EUR)
• 1 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +159,66 EUR)
• 2 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +277,31 EUR)
• 4 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +487,39 EUR)
• 2 TB Crucial P510 (NVMe PCIe 5.0) ( +294,12 EUR)
• 1 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +226,89 EUR)
• 2 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +361,34 EUR)
• 4 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +630,25 EUR)
• 2 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +294,12 EUR)
• 4 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +546,22 EUR)
• 8 TB WD Black SN850X (NVMe PCIe 4.0) ( +1.428,57 EUR)

Selected base: without M.2 SSD 2 (upgradable later). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage (SATAIII, 6Gb/s) options

• without mass-storage (upgradable later)
• 1 TB SSD (Samsung 870 EVO / 2,5") ( +294,12 EUR)
• 2 TB SSD (Samsung 870 EVO / 2,5") ( +563,03 EUR)
• 4 TB SSD (Samsung 870 EVO / 2,5") ( +1.000,00 EUR)

Selected base: without mass-storage (upgradable later). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage 2 (SATAIII, 6Gb/s) options

• without mass-storage (upgradable later)
• 1 TB SSD (Samsung 870 EVO / 2,5") ( +294,12 EUR)
• 2 TB SSD (Samsung 870 EVO / 2,5") ( +563,03 EUR)
• 4 TB SSD (Samsung 870 EVO / 2,5") ( +1.000,00 EUR)

Selected base: without mass-storage (upgradable later). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass storage (SSD / HDD) technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. See "Storage connectors" under "Mainboard

Power supply options

Advertised base: Unpublished

• 450W Silent Power SFX supply (80+ bronze cert.)
• 850W Silent Power SFX supply (80+ platinum cert.) ( +100,84 EUR)

Selected base: 450W Silent Power SFX supply (80+ bronze cert.). From NVIDIA RTX or AMD RX graphics the 850W power supply is needed! Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Power supply incl. power cord options

Advertised base: Unpublished

• EU power cord | F C13
• UK power cord | G C13
• CH power cord | J C13
• IT power cord | L C13
• US power cord | B C13
• Without power cord & without charger

Selected base: EU power cord | F C13. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

WIFI & Bluetooth options

• Intel Wi-Fi 6E AX211 (802.11ax | 2.4, 5 & 6 GHz | Bluetooth 5.3)

Selected base: Intel Wi-Fi 6E AX211 (802.11ax | 2.4, 5 & 6 GHz | Bluetooth 5.3). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Ports technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. Front: | - 1x USB-C 3.2 Gen 2x2 (20Gbps) | - 1x USB-A 3.0 (5Gbps) | Back: | Please refer to "Mainboard" section

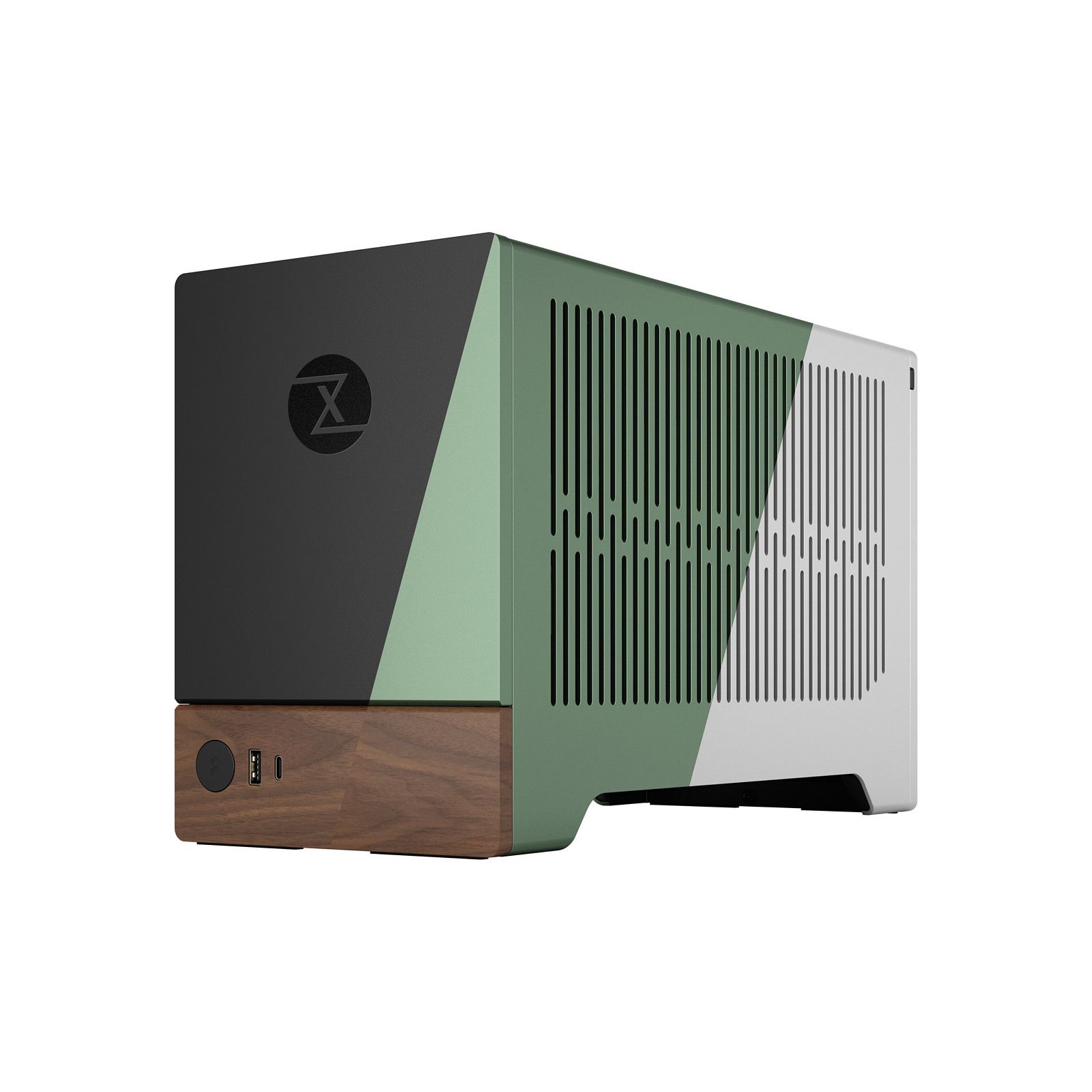

Housing options

• Atlas S mITX Case | Jade green

Selected base: Atlas S mITX Case | Jade green. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mainboard | Wi-Fi & Bluetooth options

• Intel B760 Chipset incl. Wi-Fi 6 & Bluetooth 5.2

Selected base: Intel B760 Chipset incl. Wi-Fi 6 & Bluetooth 5.2. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mainboard technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. Mainboard: | Manufacturer & Chipsatz: Intel B760 Chipset | 256 Mbit AMI UEFI BIOS | Formfactor: Mini-ITX (17 x 17 cm) | Network / Ethernet / LAN | - 1x LAN: | - 1x 2.5 Gigabit Realtek 8125BG (2.5 Gbit / 1 Gbit / 100 Mbit) | - Supports Wake-On-LAN | - Supports PXE | Wireless LAN / WLAN / WIFI | Intel Wi-Fi 6 AX200 Series | - Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps | - Supports 802.11 a/b/g/n/ac/ax | - Supports Bluetooth 5.2 | Sound / Audio: | 7.1 CH HD Audio (Realtek ALC897 Codec) | - High Definition Audio | - 2/4/5.1/7.1-channel | Rear Mainboard connectors: | 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | 1x DisplayPort 1.4 | 1x HDMI Port 2.1 (4K@60Hz) with HDR | 2x USB-A USB 2.0 | 4x USB-A USB 3.2 Gen1 5GBit/s (backward compatible) | 1x USB-A USB 3.2 Gen2 10GBit/s (backward compatible) | 1x USB-C USB 3.2 Gen2 10GBit/s (backward compatible) | 2x Antenna connectors | 3x Audio: 1x Line in; 1x Line-Out; 1x microphone | Mainboard connectors internally (partially populated by your configuration): | 2x DDR5 DIMM sockets | 1x PCI Express 5.0 x16 slot, running at x16 | 4x SATA 6Gb/s connector(s) | 2x M.2 slots | 1x CPU Fan | 1x Pump Fan | 1x System Fan | 2x Front Panel | 1x Chassis Intrusion | 1x Front Audio | 1x Addressable V2 RGB LED connector | 1x RGB LED connector | 1x TPM pin header (Support TPM 2.0) | 2x USB 2.0 | 2x USB 3.2 Gen1 Type A | 1x USB 3.2 Gen2 Type C | Storage connectors: | 1x M.2 Socket (M2_1) | - Supports M Key type 2280 M.2 PCI Express module up to Gen4 x4 | 1x M.2 Socket (M2_2) | - Supports M Key type 2280 M.2 PCI Express module up to Gen4 x4 & SATA 6Gb/s | 4x SATA 6Gb/s

Operating System Linux options

• TUXEDO OS (recommended)
• Ubuntu 26.04 LTS
• Ubuntu 24.04 LTS
• TUXEDO OS (ENCRYPTED)
• Ubuntu 26.04 LTS (ENCRYPTED)
• Ubuntu 24.04 (ENCRYPTED)
• without Linux

Selected base: TUXEDO OS (recommended). We are not pre-installing other distributions, but others are also compatible. Adding our repository as described here will usually do the trick! Due to our fully automated installation, an individual partitioning is not possible! TUXEDO OS is Ubuntu-based with KDE Plasma Desktop. Here we explain how our encrypted installation works. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Operating System Windows options

• without Windows
• Windows 11 Home 64Bit | Installation incl. license ( +125,21 EUR)
• Windows 11 Pro 64Bit | Installation incl. license ( +158,82 EUR)
• Windows 11 Home 64Bit | Installation without license ( +32,77 EUR)
• Windows 11 Pro 64Bit | Installation without license ( +32,77 EUR)

Selected base: without Windows. A crypted Linux- and Windows installation is technically not possible! Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Operating System Windows as virtual machine options

• without virtual Windows
• Windows 11 Home 64Bit as virtual machine within Linux incl. license ( +125,21 EUR)
• Windows 11 as virtual machine within Linux incl. Windows Pro License ( +158,82 EUR)
• Windows 11 Home as virtual machine within Linux without license ( +24,37 EUR)

Selected base: without virtual Windows. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Warranty options

• 2 years warranty (Incl. parts, labour & shipping)
• 3 years warranty (Incl. parts, labour & shipping) ( +125,21 EUR)
• 4 years warranty (Incl. parts, labour & shipping) ( +209,24 EUR)
• 5 years warranty (Incl. parts, labour & shipping) ( +293,28 EUR)

Selected base: 2 years warranty (Incl. parts, labour & shipping). You can check our warranty conditions here Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Assembling time options

• Assembled within 1-3 weeks when in stock

Selected base: Assembled within 1-3 weeks when in stock. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.
