TUXEDO Nano Pro - Gen13 - AMD

Processor options

• AMD Ryzen 7 8840U (max. 5.1 GHz, 8 Core, 16 Threads, 24 MB Cache, 42 W TDP)
• AMD Ryzen 5 8640U (max. 4.9 GHz, 6 Core, 12 Threads, 22 MB Cache, 42 W TDP) ( -42,02 EUR)

Selected base: AMD Ryzen 7 8840U (max. 5.1 GHz, 8 Core, 16 Threads, 24 MB Cache, 42 W TDP). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Main processor technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. AMD Ryzen 5 8640U | (max. 4.9 GHz Hexa-Core, 6 Cores / 12 Threads, 22 MB Cache (L2+L3), 42 W* TDP, AMD Ryzen AI) | AMD Ryzen 7 8840U | (max. 5.1 GHz Octa-Core, 8 Cores / 16 Threads, 24 MB Cache (L2+L3), 42 W* TDP, AMD Ryzen AI) | * Two performance modes available in UEFI: | Normal Mode (default): Max. 28 Watts (sPPT) | Max. 33 Watts (fPPT) | Performance Mode: Max. 42 Watts (sPPT) | Max. 50 Watts (fPPT) | Energy efficient CPU integrated graphics: | AMD Ryzen 5 8640U | AMD Radeon Graphics 760M | Max. Clock rates: 2600 MHz | GPU Cores: 8 | AMD Ryzen 7 8840U | AMD Radeon Graphics 780M | Max. Clock rates: 2700 MHz | GPU Cores: 12 | It is possible to drive 4 displays at the same time. | Max. Resolution (HDMI 2.1): 7680 x 4320 @60 Hz | Max. Resolution (DisplayPort 1.4a): 4096 x 2160 @ 60 Hz | All display ports are connected to the processor's iGPU.

RAM (DDR5 SO-DIMM) options

• 16 GB (2x 8GB) DDR5 5600MHz ADATA
• 32 GB (2x 16GB) DDR5 5600MHz Crucial ( +193,28 EUR)
• 64 GB (2x 32GB) DDR5 5600MHz Crucial ( +420,17 EUR)

Selected base: 16 GB (2x 8GB) DDR5 5600MHz ADATA. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage M.2 SSD options

• 500 GB WD_Blue SN5100 (NVMe PCIe 4.0)
• 1 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +46,22 EUR)
• 2 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +163,87 EUR)
• 4 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +373,95 EUR)
• 2 TB Crucial P510 (NVMe PCIe 5.0) ( +180,67 EUR)
• 1 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +113,45 EUR)
• 2 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +247,90 EUR)
• 4 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +516,81 EUR)
• 2 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +180,67 EUR)
• 4 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +432,77 EUR)
• 8 TB WD Black SN850X (NVMe PCIe 4.0) ( +1.315,13 EUR)
• without M.2 SSD ( -113,45 EUR)

Selected base: 500 GB WD_Blue SN5100 (NVMe PCIe 4.0). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage M.2 2242 SSD options

• without M.2 2242 SSD (upgradable later)
• 1TB Transcend MTE410S (M.2 2242 | PCIe 4.0x4) ( +378,15 EUR)
• 2TB Transcend MTE410S (M.2 2242 | PCIe 4.0x4) ( +613,45 EUR)

Selected base: without M.2 2242 SSD (upgradable later). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Memory technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. DDR5 5600 MHz SO-DIMM | 2 sockets changable | Max. 96 GB | Dual Channel | Please note that the AMD Radeon Graphics integrated in the processor (iGPU) utilize the main memory (RAM). | Therefore, we recommend using two identical RAM modules (dual-channel) (e.g. 2x 8 GB instead of 1x 16 GB) for full graphics performance!

Mass storage (SSD / HDD) technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. 1x M.2 (KEY M, 2242/2280) PCIe 4.0 x4 | 1x M.2 (KEY M, 2242) PCIe 4.0 x4

Power supply incl. power cord options

Advertised base: Unpublished

• EU power cord | F C6
• UK power cord | G C6
• CH power cord | J C6
• IT power cord | L C6
• US power cord | B C6
• Without power cord & without charger

Selected base: EU power cord | F C6. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Wi-Fi & Bluetooth options

• AMD Mediatek Wi-Fi 6E (802.11ax | 2.4, 5 & 6 GHz | Bluetooth 5.2)

Selected base: AMD Mediatek Wi-Fi 6E (802.11ax | 2.4, 5 & 6 GHz | Bluetooth 5.2). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Ports technical details and limits

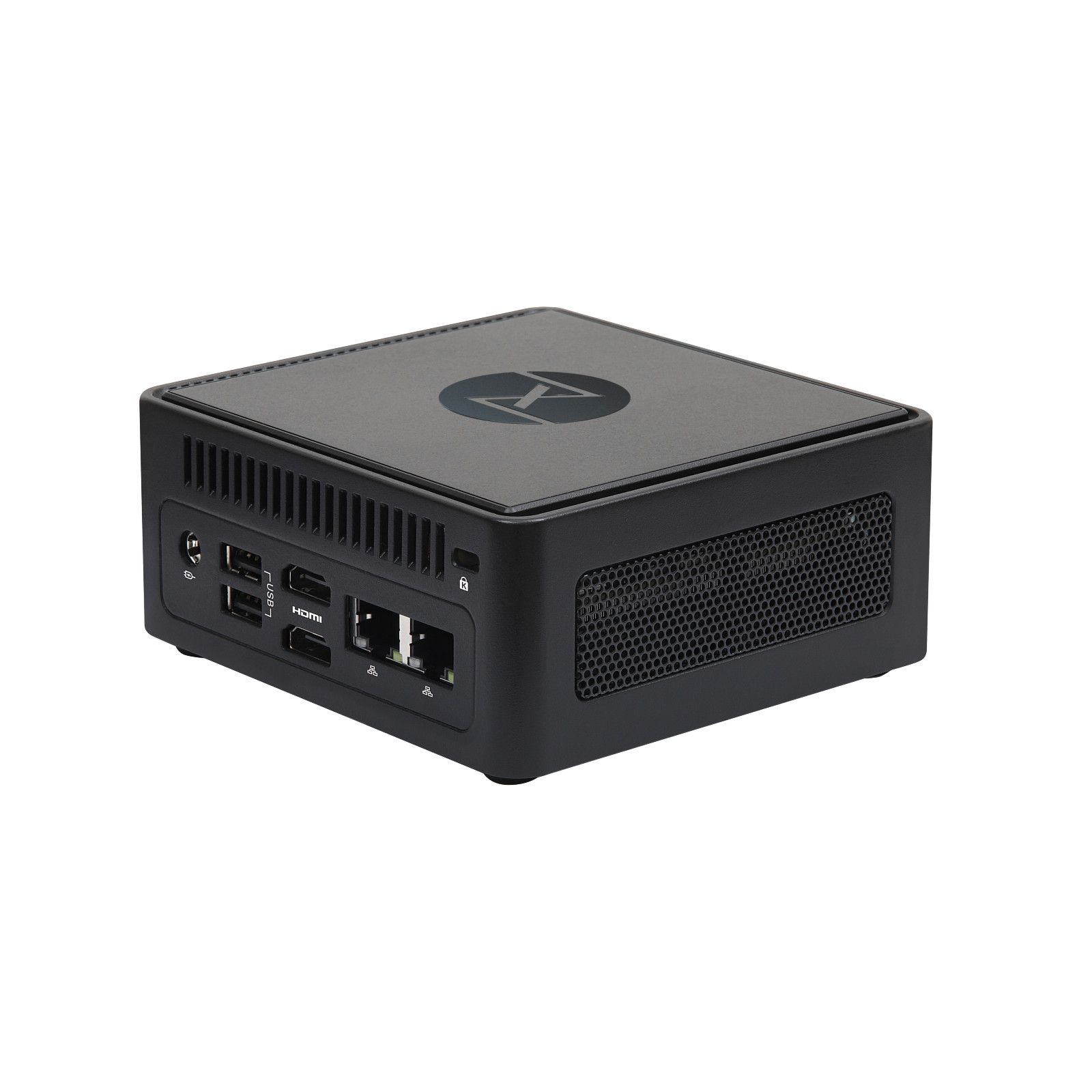

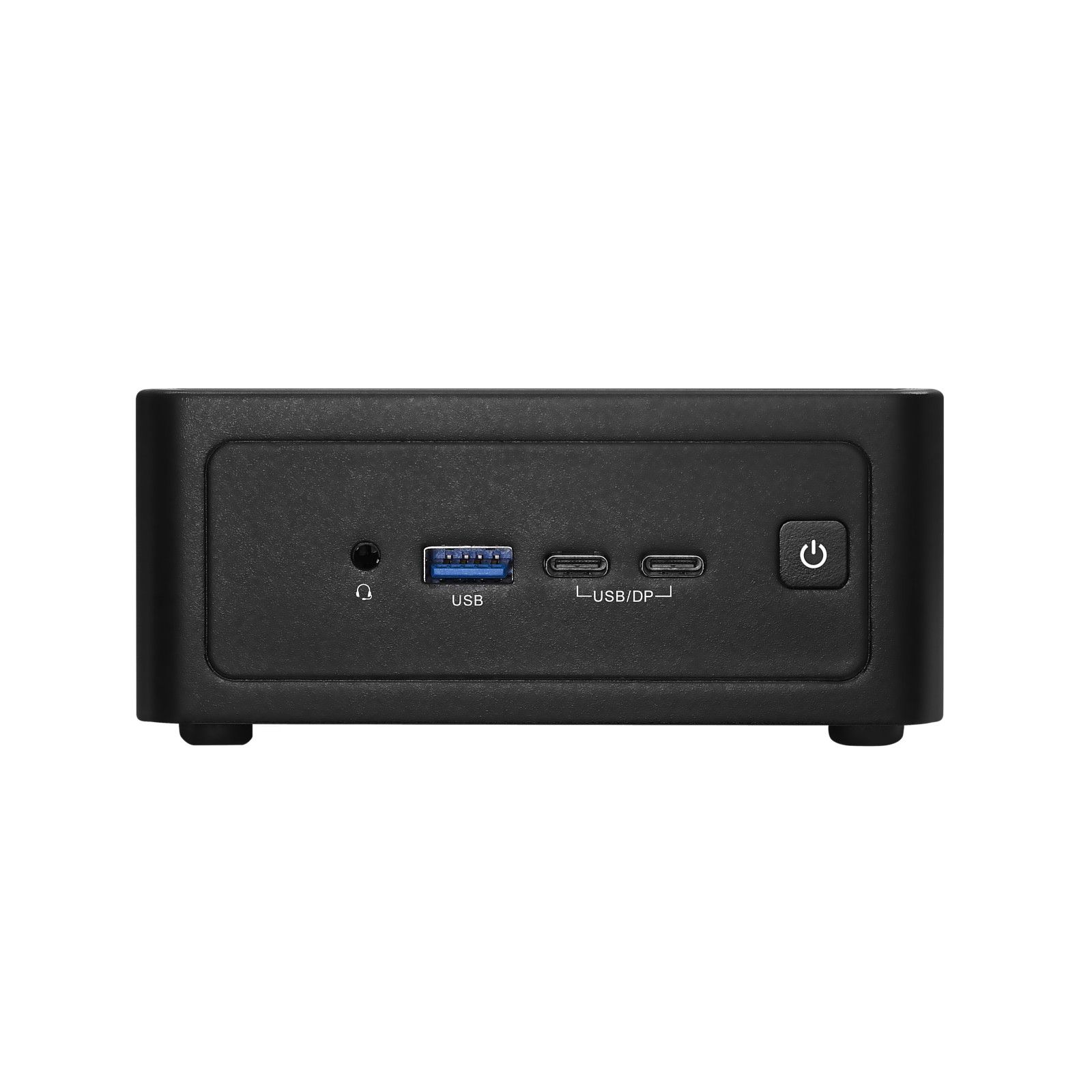

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. Front: | 2x USB-C 4 with DisplayPort 1.4a | 1x USB-A 3.2 Gen2 | 1x 2-in-1-Audio (headphone + microphone) | Rear: | 2x HDMI 2.1 | 1x 1 Gigabit LAN (Realtek RTL8111H) | 1x 2.5 Gigabit LAN (Realtek RTL8125BG) | 2x USB-A 2.0 | 1x DC-in | 1x Kensington Lock

Operating System Linux options

• TUXEDO OS (recommended)
• Ubuntu 26.04 LTS
• Ubuntu 24.04 LTS
• TUXEDO OS (ENCRYPTED)
• Ubuntu 26.04 LTS (ENCRYPTED)
• Ubuntu 24.04 (ENCRYPTED)
• without Linux

Selected base: TUXEDO OS (recommended). We are not pre-installing other distributions, but others are also compatible. Adding our repository as described here will usually do the trick! Due to our fully automated installation, an individual partitioning is not possible! TUXEDO OS is Ubuntu-based with KDE Plasma Desktop. Here we explain how our encrypted installation works. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Operating System Windows options

• without Windows
• Windows 11 Home 64Bit | Installation incl. license ( +125,21 EUR)
• Windows 11 Pro 64Bit | Installation incl. license ( +158,82 EUR)
• Windows 11 Home 64Bit | Installation without license ( +32,77 EUR)
• Windows 11 Pro 64Bit | Installation without license ( +32,77 EUR)

Selected base: without Windows. A crypted Linux- and Windows installation is technically not possible! Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Operating System Windows as virtual machine options

• without virtual Windows
• Windows 11 Home 64Bit as virtual machine within Linux incl. license ( +125,21 EUR)
• Windows 11 as virtual machine within Linux incl. Windows Pro License ( +158,82 EUR)
• Windows 11 Home as virtual machine within Linux without license ( +24,37 EUR)

Selected base: without virtual Windows. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Warranty options

• 2 years warranty (Incl. parts, labour & shipping)
• 3 years warranty (Incl. parts, labour & shipping) ( +125,21 EUR)
• 4 years warranty (Incl. parts, labour & shipping) ( +209,24 EUR)
• 5 years warranty (Incl. parts, labour & shipping) ( +293,28 EUR)

Selected base: 2 years warranty (Incl. parts, labour & shipping). You can check our warranty conditions here Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Assembling time options

• Assembled within 1-3 weeks when in stock

Selected base: Assembled within 1-3 weeks when in stock. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.
