TUXEDO Atlas XL - Intel - Gen2

Processor options

• Intel Core Ultra 5 225 (max. 4.9 GHz, 10 Cores, 10 Threads, 22 MB Cache, 65 W TDP)
• Intel Core Ultra 7 265 (max. 5.3 GHz, 20 Cores, 20 Threads, 36 MB Cache, 65 W TDP) ( +168,07 EUR)
• Intel Core Ultra 9 285 (max. 5.6 GHz, 24 Cores, 24 Threads, 40 MB Cache, 65 W TDP) ( +403,36 EUR)
• Intel Core Ultra 5 245K (max. 5.2 GHz, 14 Cores, 14 Threads, 24 MB Cache, 125 W TDP) ( +42,02 EUR)
• Intel Core Ultra 7 265K (max. 5.5 GHz, 20 Cores, 20 Threads, 36 MB Cache, 125 W TDP) ( +168,07 EUR)
• Intel Core Ultra 9 285K (max. 5.7 GHz, 24 Cores, 24 Threads, 40 MB Cache, 125 W TDP) ( +403,36 EUR)

Selected base: Intel Core Ultra 5 225 (max. 4.9 GHz, 10 Cores, 10 Threads, 22 MB Cache, 65 W TDP). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Slot 1 / Graphics / Extensions options

• without additional graphics, integrated only
• NVIDIA GeForce GT 1030 passiv 4 GB GDDR4, 1x HDMI2.0b, 1x DisplayPort 1.4 ( +109,24 EUR)
• NVIDIA Quadro A1000 8 GB GDDR6, 4x Mini DisplayPort 1.4 ( +462,18 EUR)
• NVIDIA GeForce RTX 3050 6GB GDDR6 | Dual Fan | 2x HDMI2.1 + 2x DP 1.4a ( +252,10 EUR)
• NVIDIA GeForce RTX 5060 8GB GDDR7 | Dual Fan | 1x HDMI 2.1b + 3x DP 2.1b ( +336,13 EUR)
• NVIDIA GeForce RTX 5060 Ti 8GB GDDR7 | Dual Fan | 1x HDMI 2.1b + 3x DP 2.1b ( +462,18 EUR)
• NVIDIA GeForce RTX 5060 Ti 16GB GDDR7 | Dual Fan | 1x HDMI 2.1b + 3x DP 2.1b ( +672,27 EUR)
• NVIDIA GeForce RTX 5070 12GB GDDR7 | Triple Fan | 1x HDMI 2.1b + 3x DP 2.1b ( +882,35 EUR)
• NVIDIA GeForce RTX 5070 Ti 16GB GDDR7 | Triple Fan | 1x HDMI 2.1b + 3x DP 2.1b ( +1.386,55 EUR)
• NVIDIA GeForce RTX 5080 16GB GDDR7 | Triple Fan | 2x HDMI 2.1b + 3x DP 2.1b ( +1.932,77 EUR)
• NVIDIA GeForce RTX 5090 32GB GDDR7 | Triple Fan | 1x HDMI 2.1b + 3x DP 2.1b ( +5.210,08 EUR)
• AMD Radeon RX 6400 | 4GB GDDR6 | 1x DisplayPort 1.4 + 1x HDMI 2.1 ( +167,23 EUR)
• AMD Radeon RX 7600 | 8GB GDDR6 | 3x DisplayPort 1.4 + 1x HDMI 2.1 ( +335,29 EUR)
• AMD Radeon RX 9060 XT | 8GB GDDR6 | 1x DisplayPort 2.1 + 2x HDMI 2.1 ( +419,33 EUR)
• AMD Radeon RX 9060 XT | 16GB GDDR6 | 1x DisplayPort 2.1 + 2x HDMI 2.1 ( +503,36 EUR)
• AMD Radeon RX 9070 XT | 16GB GDDR6 | 3x DisplayPort 2.1 + 1x HDMI 2.1 ( +839,50 EUR)
• Intel Arc A310 | 4GB GDDR6 | Single Fan | 4x HDMI 2.0b ( +168,07 EUR)
• Intel Arc B580 | 12 GDDR6 | Dual Fan | 3x DP 2.1 + 1x HDMI 2.1 ( +361,34 EUR)
• with 3x USB-A and 2x USB-C (USB 3.2 Gen2 / 1 PCIe Card) ( +49,58 EUR)
• with 4x USB-C 3.2 10GBit Addon-Card (1 PCIe Card) ( +49,58 EUR)
• with 1 additional LAN-Port (+1 Gbit RJ45 LAN-Port, 1 PCIe card) ( +20,92 EUR)
• with 2 additional LAN-Ports | Intel 82576 (+2 Gbit RJ45 LAN-Ports, 1 PCIe card) ( +32,77 EUR)
• with 4 additional LAN-Ports Intel I350 (+4 Gbit LAN-Ports, 1 PCIe card) ( +116,81 EUR)
• with 2 additional 10G LAN-Ports | Intel X540 (+2 10Gbit RJ45 LAN-Ports, 1 PCIe card) ( +142,02 EUR)
• with additional 1x serial port + 1x parallel port ( +41,18 EUR)

Selected base: without additional graphics, integrated only. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

CPU-Cooling options

• Watercooling with two 120mm fans

Selected base: Watercooling with two 120mm fans. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Main processor technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. Intel Core Ultra 5 225 | Intel Core Ultra 7 265 | Intel Core Ultra 9 285 | Intel Core Ultra 5 245K | Intel Core Ultra 7 265K | Intel Core Ultra 9 285K

Graphics card technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. The power efficient graphics chip integrated in the processor can be supersedet by a more powerful NVIDIA GeForce or AMD Radeon RX graphics card. | For details, please have a look at the configurator.

RAM (DDR5 DIMM) options

• 16 GB (1x 16GB) DDR5 DIMM-6000
• 32 GB (2x 16GB) DDR5 DIMM-6000 ( +252,10 EUR)
• 64 GB (2x 32GB) DDR5 DIMM-6000 ( +789,92 EUR)
• 64 GB (4x 16GB) DDR5 DIMM-6000 ( +756,30 EUR)
• 96 GB (2x 48GB) DDR5 DIMM-6000 ( +1.075,63 EUR)
• 128 GB (4x 32GB) DDR5 DIMM-6000 ( +1.831,93 EUR)
• 192 GB (4x 48GB) DDR5 DIMM-6000 ( +2.403,36 EUR)

Selected base: 16 GB (1x 16GB) DDR5 DIMM-6000. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage M.2 SSD options

• 500 GB WD_Blue SN5100 (NVMe PCIe 4.0)
• 1 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +46,22 EUR)
• 2 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +163,87 EUR)
• 4 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +373,95 EUR)
• 2 TB Crucial P510 (NVMe PCIe 5.0) ( +180,67 EUR)
• 1 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +113,45 EUR)
• 2 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +247,90 EUR)
• 4 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +516,81 EUR)
• 2 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +180,67 EUR)
• 4 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +432,77 EUR)
• 8 TB WD Black SN850X (NVMe PCIe 4.0) ( +1.315,13 EUR)
• without M.2 SSD ( -113,45 EUR)

Selected base: 500 GB WD_Blue SN5100 (NVMe PCIe 4.0). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage M.2 SSD 2 options

• without M.2 SSD 2 (upgradable later)
• 500 GB WD_Blue SN5100 (NVMe PCIe 4.0) ( +113,45 EUR)
• 1 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +159,66 EUR)
• 2 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +277,31 EUR)
• 4 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +487,39 EUR)
• 2 TB Crucial P510 (NVMe PCIe 5.0) ( +294,12 EUR)
• 1 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +226,89 EUR)
• 2 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +361,34 EUR)
• 4 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +630,25 EUR)
• 2 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +294,12 EUR)
• 4 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +546,22 EUR)
• 8 TB WD Black SN850X (NVMe PCIe 4.0) ( +1.428,57 EUR)

Selected base: without M.2 SSD 2 (upgradable later). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage M.2 SSD 3 options

• without M.2 SSD 3 (upgradable later)
• 500 GB WD_Blue SN5100 (NVMe PCIe 4.0) ( +113,45 EUR)
• 1 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +159,66 EUR)
• 2 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +277,31 EUR)
• 4 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +487,39 EUR)
• 2 TB Crucial P510 (NVMe PCIe 5.0) ( +294,12 EUR)
• 1 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +226,89 EUR)
• 2 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +361,34 EUR)
• 4 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +630,25 EUR)
• 2 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +294,12 EUR)
• 4 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +546,22 EUR)
• 8 TB WD Black SN850X (NVMe PCIe 4.0) ( +1.428,57 EUR)

Selected base: without M.2 SSD 3 (upgradable later). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage M.2 SSD 4 options

• without M.2 SSD 4 (upgradable later)
• 500 GB WD_Blue SN5100 (NVMe PCIe 4.0) ( +113,45 EUR)
• 1 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +159,66 EUR)
• 2 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +277,31 EUR)
• 4 TB WD_Blue SN5100 (NVMe PCIe 4.0) ( +487,39 EUR)
• 2 TB Crucial P510 (NVMe PCIe 5.0) ( +294,12 EUR)
• 1 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +226,89 EUR)
• 2 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +361,34 EUR)
• 4 TB Samsung 990 PRO (NVMe PCIe 4.0) ( +630,25 EUR)
• 2 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +294,12 EUR)
• 4 TB WD_Black SN7100 (NVMe PCIe 4.0) ( +546,22 EUR)
• 8 TB WD Black SN850X (NVMe PCIe 4.0) ( +1.428,57 EUR)

Selected base: without M.2 SSD 4 (upgradable later). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage (SATAIII, 6Gb/s) options

• without mass-storage (upgradable later)
• 1 TB SSD (Samsung 870 EVO / 2,5") ( +294,12 EUR)
• 2 TB SSD (Samsung 870 EVO / 2,5") ( +563,03 EUR)
• 4 TB SSD (Samsung 870 EVO / 2,5") ( +1.000,00 EUR)
• 2 TB HDD (Seagate / 7.200 rpm / SATAIII / 3.5") ( +58,82 EUR)
• 4 TB HDD (Seagate / 5.400 rpm / SATAIII / 3.5") ( +67,23 EUR)
• 4 TB HDD (Seagate PRO / 7.200 rpm / SATAIII / 3.5") ( +126,05 EUR)
• 8 TB HDD (Seagate / 7.200 rpm / SATAIII) ( +235,29 EUR)

Selected base: without mass-storage (upgradable later). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage 2 (SATAIII, 6Gb/s) options

• without additional mass-storage (upgradable later)
• 1000 GB HDD (Seagate Pro / 7.200 rpm / 2,5") ( +71,43 EUR)
• 2000 GB HDD (Seagate Thin / 5.400 rpm / 2,5") ( +84,03 EUR)
• 1 TB SSD (Samsung 870 EVO / 2,5") ( +294,12 EUR)
• 2 TB SSD (Samsung 870 EVO / 2,5") ( +563,03 EUR)
• 4 TB SSD (Samsung 870 EVO / 2,5") ( +1.000,00 EUR)

Selected base: without additional mass-storage (upgradable later). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mass-storage 3 (SATAIII, 6Gb/s) options

• without additional mass-storage (upgradable later)
• 1000 GB HDD (Seagate Pro / 7.200 rpm / 2,5") ( +71,43 EUR)
• 2000 GB HDD (Seagate Thin / 5.400 rpm / 2,5") ( +84,03 EUR)
• 1 TB SSD (Samsung 870 EVO / 2,5") ( +294,12 EUR)
• 2 TB SSD (Samsung 870 EVO / 2,5") ( +563,03 EUR)
• 4 TB SSD (Samsung 870 EVO / 2,5") ( +1.000,00 EUR)

Selected base: without additional mass-storage (upgradable later). Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Memory technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. Type: DDR5 DIMM | Manufacturer and speed see configurator | Default and maximum see configurator | Dual channel mode (with 2 or more modules)

Mass storage (SSD / HDD) technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. See "Storage connectors" under "Mainboard

Power supply options

Advertised base: Unpublished

• Ultra Silent 1000 (80+ Gold | 120mm | 1000 Watt | 100-240V | Full-Modular)
• Ultra Silent 1200 (80+ Gold | 120mm | 1200 Watt | 100-240V | Full-Modular) ( +21,01 EUR)

Selected base: Ultra Silent 1000 (80+ Gold | 120mm | 1000 Watt | 100-240V | Full-Modular). High efficient power supply | Maximum cooling | Optimal ventilation | Minimal noise Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Power supply incl. power cord options

Advertised base: Unpublished

• EU power cord | F C13
• UK power cord | G C13
• CH power cord | J C13
• IT power cord | L C13
• US power cord | B C13
• Without power cord & without charger

Selected base: EU power cord | F C13. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Slot 2 / Extensions options

• without expansion
• with 3x USB-A and 2x USB-C (USB 3.2 Gen2 / 1 PCIe Card) ( +49,58 EUR)
• with 4x USB-C 3.2 10GBit Addon-Card (1 PCIe Card) ( +49,58 EUR)
• with 1 additional LAN-Port (+1 Gbit RJ45 LAN-Port, 1 PCIe card) ( +20,92 EUR)
• with 2 additional LAN-Ports | Intel 82576 (+2 Gbit RJ45 LAN-Ports, 1 PCIe card) ( +32,77 EUR)
• with 2 additional 10G LAN-Ports | Intel X540 (+2 10Gbit RJ45 LAN-Ports, 1 PCIe card) ( +142,02 EUR)
• with additional 1x serial port + 1x parallel port ( +41,18 EUR)

Selected base: without expansion. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Slot 3 / Extensions options

• without expansion
• with 3x USB-A and 2x USB-C (USB 3.2 Gen2 / 1 PCIe Card) ( +49,58 EUR)
• with 1 additional LAN-Port (+1 Gbit RJ45 LAN-Port, 1 PCIe card) ( +20,92 EUR)
• with 2 additional LAN-Ports | Intel 82576 (+2 Gbit RJ45 LAN-Ports, 1 PCIe card) ( +32,77 EUR)
• with 2 additional 10G LAN-Ports | Intel X540 (+2 10Gbit RJ45 LAN-Ports, 1 PCIe card) ( +142,02 EUR)
• with additional 1x serial port + 1x parallel port ( +41,18 EUR)

Selected base: without expansion. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Ports technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. Front: | - 1x USB-C 3.1 Gen 2 | - 2x USB-A 3.0 | - Audio & microphone | Back: | Please refer to "Mainboard" section

Housing options

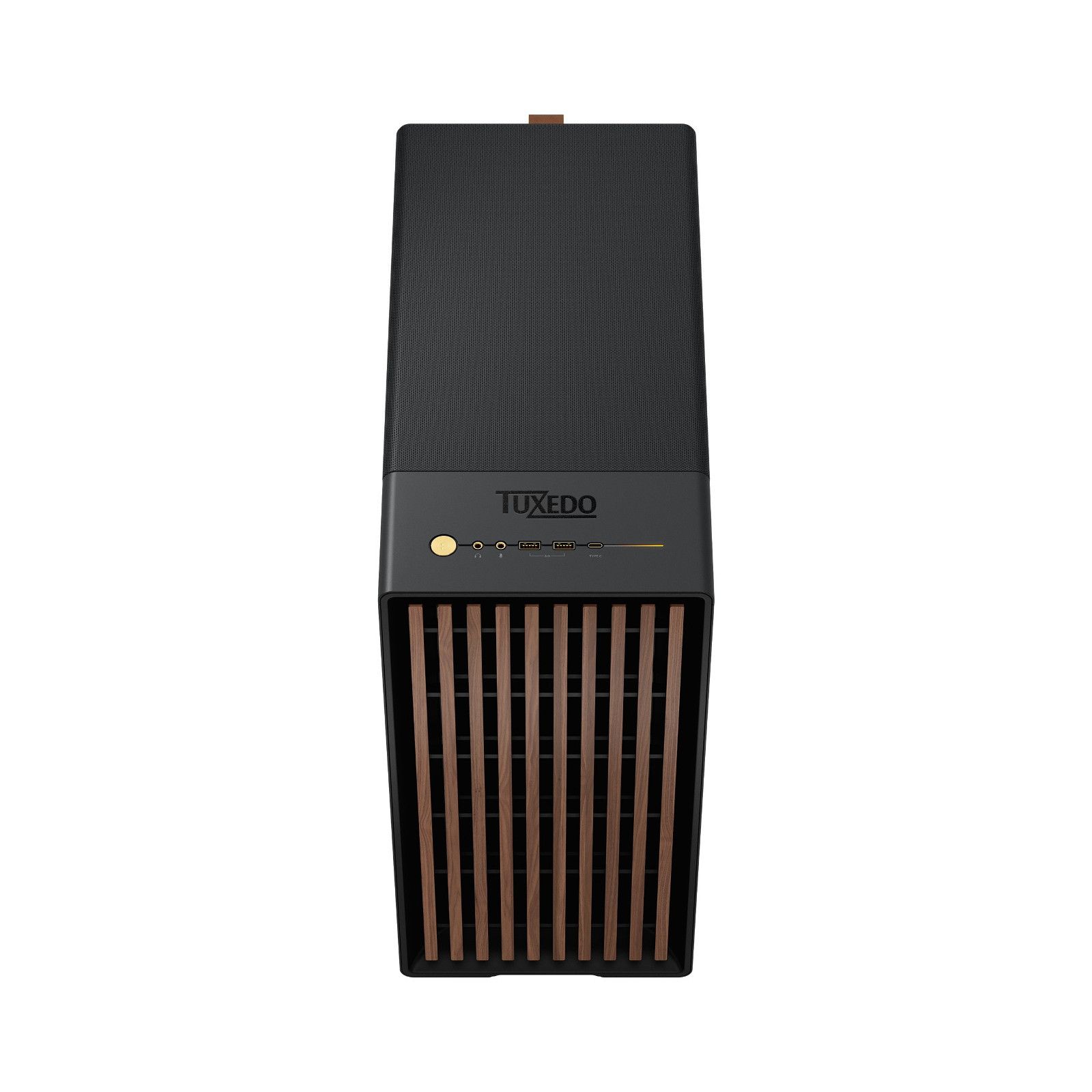

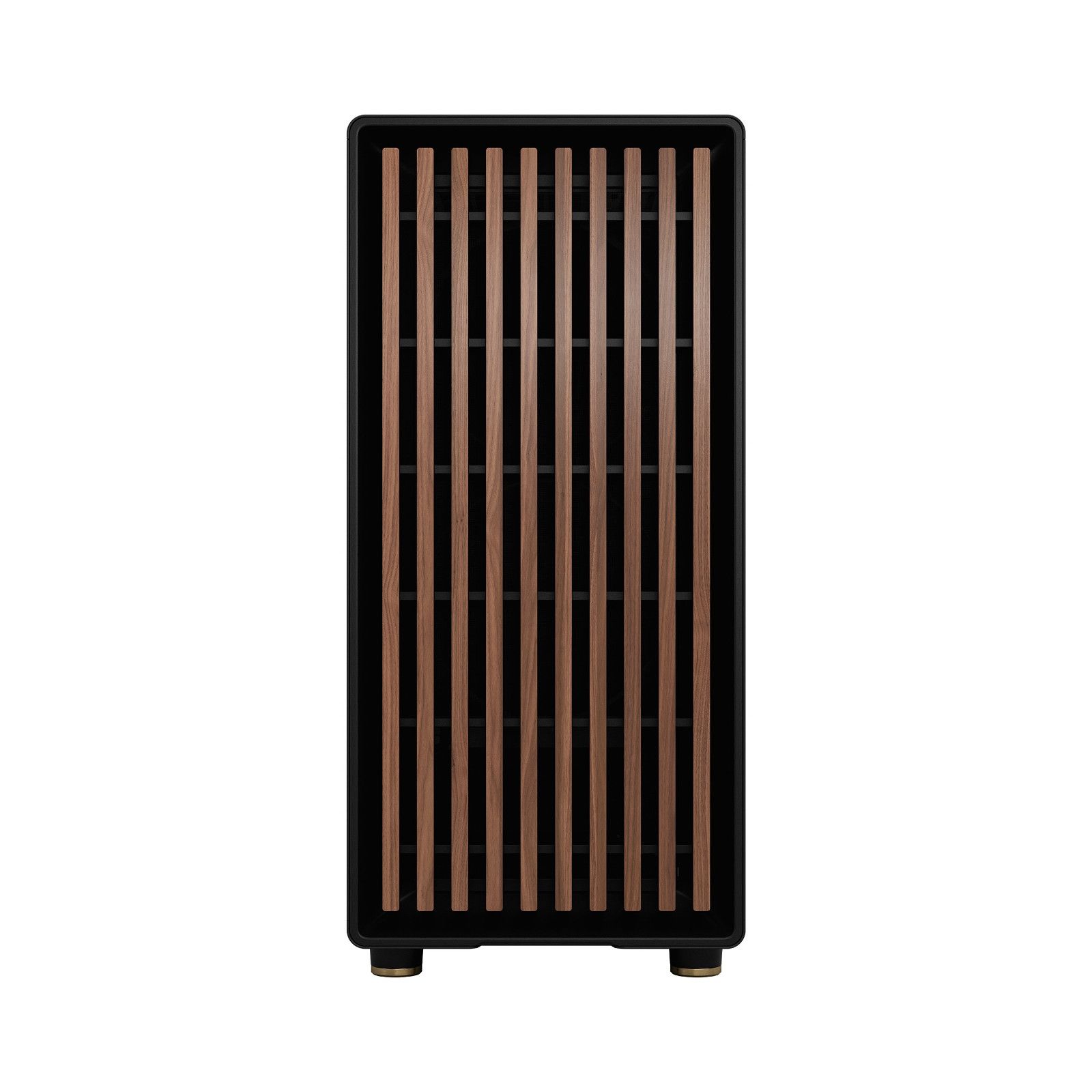

• Atlas XL Full-ATX Case | black | tempered glass

Selected base: Atlas XL Full-ATX Case | black | tempered glass. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mainboard Chipset incl. Wi-Fi options

• Intel Z890 Chipset incl. WLAN / Wi-Fi 6E & Bluetooth 5.3

Selected base: Intel Z890 Chipset incl. WLAN / Wi-Fi 6E & Bluetooth 5.3. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Mainboard technical details and limits

Official model technical wording, including component-dependent conditions and upgrade limits. Selected defaults and orderable choices are listed separately. Mainboard: | Manufacturer & Chipset: Intel Z890 Chipset | 256 Mbit AMI UEFI BIOS | Form Factor: ATX (30,5 x 24,4 cm) | Network / Ethernet / LAN | 1x LAN: | - 1x 5 Gigabit Realtek RTL8126 | - Supports Wake-On-LAN | - Supports PXE | Wireless LAN / WLAN / WIFI | Intel Wi-Fi 6E | - Supports MU-MIMO TX/RX | - Supports 802.11 a/b/g/n/ac/ax | - Supports Bluetooth 5.3 | Sound / Audio: | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | - High Definition Audio | - 2/4/5.1/7.1-channel | Rear Mainboard connectors: | 1x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED) | 1x DisplayPort 1.4 (max. 4K@60Hz) | 1x HDMI Port 2.1 (max. 4K@60Hz) | 1x USB-C USB 3.2 Gen2 10GBit/s | 1x USB-A USB 3.2 Gen2 10GBit/s | 2x USB-A USB 3.2 Gen1 5GBit/s | 4x USB-A USB 2.0 | 1x PS/2 | 2x Antenna connectors | 3x Audio jacks: 1x Line in; 1x Line-Out; 1x Mic-In | Mainboard connectors internally (partially populated by your configuration): | 4x DDR5 DIMM-Sockel | 1x PCI Express 5.0 x16 Slot, running at x16. Supports PCIe Bifurcation to x8+x8 or x8+x4+x4 | 2x PCI Express 4.0 x16 Slot, running at x4 | 1x PCI Express 4.0 x1 Slot | 4x SATA 6Gb/s connector(s) | 4x M.2 slots | 1x 4-pin CPU fan connector | 1x 4-pin water-pump/system fan connector | 5x 4-pin system fan connectors | 1x Front panel audio connector | 2x System panel connectors | 1x Chassis Intrusion connector | 1x TPM module connector | 1x 4-pin RGB LED connector | 3x 3-pin ARGB LED connectors | Storage connectors: | 1x M.2 Socket (M2_1) | - Supports M Key type 2260/2280 M.2 PCI Express module up to Gen5 x4 | 1x M.2 Socket (M2_2) | - Supports M Key type 22110/2260/2280 M.2 PCI Express module up to Gen4 x4 | 1x M.2 Socket (M2_3) | - Supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4 | 1x M.2 Socket (M2_4) | - Supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4 | 4x SATA 6Gb/s

Operating System Linux options

• TUXEDO OS (recommended)
• Ubuntu 26.04 LTS
• Ubuntu 24.04 LTS
• TUXEDO OS (ENCRYPTED)
• Ubuntu 26.04 LTS (ENCRYPTED)
• Ubuntu 24.04 (ENCRYPTED)
• without Linux

Selected base: TUXEDO OS (recommended). We are not pre-installing other distributions, but others are also compatible. Adding our repository as described here will usually do the trick! Due to our fully automated installation, an individual partitioning is not possible! TUXEDO OS is Ubuntu-based with KDE Plasma Desktop. Here we explain how our encrypted installation works. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Operating System Windows options

• without Windows
• Windows 11 Home 64Bit | Installation incl. license ( +125,21 EUR)
• Windows 11 Pro 64Bit | Installation incl. license ( +158,82 EUR)
• Windows 11 Home 64Bit | Installation without license ( +32,77 EUR)
• Windows 11 Pro 64Bit | Installation without license ( +32,77 EUR)

Selected base: without Windows. A crypted Linux- and Windows installation is technically not possible! Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Operating System Windows as virtual machine options

• without virtual Windows
• Windows 11 Home 64Bit as virtual machine within Linux incl. license ( +125,21 EUR)
• Windows 11 as virtual machine within Linux incl. Windows Pro License ( +158,82 EUR)
• Windows 11 Home as virtual machine within Linux without license ( +24,37 EUR)

Selected base: without virtual Windows. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Warranty options

• 2 years warranty (Incl. parts, labour & shipping)
• 3 years warranty (Incl. parts, labour & shipping) ( +125,21 EUR)
• 4 years warranty (Incl. parts, labour & shipping) ( +209,24 EUR)
• 5 years warranty (Incl. parts, labour & shipping) ( +293,28 EUR)

Selected base: 2 years warranty (Incl. parts, labour & shipping). You can check our warranty conditions here Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.

Assembling time options

• Assembled within 1-3 weeks when in stock

Selected base: Assembled within 1-3 weeks when in stock. Choices are scoped to this model and may depend on other selections. Optional slots, virtual OS installations and extras are not included unless selected.
