Winmate/Configurable

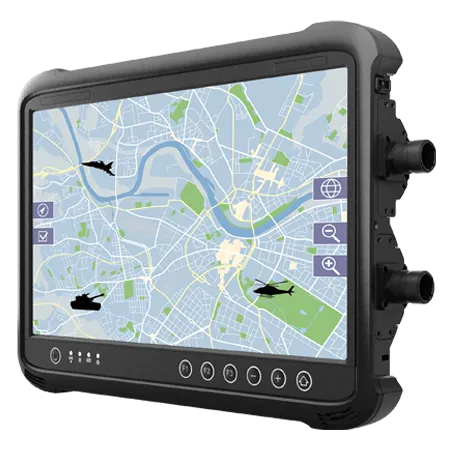

Winmate M133TGML(HB)
US · WINMATE-MODEL-M133TGML-OPEN-HB-CLOSE
BusinessConfigurable device · Advertised base configuration
Configurable modelWINMATE-MODEL-M133TGML-OPEN-HB-CLOSE
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:04.910440+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented processor specifications and options
- Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 4 GBSource & observationView specification source ↗Observed 2026-10-09T21:58:04.910440+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented memory specifications and options
- 4GB DDR4 SDRAM (Default)
- 8GB DDR4 SDRAM (Optional)
- 16GB DDR4 SDRAM (Optional)
- 32GB DDR4 SDRAM (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Documented storage specifications and options
- 128GB M.2 SSD
- up to
- 2TB M.2 SSD (Optional)
- Storage 2 up to 1x 2TB M.2 SSD (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 13.3 inSource & observationView specification source ↗Observed 2026-10-09T21:58:04.910440+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:04.910440+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Panel Brightness choices
- 500 nits(Default)
- 800 (Optional)
Optional screen hardware is separate from the stated native screen.
Manufacturer options ↗Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:04.910440+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Power supply | Power Rating: 24V DC(MIL-STD-38999/1 connector) · Adapter: 100-240V, 50-60Hz / 24V DCSource & observationView specification source ↗Observed 2026-10-09T21:58:04.910440+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Connectivity▾
| Ports | USB Port: 3 x USB 3.0(Type A), 1 x USB 2.0(MIL-STD-38999 connector),1 x USB 3.1(Type C) · Serial Port: 1 x RS-232 Serial COM Port(MIL-STD-38999 connector) · LAN: 1 x RJ45-10/100/1000 Mbps LAN(MIL-STD-38999 connector) · Audio: 2 x 1 watt speaker Integrated Digital Mic With Noise Cancellation · SD Card Slot: 1 x Micro SD Card Slot · Indicator: 4x LED Indicator for Power, Battery, SSD, RF status · Docking Connector: 1 x Docking connectorSource & observationView specification source ↗Observed 2026-10-09T21:58:04.910440+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
WWAN choices
- 4G/ LTE(optional)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗Build & Physical▾
| Weight | 2400 gSource & observationView specification source ↗Observed 2026-10-09T21:58:04.910440+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Dimensions | Dimension: 338.2 x 239.8 x 47.3 mmSource & observationView specification source ↗Observed 2026-10-09T21:58:04.910440+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Software & Bundle▾
| Operating system | Windows 10 IoT Enterprise 64 bitSource & observationView specification source ↗Observed 2026-10-09T21:58:04.910440+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Included bundle | Adapter and PowerCord · Standard Battery · Stylus · Stand with Integrated Handle · Power/RS232 External Cable · LAN/USB2.0 External CableSource & observationView specification source ↗Observed 2026-10-09T21:58:04.910440+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Panel Brightness choices
- 500 nits(Default)
- 800 (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Shock choices
- USA: MILSTD810H Method 516.8 Procedure I
- NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP
- 402–Procedure I (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Vibration choices
- USA: MILSTD810H Method 514.8 Procedure I
- NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP
- 401–Procedure I (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Drop choices
- USA: MILSTD810H Method 516.8, 4 ft
- NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 404– Procedure II, 4 ft (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗TEMPEST choices
- USA: NSA NSTISSAM TEMPEST/192 (Optional)
- NATO: SDIP27 (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Optional Accessory choices
- Shoulder Strap (Optional)
- Battery Charger (Optional)
- Active Pen (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
