Winmate/Configurable

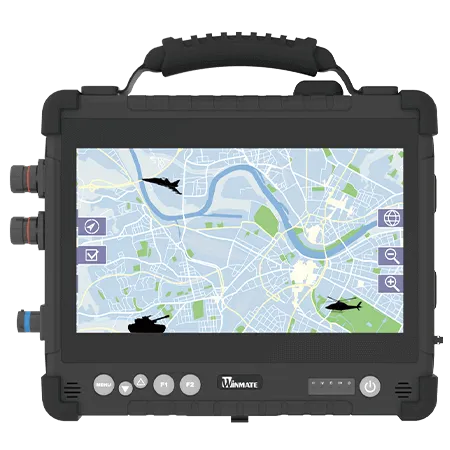

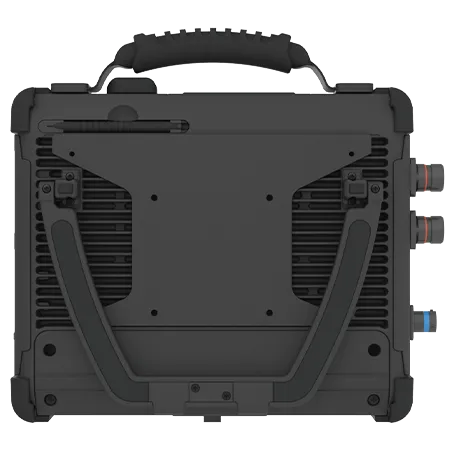

Winmate R10IP8M-RTT2ML
US · WINMATE-MODEL-R10IP8M-RTT2ML
BusinessConfigurable device · Advertised base configuration
Configurable modelWINMATE-MODEL-R10IP8M-RTT2ML
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented processor specifications and options
- Intel Pentium N4200 1.1GHz (up to 2.5GHz)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 4 GBSource & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented memory specifications and options
- SO-DIMM, 4GB DDR3L 1866 MHz (Default)
- SO-DIMM, 8GB DDR3L 1866 MHz (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Documented storage specifications and options
- 64GB M.2 SSD (Default)
- 128GB M.2 SSD (Optional)
- 256GB M.2 SSD (Optional)
- 512GB M.2 SSD (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 10.4 inSource & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Resolution | 1024x768 pxSource & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Power supply | Power Rating: 9-36V DC in (MIL-DTL-38999/1 connector) · Adapter: 100-240V, 50-60Hz / 19V DCSource & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Connectivity▾
| Ports | USB Port: 2 x USB 3.0, 1 x USB 2.0(MIL-STD-38999 connector) · Serial Port: 1 x RS232/RS422 · Serial Port: Serial COM Port(MIL-STD-38999 connector) · LAN: 1 x RJ45-10/100/1000 Mbps LAN(MIL-STD-38999 connector) · Audio: 2 x 1 Watt Speaker · SD Card Slot: 1 x Micro SD Card Slot · SIM Card Slot: 1 x Micro SIM Card Slot · Indicator: 4x LED Indicator for Power, Battery, SSD, RF statusSource & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
WWAN choices
- 4G/ LTE or 3G (Optional)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗GNSS choices
- Supports GPS (Default)
- GLONASS, Galileo, BeiDou (Optional)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗Build & Physical▾
| Weight | 2400 gSource & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Dimensions | Dimension: 266 x 222 x 50 mmSource & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Software & Bundle▾
| Operating system | Windows 10 IoT Enterprise (64 bit)Source & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Included bundle | Adapter and PowerCord · Standard Battery · Stylus · Stand with Integrated Handle · Power/RS232 External Cable · LAN/USB2.0 External CableSource & observationView specification source ↗Observed 2026-10-09T21:58:05.321568+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Shock choices
- USA: MILSTD810H Method 516.8 Procedure I
- NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP
- 402–Procedure I (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Vibration choices
- USA: MILSTD810H Method 514.8 Procedure I
- NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP
- 401–Procedure I (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Drop choices
- USA: MILSTD810H Method 516.8, 4 ft
- NATO: STANAG 4370/AECTP400 Edition 3 Method AECTP 404– Procedure II, 4 ft (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗TEMPEST choices
- USA: NSA NSTISSAM TEMPEST/192 (Optional)
- NATO: SDIP27 (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Optional Accessory choices
- Kickstand (Optional)
- Vehicle Charger (Optional)
- Battery Charger (Optional)
- Shoulder Strap (Optional)
- Carry Bag (Optional)
- Stylus (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Front Camera choices
- 2MP Front Camera (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Rear Camera choices
- 5MP Rear Camera with auto-focus (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
