Winmate/Configurable

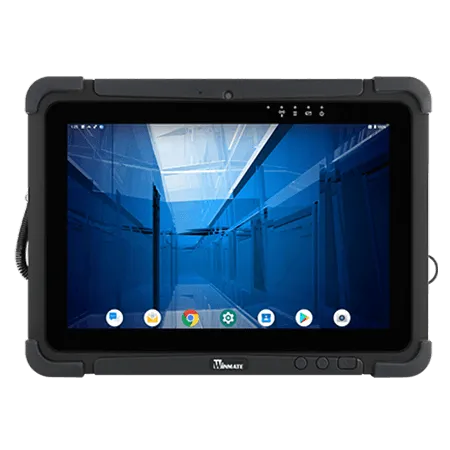

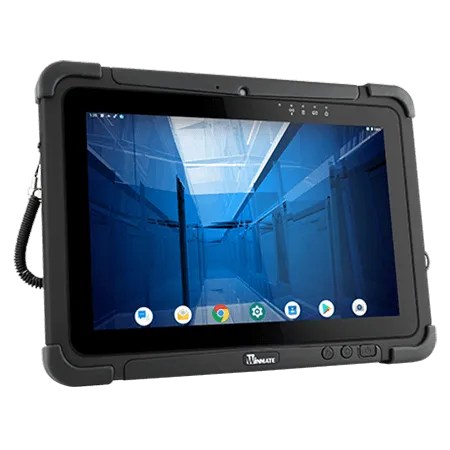

Winmate M101Q9
US · WINMATE-MODEL-M101Q9
BusinessConfigurable device · Advertised base configuration
Configurable modelWINMATE-MODEL-M101Q9
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
| Graphics | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented processor specifications and options
- Qualcomm 6490, Octa-Core, up to 2.7GHz
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 8 GBSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Total storage | 128 GBSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 10.1 inSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Resolution | 1920x1200 pxSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Power supply | Power Rating: 19V · Adapter: 19V 3.42A AdapterSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Connectivity▾
| Ports | USB Port: 1 x USB 3.0 Type C OTG · USB Port: (Type C support Power Delivery) · USB Port: 1 x USB 2.0 Type A · Audio: 1 x Audio Combo connector (Mic in or Line Out) · Audio: 1 x Built-in Mic · Audio: 2 x Speaker · SD Card Slot: 1 x Micro SD Card Slot · SIM Card Slot: 1 x SIM Card Slot · Indicator: 1 x LED Indicators · Indicator: (Power, Battery) · Docking Connector: 1 x Docking ConnectorSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
WWAN choices
- 4G (Optional)
- 5G (Optional)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗Build & Physical▾
| Weight | 1200 gSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Dimensions | Dimension: 271.9 x 197.3 x 19.5 mmSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Software & Bundle▾
| Included bundle | Adapter and Power Cord · Standard Battery · Capacitive StylusSource & observationView specification source ↗Observed 2026-10-09T21:58:04.121043+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented operating system specifications and options
- Android 15.0 (Default)
- Android 13.0 (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗RFID choices
- NFC (Read / Write, Peer to Peer mode) (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Weight choices
- 1.2 kg (2.65 lbs) with standard battery,
- 1.4 kg (3.1 lbs) with optional high capacity battery
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Battery choices
- 7.7V, typ. 5900 mAh LiPolymer Battery (2S1P) (Default)
- 7.4V, typ. 10280 mAh LiPolymer Battery (2S2P) (Optional)
- Warm swappable function (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Optional Accessory choices
- High Capacity Battery
- Desk Dock
- Vehicle Dock
- Vehicle Cradle
- Battery Charger
- Vehicle Charger
- Metal Vehicle Dock
- Hand Strap
- VESA Mount Kit
- Shoulder Strap
- Carry Bag
- Micro SD Card
- USB-C to HDMI Adapter
- Stand with Integrated Handle
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Barcode Scanner choices
- 1D/2D Barcode Reader (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
