Winmate/Configurable

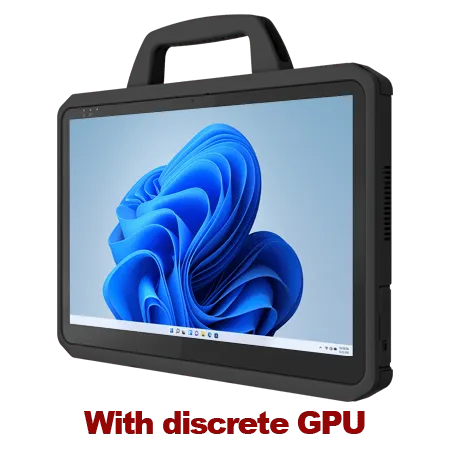

Winmate M156AD-M3
US · WINMATE-MODEL-M156AD-M3
BusinessConfigurable device · Advertised base configuration
Configurable modelWINMATE-MODEL-M156AD-M3
The hardware
Full Specifications
Configuration choices and fixed specifications. Upgrade limits do not guarantee an orderable choice.
Performance — CPU / GPU▾
Documented processor specifications and options
- Intel Core i5-1235U (up to 4.4GHz)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Graphics choices
Advertised base: Unpublished
- M3: A500 MXM Graphic card (Optional)
Optional graphics is separate from the stated default.
Manufacturer options ↗Memory & Storage▾
| Installed RAM | 8 GBSource & observationView specification source ↗Observed 2026-10-09T21:58:01.408027+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented memory specifications and options
- 8+8GB (Default)
- 16+16GB (Optional)
- 32+32GB (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Documented storage specifications and options
- 128GB SSD (Default)
- 256GB SSD (Optional)
- 512GB SSD (Optional)
- 1TB SSD (Optional)
- 2TB SSD (Optional)
- 2nd storage available with up to 2TB SSD (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Display▾
| Screen technology | Unpublished |
|---|---|
| Size | 15.6 inSource & observationView specification source ↗Observed 2026-10-09T21:58:01.408027+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
| Refresh rate | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:01.408027+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Panel Brightness choices
- 800 nits(Default)
- 1000 (Optional)
Optional screen hardware is separate from the stated native screen.
Manufacturer options ↗Battery & Power▾
| Battery capacity | UnpublishedSource & observationView specification source ↗Observed 2026-10-09T21:58:01.408027+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Power supply | Power Rating: 19V DC · Adapter: 100-240V, 50-60Hz, 230W / 20V DCSource & observationView specification source ↗Observed 2026-10-09T21:58:01.408027+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Connectivity▾
WWAN choices
- 4G LTE (Optional)
- 5G (Optional)
Optional radios, antennas and cellular service are not included by default.
Manufacturer options ↗Video choices
- 2 x HDMI 4K Output (Optional)
Optional connectors and dock-specific interfaces retain their source scope and mutual exclusions.
Manufacturer options ↗Build & Physical▾
| Weight | 2800 gSource & observationView specification source ↗Observed 2026-10-09T21:58:01.408027+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|---|
| Dimensions | Dimension: 387.7 x 256.1 x 27.5 mmSource & observationView specification source ↗Observed 2026-10-09T21:58:01.408027+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
Software & Bundle▾
| Included bundle | Adapter and Power Cord · Capacitive Stylus · Top Handle · Standard BatterySource & observationView specification source ↗Observed 2026-10-09T21:58:01.408027+00:00 Exact official model technical rows; stated defaults separated from optional hardware |
|---|
Documented operating system specifications and options
- Windows 11 IoT Enterprise LTSC (64 bit) (Default)
- Windows 10 IoT Enterprise LTSC (64 bit) (Optional)
Official default is used only when stated or unambiguous. Optional capacities, additional drives and OS alternatives are not installed base hardware. Capacity limits are capabilities, not confirmation that every intermediate size is orderable. Source conditions apply; confirm the ordered combination with Winmate.
Manufacturer options ↗Panel Brightness choices
- 800 nits(Default)
- 1000 (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗RFID choices
- HF RFID reader 13.56 MHz (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗EMC choices
- MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default) (Default)
- MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Optional Accessory choices
- Spare Battery (Optional)
- High Capacity Battery (Optional)
- Battery Charger (Optional)
- Kick-stand (Optional)
Source wording and mutual exclusions retained. Optional modules, mounts, batteries and external accessories are not included by default.
Manufacturer options ↗Independent testing
No published tests or reviewsBenchmarks & Reviews
No test results available (for now). A buying verdict is unavailable for this exact configuration.
